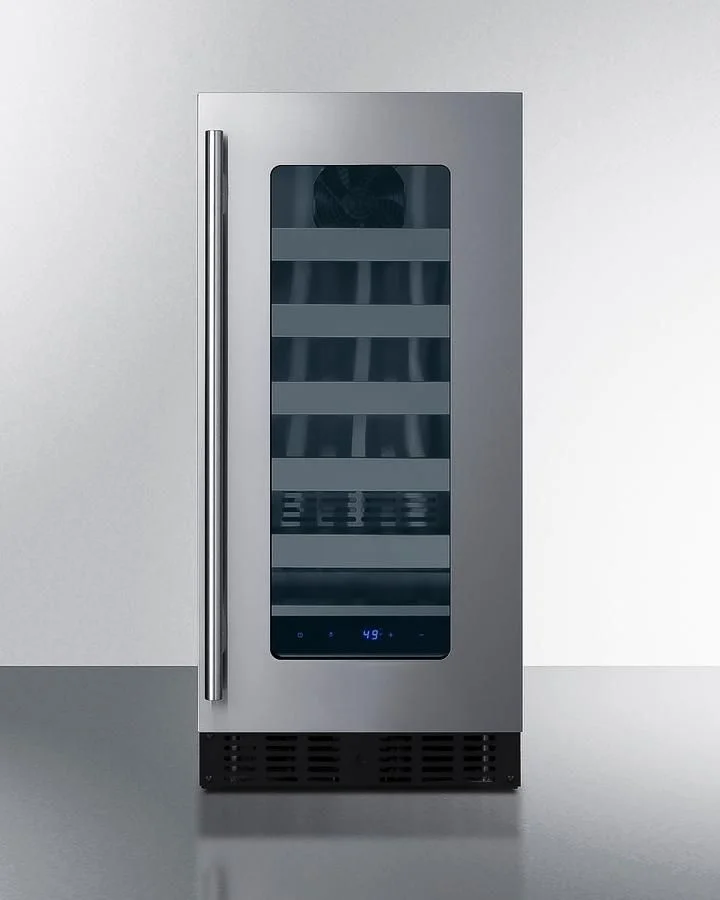

Summit 15" Built-In Compact Glass Door Single Zone Undercounter Wine Cooler, 1.8 cu. ft. Capacity

SKU: ASDW1522
  • Width: 14.75"
  • Height: 32.00"
  • Depth: 19.63"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • Sabbath Mode: Yes
  • ADA Compliant: Yes
  • Total Capacity: 1.80 cu. ft.
  • Defrost: Automatic
  • Type: Built-In
  • Style: Compact/Glass Door/Single Zone/Undercounter
  • Icemaker: No
  • Dispenser: No
  • Refrigerator Capacity: 1.8 cu. ft.
  • Number of Shelves: 5
Summit | Authorized Dealer
In Stock|Only 1 left

Estimates for:

Protect Your Item

$1,845.00
EARN 1,845 POINTS (sign in / sign up for free)

Protect Your Item

PRODUCT DESCRIPTION

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW1522 is a 15" wide single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW1522 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41 and 64 F to accommodate red, white, or sparkling wine. Store bottles on the removable steel shelves complete with stainless steel front trim. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDW1522 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDG1521 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

32.0" (81 cm)

Nominal Width

15.0" (38 cm)

Width

14.75" (37 cm)

Nominal Depth

18.0" (46 cm)

Depth

17.75" (45 cm)

Depth with Handle

19.63" (50 cm)

Depth with door at 90(degree)

31.0" (79 cm)

Capacity

1.8 cu.ft. (51 L)

Bottles

18 bottles

Defrost Type

Automatic

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

68.0 lbs. (31 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101079516

Number of Zones

1

Door Swing

RHD

Reversible

Yes

Height Adjustable

Yes

Adjustable Shelves

Yes

Shelf Type

Steel

Shelf Qty

5

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.64 oz.

High Side PSI

270.0

Low Side PSI

105.0

Interior Height 1

20.5" (52 cm)

Interior Width 1

10.75" (27 cm)

Interior Depth 1

12.25" (31 cm)

Compressor Step Height

3.75" (10 cm)

Compressor Step Width

10.75" (27 cm)

Compressor Step Depth

5.0" (13 cm)

Level Legs

4

Temperature Range

41 to 64 F

Sabbath Mode

Yes

Sound Level

33 dB

GTIN

00761101079516

EAN

0761101079516

UPC

761101079516

Single zone wine cooler for residential or commercial cold storage

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Elegant design offers a clear but protected view of your interior

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Keyed lock for a secure interior (2 keys included)

Stainless steel handle completes the look

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

No-frost operation for minimum user maintenance

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

Alarm sounds if the door is left open for more than 60 seconds

Audible alarm sounds if the interior temperature rises out of set range

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Unit will retain its last settings when power is restored in the event of power loss

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Space-saving design with no exposed coils that offers easier cleanability

Smoother opening and a better fit with an integrated European hinge

User-reversible door swing on the refrigerator for added flexibility

Allows the unit to be used freestanding

ETL-S listed to NSF-7 Standards for use in commercial establishments

Environmentally friendly design with no ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Sized at 32" high for use under lower ADA compliant counters

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
