Summit 23" Built-In Undercounter Refrigerator, 3.1 cu. ft. Capacity

SKU: ASDR2414PNR
  • Style: Undercounter
  • Width: 23.38"
  • Height: 32.00"
  • Depth: 17.88"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • ADA Compliant: Yes
  • Total Capacity: 3.10 cu. ft.
  • Defrost: Frost-Free
  • Type: Built-In
  • Icemaker: No
  • Dispenser: No
  • Refrigerator Capacity: 3.1 cu. ft.
  • Number of Shelves: 0
  • Counter Depth: Yes
Summit | Authorized Dealer
Pre-Order

Estimates for:

Protect Your Item

$2,605.00
EARN 2,605 POINTS (sign in / sign up for free)

Protect Your Item

GET READY FOR INSTALLATION

PRODUCT DESCRIPTION

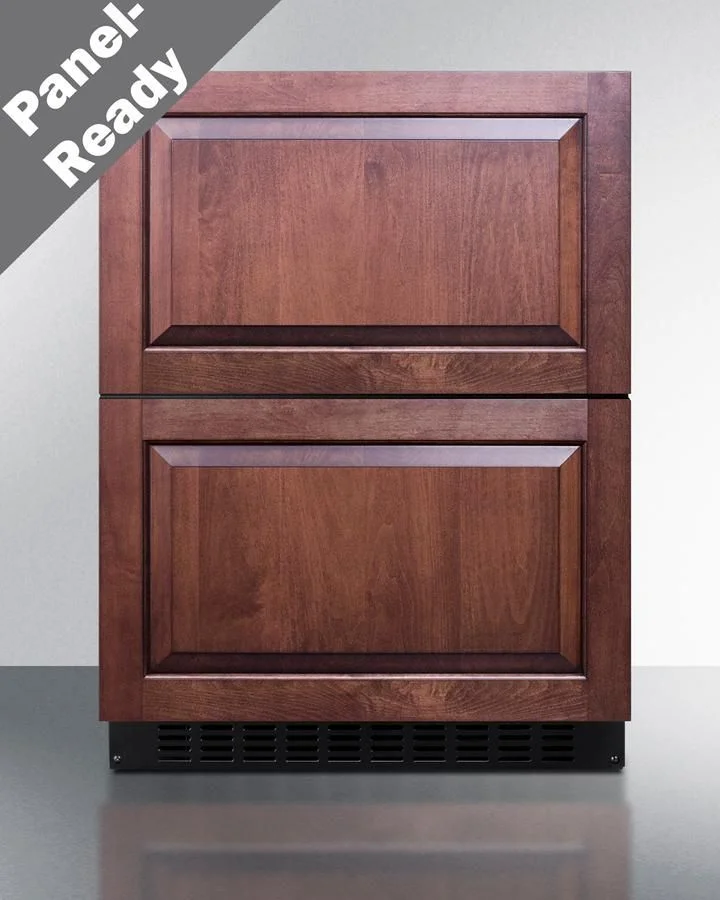

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDR2414PNR is a 24" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included for optional use. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. Inside, the ASDR2414PNR has a generous 3.1 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for easy organization. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ASDR2414PNR refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in a variety of styles, including 15", 19", and 24" widths, as well as outdoor refrigerators, wine cellars, and more.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

32.0" (81 cm)

Nominal Width

24.0" (61 cm)

Width

23.38" (59 cm)

Nominal Depth

18.0" (46 cm)

Depth

17.88" (45 cm)

Depth with door at 90(degree)

29.63" (75 cm)

Capacity

3.1 cu.ft. (88 L)

Defrost Type

Frost-Free

Door

Stainless Steel/Panel-Ready

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Energy Usage/Year

285.0kWh/year

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

106.0 lbs. (48 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101088938

Sabbath Mode

Yes

Door Swing

Drawer

Height Adjustable

Yes

Thermostat Type

Digital

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.38oz.

High Side PSI

270.0

Low Side PSI

105.0

Level Legs Qty

4

Interior Light

Yes

Temperature Range

36 to 43 F

Sound Level

33 dB

Interior Height 1

8.0" (20 cm)

Interior Width 1

17.63" (45 cm)

Interior Depth 1

11.25" (29 cm)

Interior Height 2

8.0" (20 cm)

Interior Width 2

17.63" (45 cm)

Interior Depth 2

11.25" (29 cm)

Compressor Step Height

3.75" (10 cm)

Compressor Step Width

17.63" (45 cm)

Compressor Step Depth

4.75" (12 cm)

GTIN

00761101088938

EAN

0761101088938

UPC

761101088938

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look

Sleek stainless steel handles add an elegant touch to any setting

No-frost operation for minimum user maintenance

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

Provides for efficient, even cooling of the entire unit

Two adjustable dividers provide flexibility when organizing the interiors

Audible alarm will sound if either drawer is left open longer than one minute

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Disables digital controls after two minutes of activity for added safety

Unit will restore the most recent temperature settings after losing power

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Space-saving design with no exposed coils for easier cleanability

Allows the unit to be used freestanding

Included and recommended for user-installation to reduce the risk of tipping

ETL-S listed to NSF-7 standards to allow use in commercial establishments

Environmentally friendly design with no ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
