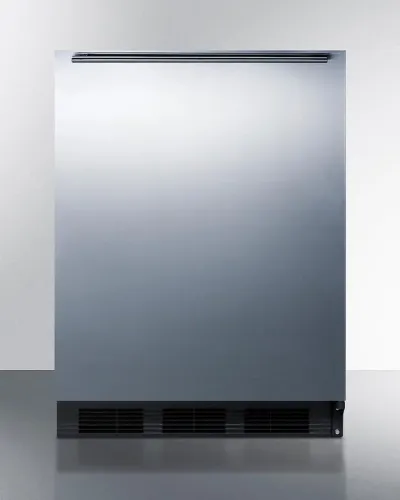

SUMMIT AR5BS | 24" Built-In Compact Refrigerator, 5.5 cu. ft. Capacity

Name: Summit AR5BS 24" Built-In Compact Refrigerator, 5.5 cu. ft. Capacity
Brand: Summit
SKU: AR5BS
Price: 1710.00 USD
Availability: InStock
Rating: 3.0 (14 reviews)

PRODUCT DESCRIPTION

SUMMIT offers the industry s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24 footprint and 32 height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a pre-installed stainless steel handle in a sleek 14mm diameter mounted horizontally across the top of the door. Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

32.0" (81 cm)

Height to Hinge Cap

32.25" (82 cm)

Nominal Width

24.0" (61 cm)

Width

23.63" (60 cm)

Nominal Depth

23.0" (58 cm)

Depth

23.0" (58 cm)

Depth with door at 90(degree)

45.38" (115 cm)

Capacity

5.5 cu.ft. (156 L)

Defrost Type

Automatic

Door

Stainless Steel

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Energy Usage/Year

307.0kWh/year

Amps

1.4

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101068268

Door Swing

RHD

Reversible

Yes

Shelf Type

Glass

Shelf Qty

Full Door Shelf Qty

Adjustable Shelves

Yes

Wine Bottle Shelves

Yes

Thermostat Type

Dial

Fan Type

Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.64oz.

High Side PSI

180.0

Low Side PSI

80.0

Interior Light

Yes

Interior Height

26.25" (67 cm)

Interior Width

21.0" (53 cm)

Interior Depth

18.0" (46 cm)

Compressor Step Height

5.5" (14 cm)

Compressor Step Width

21.0" (53 cm)

Compressor Step Depth

6.0" (15 cm)

GTIN

00761101068268

EAN

0761101068268

UPC

761101068268

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Durable design with lasting elegance

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Reduced maintenance with auto defrost system

Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Store tall bottles and condiments right on the door for convenient access

Removable scalloped wine shelf is included to store champagne and wine bottles

Automatically illuminates when you open the door

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

User-reversible door swing for added flexibility

Allows the unit to be used freestanding

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Environmentally friendly design without ozone-damaging chemicals
