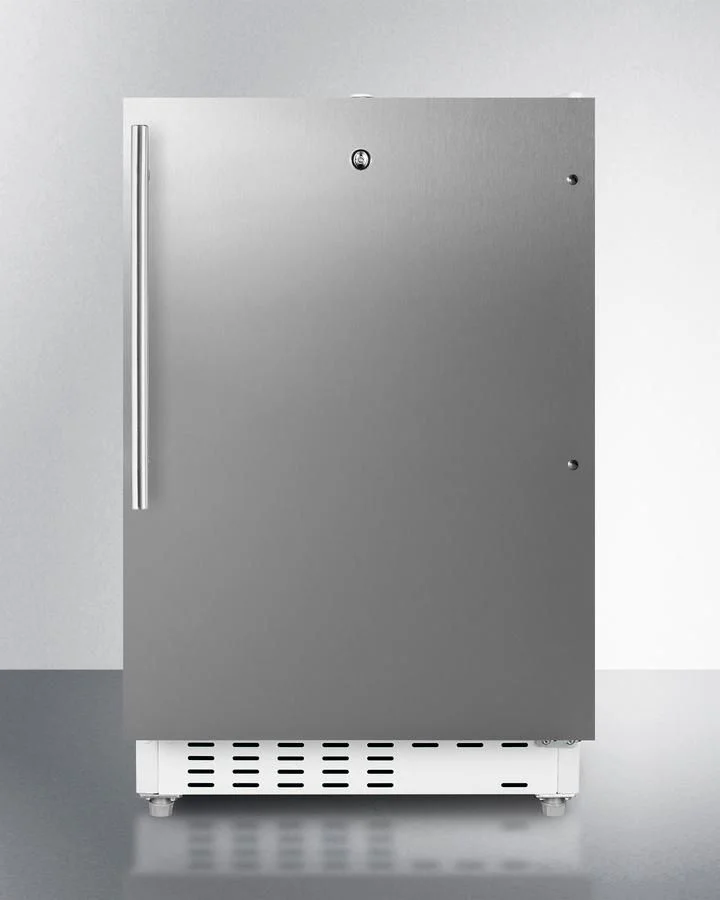

Summit 20" Built-In Compact Refrigerator, 2.7 cu. ft. Capacity

SKU: ALRF48CSSHV
  • Style: Compact
  • Width: 19.88"
  • Height: 32.00"
  • Depth: 24.00"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • ADA Compliant: Yes
  • Total Capacity: 2.68 cu. ft.
  • Defrost: Manual
  • Type: Built-In
  • Icemaker: No
  • Dispenser: No
  • Counter Depth: No
  • Number of Shelves: 3
Summit | Authorized Dealer
Pre-Order

Estimates for:

Protect Your Item

$1,975.00
EARN 1,975 POINTS (sign in / sign up for free)

Protect Your Item

GET READY FOR INSTALLATION

PRODUCT DESCRIPTION

Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALRF48CSSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed. Inside, the ALRF48CSSHV features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover. With its compact size and convenient features, the ALRF48CSSHV is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

31.75" (81 cm)

Height to Hinge Cap

32.0" (81 cm)

Nominal Width

21.0" (53 cm)

Width

20.88" (53 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.5" (57 cm)

Depth with Handle

24.0" (61 cm)

Depth with door at 90(degree)

40.25" (102 cm)

Capacity

2.68 cu.ft. (76 L)

Defrost Type

Manual

Door

Stainless Steel

Cabinet

Stainless Steel

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Energy Usage/Year

259.0kWh/year

Amps

1.1

Voltage/Frequency

115 V AC/60 Hz

Weight

105.0 lbs. (48 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101076850

Door Swing

RHD

Reversible

Yes

Adjustable Shelves

Yes

Crisper Qty

1

Crisper Finish

Transparent

Crisper Cover

Glass

Interior Light

Yes

Refrigerator - Interior Height

17.5" (44 cm)

Refrigerator - Interior Width

16.25" (41 cm)

Refrigerator - Interior Depth

17.0" (43 cm)

Refrigerator - Shelf Type

Glass

Refrigerator - Shelf Qty

3

Refrigerator - Full Door Shelves

3

Refrigerator - Temperature Range

35-46 F

Refrigerator - Refrigerant Type

R600a

Refrigerator - Refrigerant Amount

0.92 oz.

Freezer - Interior Height

5.75" (15 cm)

Freezer - Interior Width

16.25" (41 cm)

Freezer - Interior Depth

11.25" (29 cm)

Thermostat Type

Dial

Refrigerant Type

R600a

Refrigerant Amount

0.92 oz.

High Side PSI

180.0

Low Side PSI

80.0

Level Legs

2

Compressor Step Height

6.25" (16 cm)

Compressor Step Width

16.25" (41 cm)

Compressor Step Depth

6.0" (15 cm)

Sound Level

32.9 dB

GTIN

00761101076850

EAN

0761101076850

UPC

761101076850

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Interior freezer compartment offers convenient storage for frozen items

Three removable door racks for additional storage of larger items

Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Dial thermostat located inside for easy temperature management

Stainless steel, user-reversible door for added flexibility to best accommodate your setting

Improved insulation for an efficient performance

Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look

Lock provides added security of unit (2 keys included)

Space-saving design that offers easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Efficient performance with reliable temperature stability

Front-located LED light ensures entire interior is lit when door opens

Allows the unit to be used freestanding

Environmentally friendly design with no ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
