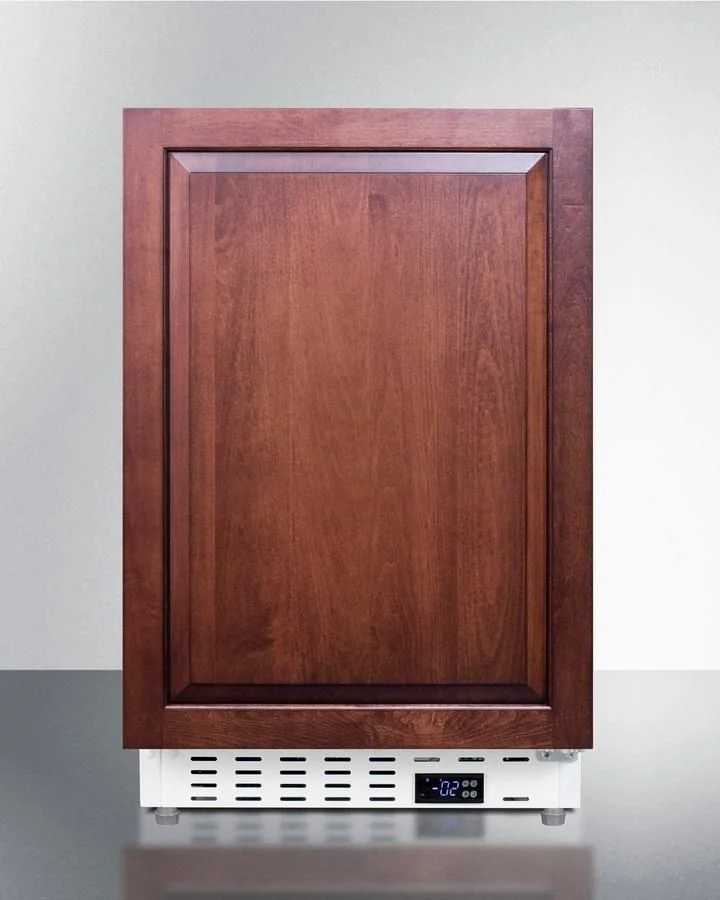

Summit 20" Built-In Upright Freezer, 2.7 cu. ft. Capacity

SKU: ALFZ36IF
  • Style: Upright
  • Type: Built-In
  • Width: 20.25"
  • Height: 32.00"
  • Depth: 24.38"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • ADA Compliant: Yes
  • Total Capacity: 2.68 cu. ft.
  • Defrost: Manual
Summit |Authorized Dealer
In Stock
$1,530.00
Sign in / Sign up to earn 1,530 points (
$38.25
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALFZ36IF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALFZ36IF features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALFZ36IF is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR46WIF all-refrigerator. Additional choices are available in complete stainless steel and white exterior finishes.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

31.75" (81 cm)

Height to Hinge Cap

32.0" (81 cm)

Nominal Width

21.0" (53 cm)

Width

20.25" (51 cm)

Nominal Depth

23.0" (58 cm)

Depth

23.0" (58 cm)

Depth with Handle

24.38" (62 cm)

Depth with door at 90(degree)

40.25" (102 cm)

Capacity

2.68 cu.ft. (76 L)

Defrost Type

Manual

Door

Panel-Ready

Cabinet

White

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Energy Usage/Year

266.0kWh/year

Amps

0.6

Voltage/Frequency

115 V AC/60 Hz

Weight

75.0 lbs. (34 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101076720

Door Swing

RHD

Reversible

Factory Reversible

Interior Height

23.75" (60 cm)

Interior Width

14.5" (37 cm)

Interior Depth

17.0" (43 cm)

Shelf Type

Wire

Shelf Qty

3

Full Door Shelves

3

Adjustable Shelves

Yes

Thermostat Type

Digital

Fan Type

Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.83 oz.

High Side PSI

180.0

Low Side PSI

80.0

Level Legs

2

Wheels

2

Compressor Step Height

5.75" (15 cm)

Compressor Step Width

14.5" (37 cm)

Compressor Step Depth

6.0" (15 cm)

Temperature Range

-13 to 5 F

Sound Level

33.1 dBa

GTIN

00761101076720

EAN

0761101076720

UPC

761101076720
