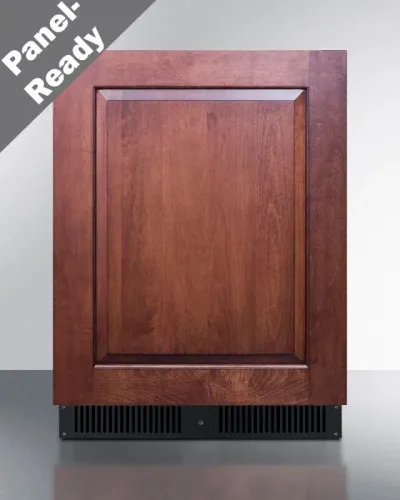

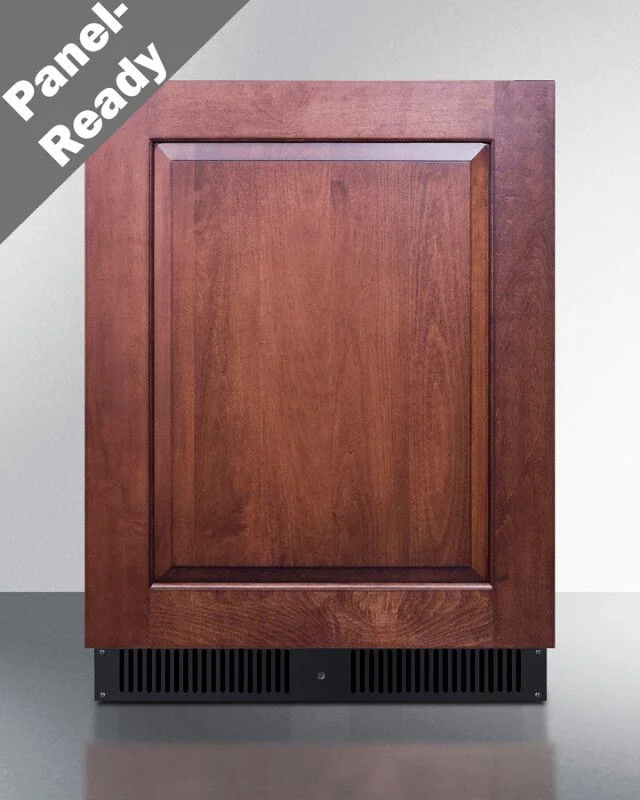

Summit 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) in Panel Ready

SKU: AL54PNRLHD
  • Total Capacity: 4.40 cu. ft.
  • Defrost: Frost-Free
  • Sabbath Mode: Yes
Summit |Authorized Dealer
In Stock

color: Panel Ready

Summit AL54PNRLHD
  • 24" Wide ADA Height All-Refrigerator
  • Custom style
  • ADA compliant design
  • Built-in capable
  • Panel-ready door
Learn More

PRODUCT DESCRIPTION

Summit's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54PNRLHD is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate. Note: this unit ships with a left-hand door swing. Inside, the AL54PNRLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments and bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.

Features

24" Wide ADA Height All-Refrigerator

Panel-ready refrigerator sized at 32" high for built-in installation under ADA compliant counters

Custom style

Door accepts overlay panel, allowing you to seamlessly blend the refrigerator into your space

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Panel-ready door

Customize this unit using the included 2-piece bracket system (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

Easy panel installation with included 2-piece bracket kit

Enhanced panel execution allows the unit to be flush with cabinets

Stainless steel door

Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

Fully articulating hinge

European style hinge design ensures a flush fit and allows for a smoother opening

Frost-free operation

No-frost operation for minimum user maintenance

Digital thermostat

Electronic controls located inside the unit for precise temperature management

Recessed LED light

Efficient and attractive presentation with LED lighting

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage

Two removable door racks offer convenient storage for condiments and bottles

Bottle slots

Floor is specially slotted to store wine and other bottles safely in place

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 96 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Factory-installed lock

Keyed lock located in the kickplate for optional security

Sealed back

Space-saving design that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Left-hand door swing

For this unit with the door opening from the other side, see model AL54PNR

Matching freezer

Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

32.0" (81 cm)

Nominal Width

24.0" (61 cm)

Width

23.38" (59 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.63" (57 cm)

Depth with door at 90°

46.0" (117 cm)

Capacity

4.4 cu.ft. (125 L)

Defrost Type

Frost-Free

Door

Panel-Ready

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Energy Usage/Year

270.0kWh/year

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101151267

Sabbath Mode

Yes

Door Swing

LHD

Reversible

No

Shelf Type

Glass

Shelf Qty

3

Full Door Shelf Qty

2

Adjustable Shelves

Yes

Thermostat Type

Digital

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.99oz.

High Side PSI

270.0

Low Side PSI

105.0

Level Legs Qty

4

Interior Light

Yes

Temperature Range

36 to 43ºF

Sound Level

33.3dB

Interior Height

24.38" (62 cm)

Interior Width

20.0" (51 cm)

Interior Depth

16.63" (42 cm)

Compressor Step Height

3.25" (8 cm)

Compressor Step Width

20.0" (51 cm)

Compressor Step Depth

5.25" (13 cm)

24" Wide ADA Height All-Refrigerator

Custom style

ADA compliant design

Built-in capable

Panel-ready door

Easy panel installation with included 2-piece bracket kit

Stainless steel door

Fully articulating hinge

Frost-free operation

Digital thermostat

Recessed LED light

Adjustable glass shelves

Door storage

Bottle slots

Internal fan

Open door alarm

High temperature alarm

Sabbath mode setting

Temperature Memory Function

Factory-installed lock

Sealed back

Right angle plug

Left-hand door swing

Matching freezer

Fully finished black cabinet

100% CFC Free

CARB Compliant
