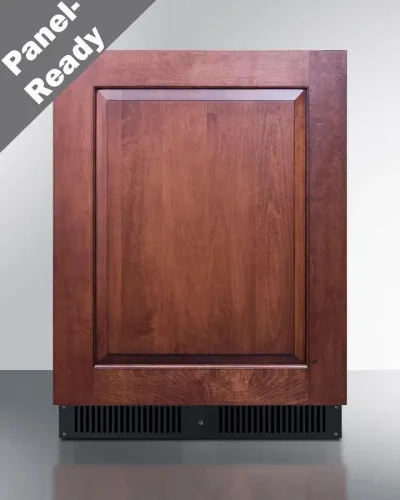

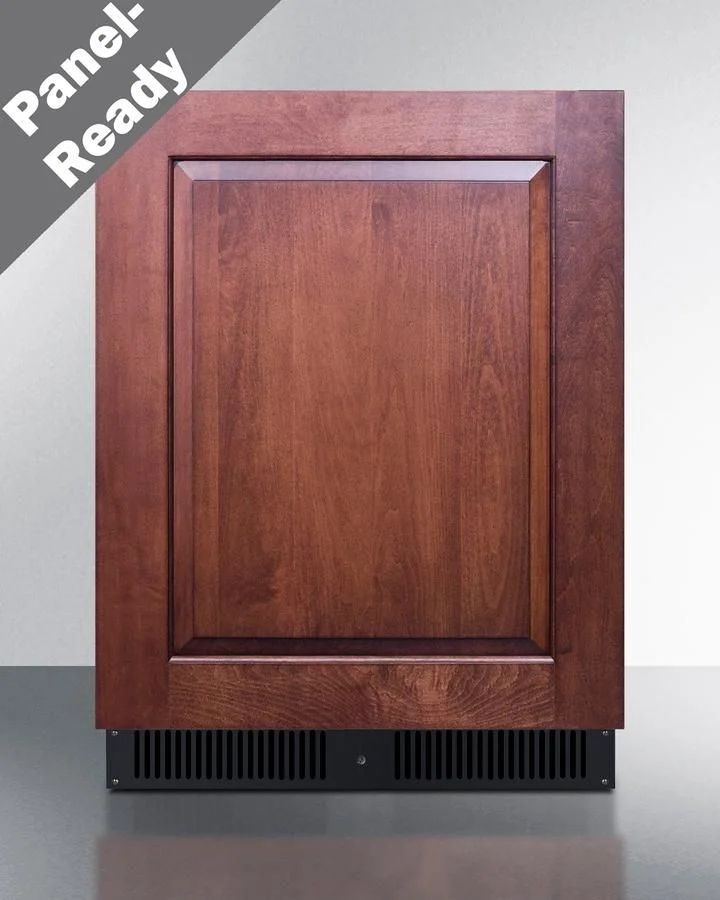

Summit 23" Built-In Compact Refrigerator, 4.4 cu. ft. Capacity

SKU: AL54PNR
  • Style: Compact
  • Type: Built-In
  • Width: 23.38"
  • Height: 32.00"
  • Depth: 22.63"
  • Wi-Fi Connected: No
  • Sabbath Mode: Yes
  • ADA Compliant: Yes
  • Total Capacity: 4.40 cu. ft.
  • Defrost: Frost-Free
  • Icemaker: No
  • Dispenser: No
  • Refrigerator Capacity: 4.4 cu. ft.
  • Number of Shelves: 3
Summit |Authorized Dealer
In Stock

PRODUCT DESCRIPTION

Summit's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54PNR is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate. Inside, the AL54PNR utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments and bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant spaces. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.

Specifications

overview

Nominal Height
32.0" (81 cm)
Height of Cabinet
32.0" (81 cm)
Nominal Width
24.0" (61 cm)
Width
23.38" (59 cm)
Nominal Depth
23.0" (58 cm)
Depth
22.63" (57 cm)
Depth with door at 90(degree)
46.0" (117 cm)
Capacity
4.4 cu.ft. (125 L)
Defrost Type
Frost-Free
Door
Panel-Ready
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Energy Usage/Year
270.0kWh/year
Amps
1.0
Voltage/Frequency
115 V AC/60 Hz
Weight
100.0 lbs. (45 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101151267

refrigerator features

Sabbath Mode
Yes
Door Swing
RHD
Reversible
Yes
Shelf Type
Glass
Shelf Qty
3
Full Door Shelf Qty
2
Adjustable Shelves
Yes
Thermostat Type
Digital
Fan Type
Interior and Exterior
Refrigerant Type
R600a
Refrigerant Amount
0.99oz.
High Side PSI
270.0
Low Side PSI
105.0
Level Legs Qty
4
Interior Light
Yes
Temperature Range
36 to 43 F
Sound Level
33.3dB

dimensions

Interior Height
24.38" (62 cm)
Interior Width
20.0" (51 cm)
Interior Depth
16.63" (42 cm)
Compressor Step Height
3.25" (8 cm)
Compressor Step Width
20.0" (51 cm)
Compressor Step Depth
5.25" (13 cm)

GS1

GTIN
00761101151267
EAN
0761101151267
UPC
761101151267
