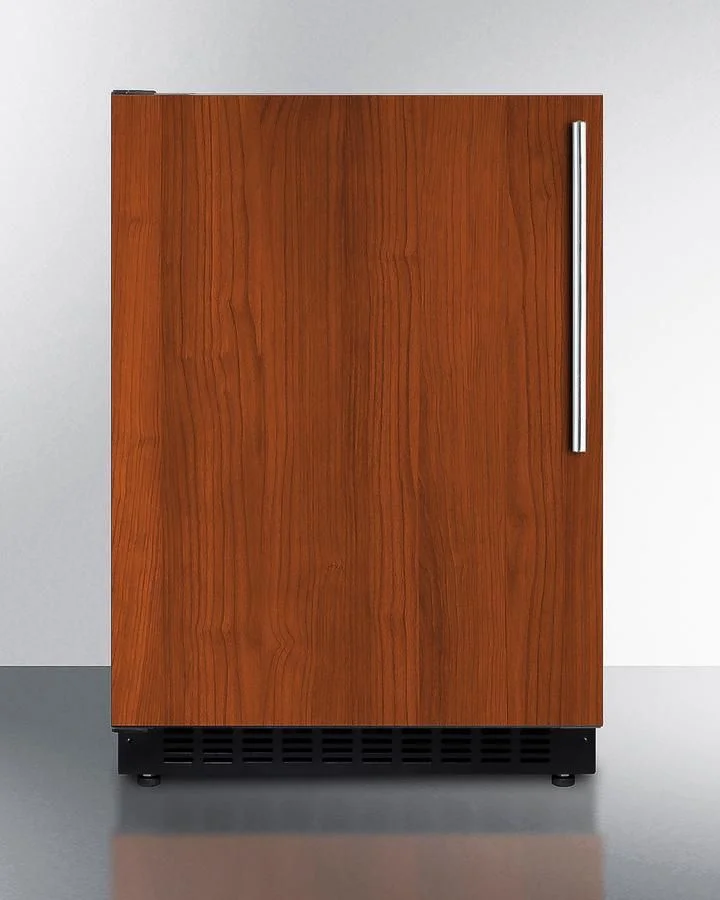

Summit 24" Built-In Freestanding Compact Freezerless Undercounter Refrigerator, 4.8 cu. ft. Capacity in Panel Ready

SKU: AL54IFLHD
  • Type: Built-In/Freestanding
  • Style: Compact/Freezerless/Undercounter
  • Width: 23.63"
  • Height: 32.00"
  • Depth: 22.63"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • Sabbath Mode: Yes
  • ADA Compliant: Yes
  • Total Capacity: 4.80 cu. ft.
  • Defrost: Frost-Free
  • Icemaker: No
  • Dispenser: No
  • Refrigerator Capacity: 4.8 cu. ft.
  • Number of Shelves: 3
  • Hinge Side: Left
Summit |Authorized Dealer
Pre-Order

Estimates for:

Protect Your Item

$1,890.00
Sign in / Sign up to earn 1,890 points (
$47.25
)

PRODUCT DESCRIPTION

SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54IFLHD is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate. Inside, the AL54IFLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments and bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

32.0" (81 cm)

Nominal Width

24.0" (61 cm)

Width

23.38" (59 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.63" (57 cm)

Capacity

4.8 cu.ft. (136 L)

Defrost Type

Frost-Free

Door

Panel-Ready

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Energy Usage/Year

270.0kWh/year

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101091143

Sabbath Mode

Yes

Door Swing

LHD

Reversible

No

Shelf Type

Glass

Shelf Qty

3

Full Door Shelf Qty

2

Adjustable Shelves

Yes

Thermostat Type

Digital

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

0.99oz.

High Side PSI

270.0

Low Side PSI

105.0

Level Legs Qty

4

Interior Light

Yes

Temperature Range

36 to 43 F

Sound Level

33.3dB

Interior Height

25.0" (64 cm)

Interior Width

20.0" (51 cm)

Interior Depth

17.5" (44 cm)

Compressor Step Height

3.25" (8 cm)

Compressor Step Width

20.0" (51 cm)

Compressor Step Depth

5.25" (13 cm)

GTIN

00761101091143

EAN

0761101091143

UPC

761101091143

Front-breathing design lets you make the best use of space by installing your appliance under the counter

No-frost operation for minimum user maintenance

Electronic controls located inside the unit for precise temperature management

Efficient and attractive presentation with LED lighting

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Two door racks offer convenient storage for condiments and bottles

Floor is specially slotted to store wine and other bottles safely in place

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Audible alarm will sound if the door is left open longer than one minute

Optional setting lets you disable the lighting and alarm for up to 48 hours

Unit will retain its last settings when power is restored in the event of power loss

Space-saving design that offers easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter

ETL-S listed to NSF-7 Standards for use in commercial establishments

Allows the unit to be used freestanding

Environmentally friendly design with no ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

32" height allows easy installation under lower ADA compliant counters

European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

High temperature alarm sounds if the unit's interior goes out of the recommended range

Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel
