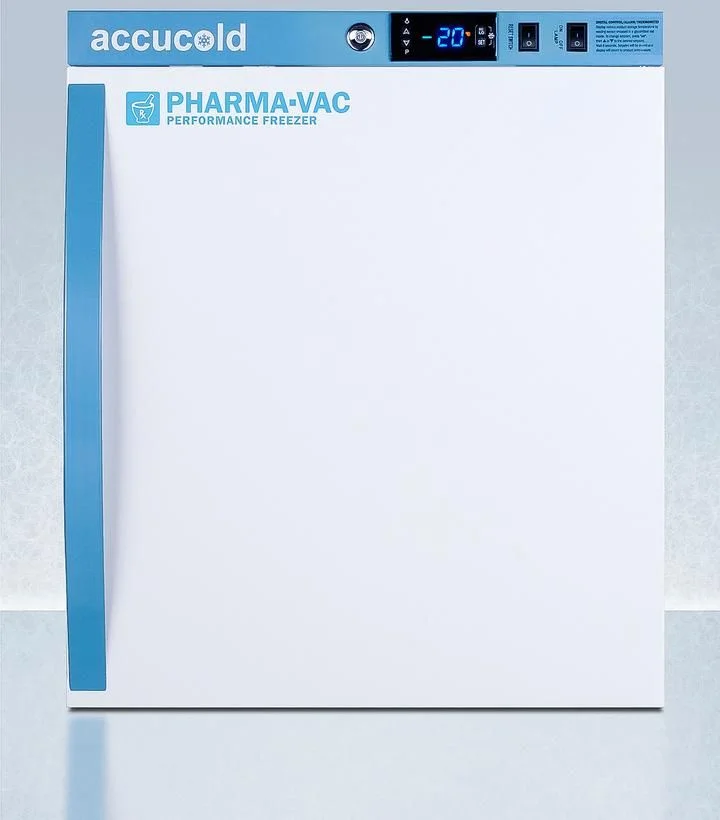

Summit 19" Freestanding Upright Freezer, 1.4 cu. ft. Capacity

Nominal Height

23.0" (58 cm)

Height of Cabinet

22.25" (57 cm)

Nominal Width

19.0" (48 cm)

Width

18.5" (47 cm)

Width with Door Open

18.88" (48 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.25" (59 cm)

Depth with Handle

24.75" (63 cm)

Depth with door at 90(degree)

42.5" (108 cm)

Capacity

1.4 cu.ft. (40 L)

Defrost Type

Manual

Door

White

Cabinet

White

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Amps

1.3

Voltage/Frequency

115 V AC/60 Hz

Weight

73.0 lbs. (33 kg)

Parts & Labor Warranty

2 Years

Compressor Warranty

5 Years

UPC

761101106632

Door Swing

RHD

Reversible

Yes

Interior Height

16.5" (42 cm)

Interior Width

15.25" (39 cm)

Interior Depth

15.75" (40 cm)

Shelf Type

Wire

Shelf Qty

2

Adjustable Shelves

Yes

Thermostat Type

Digital

Interior Light

Yes

Refrigerant Type

R290

Refrigerant Amount

0.85 oz.

High Side PSI

280.0

Low Side PSI

130.0

Compressor Step Height

8.25" (21 cm)

Compressor Step Width

15.25" (39 cm)

Compressor Step Depth

4.25" (11 cm)

Temperature Range

-30 to -10 C

GTIN

00761101106632

EAN

0761101106632

UPC

761101106632

Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Intuitive controls let you adjust the interior temperature between -30(degree)C to -10 C

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Static cooling system for an efficient and stable interior

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Battery-powered alarm sounds if the power connection is interrupted

Audible and visual alarm warns if the sensor is disrupted

Control panel requires password entry to adjust the parameters beyond the set point

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Control panel provides a readout of the low and high temperatures in 15 minute increments

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size

Secure three-pronged cord for added unit safety

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Energy efficient LED lighting with internal on/off switch

Added protection in busy settings

User-reversible door swing for added flexibility

Quality door gaskets ensure a tight seal for energy savings and improved performance

Allows the unit to be used freestanding

2 years parts and labor/5 years compressor

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Pair with Accucold ARS2PV (solid door) or ARG2PV (glass door) as a stackable or side-by-side set

Compatible with Pyxis(R), Omnicell(R), and AcuDose RX(R)

Environmentally friendly design without ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
