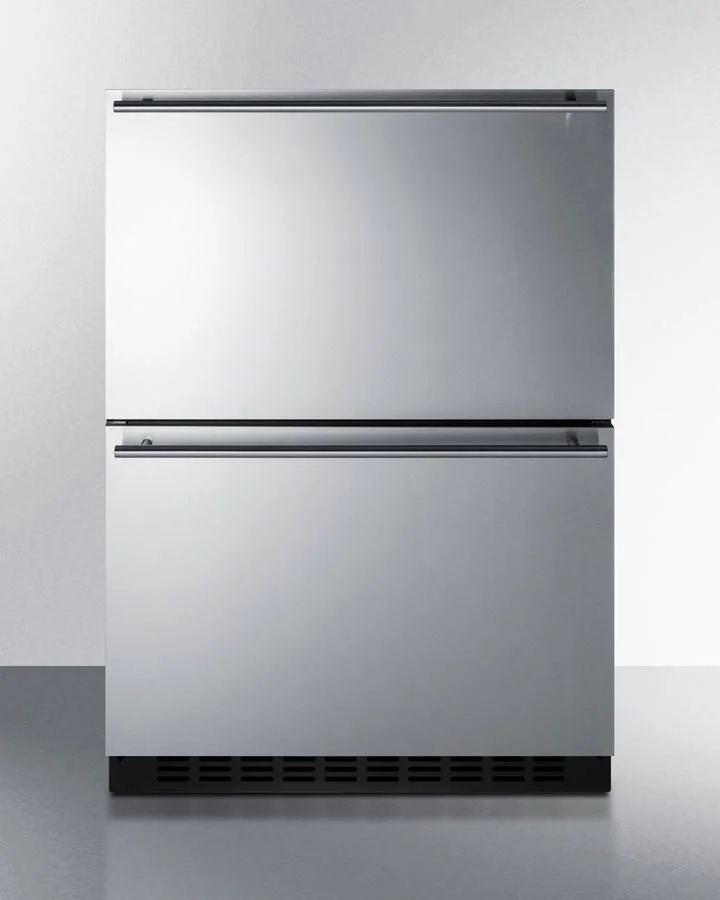

Summit 23" Built-In Drawer Refrigerator, 3.3 cu. ft. Capacity

SKU: ADRF244OS
  • Style: Drawer
  • Width: 23.38"
  • Height: 31.88"
  • Depth: 23.88"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • ADA Compliant: Yes
  • Total Capacity: 3.32 cu. ft.
  • Defrost: Frost-Free
  • Type: Built-In
  • Icemaker: No
  • Dispenser: No
  • Refrigerator Capacity: 3.32 cu. ft.
  • Counter Depth: Yes
Summit | Authorized Dealer
In Stock|Only 2 left

Estimates for:

Protect Your Item

$2,925.00
EARN 2,925 POINTS (sign in / sign up for free)

Protect Your Item

GET READY FOR INSTALLATION

PRODUCT DESCRIPTION

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. Sized at just under 24" wide and 32" high, model ADRF244OS is a 2-drawer refrigerator-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The weatherproof construction allows safe use in outdoor settings, with a sealed back to ensure all components are protected from the elements. This unit comes with a jet black cabinet and stainless steel drawers. Sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADRF244OS has a generous 3.3 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADRF244OS is ETL-S listed to NSF-7 commercial standards and approved for residential use. Additional refrigerator and freezer drawers are available, with 15" and 18" choices and standard height options. Browse the full Summit line to explore your endless outdoor refrigeration options for ADA compliant undercounter spaces.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

31.88" (81 cm)

Nominal Width

24.0" (61 cm)

Width

23.38" (59 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.5" (57 cm)

Depth with Handle

23.88" (61 cm)

Depth with door at 90(degree)

34.25" (87 cm)

Capacity

3.32 cu.ft. (94 L)

Defrost Type

Frost-Free

Door

Stainless Steel/Panel-Ready

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Energy Usage/Year

370.0kWh/year

Amps

1.0

Voltage/Frequency

115 V AC/60 Hz

Weight

105.0 lbs. (48 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101088181

Door Swing

Drawer

Interior Light

Yes

Refrigerator - Interior Height

8.0" (20 cm)

Refrigerator - Interior Width

17.0" (43 cm)

Refrigerator - Interior Depth

14.5" (37 cm)

Refrigerator - Temperature Range

36(degree)F to 43(degree)F

Freezer - Interior Height

8.0" (20 cm)

Freezer - Interior Width

17.0" (43 cm)

Freezer - Interior Depth

14.5" (37 cm)

Thermostat Type

Digital

Fan Type

Interior

Refrigerant Type

R600a

Refrigerant Amount

1.38 oz.

High Side PSI

270.0

Low Side PSI

105.0

Level Legs

4

Freezer - Temperature Range

-11(degree)F to 11(degree)F

Compressor Step Height

4.0" (10 cm)

Compressor Step Width

17.0" (43 cm)

Compressor Step Depth

3.5" (9 cm)

Sabbath Mode

Yes

Sound Level

34.6 dB

GTIN

00761101088181

EAN

0761101088181

UPC

761101088181

Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer

Durable construction allows safe installation in outdoor kitchens

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

Sleek stainless steel handles add an elegant touch to any setting

No-frost operation for minimum user maintenance

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Two adjustable dividers make it simple to organize the drawer interiors

Removable chrome basket included for added storage convenience

Audible alarm will sound if either drawer is left open longer than one minute

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Disables digital controls after two minutes of activity for added safety

Unit will restore the most recent temperature settings after losing power

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Space-saving design with no exposed coils for easier cleanability and added protection from the elements

Allows the unit to be used freestanding

Included and recommended for user-installation to reduce the risk of tipping

ETL-S listed to NSF-7 standards to allow use in commercial establishments

Environmentally friendly design without ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
