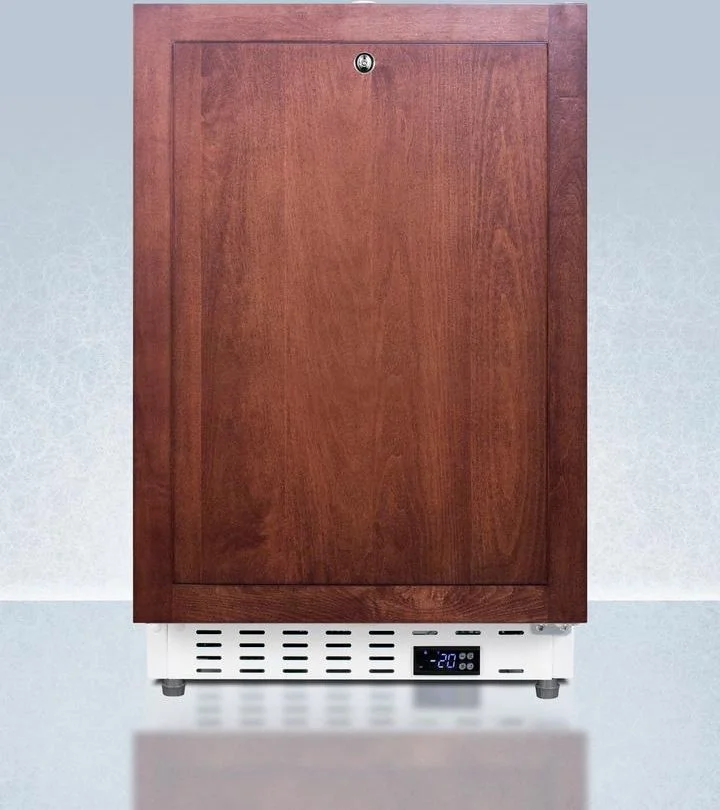

Summit 20" Built-In Upright Freezer, 2.5 cu. ft. Capacity

SKU: ADA305AFIF
  • Style: Upright
  • Type: Built-In
  • Width: 20.25"
  • Height: 32.00"
  • Depth: 23.00"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • ADA Compliant: Yes
  • Total Capacity: 2.47 cu. ft.
  • Defrost: Manual
Summit |Authorized Dealer
In Stock
$1,760.00
Sign in / Sign up to earn 1,760 points (
$44.00
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA-compliant counters. These freezers have advanced features for safely storing select healthcare materials with strict storage conditions. The ADA305AFIF is sized at 32" high for use in ADA-compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit has a hospital-grade cord with a green dot plug for safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal. Inside, the ADA305AFIF can reach temperatures as low as -25(degree)C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point, while the open-door alarm sounds if the door is ajar beyond one minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 20" wide, the ADA305AFIF makes an ideal choice for various healthcare facilities in need of a dependable freezer capable of -20 C/-25 C operation. For a complete set, pair this unit with the matching ADA404REFIF all-refrigerator.

Specifications

Nominal Height

32.0" (81 cm)

Height of Cabinet

31.75" (81 cm)

Height to Hinge Cap

32.0" (81 cm)

Nominal Width

21.0" (53 cm)

Width

20.25" (51 cm)

Nominal Depth

23.0" (58 cm)

Depth

23.0" (58 cm)

Depth with door at 90(degree)

40.25" (102 cm)

Capacity

2.47 cu.ft. (70 L)

Defrost Type

Manual

Door

Panel-Ready

Cabinet

White

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Amps

1.1

Voltage/Frequency

115 V AC/60 Hz

Weight

75.0 lbs. (34 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101151298

Door Swing

RHD

Reversible

Factory Reversible

Interior Height

23.75" (60 cm)

Interior Width

14.5" (37 cm)

Interior Depth

17.0" (43 cm)

Shelf Type

Drawers

Shelf Qty

3

Thermostat Type

Digital

Fan Type

Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.34 oz.

High Side PSI

180.0

Low Side PSI

80.0

Level Legs

2

Interior Drawers

Yes

Drawers Qty

3

Compressor Step Height

5.75" (15 cm)

Compressor Step Width

14.5" (37 cm)

Compressor Step Depth

6.0" (15 cm)

Temperature Range

-25(degree) to -15(degree)C

GTIN

00761101151298

EAN

0761101151298

UPC

761101151298
