PRODUCT DESCRIPTION

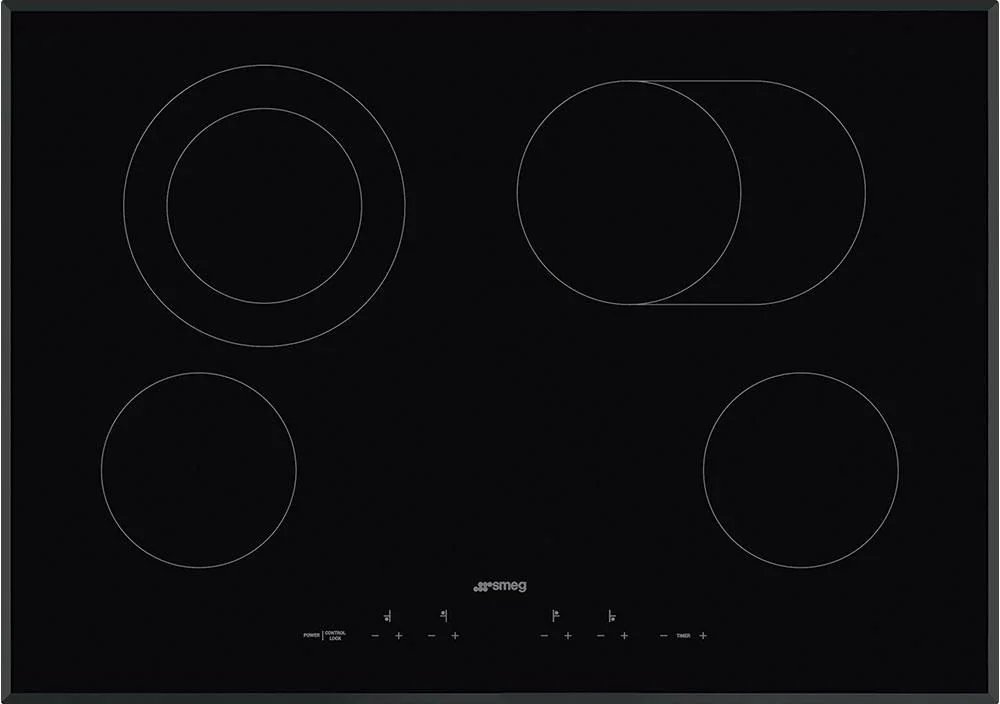

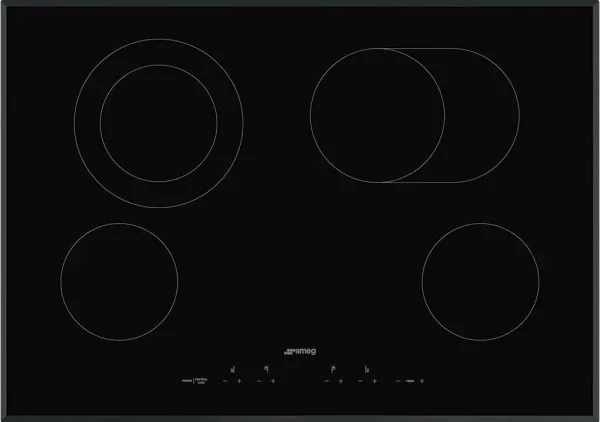

5 high-light radiant zones:
Front-right: 5 1/2" (140mm) Booster 1,200W
Back-right: 7 5/8" (195mm) Booster 2,000W
Central: 5 1/2 - 8 1/4 - 10 5/8" (140-210-270mm)
Booster 750+900+1,050W
Back-left: 5 1/2" (140mm) Booster 1,200W
Front-left: 4 3/4 - 7" (120-180mm) Booster 800+1,200W
Soft-touch controls
5 high-light radiant elements, including 2 variable zones
(central zone with three-level adjustment)
9 power levels for each zone
Residual heat indicator for each zone
Automatic safety cut-out
Individual timer for each zone (1 - 99min)
Child safety lock
Voltage rating: 240/208V 60Hz
Connected load (nominal power): 240/208V - 8.6/6.5 kW -
36/32 Amps
Electrical - single phase 3 or 4-wire cable required,
60Hz, fused on both sides of line with ground
Specifications
Product family
Cooktop
Dimensions
30"
Type
Ceramic
Installation
Ultra-low profile
Power supply
Electric
EAN code
8017709240981
Color
Black
Finishing
Glass
Material
Glass
Glass
Ceramic
Control setting type
Touch controls
Controls position
Front
Glass edge
Beveled
Silkscreen color
Gray
Cooking zones
4
No. of ceramic cook zones
4
Cooking zones with Booster
4
Power levels
9
End cooking timer
1
End-of-cooking acoustic alarm
Yes
Limited power consumption option
Yes
Limited Power Consumption Mode in W
4000 W
Showroom mode
Yes
Child safety lock
Yes
Quick start
Yes
Zone 1 - Type
Ceramic - single
Zone 2 - Type
Ceramic - double
Zone 3 - Type
Ceramic - Flexible
Zone 4 - Type
Ceramic - single
Zone 1 - Dimensions
14.8 cm
Zone 2 - Dimensions
14.8 - 21.4 cm
Zone 3 - Dimensions
17.0 - 26.5x17.0 cm
Zone 4 - Dimensions
14.8 cm
Zone 1 - Power
1.20 kW
Zone 2 - Power
1.00 - 1.00 kW
Zone 3 - Power
1.60 - 2.40 kW
Zone 4 - Power
1.20 kW
Zone 1 - Position
Front-left
Zone 2 - Position
Rear-left
Zone 3 - Position
Rear-right
Zone 4 - Position
Front-right
Automatic switch-off in case of over-heating
Yes
Automatic switch-off in case of overflow
Yes
Residual heat indicator
Yes
Nominal power
6800 W
Current
20 A
Voltage
240 V
Voltage 2 (V)
208 V
Frequency
60 Hz
Electric cable type
Single phase
Power cord length
47 1/4 "
Depth
20 "
Width
30 1/16 "
Height
3 1/4 "
Net weight
30 lbs
Packaged width
26 3/16 "
Packaged depth
22 5/8 "
Packaged height
5 1/8 "
Packaged dimensions
130X665X575
Maximum stackability
9
Packaging
Cardboard box
Packaging composition - Paper
5 lbs
Packaging composition - Polystyrene
1 lbs
GTIN
08017709240981
EAN
8017709240981
Cooking zones
4
No. of ceramic cook zones
4
Cooking zones with Booster
4
Power levels
9
Product family
Cooktop
Dimensions
30"
Type
Ceramic
Installation
Ultra-low profile
Power supply
Electric
EAN code
8017709240981
Product family: Cooktop
Type: Ceramic
Installation: Ultra-low profile
