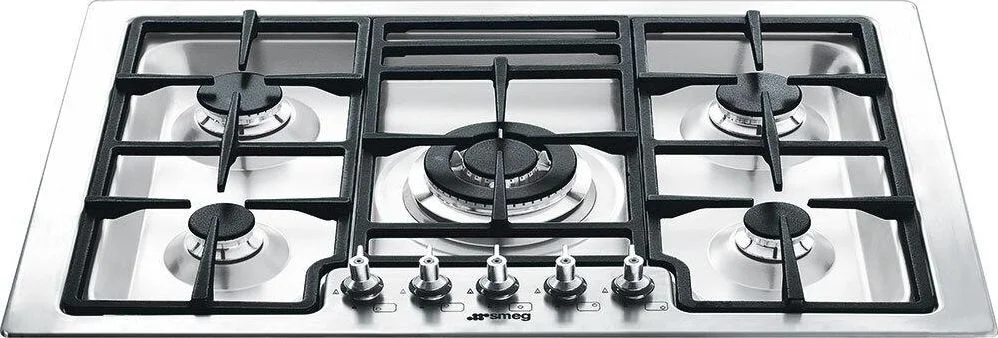

PRODUCT DESCRIPTION
Classic Design
Extra-wide stainless steel frame for countertop protection
5 Gas burners:
Front right: 3,600 BTUs burner
Back right: 6,200 BTUs rapid burner
Central: 13,700 BTUs double inset super burner
Back left: 6,200 BTUs rapid burner
Front left: 3,600 BTUs burner
AISI 304 Stainless Steel cooktop
Ultra low profile base (1/8")
Ergonomic front control knobs, interchangeable to
convert to "Linea" style
Heavy-duty cast iron grates
Full-width grates
Sealed burners
Automatic electronic ignition
Safety valves
LP Gas conversion kit included
Voltage rating: 120V / 60Hz / 0.1Amps
Specifications
Product family
Cooktop
Dimensions
30"
Type
Gas
Installation
Ultra-low profile
Power supply
Mixed
EAN code
8017709200039
Color
Stainless steel
Finishing
Satin
Aesthetics
Classic
Stainless steel type
Brushed
Material
Stainless steel
Controls color
Stainless steel effect
Control setting type
Control knobs
Controls position
Front
No. of controls
5
Grates
Cast iron
Burners
Standard
Burners material
Aluminum
Cooking zones
5
Burners
5
Standard cut-out
492x700 mm
Zone 1 - Type
Gas - AUX
Zone 2 - Type
Gas - Semi-rapid
Zone 3 - Type
Gas - Ultra-rapid
Zone 4 - Type
Gas - Semi-rapid
Zone 5 - Type
Gas - AUX
Zone 1 - Power
3500 BTU
Zone 2 - Power
6000 BTU
Zone 3 - Power
13500 BTU
Zone 4 - Power
6000 BTU
Zone 5 - Power
3500 BTU
Gas Type
G20 Natural gas
Gas safety valves
Yes
Automatic Ignition
Yes
Nominal power
1 W
Voltage
100-120 V
Frequency
50/60 Hz
Electric cable type
Single phase
Power cord length
47 1/4 "
Depth
20 1/8 "
Width
28 3/8 "
Height
3 1/16 "
Net weight
33 lbs
Gross weight
40 lbs
Packaged width
31 15/16 "
Packaged depth
23 3/4 "
Packaged height
6 9/16 "
Packaged dimensions
166X811X603
Maximum stackability
7
Packaging
Cardboard box
Packaging composition - Paper
5 lbs
Packaging composition - Polystyrene
1 lbs
Cast iron wok support
1
Other gas nozzles included
G30 LPG liquid gas
GTIN
08017709200039
EAN
8017709200039
Product family: Cooktop
Aesthetics: Classic
Type: Gas
Installation: Ultra-low profile
