PRODUCT DESCRIPTION

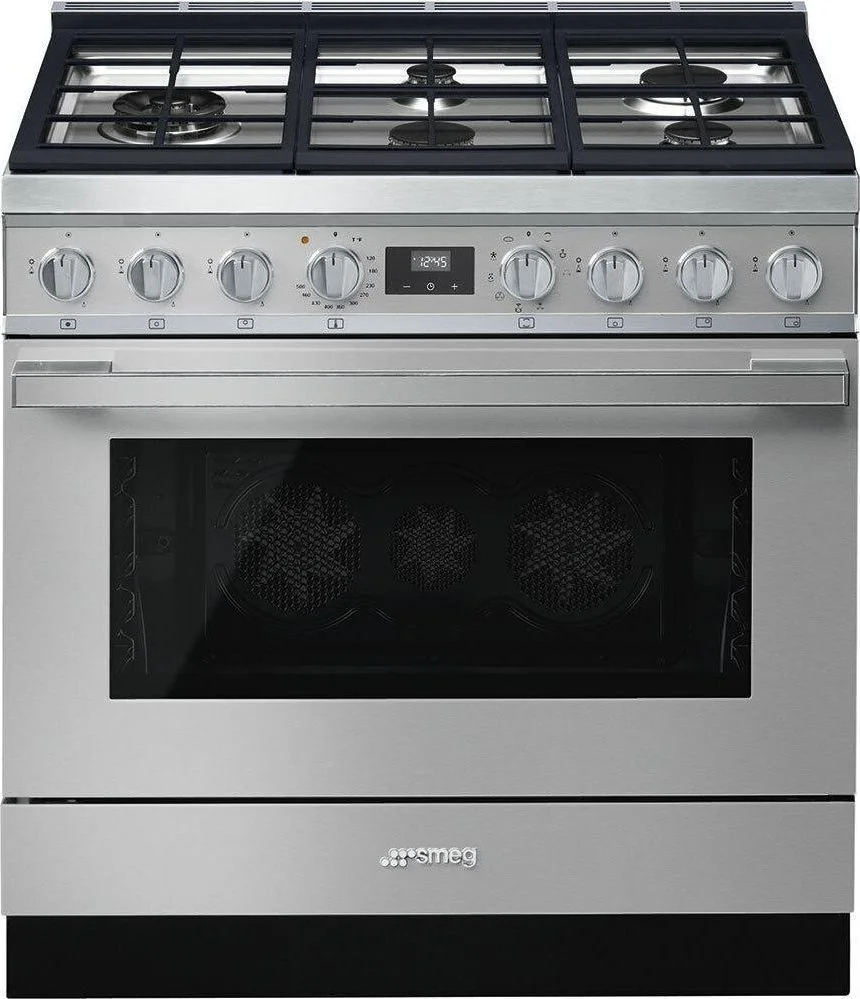

PORTOFINO STYLE
Stainless steel control knobs
Thermoseal cavity, energy efficiency best-in-class
Soft close oven door
Full-width continuous grates
Push-pull stainless steel storage compartment
MULTIFUNCTION ELECTRIC OVEN:
10 cooking modes including Pizza Function
Vapor-clean function
Programmable timer with touch display
Adjustable thermostat 120(degree) - 500(degree)F
Air-cooled triple-glazed removable door
True European triple convection
Oven capacity: 4.5 cu. ft.
Ever Clean enameled interior cavity
5 shelf positions
2 x halogen oven lights
Bake element 1.7kW
Broil element 2.9kW
Convection element 1.5kW
GAS RANGETOP:
5 gas burners
Center-rear 4500 BTUs
Center-front 10500 BTUs
Right-rear 12000 BTUs
Right-front 8000 BTUs
Left double-inset super burner 20000 BTUs
Heavy-duty cast iron grates
Automatic electric ignition
LP gas conversion kit included
SAFETY:
Gas safety valves
Air-cooled door to prevent overheating
Connected load nominal power: 240/120V - 17 Amps
Voltage rating: 240/120V 60Hz
ACCESSORIES INCLUDED:
1 wok ring
1 rotisserie kit
1 deep oven tray
1 total-extraction telescopic guide
2 chrome shelves
1 black toe kick
Specifications
Product family
Range
Range size
Range fuel
Dual-fuel
N. of ovens
1
Main oven
Thermo-ventilated
Cleaning system
VaporClean
EAN code
8017709250683
Color
Stainless steel
Finishing
Satin
Aesthetics
Portofino
Design
Flush mounted
Material
Stainless steel
Door
With frame
Control panel finish
Fingerprint-proof stainless steel
Cooktop color
Stainless steel
Handle
Portofino
Controls color
Stainless steel
Upstand
Yes
Display
Touch
Grates
Cast Iron
Door glass type
Gray
Handle color
Brushed stainless steel
Control knobs
Portofino
No. of controls
8
Feet
Stainless steel
Plinth
Black
Storage compartment
Push-pull
Timer
Yes
End-of-cooking alarm
Yes
Minimum Temperature
120 (degree)F
Maximum temperature
500 (degree)F
Cooking zones
5
Zone 1 - Type
Gas - Dual ultra-rapid
Zone 2 - Type
Gas - AUX
Zone 3 - Type
Gas - Rapid
Zone 4 - Type
Gas - Rapid
Zone 5 - Type
Gas - Semi-rapid
Zone 1 - Power
20000 BTU
Zone 2 - Power
4500 BTU
Zone 3 - Power
10500 BTU
Zone 4 - Power
12000 BTU
Zone 5 - Power
8000 BTU
Burners type
Standard
Burner caps
Enameled matte black
Automatic gas ignition
Yes
Gas safety valves
Yes
Volume
4.45 cu. ft.
Cavity material
EverClean enamel
No. of shelves
5
Shelves type
Metal racks
No. of lights
2
Light type
Halogen
Light Power
40 W
Fan number
3
Time setting
Start and end
Door opening
Drop-down
Light on when door is open
Yes
Removable door
Yes
Full-glass inner door
Yes
Removable inner door
Yes
Total no. of door glasses
3
No.of thermo-reflective door glasses
2
Safety thermostat
Yes
Cooling system
Tangential
Grill type
Electric
Grill power
1700 W
Large grill - Power
2900 W
Bottom heating element - Power
1700 W
Upper heating element - Power
1200 W
Circular heating element - Power
2 x 1550 W
Soft Close system
Yes
Temperature control
Electro-mechanical
Electrical connection rating
3800 W
Current
20 A
Circuit breaker
20 A
Voltage
240/208 V
Frequency
60 Hz
Power cord length
Type of electric cable installed
Yes, Double phase
Gas Type
G20/G25 - 20/25 mbar
Dimensions
915x912x635 mm
Width
Height
Depth
Packaged dimensions
976X950X670 mm
Gross weight
261 lbs
Net weight
226 lbs
Packaged width
Packaged depth
Packaged height
Maximum stackability
5
Packaging
Cardboard box
Packaging composition - Paper
13 lbs
Packaging composition - Polystyrene
14 lbs
Packaging composition - Wood
7 lbs
Packaging composition - Plastics
1 lbs
Other gas nozzles included
G30 LPG liquid gas
Cast iron wok support
1
TOP Oven grid with back stop
2
1.6"-deep tray
1
Telescopic Guide rails, total Extraction
1
GTIN
08017709250683
EAN
8017709250683
Product family: Range
Aesthetics: Portofino
Color: Stainless steel
Main oven: Thermo-ventilated
