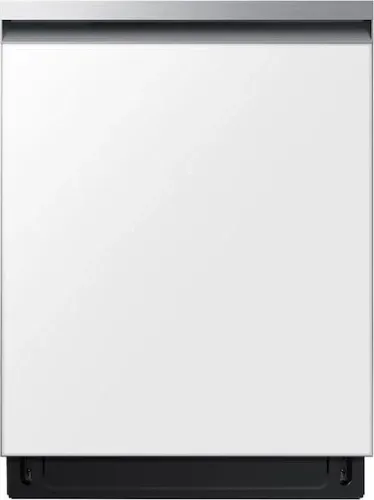

Samsung 24" Built-In Smart Dishwasher, 15 Place Setting Capacity in White

SKU: DW80CB545012AA

MODEL: DW80CB545012

0 Questions & 0 Answers

Width: 23.87"
Height: 33.90"
Depth: 24.90"
Energy Star Rated: yes
Wi-Fi Connected: Yes
Sabbath Mode: No
ADA Compliant: No
SmartThings: Yes
Weight: 88.20 lbs
Stainless Steel Tub: Yes
Fully Integrated Controls: Yes
Tall Tub: No
Decibel Level: 46.0 db
Cycles Count: 7

Samsung |Authorized Dealer

Pre-Order

special offer icon

2 Available Offers

$699.00

$777.00 Save$78.00

Mail-In Rebate $50.00

Sign in / Sign up to earn 699 points (

$17.48

)

color: White

Samsung DW80CG5450MT

Samsung DW80CG5450SR

Samsung DW80CG5451SR

Samsung DW80CB545012

Estimates for:

Protect Your Item

2 Year $75.99

3 Year $115.99

4 Year $143.99

5 Year $163.99

Decline

30-Days Free Returns or Exchanges

GET READY FOR INSTALLATION

PACKAGES

PRODUCT DESCRIPTION

design

7 items

Handle Type

Recessed

Control Type

Hidden Touch

BESPOKE

Yes

General Feature

Rotary

Exterior Color

White Glass

Place Setting

15

Display Color

White

performance

1 item

Dry System

AutoRelease(TM) Door Dry

programs

2 items

Auto

Yes

Delicate

Yes

option

3 items

Delay Start

Yes (1-24H)

Hi-Temp Wash

Yes

Control Lock

Yes

cutlery basket

2 items

Cutlery Basket

Yes

Cutlery Tray (3rd Rack)

Yes

power/ratings

4 items

Electrical (Voltz/Hertz/Amps)

120/60/10

Heater Watts

1200

Drain Pump Watts

35

Circulation Motor Watts

53

awards and certificates

1 item

J.D. Power Awards

Yes

key features

7 items

3rd Rack

Yes

Express 60

Yes

AutoRelease(TM) Door Drying

Yes

Adjustable Rack

Yes

Wi-Fi Connectivity

Yes

StormWash(TM) Cleaning

Yes

SmartThings

Yes

standard features

10 items

Cancel & Drain Button

Yes

Start & Pause Button

Yes

Rack Coating Material

Nylon

Digital Leak Sensor

Yes

Wash Arm

Upper/Mid/Low

Kickplate Color

Black

Silence Rating

46 dBA

Control Type

Top Control

Handle Type

Pocket Handle

Download Cycles

Yes

wash options

4 items

Half Load

Yes

Sanitize (Anti-bacterial-NSF)

Yes

Smart Control (Wi-Fi)

Yes

Heated Dry

Yes

racks/interior

7 items

Upper Rack Adjustable Height

One-touch

Upper Rack Basket Handle

Plastic

Upper Rack Adjustable Tines

1

Upper Rack Cup Shelf

Foldable (Plastic)

Lower Rack Basket Handle

Yes

Lower Rack Maximum Vertical Loading Dimension

12"

Lower Rack Fold Down Tines

No

energy & performance

3 items

Energy Usage (kWh/year)

239

Water Consumption (gallons/cycle)

3.2

ENERGY STAR(R) Certified

Yes

weight & dimensions

10 items

Product Weight

88.2 lbs.

Product Dimensions

24.9" D x 33.9" H x 23 7/8" W

Depth

25"

Product Height w/ Legs Extended

35"

Shipping Weight

94.8 lbs.

Shipping Dimensions

29.8" D x 34.9" H x 26" W

Height (decimal)

34.125 - 35.33

Width (decimal)

24

Depth (decimal)

24

Width

23 7/8"

cut-out dimensions

4 items

Width - Min

24"

Height - Min

34.1"

Depth - Min

24"

Height - Max

35.3"

wash system

6 items

Number of Programs

7

Normal Cycle

Yes

Heavy Cycle

Yes

Express 60

Yes

Rinse Only

Yes

Self Clean

Yes

general information

2 items

Tub Material

STSS

Heater Position

Hidden
