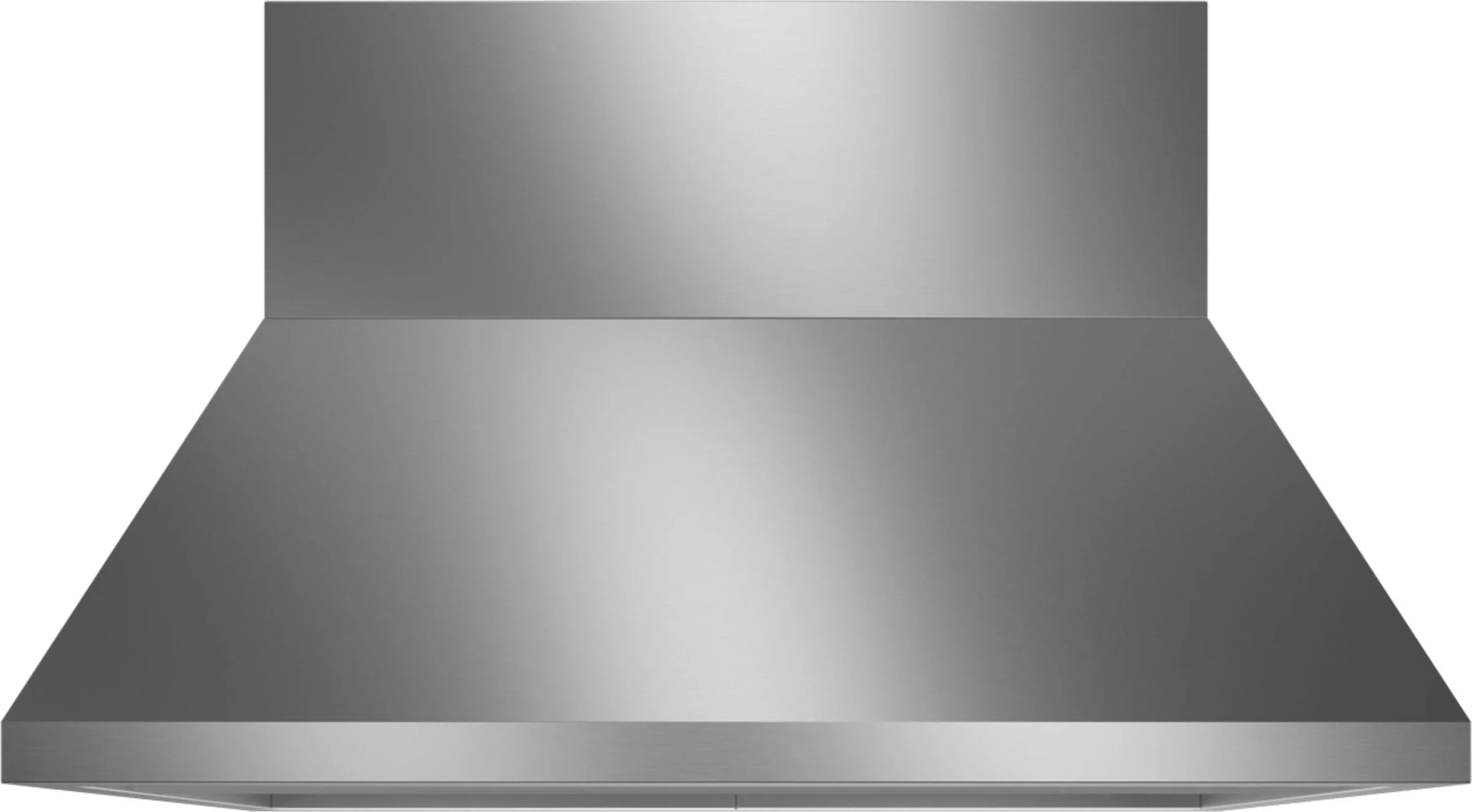

Monogram 48" Ducted Wall Mount Range Hood in Stainless Steel

SKU: ZVW1480SPSS
4th of July
2x Points
Free 2Y Warranty
Low-cost Install
1.
Monogram One For You One For Free
Offer Expires: 1/1/2026 to 12/31/2026 | Must be postmarked by: 12/31/2026

Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package.

  • Width: 48.00"
  • Height: 18.00"
  • Weight: 100.00 lbs
  • Remote Control: Optional (UXRC70)
  • Type: Ducted
Monogram |Authorized Dealer
In Stock|Only 2 left

$3,500.00

$3,850.00 Save$350.00
⚡️ 2X reward points available

Sign in / Sign up to earn 7,000 points (
$175.00
)

color: Stainless Steel

Monogram ZVW1480SPSS

Estimates for:

Protect Your Item

PACKAGES

PRODUCT DESCRIPTION

Stainless Steel Design
With clean lines and a beautiful finish, this impressive stainless-steel hood adds a touch of style and simplicity to any kitchen
1,220-CFM Range Hood Blower, 4-Speed Fan
A must have for aspiring chefs, this powerful ventilation system removes cooking fumes quickly and completely for a perfectly odor-free kitchen
LED Lights
Designed to meet a range of lighting needs, these versatile LED lights offer six levels of intensity, from ambient to low/night illumination
Four Removable Filters
Four efficient and effective filters trap odor-causing, airborne particles and are conveniently removable for easy cleaning
Connected Features
Providing the ultimate in control and connectivity, this Chef Connect and WiFi-enabled hood allows the user to adjust settings remotely through the SmartHQ app
Clean Filter Notification
For maximum filter efficiency and optimum air quality, the SmartHQ app regularly notifies the user when to clean the filters
Quietboost(TM) Technology
This unique technology is designed to minimize ventilation noise and enhance motor efficiency for a peacefully quiet, odor-free kitchen
Fan Timer
Convenient and energy efficient, the fan can be set to automatically shut off after 5, 10 or 20 minutes of operation

Specifications

appearance

Exterior Design
Straight Sides
Design Style
Chimney
Color Appearance
Stainless Steel
Installation
This hood is designed to be vented from the top of the hood.

power / ratings

Hertz
60
Amps at 110V
12.5

warranty

Labor Warranty
Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 2-year entire appliance

economical / quiet

Venting Type
Externally Vented

accessories

Optional Accessories
Backsplash Kit: UX12BS36PSS / UXADBS36PSS / UXADBS48PSS
UXRC70 - Remote Control
Optional 8' Ceiling Extension
ZX8D14SPSS
Optional 10' Ceiling Extension
ZX10D14SPSS
Optional 12' Ceiling Extension
ZX12D14SPSS

weights & dimensions

Cabinet Width
48 in
Net Weight
100 lb
Overall Depth
22 in
Approximate Shipping Weight
124 lb
Overall Height
18 in
Overall Width
48 in

features

WiFi Connect
Built-In
Cooktop Lighting
LED Strip
Fan Speed Control
Off + 4 (3 Speed + Boost)
Max CFM
1020
Utensil Rod
Brushed Stainless Steel
Required Duct Size
10 in. Round
Damper in Transition
Yes
CFM/ Sones Rating
920/8.5 (Boost speed) - Vertical venting, 1020/8.0 (Boost speed)
Exhaust Options
Top: 10 in. Round
Lighting
LED
Double Wall Construction
Yes
Product Type
Chimney
Control Features
Chef Connect
Clean Filter Warning (App)
Delay Off
Vertical Exhaust Blower Rating (CFM)
1220
Remote Control
Optional (UXRC70)
Welded / Finished Seams
Yes
Variable Speed Fan
Yes
Control Type
Glass Touch Backlit
Baffle Stainless Steel Filters
4
Connected Capabilities
Amazon Alexa
Google Home
Grease Tray
3
Lighting Levels
4
Collection
Minimalist
Statement
Removable Filter
Yes
Blower Type
Internal
Recirculating Capable
No

GS1

GTIN
00084691851783
EAN
0084691851783
UPC
084691851783
