PRODUCT DESCRIPTION
Features
Flush Installation
Designed for flush installation for nearly seamless integration to kitchens or entertainment area throughout the home
Dual Zone Cooling
Select different temperatures in the upper and lower compartments to store different wine varieties
Backlit Electronic Control
Set the temperature, connect to WiFi, and control the light settings with backlit LED control panel
42 Bottle Capacity
Expansive wine storage, for up to 42 bottles, with 2 shelves designed for large bottle storage
Expanded Entertainment Areas
Install your wine reserve side by side to other Monogram undercounter refrigeration and ice maker models
Illuminated Interior
Back wall lighting and overhead LED lights brighten the interior to easily select a perfect pairing
Specifications
Unit Capacity
42 Wine Bottles
Total Capacity (cubic feet)
0 cu ft
Toe kick
Stainless
Color Appearance
Custom Panel and Handle Required
Case Color
Gray
Installation
Built-In or Free-Standing Side by Side Install Capable with ZIBC24PWII (Additional kit required: ZKAW)
Design Style
Custom Panel
Door Swing
Reversible Hinges
Door Style
Glass Door
Door Stops
90 and 115 Degree
Handle
Customer Supplied - Optional Statement and Minimalist handle kits available
Collection
Warranty Notes
See written warranty for full details
Labor Warranty
Limited 2-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty
Limited 12-year sealed system Limited 2-year entire appliance Limited 5-year sealed refrigerating system
Electrical Requirements
120v; 60Hz; 2 A
Hertz
60
Energy Consumption (kWh/year)
274
Quiet Package
40 dBA
Optional Accessories
Handle Stud Kit - ZKPN Minimalist Handle Kit - ZXGP1H1CPSS Side by Side Install Toe-Kick Kit - ZKN48W Stainless Steel Panel Kit with stainless toe-kick - ZK1GC240WSS Statement Handle Kit - ZXGP1H1PWSS Undercounter Unification Kit - ZKAW
Back Air Clearances
0 in
Top Air Clearances
0 in
Height to Top of Hinge
34.25 in
Side Air Clearances
0 in
Overall Height
35.1 in
Overall Width
23.74 in
Case Depth Without Door
21.65 in
Approximate Shipping Weight
154 lb
Overall Depth
23.85 in
Net Weight
154 lb
Removable Slide-Out Shelves
Yes
Short Description

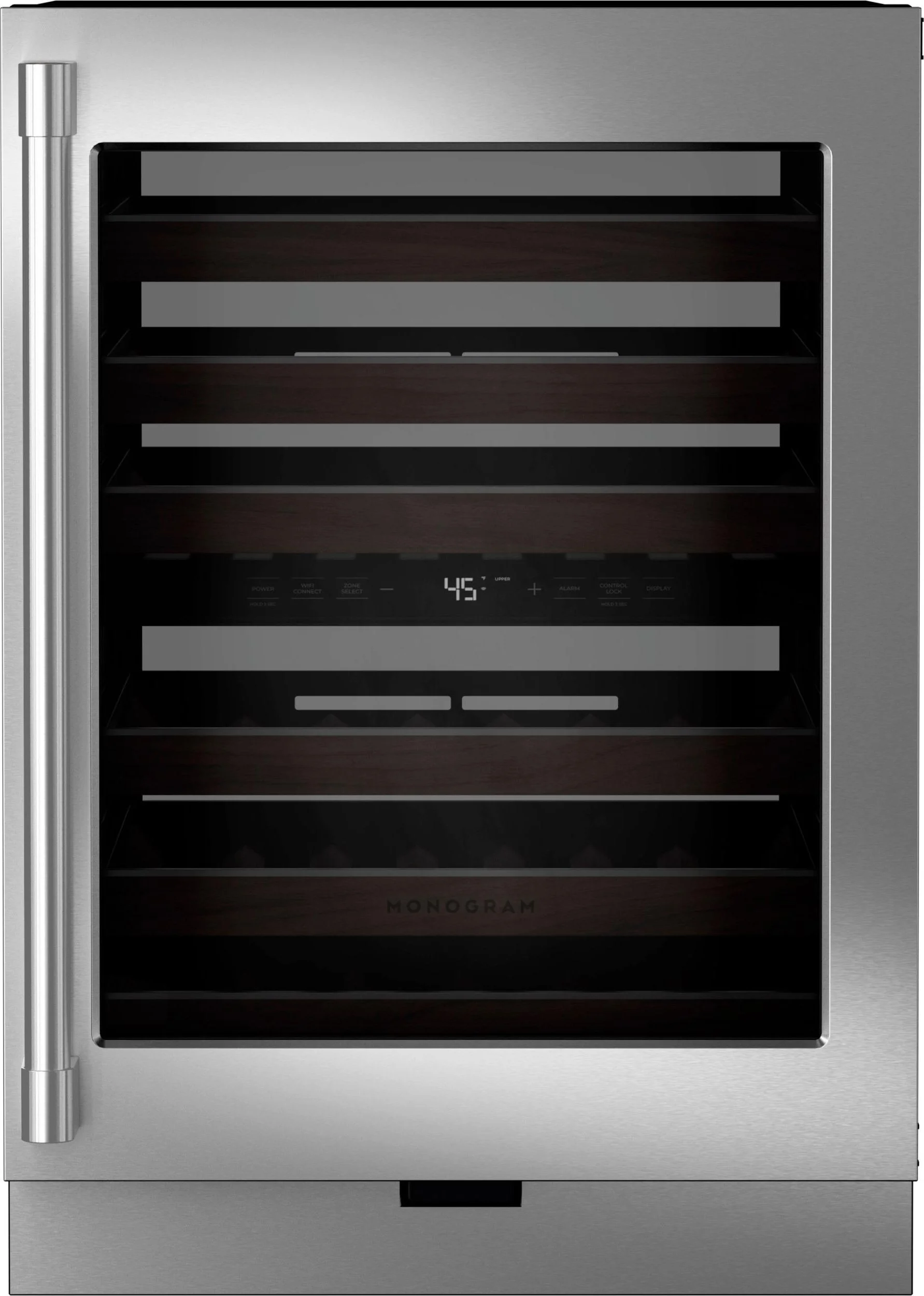

24" Custom Panel Wine Reserve
WiFi Connect
Built-In
Proximity Lighting Control
Yes - On/Off Option, Multi key or in APP
Temperature Range
41 degrees to 61 degree F
Custom Panel Ready
3/4-Inch Overlay Panels Flush Inset Panels
Product Type
Wine Reserve
Full Extension Slides
Yes
Defrost Type
Cycle Defrost
Interior Lighting
LED - Door Closed: On/Off Option; Door Open: Always On
Adjustable Temperature Control
Yes
Sabbath Mode
Yes
Control Type
Digital Temperature Display Upfront Electronic Temperature Controls
Wine Racks
6 Full Extension Soft Close, Wood Slats
Refrigerant Type
R600a
Control Features
Child Lock Door Alarm Dual Temp Zone - Independent Upper & Lower Zones Hi-Temp Alarm Power On/Off
OU Certified
No
Collection
Minimalist Statement
Connected Capabilities
Amazon Alexa Google Home
Leveling System
2 rear roller adjustable from front; 2 front legs
Number of Cooling Zones
2
42 Bottle Capacity
Dual Zone Cooling
Flush Installation
Illuminated Interior
Delicate Storage
Panel Ready Refrigeration
Expanded Entertainment Areas
3 Full Extension Wine Racks
UV Protected Glass
Backlit Electronic Control
Proximity Lighting
6 Full Extension Wine Racks
GTIN
00084691957232
EAN
0084691957232
UPC
084691957232
Back Air Clearances
0 in
Top Air Clearances
0 in
Height to Top of Hinge
34.25 in
Side Air Clearances
0 in
Overall Height
35.1 in
Overall Width
23.74 in
Case Depth Without Door
21.65 in
Approximate Shipping Weight
154 lb
Overall Depth
23.85 in
Net Weight
154 lb
