PRODUCT DESCRIPTION
Features
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance
Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
Precision Oven Modes with SmartHQ(TM) app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Specifications
Total Capacity (cubic feet)
6.2 cu ft
Toe kick
Included
Installation
Flush Installation Capable
Oven Door Features
Soft Close Door
Design Style
Statement Collection
Control Knobs
Diecast Metallic (Included) Stainless Steel with Brass Accents
Color Appearance
Stainless Steel
Collection
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(2) 23.0; (2) 15.0
Electrical Requirements
120VAC;15A
Top Burner BTU Rating - LP (000's BTU's)
(2) 21.0; (2) 12.0
Broiler Wattage
1050W
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
23.0 Bake / 18.0 Broil
Bake/Broiler BTU Rating - LP (000's BTU's)
21.5 Bake / 18.0 Broil
Griddle BTU Rating (000's/BTU) - LP Gas
16.0
Griddle BTU Rating (000's/BTU) - Natural Gas
18.0
Hertz
60
Parts Warranty
Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks
Labor Warranty
Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
Air Fry Basket
Optional- JXAFTRAY1VSS
Optional Grill Accessory (Cast Iron)
UXPRRGG
30/36" Monogram Knob Kit
ZXPR36KKTSS (SS, qty. 9)
Optional Backguard
12" stainless steel backsplash (UX12B36PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
Multi Ring Burner Caps (Brass)
Included
LP Conversion Kit
Included
Multi Ring Burner Caps (Black)
Included
Net Weight
417 lb
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Cabinet Width
36 in
Approximate Shipping Weight
462 lb
Overall Width
35.875 in
Interior Dimensions - Main Oven (WxHxD) (in.)
28-1/4 x 17-9/10 x 21 3/4
Overall Height
35.25 in
Overall Depth
28.5 in
Height w/Legs Extended - Maximum Height
36.75 in
Height With Legs Retracted
35.25 in
Cooking System
Reverse Air Convection
Ignition System
Electronic w/Auto Reignition
Oven Control Features
12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe Chef Connect C(degree) or F(degree) Programmable Delay Clean Option Probe Mode Proof Mode Remote Enabled Sabbath Mode (* additional purchase required) Steam Clean Timer WiFi Connect
Oven Rack Features
2 Full Extension Racks 3 Oven Racks
Convection Roasting Rack
Yes
Broiler Pan and Grid
Yes
Oven Cleaning Type
Steam Clean
Removable Drip Tray Liners
(1) Beneath Griddle
Griddle
18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled
Connected Capabilities
Amazon Alexa Bluetooth Fresco Google Home IFTTT Innit Sonos The Google Assistant
Product Type
Professional Range
140 Deg. Simmer Burner
All Burners - Adjustable
Cooktop Type
4 Burners Griddle
Fuel Type
All-Gas (Natural gas)
Indicator Lights
Burner "On"
Short Description

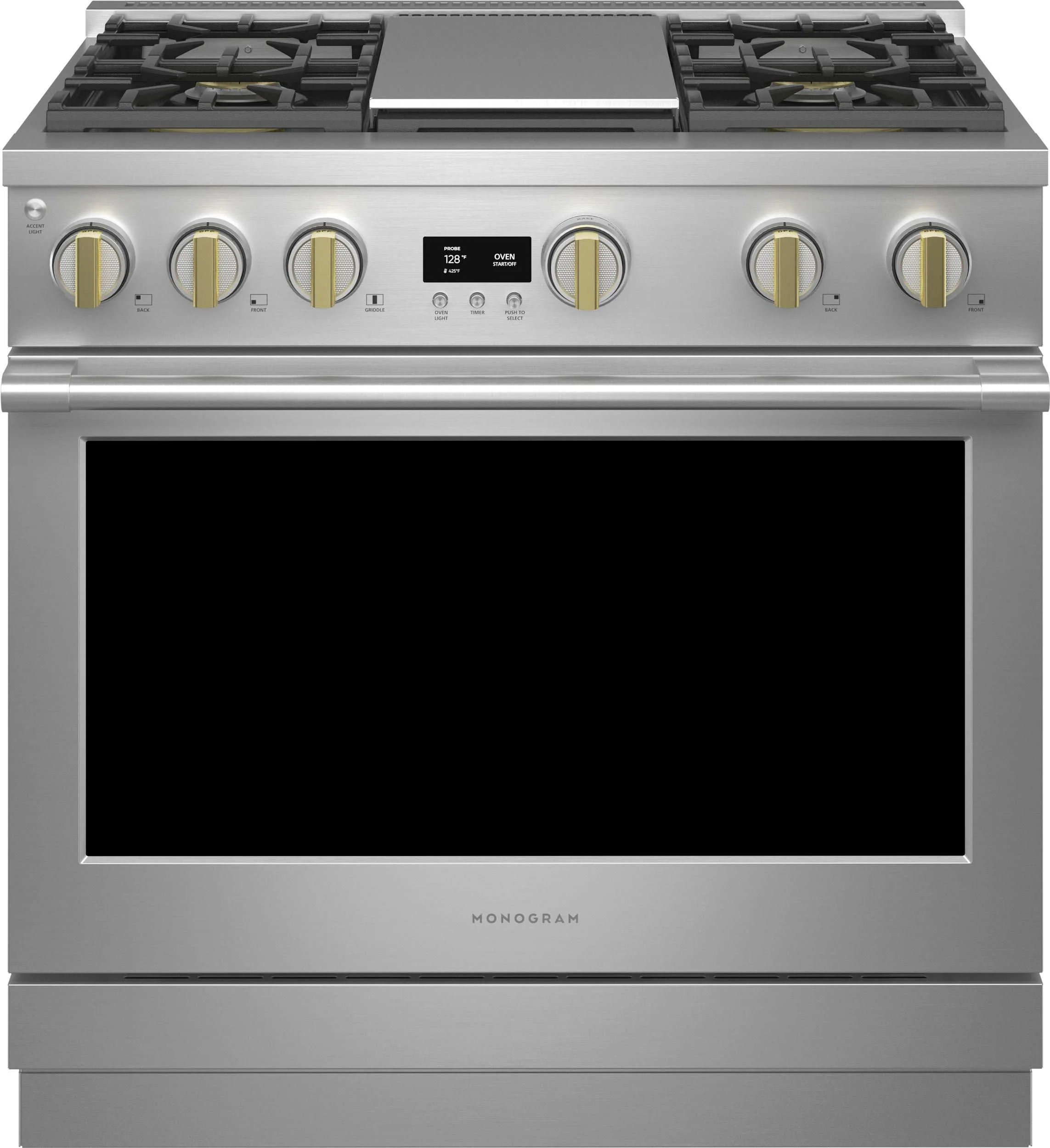

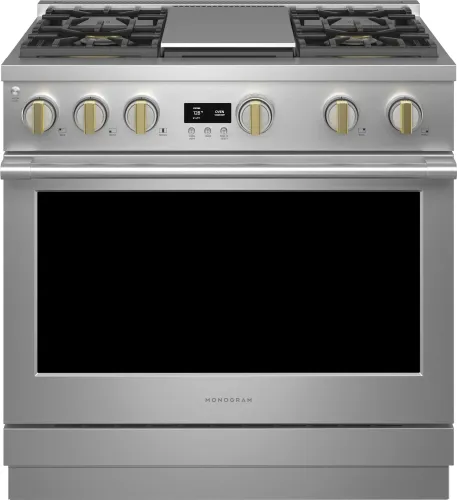

36" Pro Range - All Gas with 4 Burners and Griddle
Interior Oven Light
6 Halogen Lamps (Caterer Oven)
WiFi Connect
Built-In
Extra Low Simmer
All Burners - Adjustable
Cooktop Burner Grate Features
Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Control Type
Digital Temperature LCD Display with Timer Display
Lighting
Customizable LED Bullnose and Knob Accent Lighting
Collection
Designer Statement
Cooking Technology
Convection
Oven Cooking Modes
Convection Bake Multi-Rack Convection Roast Precision Cooking Modes Proof Scan-to-Cook Warming
Cooktop Burner Type
2 Sealed, Dual Flame Stacked 2 Sealed, Dual Ring Brass Accents (Removable)
Removable Grease Trough
(1) Front of Griddle
Cooktop Surface
Porcelain-Enamel
Stainless Steel Grill / Griddle Covers
1
Oven Rack Positions (Single or Upper/Lower)
5
Versatile Gas Burner Configuration
3-Piece Grates with Reversible Wok Feature
WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Dynamic Oven LCD
Solid Brass Burners
Chef Connect
Industry Exclusive-Custom Color LED Accent Lighting
Ring-Lit Knobs
Solid Brass Blades on Precision Machined Knobs
Seamless Stainless Top Frame
Soft-Close Hinges
2 Oven Racks (Full-Extension), 1 Low Profile
Precision Oven Modes with SmartHQ(TM) app
Precise Air Convection System
Multi Ring Burner Caps (Black)
Included
GTIN
00084691851363
EAN
0084691851363
UPC
084691851363
Net Weight
417 lb
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Cabinet Width
36 in
Approximate Shipping Weight
462 lb
Overall Width
35.875 in
Interior Dimensions - Main Oven (WxHxD) (in.)
28-1/4 x 17-9/10 x 21 3/4
Overall Height
35.25 in
Overall Depth
28.5 in
Height w/Legs Extended - Maximum Height
36.75 in
Height With Legs Retracted
35.25 in
