PRODUCT DESCRIPTION
Specifications
Door Panel Color
3/4" Custom Panel Required
Handle
Custom Handle Required
Panel Capability
Integrated
Installation
True Flush
Door Style
Long Door with Top Controls
Door Appearance

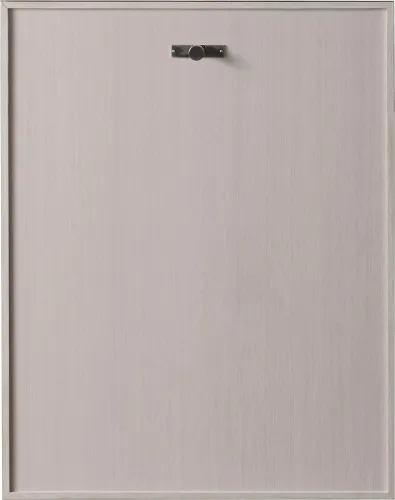

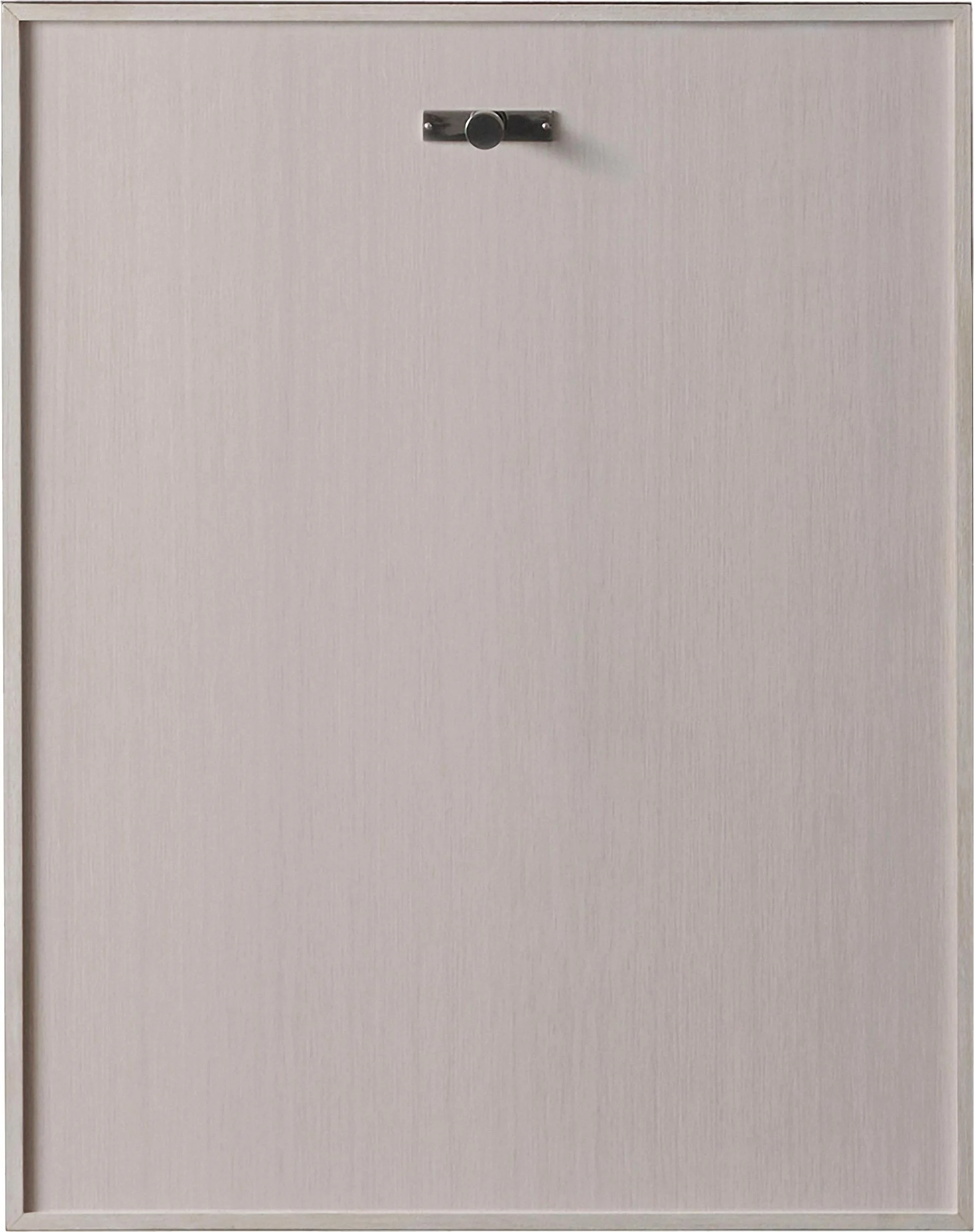

Fully integrated door for custom panels
Color Appearance
Custom Panel and Handle Required
Design Style
Custom Panel
Collection
EcoBalance
Power Connection
Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Electrical Requirements
120 V; 60 Hz; 10.2 A
Calrod Heater Watts
1200
Hertz
60
Watts
1296
Labor Warranty
Limited 2-year entire appliance Limited lifetime of product tub/door liner
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 2-year entire appliance Limited 5-year racks/electronic control board Limited lifetime of product tub/door liner
Door Insulation
Insulation Mastic
Quiet Package
39 dBA
Outer Wrap
Bitumen Full-wrap Blanket
Motor Type
Variable Speed
Quiet Features
39 dBA based on results from base model ZDT985SSNSS Quiet Water Valve Sealed Toe Kick Tub Collar Trim
Height w/ Legs Retracted - Minimum Height
33.375 in
Cutout Height (in)
33 1/2 in
Cutout Width (in)
24 in
Overall Depth
24 in
Cabinet Width
24 in
Net Weight
126 lb
Overall Width
23.75 in
Approximate Shipping Weight
139 lb
Overall Height
34 in
Cutout Depth (in)
24 in
Height w/Legs Extended - Maximum Height
34.625 in
Depth with Door Open
25.5 in
Wash System
900 Series
Sensor
Clean Sensor
Lower Rack
1 Rack handle Ball-Tip Tines Multi-Position Fold Down Tines
Tub Type
Tall Tub
Leveling System
Front Adjustable Leveling Legs
OU Certified
No
Number of Place Settings
16
Custom Panel Ready
Integrated Panels
Dishwasher Options
Bottle Wash Child Lock Delay Start 1-12 Hr. Heated Dry Pre Soak Sani (Certified to NSF Standard 184) Start/Reset Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only
Latch
Pull with Handle
Number of Options
11
Style
Built-In Top Control
Water Filtration System
100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray
Full 3rd rack (above upper rack) on full extension slides
Collection
EcoBalance
Rack Features
2 Fold-Down Tines - Lower 2 Utility Shelves with 2 Stem Safe - Upper 3 Piece Silverware Basket with Soft Touch Handle Adjustable Upper Rack Ball-Tipped Tines
Floor Protection
Floor Protect with Alert
Dishwasher Cycles
30 Min Wash Auto Wash Delicate Eco Wash Intense Normal Rinse
Short Description
Fully Integrated Dishwasher
Rack Color
Silver
Dispenser
Electronic Low Rinse Aid Sensor Rinse Aid with Indicator and Adjustment
WiFi Connect
Built-In
EcoBalance Compatible
Yes
Control Type
Electronic Tactile Buttons Top Controls
Racking System
Full 3rd rack
Dishwasher Drying Features
2 Fans/Extra Heater Fan Dry On/Off plus Max Dry
Interior Lighting
LED
Wash Arms
3 Pressurized Wash Arms 90+ Spray Jet Wash System Bottle Wash Jets Jets - Variable Pressure Lower - Reversing Blade Middle - Blade Silverware Wash Jets
Wash System Features
90+ Spray Jet Wash System Automatic Temperature Control Bottle Wash Jets Dedicated Silverware Jets Deep Clean Silverware Jets Hard Food Disposer with removable filter Hidden Heater Middle Wash Arm Reversing Blade Lower Wash Arm Variable Speed Dual Pumps and Motors
Exterior Style
Custom Panel
Product Type
Built-In
Connected Capabilities
Amazon Alexa Amazon Dash Replenishment Google Home IFTTT Sonos The Google Assistant
Upper Rack
1 Rack handle 1/2 fixed tines, 1/2 fold down tines 2 Stem Safe Shelves Ball-Tip Tines Premium Height Adjustable
Dishwasher Control Features
Audible End-of-Cycle Signal Hi-Resolution Gray Scale LCD Control Display Last Cycle Memory
Number of Cycles
7
Tub and Door Liner
Stainless Steel
Sabbath Mode
Yes
Showroom Power Mode
Yes
Custom panel model
Advanced wash system
Full-extension, adjustable third rack with premium slides
Steam + Sanitization
39 dBA quiet operation
Hard food disposer
Max Dry system
Bottle jets
LED lighting
Deep clean silverware jets
Cabinet depth installation
Calrod Heater Watts
1200
GTIN
00084691848349
EAN
0084691848349
UPC
084691848349
Height w/ Legs Retracted - Minimum Height
33.375 in
Cutout Height (in)
33 1/2 in
Cutout Width (in)
24 in
Overall Depth
24 in
Cabinet Width
24 in
Net Weight
126 lb
Overall Width
23.75 in
Approximate Shipping Weight
139 lb
Overall Height
34 in
Cutout Depth (in)
24 in
Height w/Legs Extended - Maximum Height
34.625 in
Depth with Door Open
25.5 in
