PRODUCT DESCRIPTION
Features
Hot Air Fry
A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter
Built-In WiFi, Powered by SmartHQ(TM) app
Perfectly in sync with your busy lifestyle, connect, control, and manage your oven from anywhere with your smartphone or tablet
Industry Exclusive-TrueTemp(TM) Burner
This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue(TM) cookware for a consistently delicious cooking experience.Hestan Cue cookware comes free if you register and connect your appliance through the SmartHQ app
WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks
Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the 21,000 and 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
Precision Oven Modes with SmartHQ(TM) app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
Better When Connected
Downloadable upgrades ensure your oven is always enhanced with the latest features, like Air Fry and Precision Cooking Modes
Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents
Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at
Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven
Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance
Specifications
Total Capacity (cubic feet)
5.75 cu ft
Toe kick
Included
Oven Door Features
Soft Close Door
Design Style
Statement Collection
Control Knobs
Diecast Metallic (Included) Stainless Steel with Brass Accents
Color Appearance
Stainless Steel
Collection
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 23.0; (1) 21.0; (2) 15.0
Electrical Requirements
240VAC; 30A
Top Burner BTU Rating - LP (000's BTU's)
(2) 21.0; (2) 12.0
Broiler Wattage
4000W
Convection Wattage
2500W
Griddle BTU Rating (000's/BTU) - LP Gas
16.0
Bake Wattage
2700W
Griddle BTU Rating (000's/BTU) - Natural Gas
18.0
Hertz
60
Parts Warranty
Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks
Labor Warranty
Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
Air Fry Basket
Optional- JXAFTRAY1VSS
30/36" Monogram Knob Kit
ZXPR36KKTSS (SS, qty. 9)
Optional Backguard
12" stainless steel backsplash (UX12B36PSS) 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
High Altitude Kit
Natural Gas: WB28X39726; LP: WB28X39727
Multi Ring Burner Caps (Brass)
Included
LP Conversion Kit
Included
Multi Ring Burner Caps (Black)
Included
Net Weight
417 lb
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Cabinet Width
36 in
Approximate Shipping Weight
462 lb
Overall Width
35.875 in
Overall Height
35.25 in
Overall Depth
28.5 in
Height w/Legs Extended - Maximum Height
36.75 in
Height With Legs Retracted
35.25 in
Cooking System
Reverse Air Convection True European Convection
Cleaning Time
3-5 Hours
Ignition System
Electronic w/Auto Reignition
Oven Control Features
12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Automatic Oven Meat Probe Chef Connect Cook Time C(degree) or F(degree) Programmable Delay Clean Option Probe Mode Proof Mode Remote Enabled Sabbath Mode Self & Steam Clean Modes Timer WiFi Connect
Oven Rack Features
3 Self-Clean Oven Racks Full-Extension
Convection Roasting Rack
Yes
Broiler Pan and Grid
Yes
Oven Cleaning Type
Self-Clean Steam Clean
Griddle
18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled
Connected Capabilities
Amazon Alexa Bluetooth Fresco Google Home Hestan Cue IFTTT Innit Sonos The Google Assistant
Product Type
Professional Range
140 Deg. Simmer Burner
All Burners - Adjustable
Cooktop Type
4 Burners Griddle
Fuel Type
Dual Fuel (with natural gas)
Indicator Lights
Burner "On"
Short Description

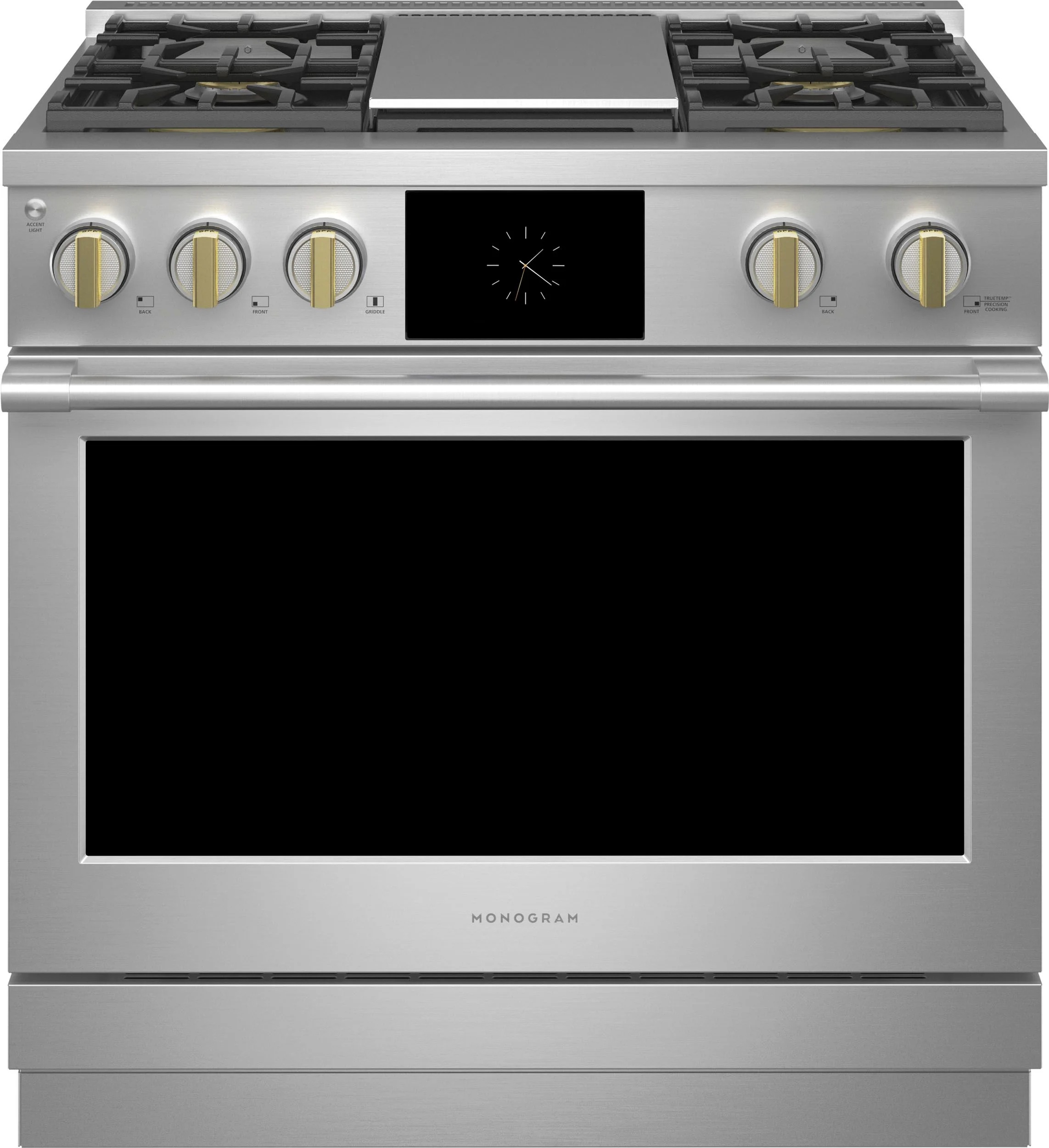

36" Pro Range - Dual Fuel with 4 Burners and Griddle
Interior Oven Light
6 Halogen Lamps (Caterer Oven)
WiFi Connect
Built-In
Extra Low Simmer
All Burners - Adjustable
Cooktop Burner Grate Features
Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Control Type
7" Full-Color Touch LCD Screen Digital Temperature Display with Timer Display
Lighting
Customizable LED Bullnose and Knob Accent Lighting
Collection
Designer Statement
Cooking Technology
Convection
Oven Features
8-Pass Bake Element 8-Pass Broil Element Hidden Bake
Oven Cooking Modes
Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast No-Preheat Air Frying Precision Cooking Modes Proof Scan-to-Cook Warming
Cooktop Burner Type
2 Sealed, Dual Flame Stacked 2 Sealed, Dual Flame Stacked (Removable Brass Accents) Front Right TrueTemp(TM) Burner
Removable Grease Trough
(1) Beneath Griddle
Cooktop Surface
Porcelain-Enamel
Stainless Steel Grill / Griddle Covers
1
Oven Rack Positions (Single or Upper/Lower)
5
Self-Clean Oven Door Lock
Automatic
Built-In WiFi, Powered by SmartHQ(TM) app
Better When Connected
Industry Exclusive-TrueTemp(TM) Burner
Versatile Gas Burner Configuration
Solid Brass Burners
3-Piece Grates with Reversible Wok Feature
Hot Air Fry
Precision Oven Modes with SmartHQ(TM) app
WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Chef Connect
Industry Exclusive-Custom Color LED Accent Lighting
Ring-Lit Knobs
Solid Brass Blades on Precision Machined Knobs
Seamless Stainless Top Frame
Multi Ring Burner Caps (Black)
Included
GTIN
00084691851301
EAN
0084691851301
UPC
084691851301
Net Weight
417 lb
Height to Cooking Surface (in.)
35 1/4 to 36 3/4
Cabinet Width
36 in
Approximate Shipping Weight
462 lb
Overall Width
35.875 in
Overall Height
35.25 in
Overall Depth
28.5 in
Height w/Legs Extended - Maximum Height
36.75 in
Height With Legs Retracted
35.25 in
