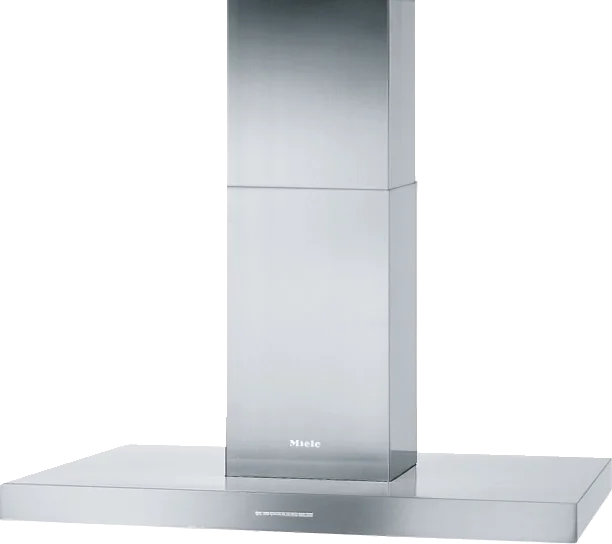

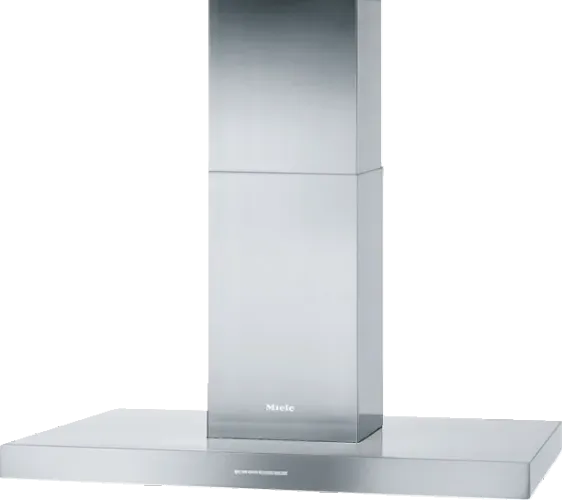

Miele 36" Convertible Ducted Island Mount Range Hood in Stainless Steel

SKU: 10743130

MODEL: PUR98DSTAINLESSSTEEL

0 Questions & 0 Answers

Type: Convertible/Ducted
Width: 35.38"
Height: 2.88"
Depth: 23.63"

Miele |Authorized Dealer

In Stock | Only 8 left

color: Stainless Steel

Miele PUR98DSTAINLESSSTEEL

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

SAFETY
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

FEATURES
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

design

2 items

Island ventilation hood

•

Color

Stainless steel

operating modes

3 items

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUI 32

OdorFree charcoal filter (order separately)

DKF 12-P

user convenience

6 items

Electronic controls

•

Operation

Light-touch switches with LEDs

Power levels (number excl. Intensive)

3

Booster levels

1

Programmable Intensive switch-off

•

CleanCover

cleaning convenience

1 item

Easy-to-clean CleanCover hood liner

•

filter system

1 item

Number of dishwasher-safe stainless-steel grease filters

3

lighting

4 items

LED ClearView lighting

•

Number x W

4 x 3 W

Light intensity in Lx

500 lx

Color temperature in K

3000 Kelvin

blower

2 items

Dual-action blower

•

AC motor

•

exhaust air

2 items

Maximum air throughput in cfm according to HVI

430

Air throughput

Values upon request

safety

1 item

Safety shut-off

•

technical data

18 items

Overall hood height for vented mode and external in inches (mm)

27 1/4 (690)-39 (990)

Overall hood height for recirculation and external in inches (mm)

29 5/8 (750)-41 3/4 (1060)

Overall min. height for vented and external in in. (mm)

27 1/4 (690)

Overall max. height for vented and external in in. (mm)

39 (990)

Overall min. height for recirculation in in. (mm)

29 5/8 (750)

Overall max. height for recirculation in in. (mm)

41 3/4 (1060)

Canopy width in in. (mm)

35 3/8 (898)

Canopy height in in. (mm)

2 7/8 (70)

Depth of hood canopy in in. (mm)

23 5/8 (598)

Minimum distance above electric cooktops in in. (mm)

24 1/8 (610)

Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

75 (34.0)

Hard-wired

•

Total connected load in kW

0.36

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

installation note

3 items

Vent connection at top

•

Diameter of vent connection in in. (mm)

6 (150)

Telescopic chimney

•

standard accessories

1 item

Non-return flap

•

GS1

2 items

GTIN

04002515940082

EAN

4002515940082

Documents

Product sheet PDF

PDF

Warranty conditions PDF

PDF

Operating and Installation instructions PDF

PDF
