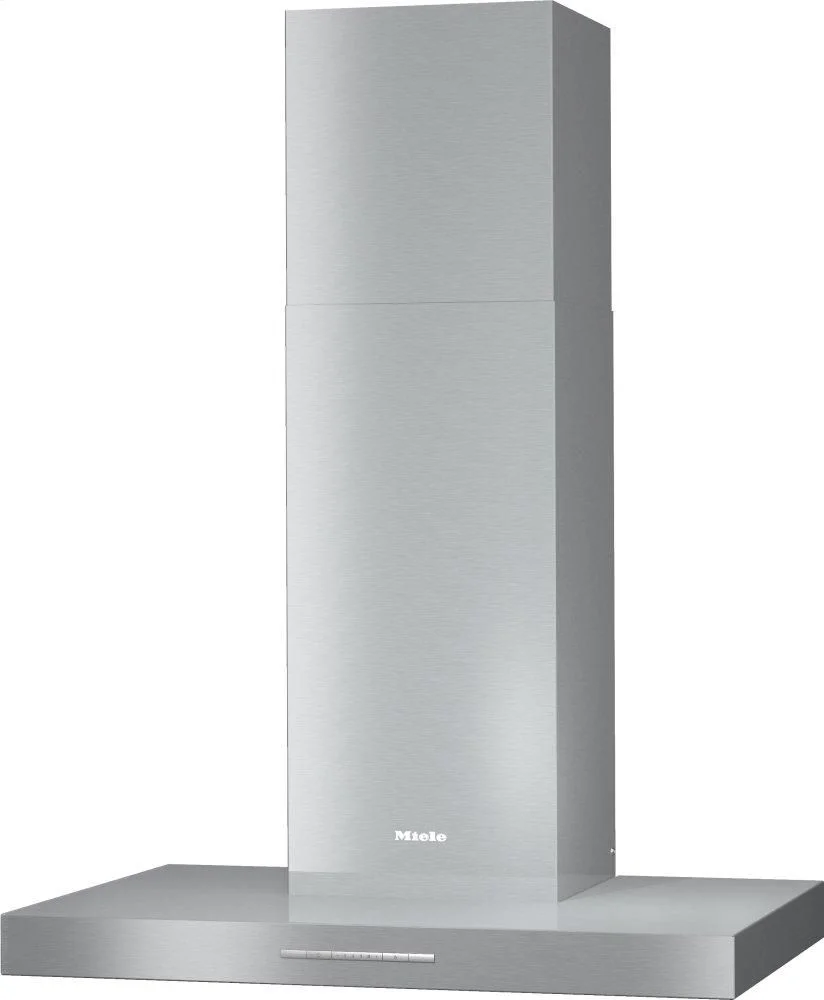

Miele 30" Convertible Ducted Wall Mount Range Hood in Stainless Steel

SKU: 10743170

MODEL: PUR88WSTAINLESSSTEEL

0 Questions & 0 Answers

Type: Convertible/Ducted
Width: 29.50"
Height: 2.50"
Depth: 19.75"

Miele |Authorized Dealer

In Stock

color: Stainless Steel

Miele PUR88WSTAINLESSSTEEL

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

SAFETY
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

FEATURES
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

design

2 items

Wall ventilation hood

•

Color

Stainless steel

operating modes

3 items

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUW 20

OdorFree charcoal filter (order separately)

DKF 12-900

user convenience

6 items

Electronic controls

•

Operation

Light-touch switches with LEDs

Power levels (number excl. Intensive)

3

Booster levels

1

Programmable Intensive switch-off

•

CleanCover

cleaning convenience

1 item

Easy-to-clean CleanCover hood liner

•

filter system

1 item

Number of dishwasher-safe stainless-steel grease filters

2

lighting

4 items

LED ClearView lighting

•

Number x W

2 x 3 W

Light intensity in Lx

330 lx

Color temperature in K

3000 Kelvin

blower

2 items

Dual-action blower

•

AC motor

•

exhaust air

2 items

Maximum air throughput in cfm according to HVI

418

Air throughput

Values upon request

safety

1 item

Safety shut-off

•

technical data

17 items

Overall min. height for vented and external in in. (mm)

27 (685)

Overall max. height for vented and external in in. (mm)

39 5/8 (1005)

Overall min. height for recirculation in in. (mm)

32 1/8 (815)

Overall max. height for recirculation in in. (mm)

44 3/4 (1135)

Canopy width in in. (mm)

29 1/2 (748)

Canopy height in in. (mm)

2 1/2 (62)

Depth of hood canopy in in. (mm)

19 3/4 (500)

Minimum distance above electric cooktops in in. (mm)

24 1/8 (610)

Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

51 (23.0)

Length of electrical wire in ft. (m)

4 (1.5)

Standard plug fitted

•

Total connected load in kW

0.356

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

installation note

4 items

Vent connection at top

•

Vent connection at top and rear

•

Diameter of vent connection in in. (mm)

6 (150)

Telescopic chimney

•

standard accessories

2 items

Non-return flap

•

Reducer from 150 to 125 mm

•

GS1

2 items

GTIN

04002515941638

EAN

4002515941638

Documents

Mounting plan PDF

PDF

Product sheet PDF

PDF

Warranty conditions PDF

PDF

Operating and Installation instructions PDF

PDF
