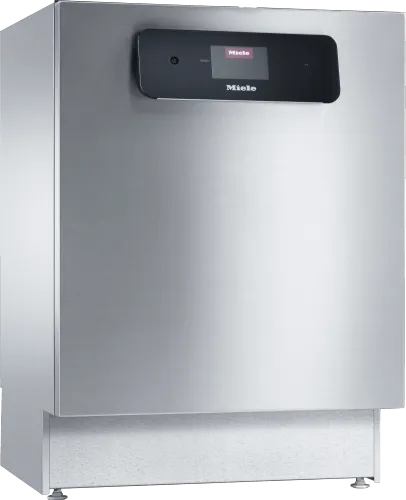

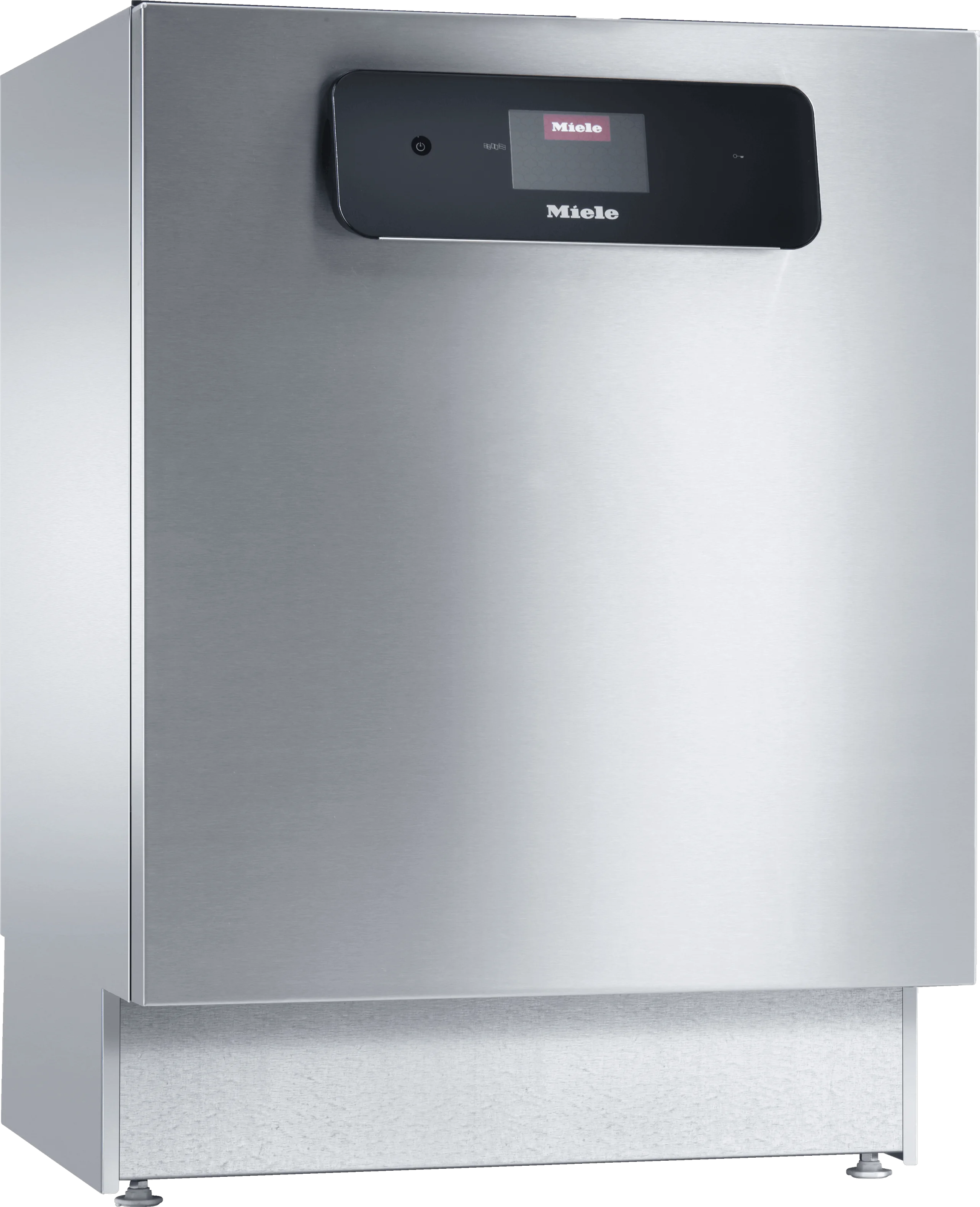

Miele 26" Built-In Smart Dishwasher

Model

Hygiene

Range

MasterLine

Wash system

Fresh water front loader

Number of levels

2

Front

Stainless steel

Lid

Without lid

Side walls

Galvanised

Suitable for retirement and care homes

Yes

Suitable for hospitals

Yes

Suitable for child care facilities

Yes

Suitable for universities and schools

Yes

Tested virucidal efficacy

Yes

Certified hygiene

Yes

Shortest program duration in min.

6

Maximum final rinse temperature in (degree)F ((degree)C)

185 (85)

Cleaning performance, plates/h

380

Cleaning performance, baskets/h

20

Possible to wash plastic baskets on two levels

Yes

Service life in wash cycles

28000

Control system

M Touch Flex

Max. delay start in h

24

Countdown indicator

Yes

Dishwashing programs [number]

12

Program sequence indicator

Yes

Choice of display language

Yes

Language-neutral operation

Yes

Electrical connection

2 AC 208V 60HZ

Heater rating in kW

5.400

Total connected load in kW

5.800

Fuse rating in A

30

Length of power cord in ft (m)

6 (1.90)

NEMA plug: Twist Lock L6-30

Yes

Electrical connection

3 AC 208V 60HZ

Heater rating in kW

5.400

Total connected load in kW

5.800

Fuse rating in A

20

Cold water [number]

1

Hot water [number]

1

Required flow pressure in bar

1-10

Drain hose [DN]

22

Maximum delivery head for drain pump in inches (cm)

39 3/8 (100)

Integrated water softener

Yes

Maximum water hardness in gpg (mmol/l)

62.595 (10.70)

Water protection system

Waterproof system

Water consumption per wash cycle in gal (l)

2.1 (8.00) gll (l)

Length of water inlet hose in inches (cm)

67 (170)

Length of water drain hose in inches (cm)

59 1/8 (150)

External dimensions, net height in inches

32 5/16 (820)

Maximum height adjustment in inches (mm)

60

External dimensions, net width in inches

23 9/16 (598)

External dimensions, net depth in inches

23 7/16 (595)

External dimensions, gross height in inches

36 1/4 (920)

External dimensions, gross width in inches

26 7/16 (670)

External dimensions, gross depth in inches

29 3/16 (740)

Usable space in wash cabinet, width in inches (mm)

22 1/16 (559)

Usable space in wash cabinet, height in inches (mm)

21 1/8 (536)

Usable space in wash cabinet, depth of upper basket in inches (mm)

18 11/16 (474)

Usable space in wash cabinet, depth of lower basket in inches (mm)

20 3/8 (516)

In-feed height above floor in inches (mm)

8 9/16 (216)

Required niche width in mm

23 5/8 (600)

Net weight [kg]

166 (75)

Gross weight in lbs.

188 (85)

Maximum floor load in N/m

1200

Emission sound pressure level in workplace (LpA)

45 dB(A) re 20 Pa

Sound power (LwA) in dB(A) re 1 pW

57

Heat dissipation into the room in MJ/h

1.44

Normal Plus

Yes

Rapid

Yes

Normal

Yes

SaniWash

Yes

SaniWash Plus

Yes

Cold/Pre-wash

Yes

Glasses

Yes

Beer glasses

Yes

Cutlery

Yes

Plastic

Yes

Intensive

Yes

Reactivation

Yes

Drainage by pump

Yes

2 x E 816 inserts for plates

Yes

1 x APFD 215 upper basket

Yes

1 x APFD 220 lower basket for inserts

Yes

2 x APFD 420 insert for cutlery

Yes

Height-adjustable upper basket

Yes

Combinable with APFD 210 bottle basket

Yes

Drying

AutoOpen assisted drying

Adjustable temperature holding time

Yes

Adjustable final rinse temperature

Yes

Wi-Fi

Yes

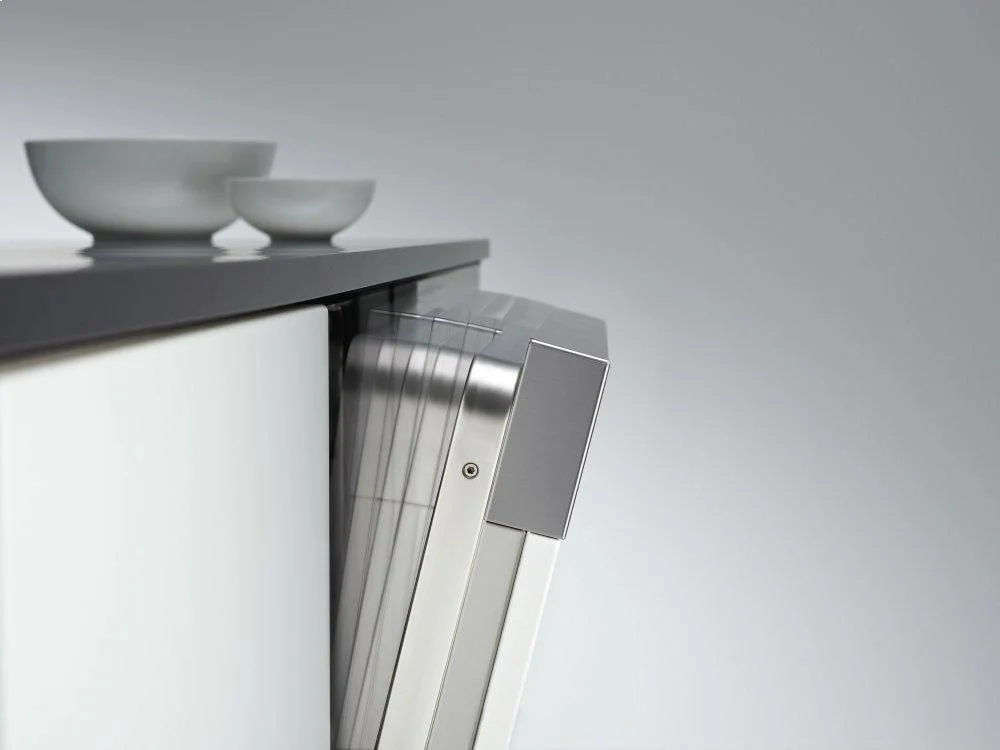

AutoClose

Yes

1 Combi dispenser/door for powder and liquid media

Yes

In-door salt container

Yes

Door lock, protected by code

Yes

Perfect GlassCare

Yes

Highly effective filter system with filter monitoring

Yes

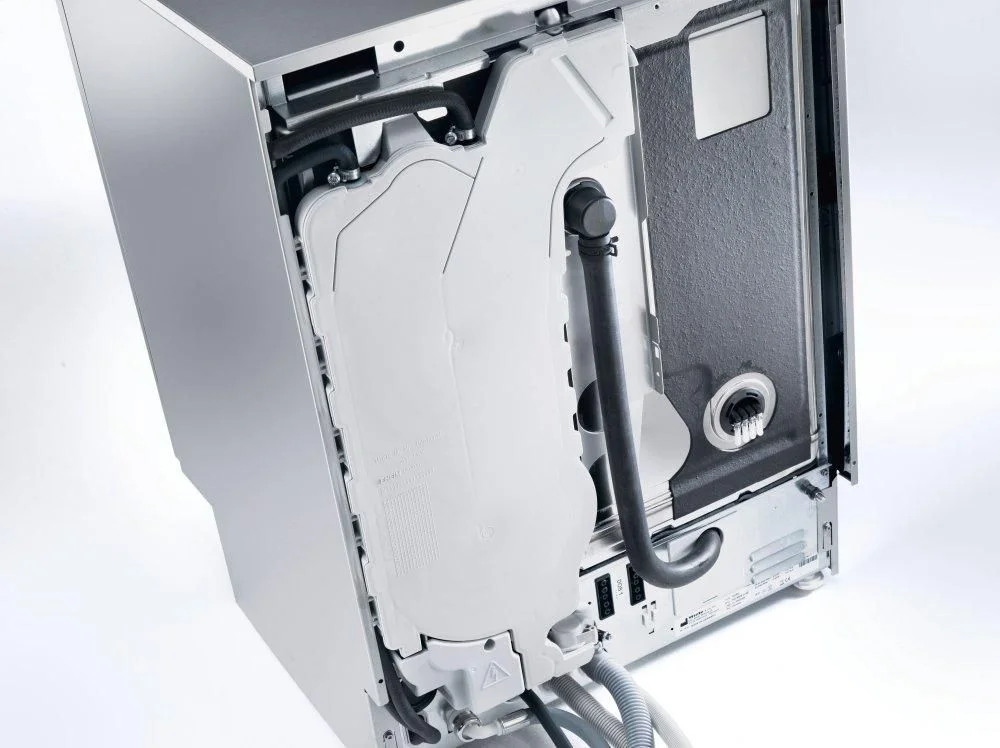

Aerosol steam condenser

Yes

Wash cabinet made from high-quality stainless steel

Yes

Optical interface

Yes

A wide range of accessories (optional)

Yes

Max. cleaning performance : 380 plates/h or 20 baskets/h

First-class results thanks to fresh water system

Extremely hygienic results - final rinse temperature of 185 (85) (degree)F ((degree)C)

Safe and easy operation - automatic door opening

Max. user convenience with M Touch Flex full-touch color display

Manufactured with great care by Miele & Cie. KG

Safety information

Proven hygiene

Adjustable program parameters

Delay start and time left display

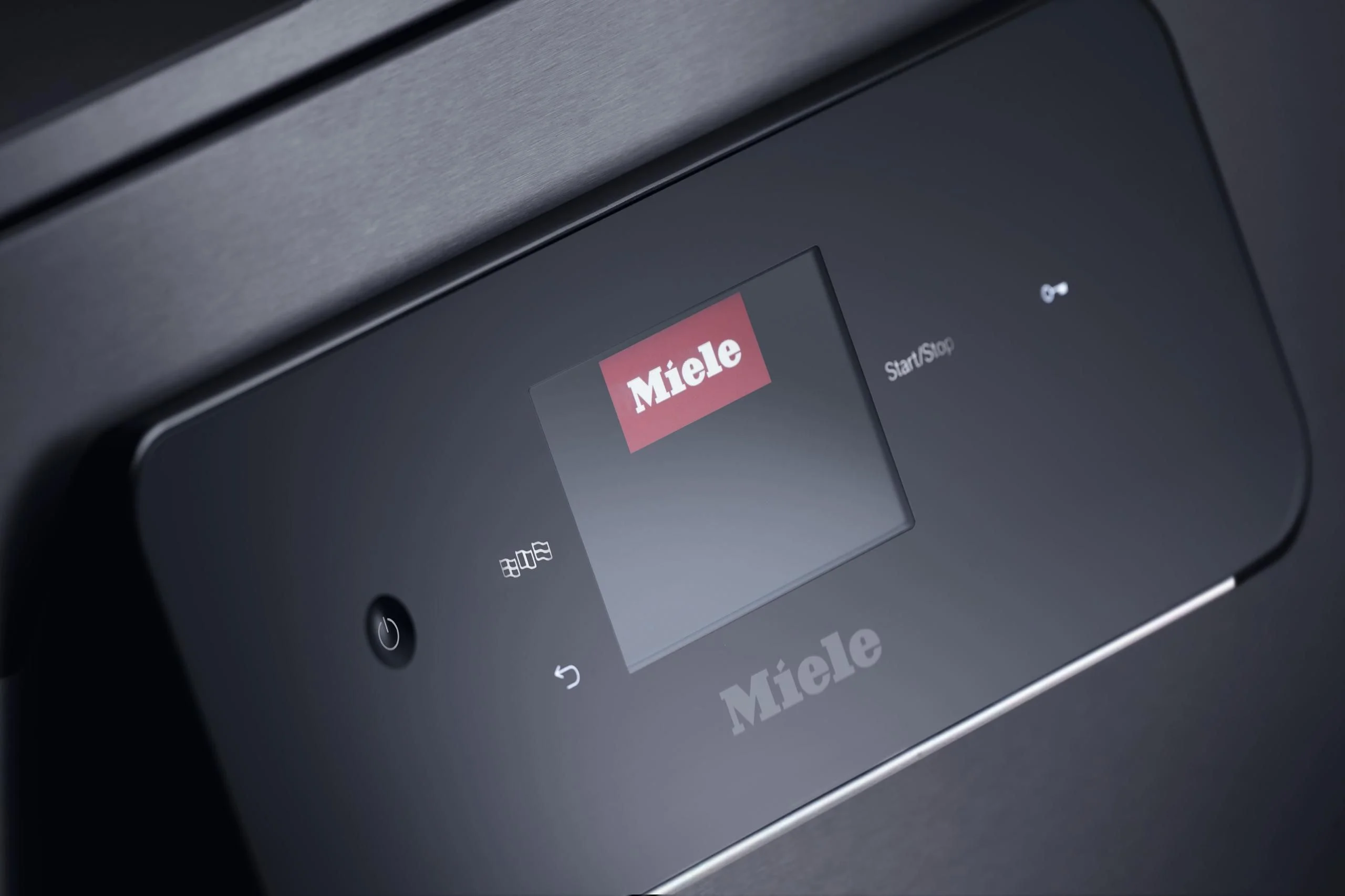

M Touch Flex controls

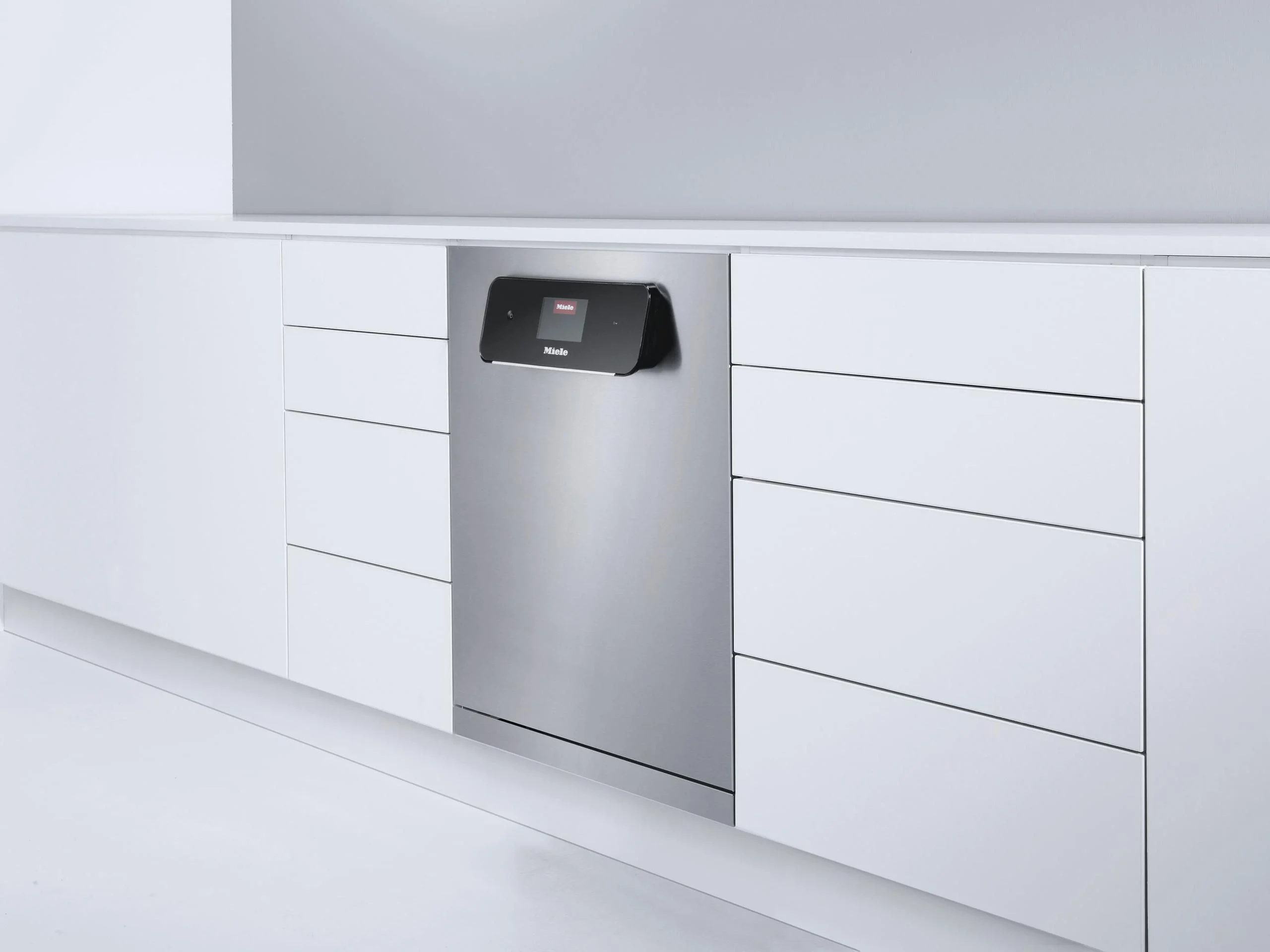

Perfect integration under countertops

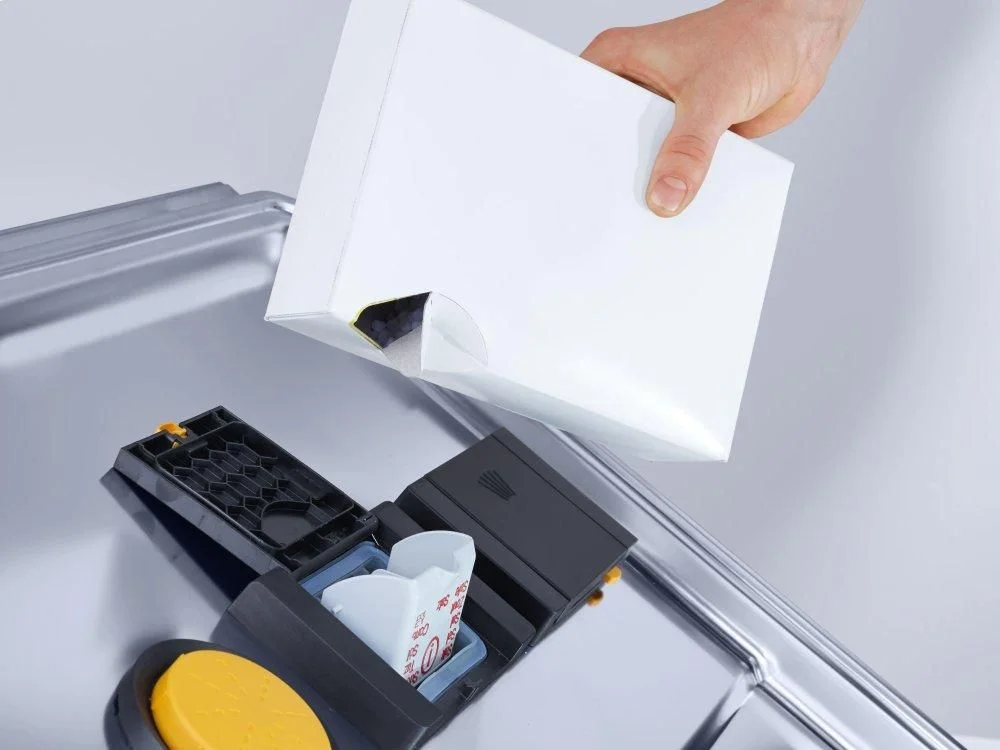

Door salt container

Extensive range of accessories

Future-proof networking via WiFi

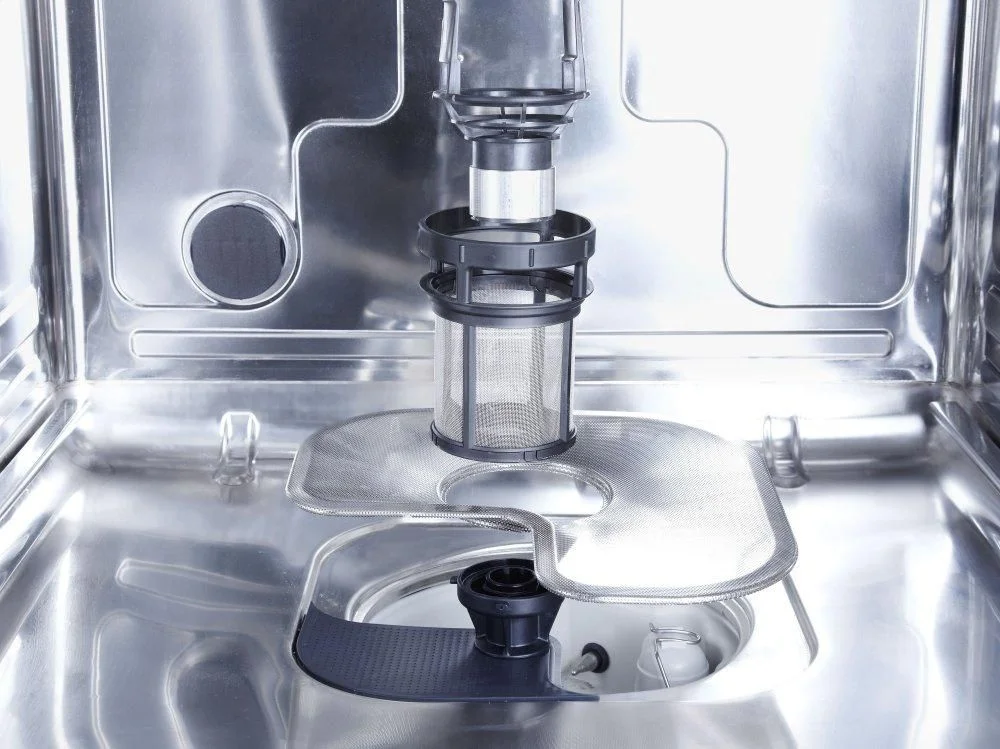

Highly effective filter system

Efficient hot water connection

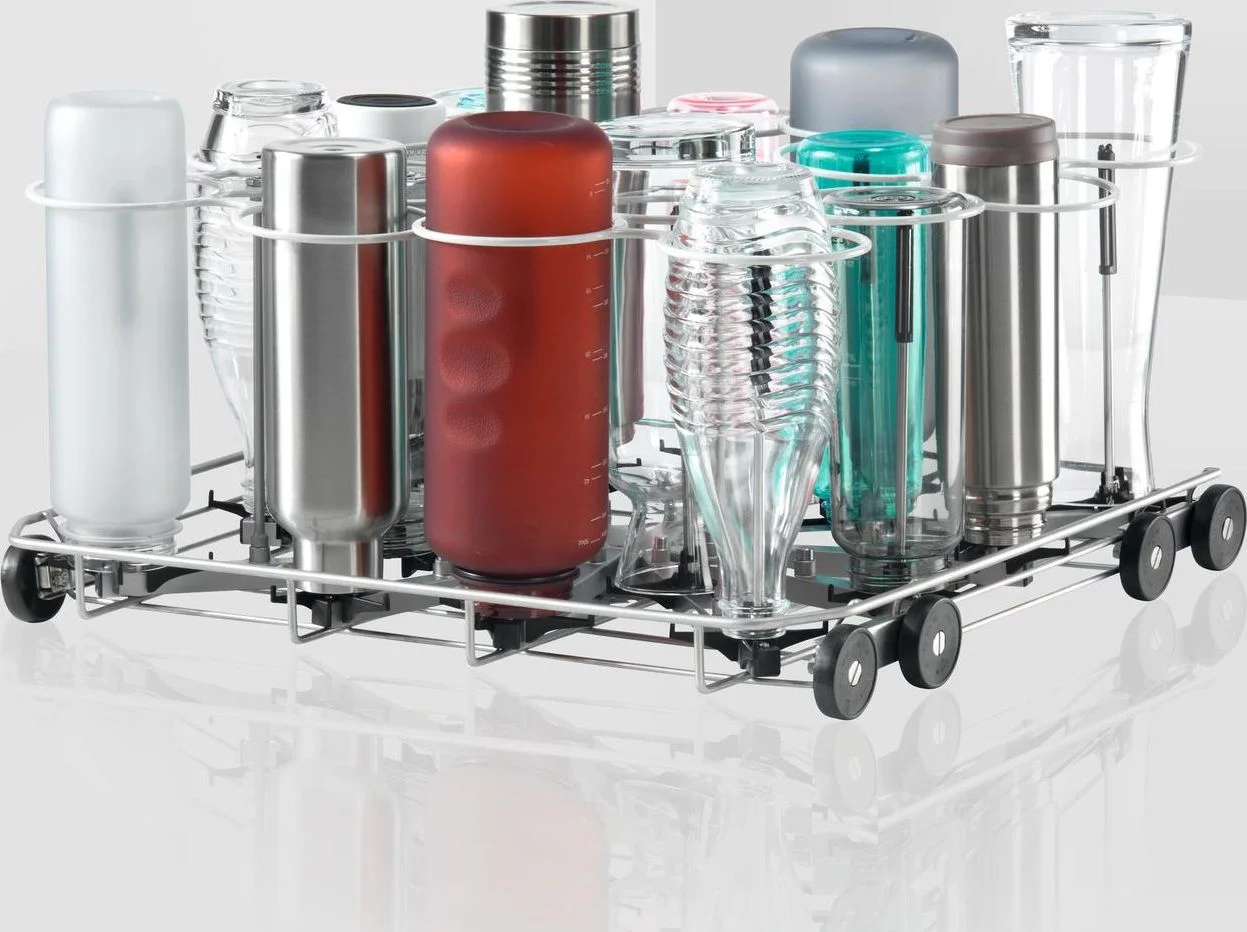

Practical bottle basket

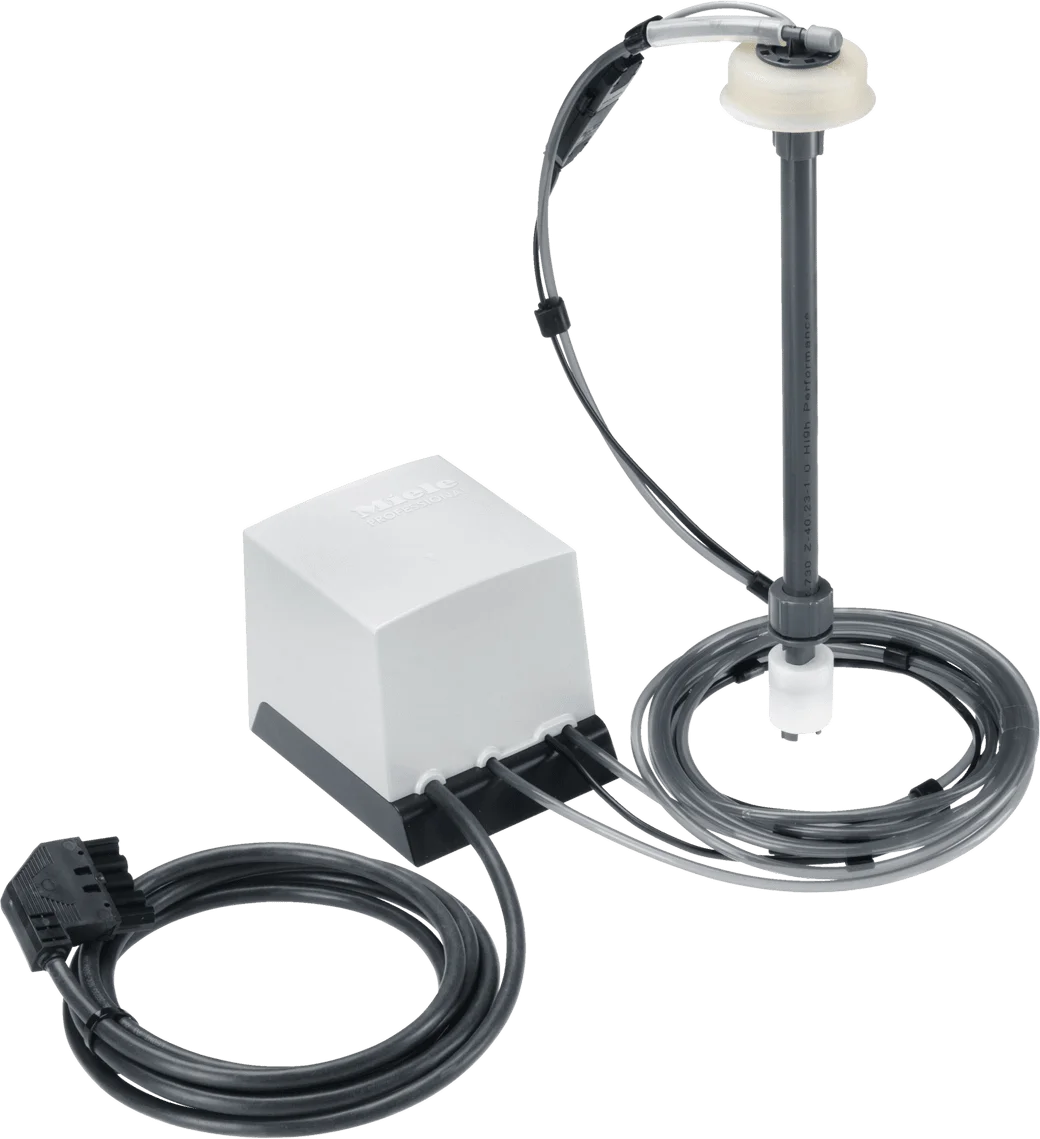

Connection for detergent dispenser module

Very short cycle times

Low consumption values

Plastic baskets on two levels

Fresh water system

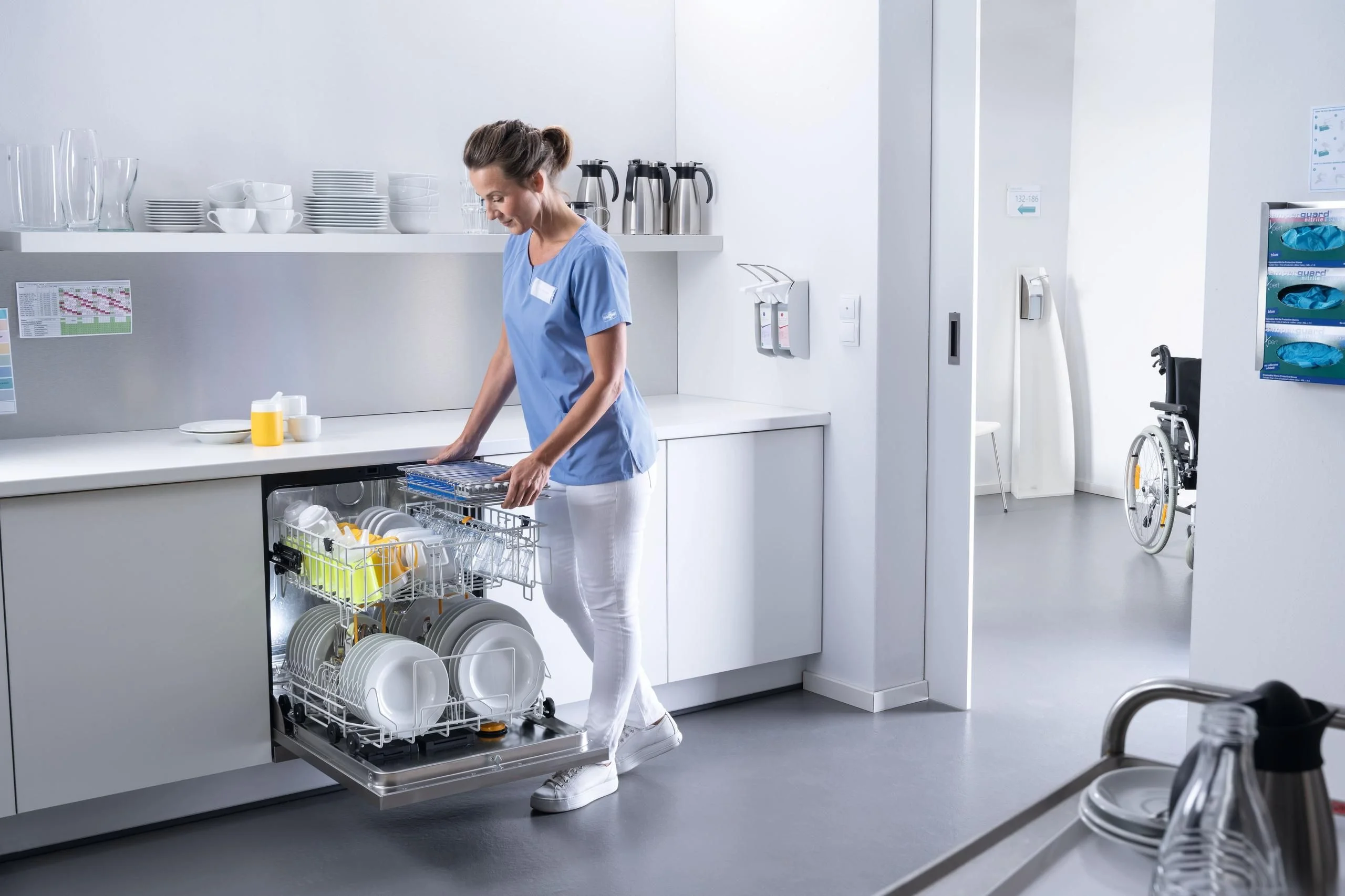

Hygienic cleanliness down to the very last detail

Professional baskets

Integrated water softener

Quality you can rely on

Safe mode

Yes

External dispenser module for liquid cleaning agent

Yes

Complies with Machinery Directive 2006/42/EC

Yes

Splash protection IPX1

Yes

EMC radio suppressed

Yes

DIN 10512

Yes

DIN EN 17735

Yes

ETL

Yes

ADA compliant

Yes

EAN

4002516577348

GTIN

04002516577348

EAN

4002516577348
