PRODUCT DESCRIPTION
Features
Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.
Highly effective filter system
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Proven hygiene
Our dishwashers in the PFD 10x series remove more than 99.9% * of all viruses (including coronaviruses).
Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.

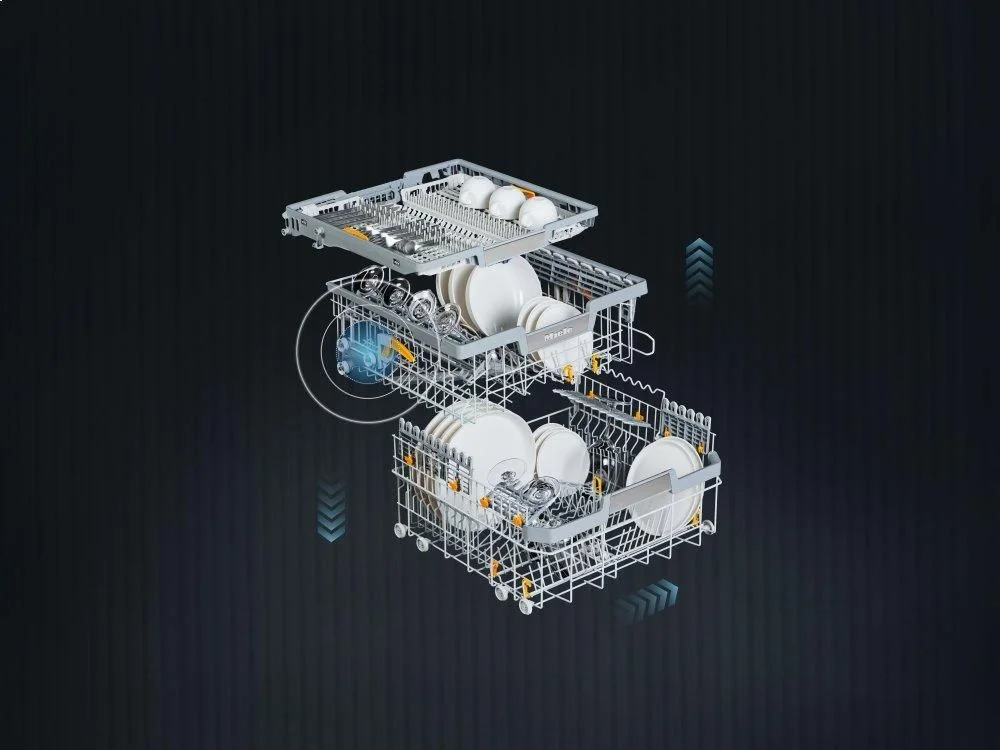

FlexLine Baskets
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.

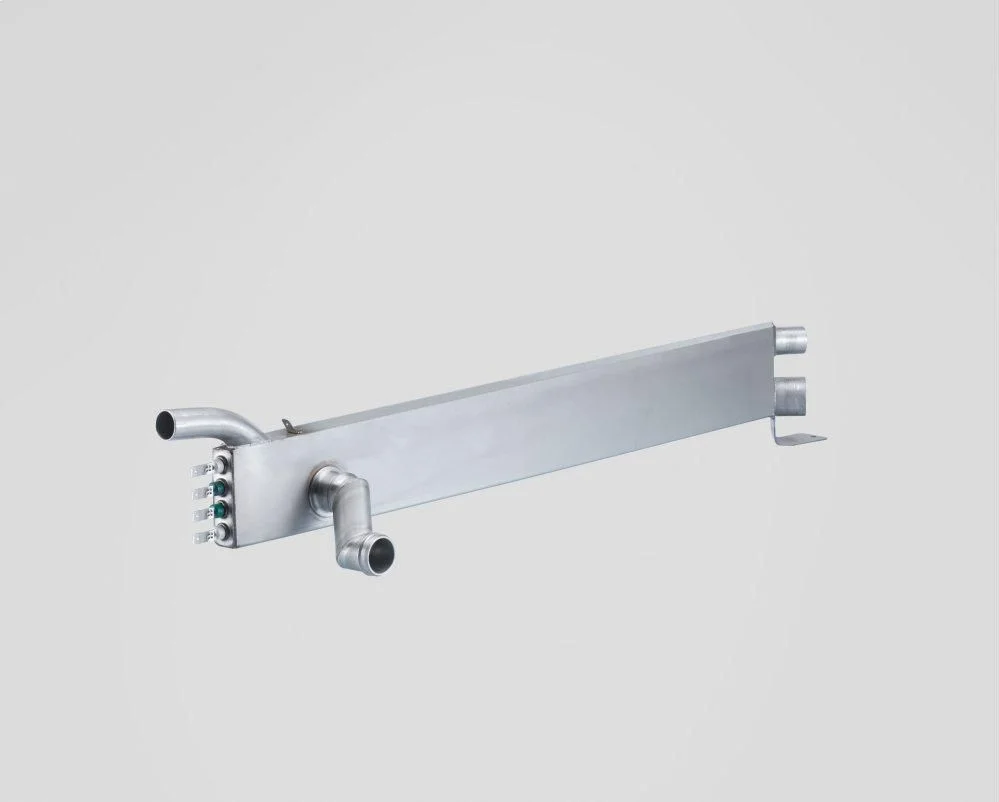

Commercial throughflow heater
A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.

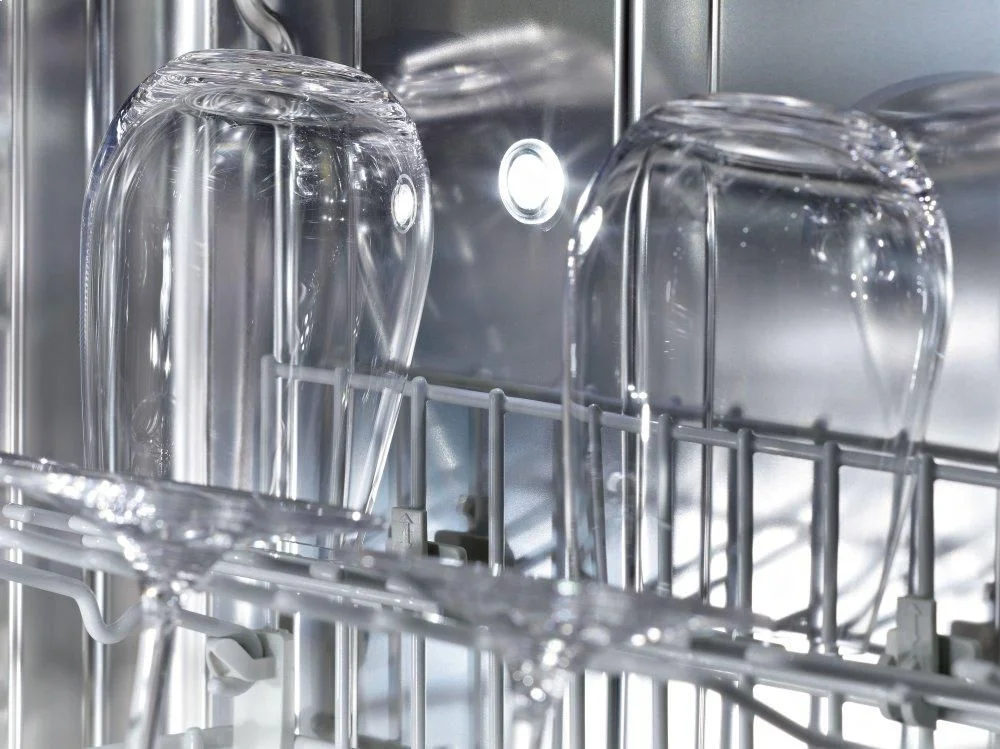

BrilliantLight *
Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.

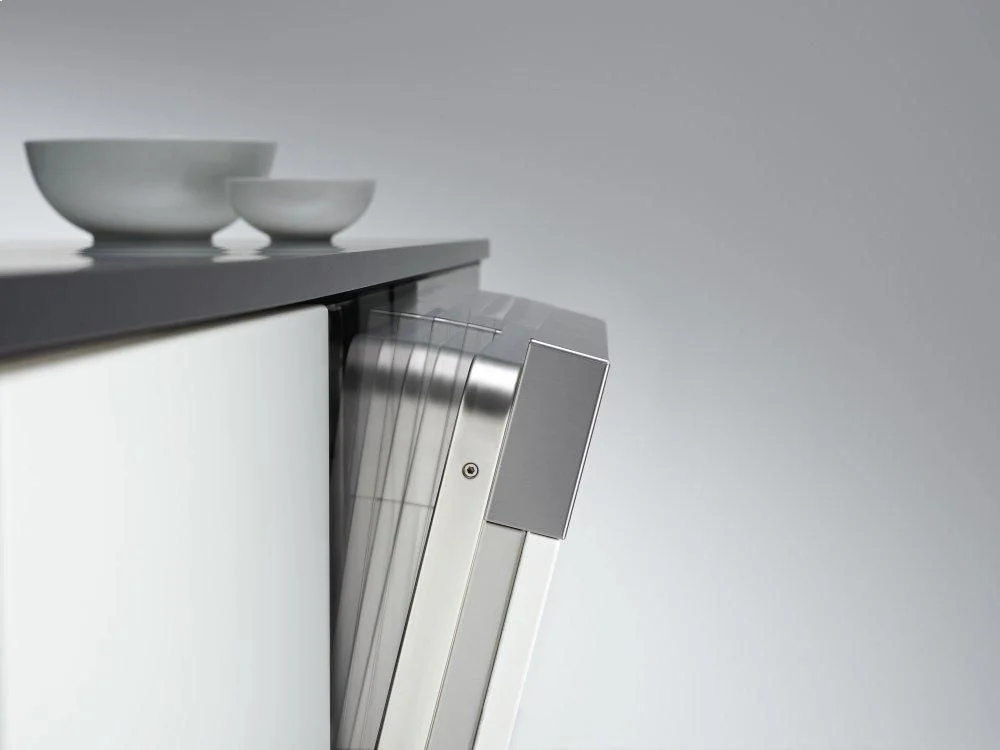

AutoClose
A light touch is all it takes: With AutoClose the door closes on its own.

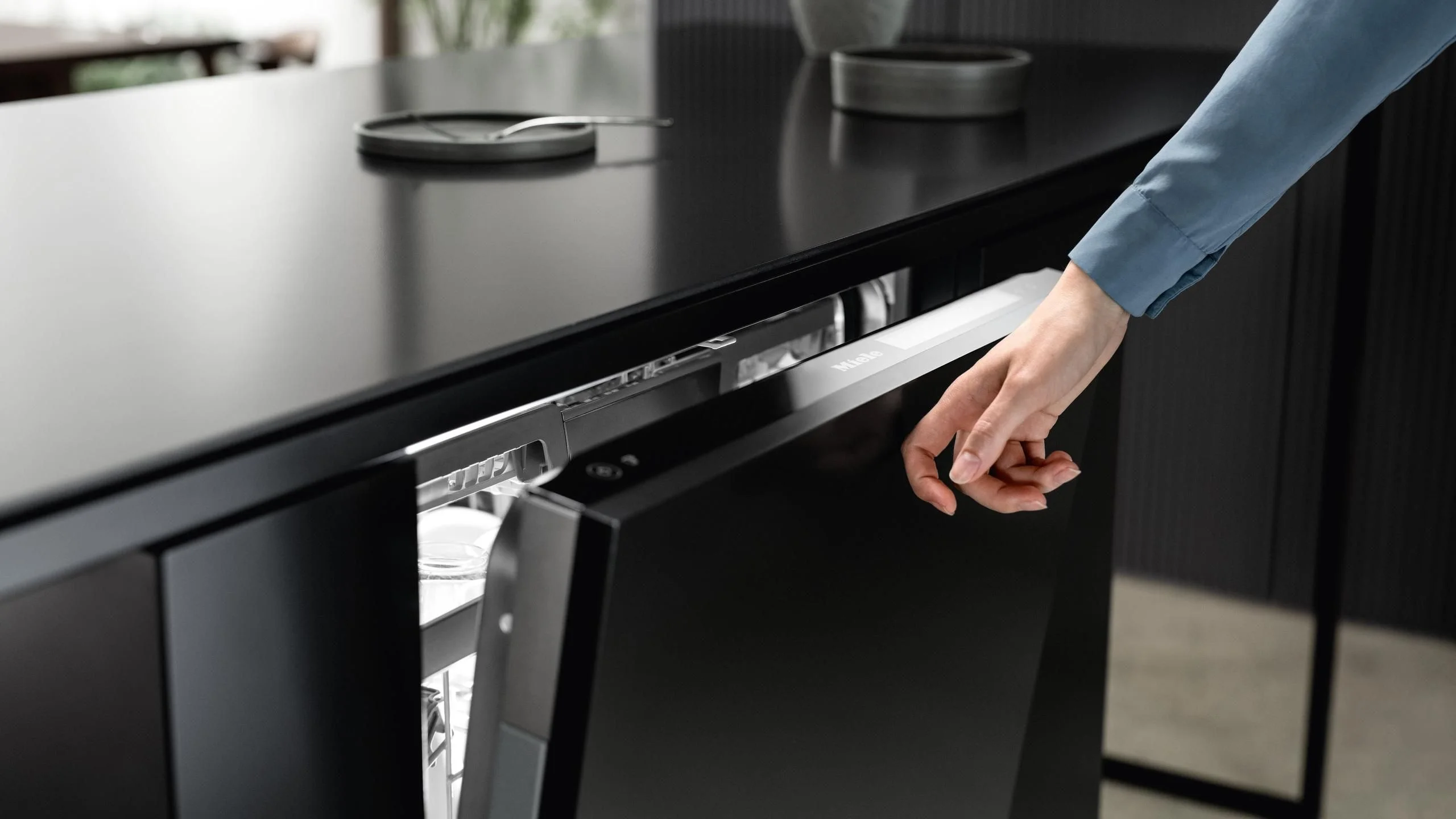

Knock2open *
Ingenious: the dishwasher integrates seamlessly into handleless kitchens - and opens automatically with a knock.

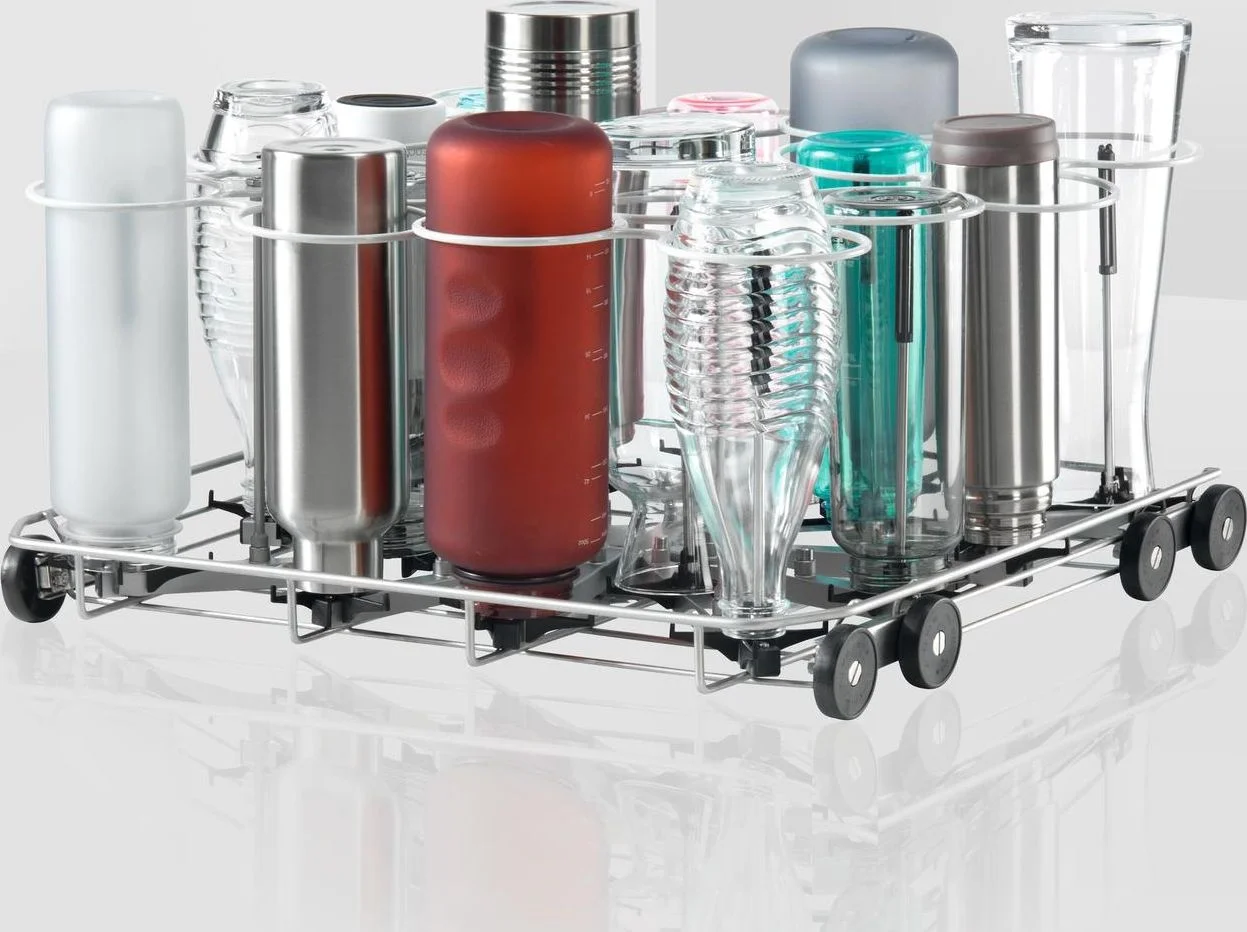

Practical bottle basket
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.
FlexiTimer with EcoStart
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
Proven hygiene
Our dishwashers in the PFD 10x series remove 99.999% * of most bacteria.

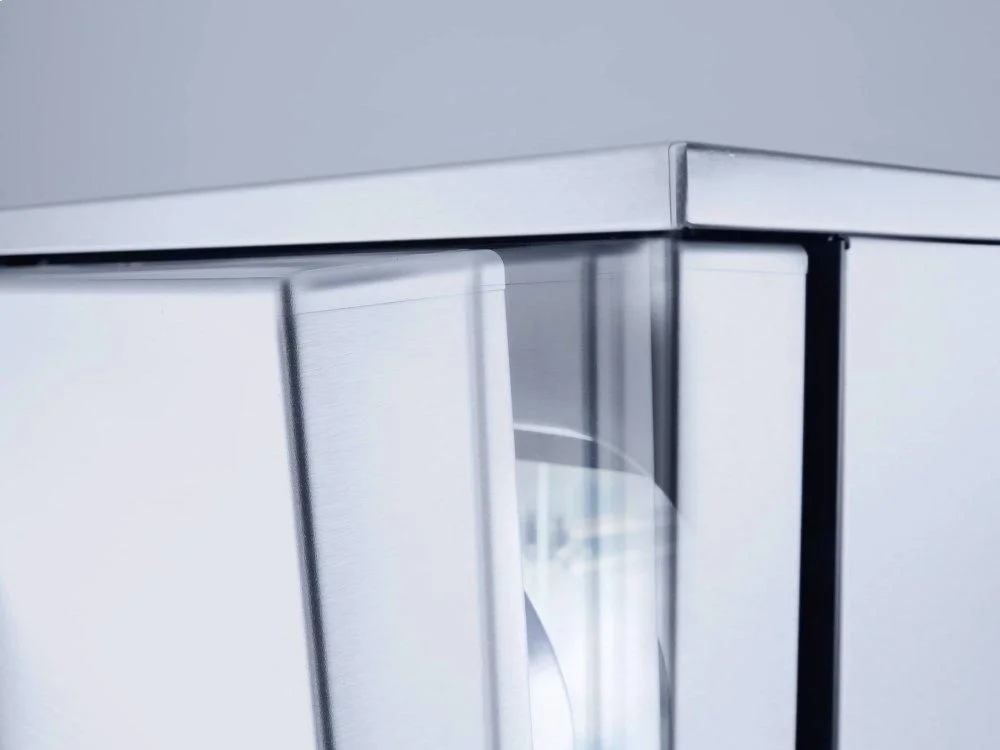

AutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program.
EcoFeedback
Economical: when a program is selected, estimated water consumption values are displayed.

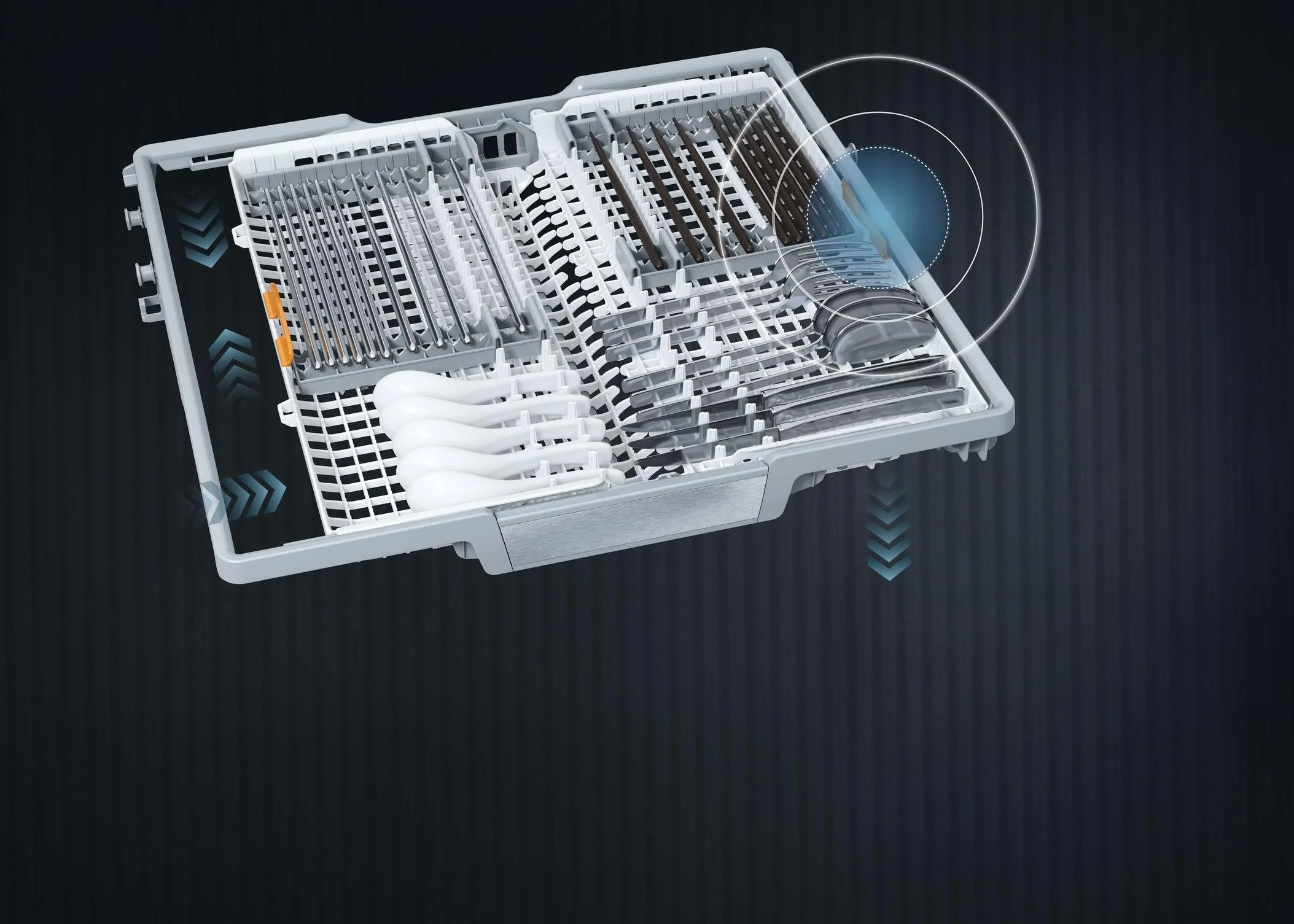

3D MultiFlex Tray *
Efficient: ingenious adjustment options create space in the dishwasher even for small items.

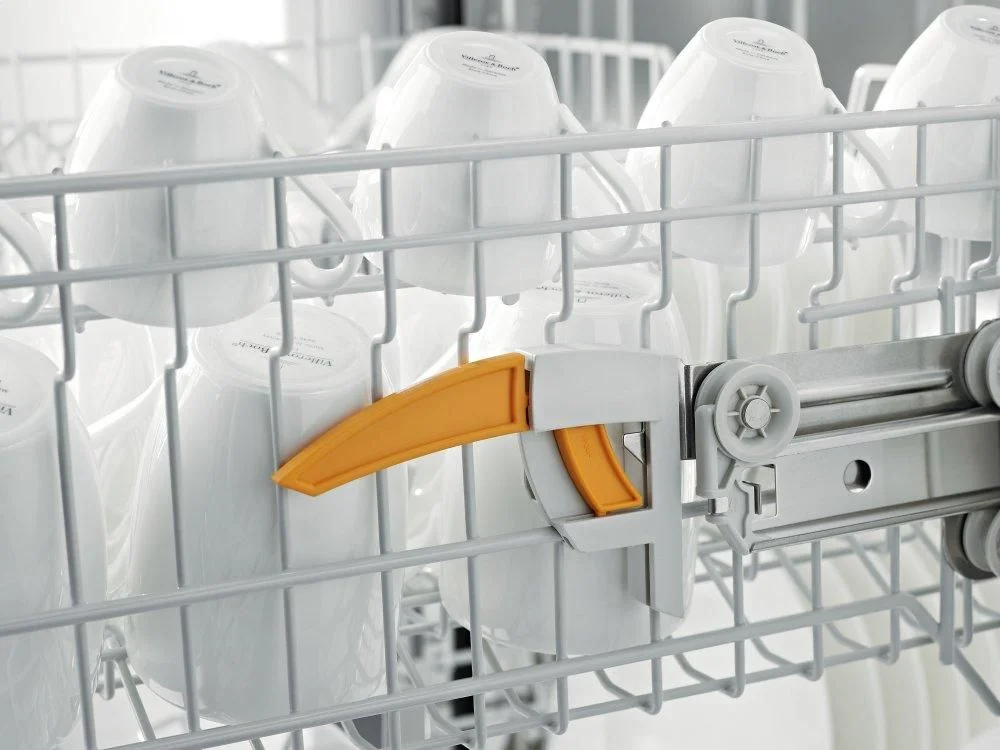

Height-adjustable upper basket
The height of the upper basket can be adjusted to suit the items being cleaned.

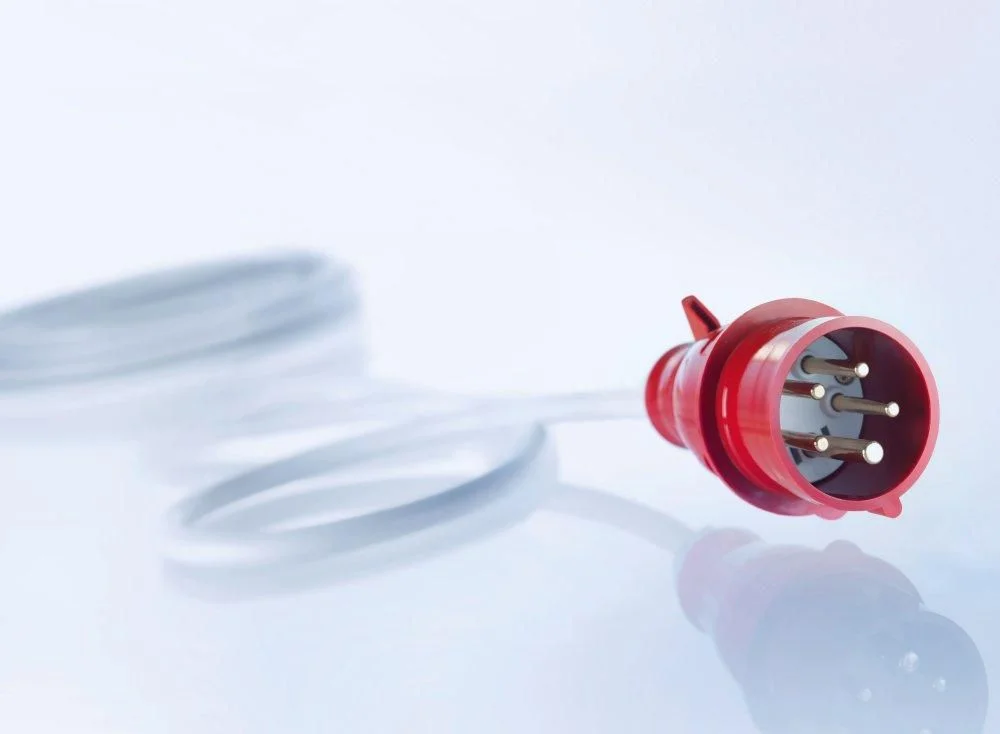

Commercial electrical connection
Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.
Integrated water softener
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.

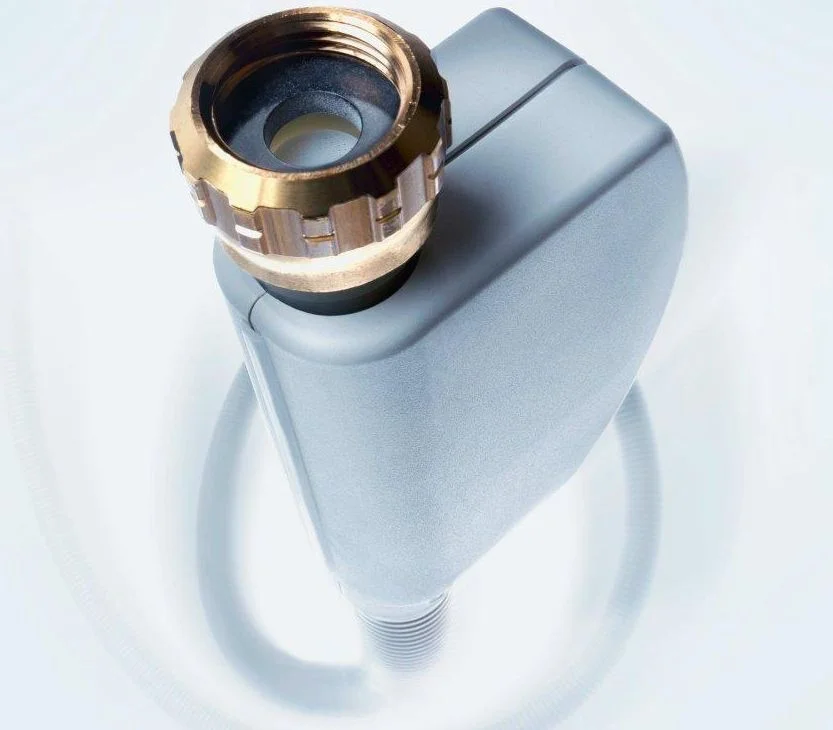

Reliable water protection *
Peace of mind: Your dishwasher is built to prevent water-related mishaps.
Network-enabled with Miele MOVE
All terminal devices can access machine data at all times thanks to networking with Miele MOVE.
Future-proof networking via WiFi
Fully informed with a high-performance network connection.
XXL dishwashers
Large-capacity dishwasher with a height of 33 7/16" (85 cm), giving you even more room in the upper basket.
Brilliant GlassCare
Gentle and delicate: Brilliant GlassCare cleans your glassware with care.
Specifications
Model
Fully integrated dishwasher
XXL dishwashers
Yes
Range
ProfiLine
Wash system
Fresh water front loader
Number of levels
2
Front
Without front
Side walls
Galvanised
Control panel color
Obsidian Black
Minimum front panel weight in lbs (kg)
11 (5) lb (kg)
Maximum front panel weight in lbs (kg)
26 (12) lb (kg)
Suitable for retirement and care homes
Yes
Suitable for hospitals
Yes
Suitable for Bed & Breakfast
Yes
Suitable for child care facilities
Yes
Suitable for universities and schools
Yes
Suitable for offices
Yes
Suitable for domestic use
Yes
Suitable for small businesses
Yes
Suitable for sports clubs
Yes
Tested virucidal efficacy
Yes
Certified hygiene
Yes
Shortest program duration in min.
52
Maximum final rinse temperature in (degree)F ((degree)C)
180 (82)
Cleaning performance, place settings/cycle
16
Service life in wash cycles
12500
Network-enabled with Miele MOVE
Yes
Control system
Electronic controls
Program selection
Program selectors
Max. delay start in h
24
Countdown indicator
Yes
Dishwashing programs [number]
8
Program sequence indicator
Yes
Choice of display language
Yes
Check filter indicator
Yes
Electrical connection
AC 120V 60HZ
Heater rating in kW
1.300
Total connected load in kW
1.400
Fuse rating in A
15
Length of power cord in ft (m)
5 (1.70)
NEMA plug: 5-15
Yes
Electrical connection
2N AC 120/208-240V, 60HZ
Heater rating in kW
3.500-3.800
Total connected load in kW
3.700-4
Fuse rating in A
30
Cold or hot water [number]
1
Required flow pressure in bar
1-10
Drain hose [DN]
22
Maximum delivery head for drain pump in inches (cm)
39 3/8 (100)
Integrated water softener
Yes
Maximum water hardness in gpg (mmol/l)
38.025 (6.50)
Water protection system
Waterproof system
Length of water inlet hose in inches (cm)
59 1/8 (150)
Length of water drain hose in inches (cm)
59 1/8 (150)
External dimensions, net height in inches
33 5/16 (845)
External dimensions, net width in inches
23 9/16 (598)
External dimensions, net depth in inches
21 11/16 (550)
External dimensions, gross height in inches
38 1/4 (970)
External dimensions, gross width in inches
26 7/16 (670)
External dimensions, gross depth in inches
27 3/16 (690)
Usable space in wash cabinet, width in inches (mm)
22 7/8 (580)
Usable space in wash cabinet, height in inches (mm)
20 1/8 (510)
Usable space in wash cabinet, depth of upper basket in inches (mm)
17 3/4 (450)
Usable space in wash cabinet, depth of lower basket in inches (mm)
17 3/4 (450)
In-feed height above floor in inches (mm)
8 5/16 (210)
Required niche width in mm
23 5/8 (600)
Net weight [kg]
106 (48)
Gross weight in lbs.
126 (57)
Maximum floor load in N/m
1000
Emission sound pressure level in workplace (LpA)
33 dB(A) re 20 Pa
Sound power (LwA) in dB(A) re 1 pW
45
Normal Plus
Yes
Normal
Yes
SaniWash
Yes
Cold/Pre-wash
Yes
Glasses
Yes
Plastic
Yes
EnergySave/Economy
Yes
Intensive
Yes
MaxiComfort P baskets
Yes
Flexible FlexLine basket design
Yes
FlexCare glass holder [number]
4
FlexCare cup rack [number]
2
Height-adjustable upper basket
Yes
Combinable with APFD 210 bottle basket
Yes
Patented 3D MultiFlex tray
Yes
Commercial-grade electrical connection
Yes
Drying
[ "AutoOpen assisted drying", "Additional drying", "Active condensation drying" ]
Adjustable final rinse temperature
Yes
Wi-Fi
Yes
AutoClose
1 Combi dispenser/door for powder and liquid media
Yes
LED Lighting
Yes
Knock2open
Yes
EcoFeedback
Brilliant GlassCare
Wash cabinet made from high-quality stainless steel
Yes
Optical interface
Yes
SmartStart
Yes
FlexiTimer with EcoStart
Delay start and time left display
Low consumption values
Commercial electrical connection
Choice of display languages
Height-adjustable upper basket
Reliable water protection *
Fresh water system
Commercial throughflow heater
Integrated water softener
AutoOpen assisted drying
FlexLine Baskets
BrilliantLight *
Practical bottle basket
Future-proof networking via WiFi
Highly effective filter system
Knock2open *
Proven hygiene
3D MultiFlex Tray *
Network-enabled with Miele MOVE
XXL dishwashers
Quality you can rely on
CE
Yes
Complies with Machinery Directive 2006/42/EC
Yes
VDE
Yes
EMC radio suppressed
Yes
DIN EN 17735
Yes
EN 1717
Yes
UL
Yes
EAN
4002516366881
GTIN
04002516366881
EAN
4002516366881
