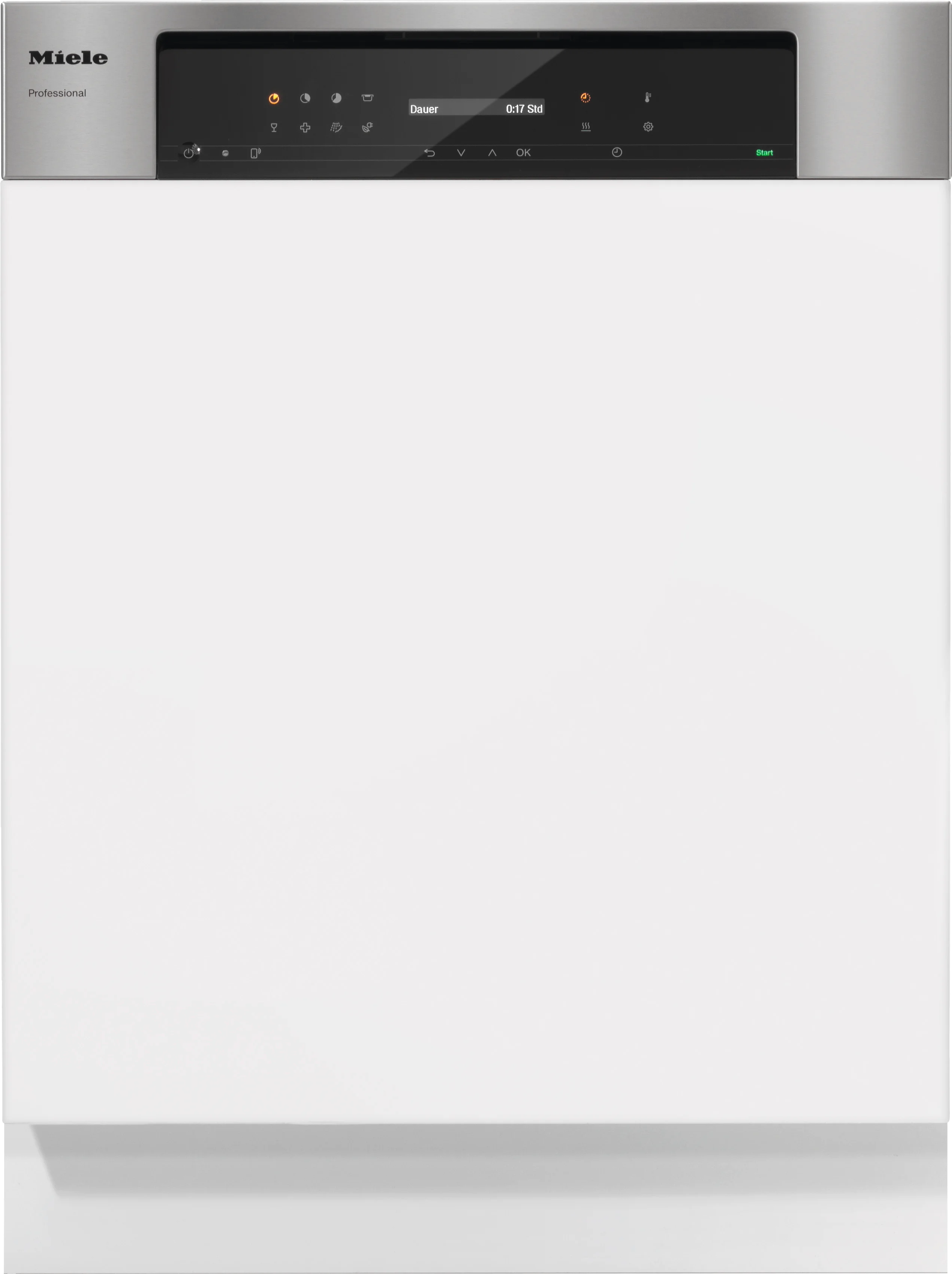

Miele 24" Built-In Dishwasher, 13 Place Setting Capacity in Without Front

SKU: 11605430
MODEL: PFD102IWITHOUTFRONT11605430
2x Points
Free 2Y Warranty
Low-cost Install
  • Width: 23.63"
  • Height: 23.63"
  • Depth: 22.50"
  • Energy Star Rated: yes
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • Stainless Steel Tub: Yes
  • Fully Integrated Controls: No
  • Tall Tub: Yes
  • Cycles Count: 13
Miele |Authorized Dealer
In Stock|Only 2 left

color: Without Front

Miele PFD102IWITHOUTFRONT11605430

GET READY FOR INSTALLATION

PRODUCT DESCRIPTION

USER CONVENIENCE
Connection for detergent dispenser module

An optional dispenser module can be connected for convenient and economical use of liquid agents.


Delay start and time left display

For maximum flexibility, a delay start time of up to 24 hours can be selected.


BrilliantLight *

Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.


AutoClose *

A light touch is all it takes: With AutoClose the door closes on its own.


Simplest user interface

Intuitive & easy to operate: All programs can be selected quickly & started at the touch of a button.


Choice of display languages

Multi-talented: set various languages on the display so that you fully understand every piece of information.


HYGIENE
Proven hygiene

Our dishwashers in the PFD 10x series remove more than 99.9% of all viruses (including coronaviruses)


BASKET DESIGN
Cutlery basket

Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.


Height-adjustable upper basket

The height of the upper basket can be adjusted to suit the items being cleaned.


FlexLine Baskets

Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.


EFFICIENCY AND SUSTAINABILITY
Low consumption values

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.


Integrated water softener

The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.


EcoFeedback

Economical: when a program is selected, estimated water consumption values are displayed.


QUALITY
Commercial throughflow heater

A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.


Powerful heater pump

For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.


Water protection guarantee *

Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.


Highly effective filter system

Outstanding dishwashing results and reliability are largely due to the highly effective filter system.


Quality you can rely on

Durability: Miele Professional dishwashers are tested for a long service life.


PERFORMANCE
Short program cycles

With their short cycle times ProfiLine dishwashers are true sprinters.


For businesses

These dishwashers are ideally suited for all areas which deal with large amounts of dishware.


Commercial electrical connection

Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.


Patented AutoOpen assisted drying *

Completely dry: The dishwasher door opens automatically at the end of the program.


High rinse temperature

Even the most demanding hygiene requirements are met by using high final rinse temperatures.


Brilliant GlassCare

Gentle and delicate: Brilliant GlassCare cleans your glassware with care.


Fresh water system

Constantly high cleaning performance and filtration thanks to repeated water changes.

Specifications

model and design

Model
Semi-integrated dishwasher
Range
ProfiLine
Wash system
Fresh water
Number of levels
2
Front
Without front
Side walls
Galvanised
Fascia color
Cleansteel
Drying
AutoOpen assisted drying Extra drying
Minimum front panel weight in lbs
4.00
Maximum front panel weight in lbs
11.00

application

Suitable for retirement and care homes
 •
Suitable for hospitals
 •
Suitable for Bed & Breakfast
 •
Suitable for child care facilities
 •
Suitable for universities and schools
 •
Suitable for offices
 •
Suitable for domestic use
 •
Suitable for small businesses
 •
Suitable for sports clubs
 •

performance data

Tested virucidal efficacy
 •
Circulation pump, Qmax in gal/min (l/min)
283.9 (75)
Shortest program duration in min.
52
Maximum final rinse temperature in (degree)F ((degree)C)
180 (82)
Cleaning performance, place settings/cycle
13
Service life in wash cycles
12500

controls

Control system
Electronic controls
Program selection
Program Selector Buttons
Max. delay start in h
24
Countdown indicator
 •
Program sequence indicator
 •
Choice of display language
 •

standard electrical connection

Electrical connection
AC 120V 60HZ
Heater rating in kW
1.30
Total connected load in kW
1.40
Fuse rating in A
15
Length of power cord in ft (m)
5 (1.70)
NEMA plug: 5-15
 •

possible voltage variant 1

Electrical connection
2N AC 120/208-240V, 60HZ
Heater rating in kW
3.50-3.80
Total connected load in kW
3.70-4.00
Fuse rating in A
30

water connection/drainage

Cold or hot water [number]
1
Required flow pressure in bar
0.30-10.00
Drain hose [DN]
22
Maximum delivery head for drain pump in inches (cm)
39 3/8 (100)
Integrated water softener
 •
Maximum water hardness in gpg (mmol/l)
6.5 (6.50)
Water protection system
Waterproof system
Length of water inlet hose in inches
150
Length of water drain hose in inches
150

dimensions and weight

External dimensions, net height in inches
31 3/4 (805)
External dimensions, net width in inches
23 5/8 (598)
External dimensions, net depth in inches
22 1/2 (570)
External dimensions, gross height in inches
37 7/8 (960)
External dimensions, gross width in inches
26 1/2 (670)
External dimensions, gross depth in inches
27 5/8 (700)
Usable space in wash cabinet, width in inches (mm)
21 3/8 (540)
Usable space in wash cabinet, height in inches (mm)
20 1/8 (510)
Usable space in wash cabinet, depth of upper basket in inches (mm)
17 3/4 (450)
Usable space in wash cabinet, depth of lower basket in inches (mm)
17 3/4 (450)
In-feed height above floor in inches (mm)
8 3/8 (210)
Net weight [kg]
93 (42)
Gross weight in lbs.
109 (49)
Maximum floor loading in N
1000

emissions data

Sound power (LwA) in dB(A) re 1 pW
48.00

programs

Universal
 •
Short
 •
SaniWash
 •
Cold/Pre-wash
 •
Glasses
 •
Plastic
 •
EnergySave/Economy
 •
Intensive
 •

basket design

ExtraComfort baskets
 •
Flexible FlexLine basket design
 •
FlexCare glass holder [number]
2
FlexCare cup rack [number]
1
Cutlery basket
 •
Height-adjustable upper basket
 •

features

1 Combi dispenser/door for powder and liquid media
 •
Wash cabinet made from high-quality stainless steel
 •
LED Lighting
 •
AutoOpen assisted drying
 •
AutoClose
 •
EcoFeedback
 •
Brilliant GlassCare
 •
Child lock
 •
Adjustable final rinse temperature
 •
Optical interface
 •
SmartStart
 •
FlexiTimer with EcoStart
 •

connection options

External dispensing module for liquid cleaning agent
 •

test certificate

CE
 •
Complies with Machinery Directive 2006/42/EC
 •
VDE
 •
EMC radio suppressed
 •
EN 1717
 •
UL
 •
