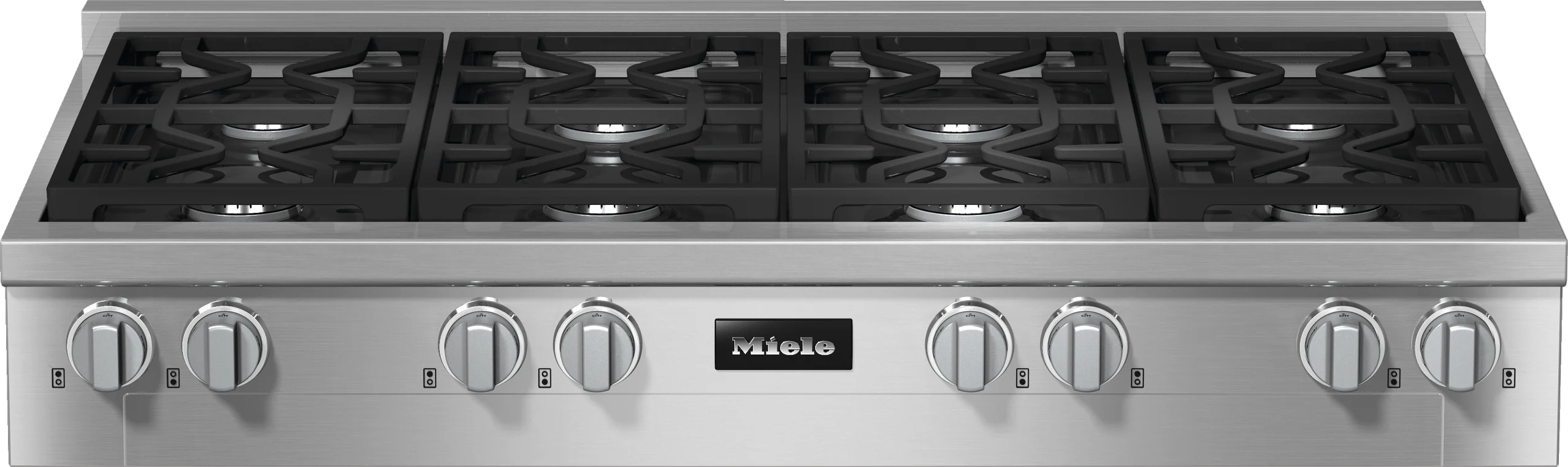

Miele 48" Gas Sealed Burner Rangetop, 8 Elements in Stainless Steel

SKU: 11852560
MODEL: KMR13543GEDSTCLSTCLEANSTEEL
2x Points
Free 2Y Warranty
Low-cost Install
  • Fuel Type: Gas
  • Style: Sealed Burner
  • Width: 48.00"
  • Height: 7.63"
  • Depth: 27.25"
  • Wi-Fi Connected: No
  • Sabbath Mode: No
  • ADA Compliant: No
  • Downdraft Ventilation: No
  • Burner Type: Sealed
  • Self-Clean: No
  • Convection: No
  • Hidden Bake Element: No
  • Proof Mode: No
  • Number of Burners: 8
  • Ignition Type: ELECTRONIC
  • Type: Rangetop
Miele |Authorized Dealer
In Stock|Only 7 left

color: Stainless Steel

Miele KMR13543GEDSTCLSTCLEANSTEEL

PRODUCT DESCRIPTION

MAINTENANCE
ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.


Clean Touch Steel(TM)Front

No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.


USER CONVENIENCE
Backlit Precision Knobs

With QuickStart there's no need to press or hold the control in order to switch the burners on.


SPECIAL FEATURES
Continuous simmer

The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.

Specifications

heating type

Fuel type
Gas

design

Rangetop
 •
Casing
Stainless steel
Front panel
CleanSteel
Genuine metal knobs
 •
Cast iron pot rests (matte black enameled)
 •

cooking zone details

Number of gas burners
8

1st cooking zone/cooking area

Position
front left
Type
Ultra high-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
5700

2nd cooking zone/cooking area

Position
rear left
Type
High-speed burner
Minimum power output in BTU/hr
1200
Maximum power output in BTU/hr
12500
Max. rating in W
2900

3rd cooking zone/cooking area

Position
Rear center left
Type
Ultra high-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
4000

4th cooking zone/cooking area

Position
Rear center right
Type
Ultra high-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
4000

5th cooking zone/cooking area

Position
rear right
Type
High-speed burner
Minimum power output in BTU/hr
1200
Maximum power output in BTU/hr
12500
Max. rating in W
2900

6th cooking zone/cooking area

Position
front right
Type
Ultra high-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
5700

7th cooking zone/cooking area

Position
Center right front
Type
Ultra high-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
5700

8th cooking zone/cooking area

Position
Center left front
Type
Ultra high-speed burner
Minimum power output in BTU/hr
1700
Maximum power output in BTU/hr
19500
Max. rating in W
5700
True Simmer function
 •

user convenience

Operation via genuine metal knobs with backlit
 •

cleaning convenience

Dishwasher-safe trivets
 •
Single-piece cooktop surround
 •

safety

Automatic re-ignition
 •

technical data

Dimensions (width) in in. (mm)
48 (1219)
Dimensions (height) in in. (mm)
7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose
27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose
25 5/8 (650)
Weight in lbs. (kg)
149 (68)
Total output in BTU/hr
142000
Total connected load in kW
41.600
Voltage in V
120
Fuse rating in A
10
Number of phases
1
Power cord length in in. (m)
3 (1.2)

GS1

GTIN
04002516537113
EAN
4002516537113
