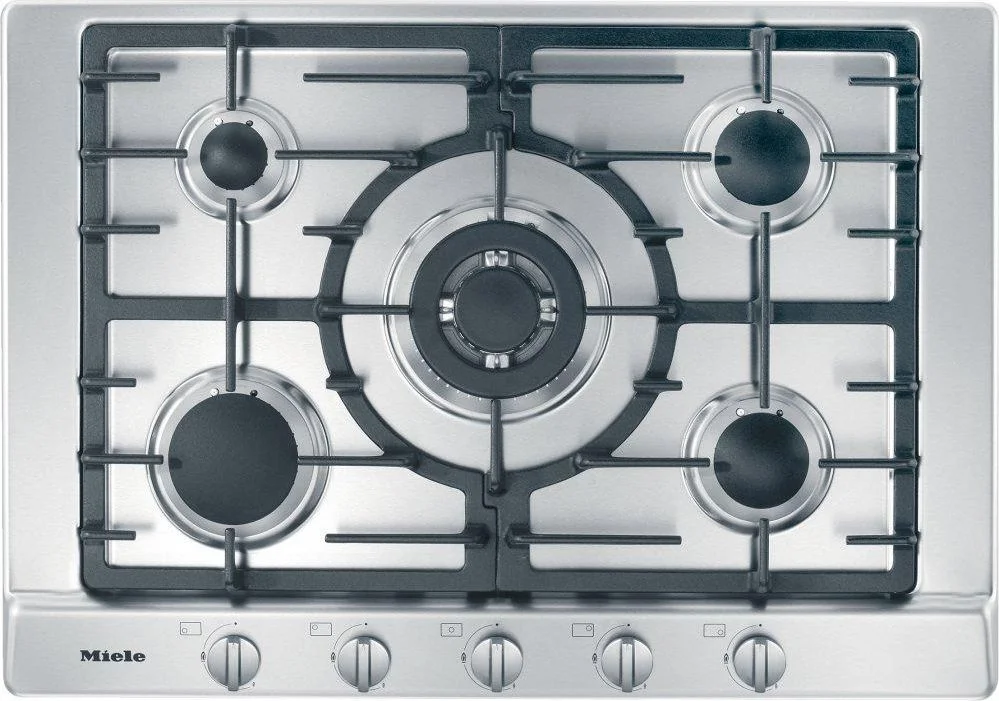

Miele 30" Gas Sealed Burner Drop-In Cooktop, 5 Elements in Stainless Steel

Fuel type

Gas

Independent of oven

Yes

Stainless steel trough

Yes

Cast iron pot rest (matte black enameled)

Yes

Proud/flush-mounted

-/-

No. of rings

5

Number of cooking zones/cooking areas

-/-

Small burner in kW

1.11

Small burner in BTU/h

3800

Normal burner in kW

1.61

Normal burner in BTU/h

5500

Large burner in kW

2.52

Mono wok burner in kW

3.31

Mono wok burner in BTU/h

11300

Large burner in BTU/h

8600

Position

front left

Type

High-speed burner

Position

rear left

Type

Economy burner

Position

Centered

Type

Single wok burner

Position

rear right

Type

Standard burner

Position

front right

Type

Standard burner

Operation via knobs

Yes

Electronic ignition with one-handed operation

Yes

Dishwasher-save trivets

Yes

PerfectClean burner

Yes

GasStop

Yes

Dimensions (W x D) in inches (mm)

29 5/8 (750) x 3 5/8 (90) x 20 1/2 (520)

Width in in. (mm)

29 5/8 (750)

Height in in. (mm)

3 5/8 (90)

Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)

22 1/8 in (560 mm) x 19 in (480 mm)

Depth in in. (mm)

20 1/2 (520)

Cutout dimensions width in in. (mm) with proud-mounted installation

22 1/8 in (560 mm)

Cutout dimensions depth in in. (mm) with proud-mounted installation

19 in (480 mm)

Weight in lbs. (kg)

35 (16)

Total connected load in kW

10.170

Position of gas connection

Hinten links

Voltage in V

120

Frequency in Hz

60

Power cord length in ft. (m)

3 (1.2)

Dimensions (H x W x D) in mm

3 5/8 (90) x 29 5/8 (750) x 20 1/2 (520)

Dimensions (W x D) in mm

29 5/8 (750) x 3 5/8 (90) x 20 1/2 (520)

Neutral conductor

Yes

Number of phases

1

Connection wire

Yes

GTIN

04002515962473

EAN

4002515962473

EAN

4002515962473

Simple controls -single-handed operation via rotary dial control

Professional design - 29 5/8 (750) in (mm) wide stainless steel trough

Particularly versatile - 5 burners incl. 1 mono wok

Extremely safe - GasStop function

Easy cleaning - ComfortClean dishwasher-safe grates

Safety information

Enamelled grates and grates and burner cap

Versatile burner configuration

Single-handed electronic ignition

GasStop

Gas - efficient and environmentally friendly

ComfortClean Dishwasher-Safe Grates

Comfort handle with integrated controls with knobs

Individual design

Manufactured with great care by Miele & Cie. KG

Manufacturer material number

10735660

Model number

KM 2032 G

EAN number

4002515962473

Class

Silver
