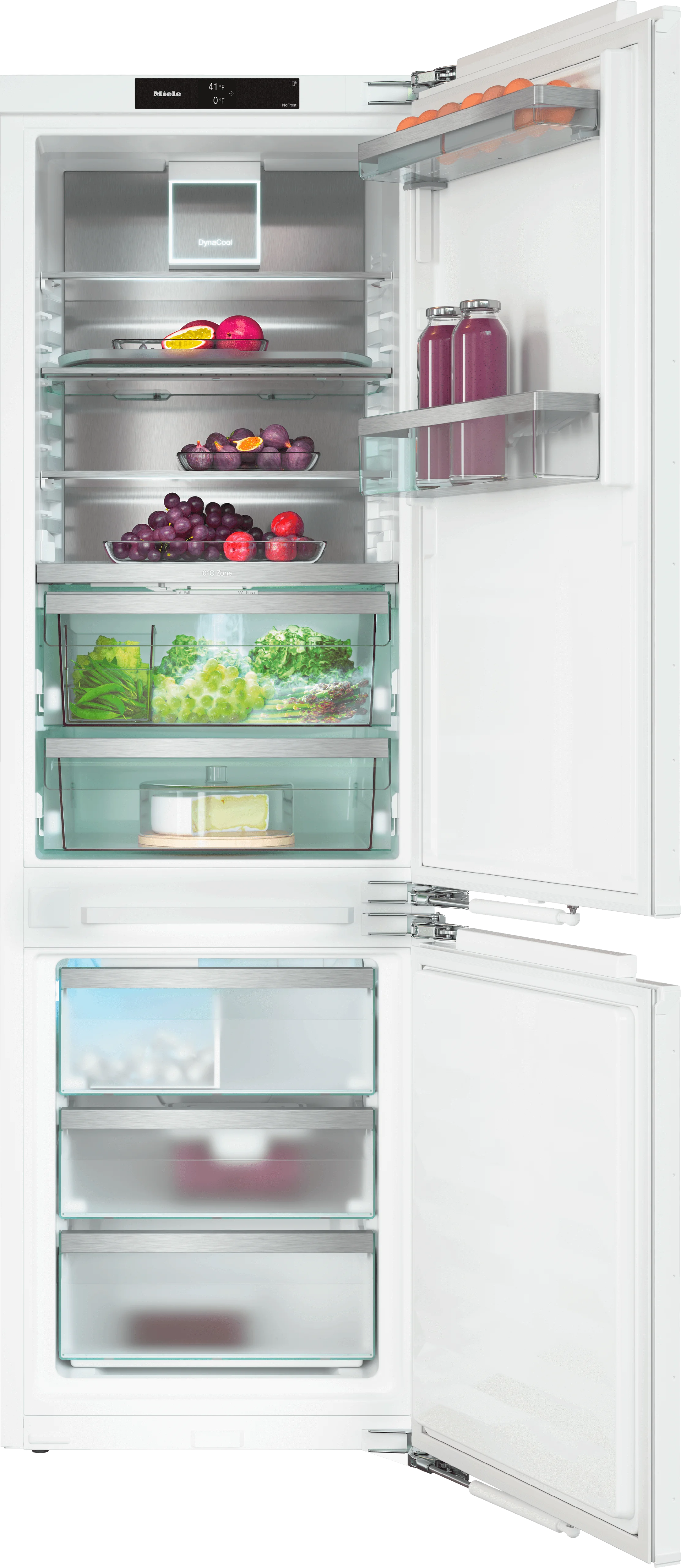

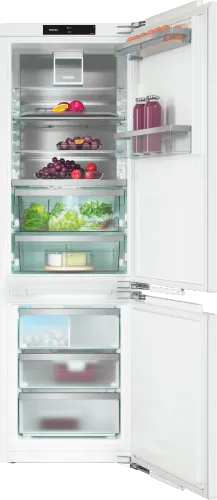

Miele 22" Built-In Bottom Freezer Refrigerator, 8.7 cu. ft. Capacity

Fridge-freezer

Yes

Built-in

Yes

Built-in integrated

Yes

Door hinge side

right

Convertible hinging

Yes

Type of lighting

FlexiLight 2.0

Freezer compartment lighting

LED

Fan lighting

Yes

Freshness system lighting

Yes

IceMaker lighting

Yes

Networking with Miele@home

Yes

Freshness system

PerfectFresh Active

Fine adjustment inner door

Yes

ComfortClean

Yes

DynaCool

Yes

NoFrost

Yes

DuplexCool

Yes

ComfortSize

Yes

VarioRoom

Yes

SoftClose door closing damper

Yes

SelfClose

Yes

IceMaker with plumbed water connection

Yes

Active humidification in top drawer

Yes

Electronic temperature display and control

FreshTouch

Fridge compartment can be switched off

Yes

Independent temperature control of fridge and freezer compartments

Yes

Super Cooling

•

SuperFrost

Yes

No. of temperature zones

3

Sabbath mode

Yes

Party mode

Yes

Holiday mode

Yes

SuperCool

Yes

No. of shelves

4

of which illuminated

2

No. of PerfectFresh drawers

2

Dry back wall

Clean Touch Steel

FlexiTray

Yes

Number of door racks for cans

1

Door rack for bottles

1

Door shelves

2

Number of freezer drawers

3

of which on runners

2

Energy Star Qualified

Yes

Lock function

Yes

Acoustic door alarm

Yes

Acoustic temperature alarm, freezer section

Yes

Optical door alarm

Yes

Optical temperature alarm

Yes

Power cut indication for freezer compartment

Yes

Niche width in inches (mm), min.

22 1/8 (560)

Niche width in inches (mm), max.

22 1/2 (570)

Niche height in inches (mm), min.

69 7/8 (1772)

Niche height in inches (mm), max.

70 1/2 (1788)

Niche depth in in.(mm)

21 3/4 (550)

Appliance width in in.(mm)

22 1/8 (559)

Appliance height in in.(mm)

69 3/4 (1770)

Appliance depth in in.(mm)

21 1/2 (546)

Weight in lbs.(kg)

165 (74.4)

Type of mounting

Fixed door

Maximum fridge compartment door front weight in lbs. (kg)

40 (18)

Maximum freezer compartment door front weight in lbs. (kg)

27 (12)

Climatic classification

SN-T

including PerfectFresh zone in l

2.51 (71)

Total usable capacity in cu. ft. (l)

8.69 (246)

Storage time in case of fault in h

9

Current consumption in milliampere (mA)

3000

Voltage in V

115

Fuse rating in A

10

Number of phases

1

Frequency in Hz

60

Wire length in ft (m)

7 (2.2)

Replacing bulbs

Customer Service

Egg rack

Yes

PerfectFresh organization box

Yes

GTIN

04002516424925

EAN

4002516424925

EAN

4002516424925

Fresh 5x longer with active humidification - PerfectFresh Active

Ice cubes thanks to the plumbed IceMaker

Individually adjustable glass shelf lighting with FlexiLight 2.0

No icing up of food and no need to defrost thanks to NoFrost

Uniform temperature distribution inside the appliance - DynaCool

Safety information

ComfortSize

IceMaker

ComfortClean

SoftClose

PerfectFresh Active

DynaCool

FlexiLight 2.0

Miele@home *

NoFrost

Fine adjustment on inner door

FlexiTray

Manufactured with great care by Miele & Cie. KG
