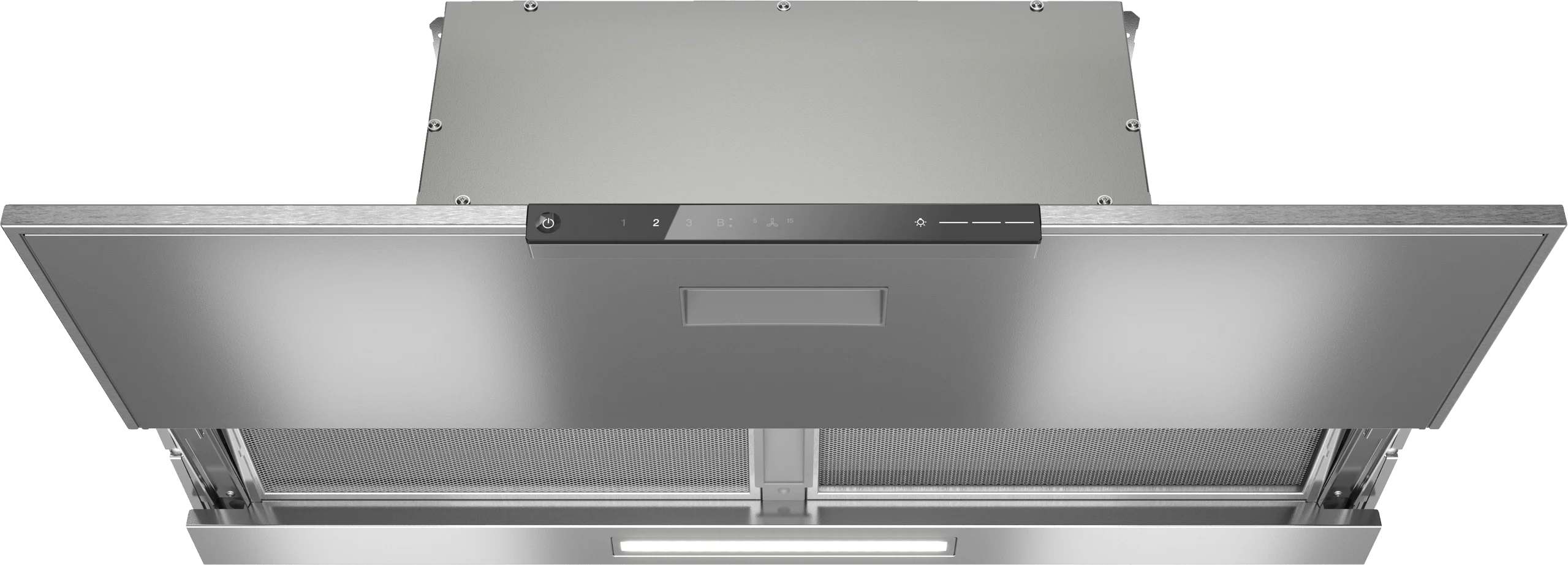

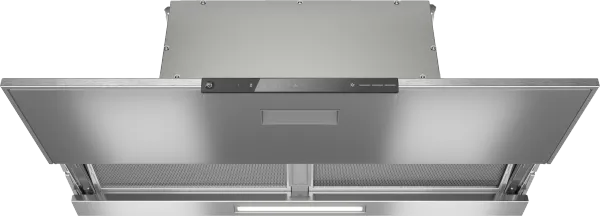

Miele DAS 8930 Stainless steel - Built-in ventilation hood with intuitive SmartControl White controls for use in narrow upper cabinets in Stainless Steel

Built-in ventilation hood

Yes

Color

Stainless steel

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUU 151

OdorFree charcoal filter (order separately)

[ "DKF 31-P", "DKF 31-R" ]

Miele@home

Yes

Automatic function

Con@ctivity 3.0

Automatic function Con@ctivity

Yes

Electronic controls

Yes

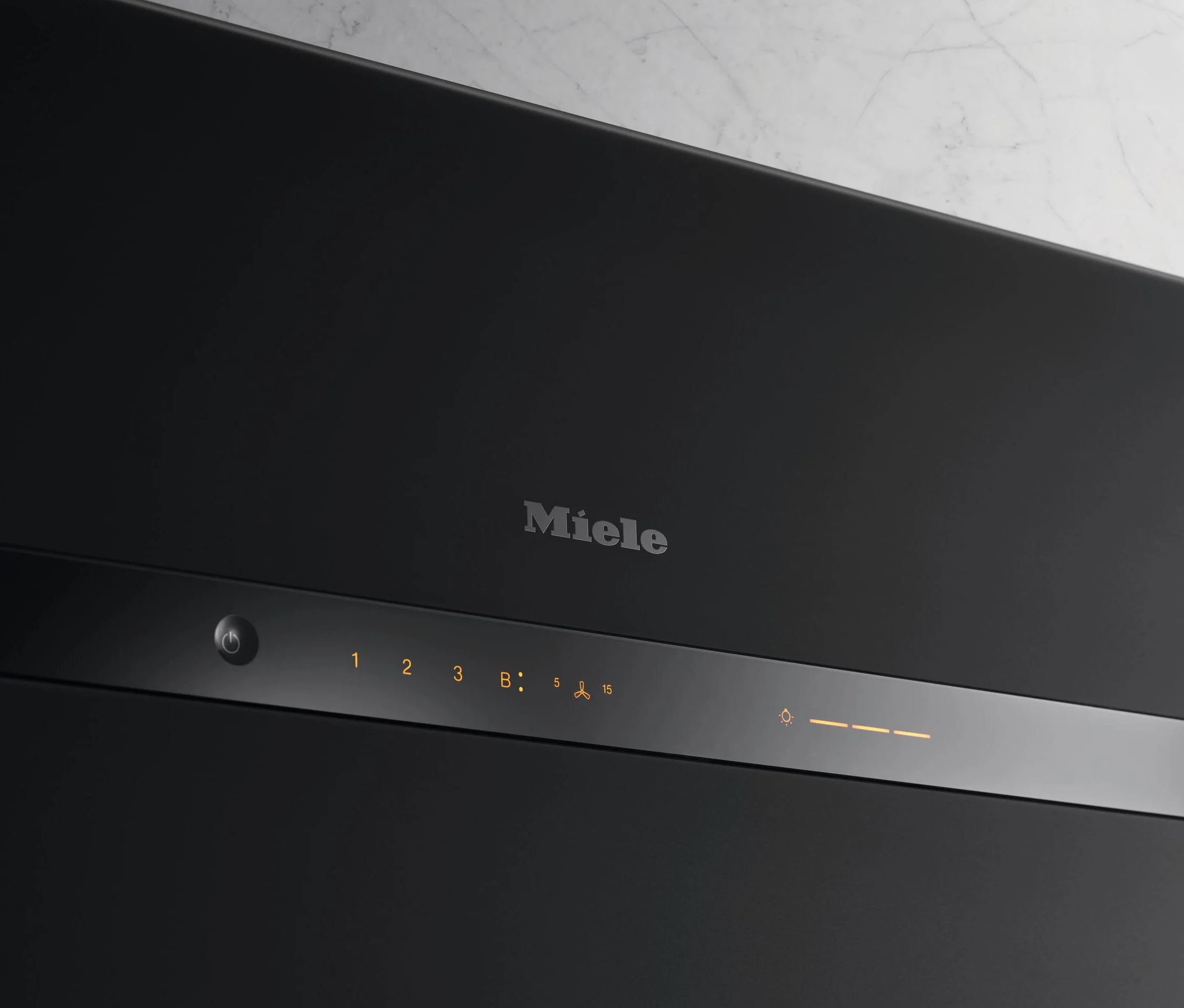

SmartControl

Yes

Operation

SmartControl

Booster levels

2

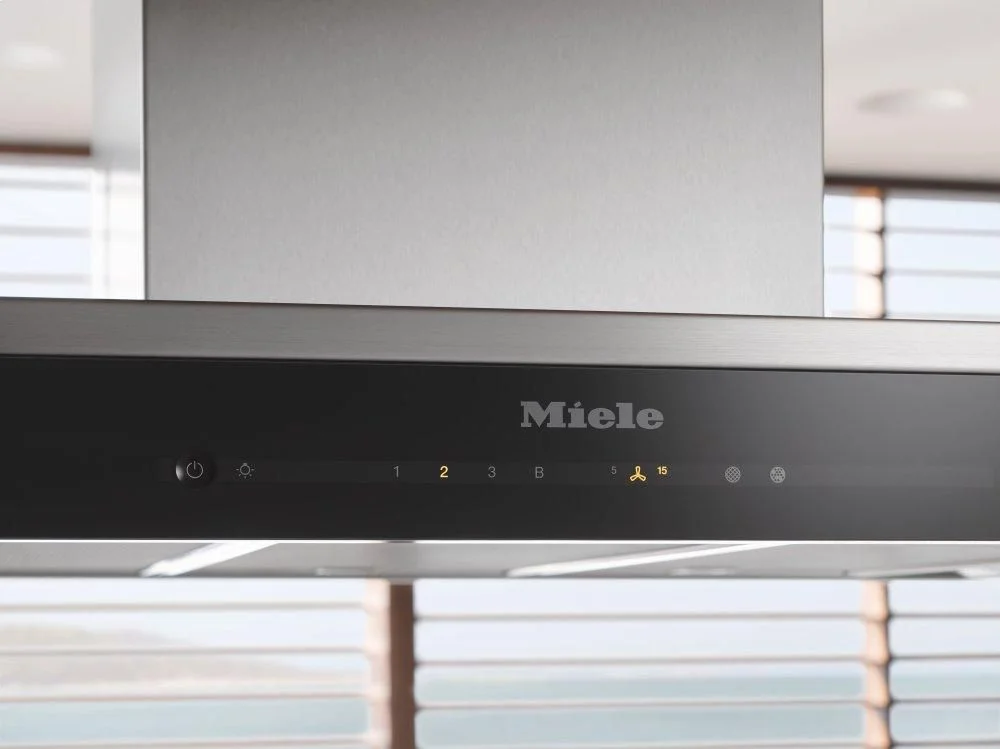

Delayed shutdown for 5 or 15 minutes

Yes

Grease filter saturation indicator

Yes

Active charcoal filter saturation indicator

Yes

CleanCover

Yes

Con@ctivity

Yes

Power levels (number excl. Intensive)

3

Easy-to-clean canopy interior - CleanCover

Yes

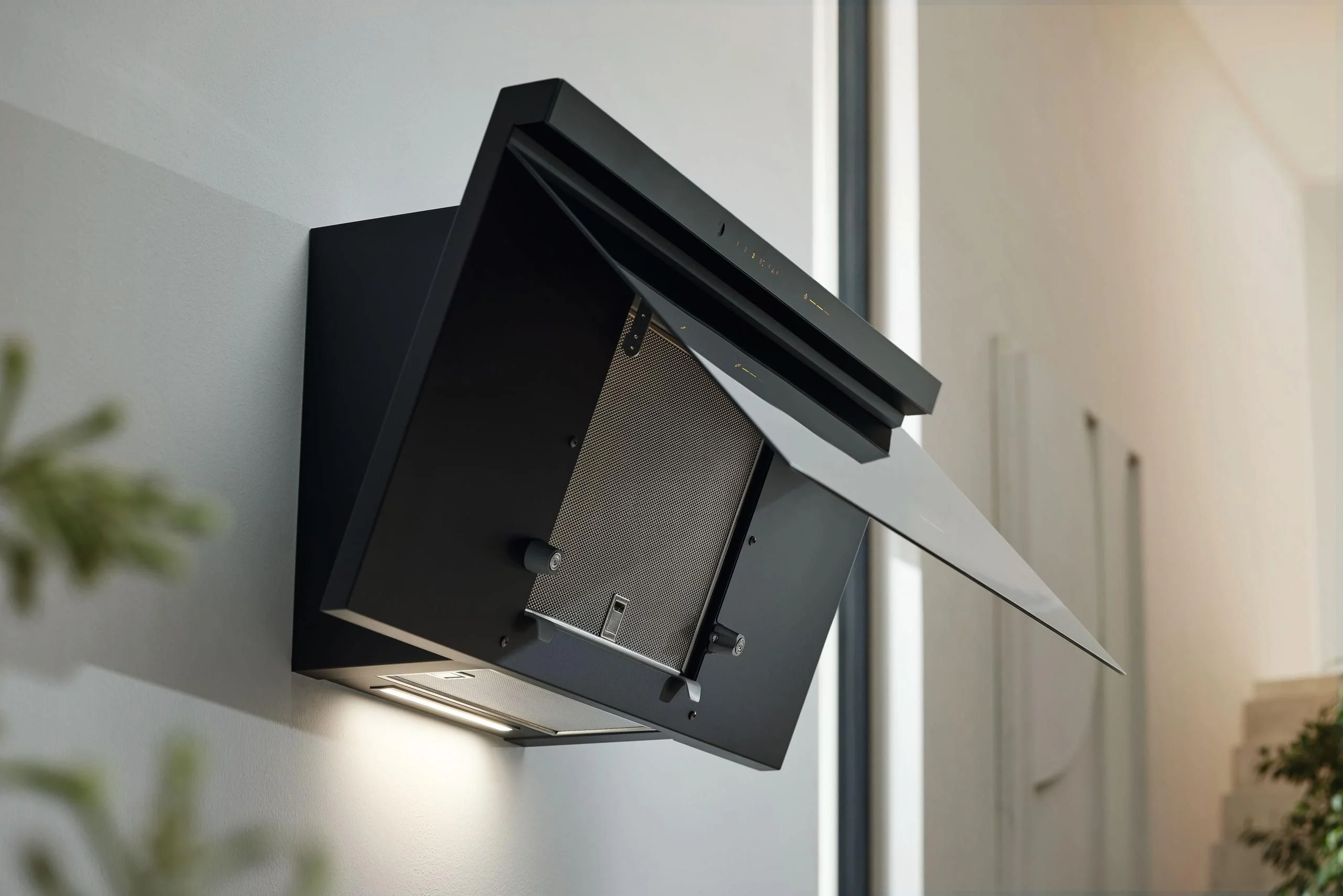

Number of dishwasher-safe stainless steel grease filters (10-ply)

2

Number x W

1 x 3 W

Light intensity in Lx

270 lx

Color temperature in K

3500 Kelvin

Light dimmer function

Yes

Dual-action blower

Yes

Air throughput in CFM in Booster

495

Air throughput with Booster level 1 (m /h) according to EN 61591

494.41 (840)

Safety shut-off

Yes

Canopy width in in. (mm)

33 7/8 (861)

Canopy height in in. (mm)

2 3/8 (60)

Depth of hood canopy in in. (mm)

12 1/8 (307)

Minimum height above electric cooktops in mm

24 (610)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

42 (19.0)

Length of electrical wire in ft. (m)

2 (0.8)

Standard plug fitted

Yes

Total connected load in kW

0.353

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

Plug type

NEMA plug: 5-15

Vent connection at top

Yes

Vent connection at top and rear

Yes

Installation template

Yes

Non-return flap

Yes

EAN

4002516495628

GTIN

04002516495628

EAN

4002516495628

Delayed shutdown

Con@ctivity 3.0

filter saturation indicator

Stainless-steel grease filters (10-layer)

Con@ctivity

SmartControl

Safety turn off

Miele CleanCover
