PRODUCT DESCRIPTION
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Features
Delayed shutdown
Con@ctivity 3.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Specifications

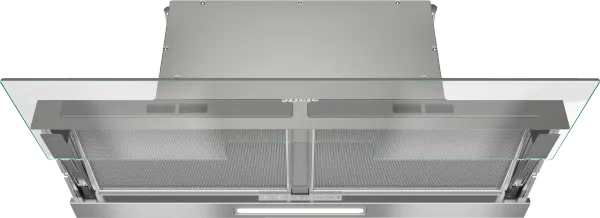

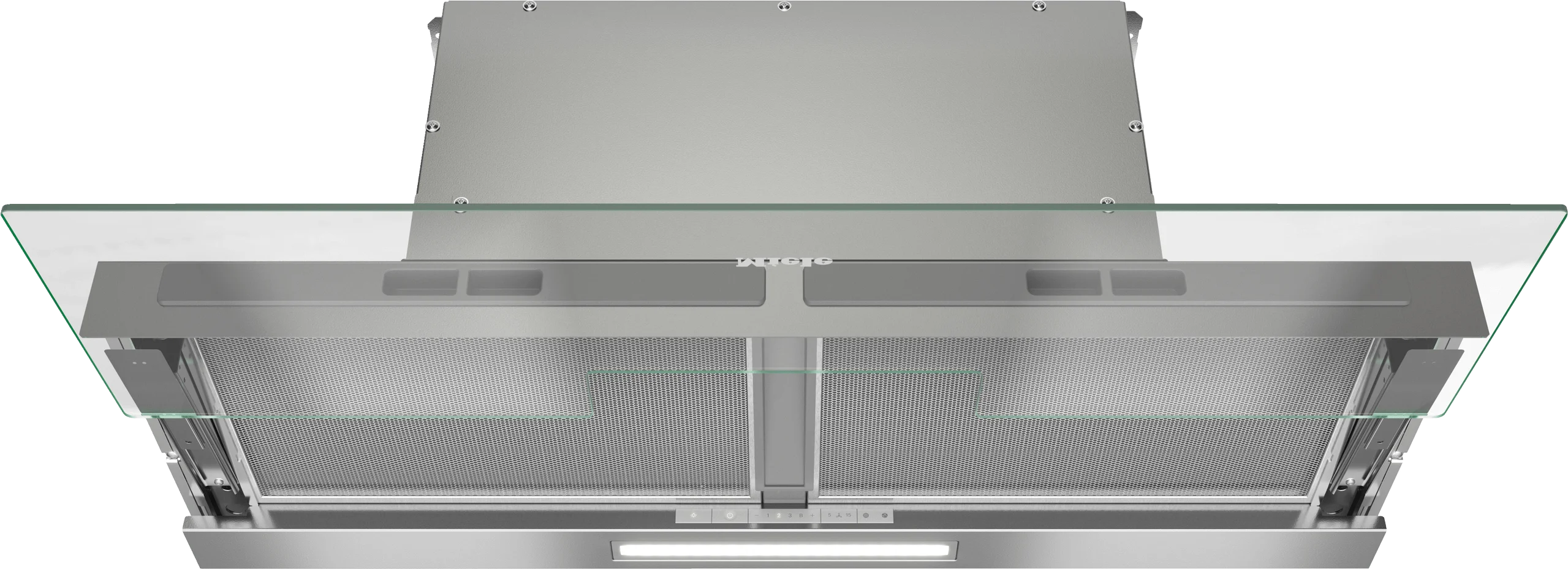

Built-in ventilation hood
•
Color
Transp. glass
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUU 151
OdorFree charcoal filter (order separately)
DKF 31-P DKF 31-R
Miele@home
•
Automatic function
Con@ctivity 3.0
Electronic controls
•
EasySwitch
•
Operation
EasySwitch
Booster levels
1
Programmable Intensive switch-off
•
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
•
Active charcoal filter saturation indicator
•
CleanCover
Easy-to-clean CleanCover hood liner
•
Number of dishwasher-safe stainless-steel grease filters
2
LED ClearView lighting
•
Number x W
1 x 3 W
Light intensity in Lx
285 lx
Color temperature in K
3500 Kelvin
Light dimmer function
•
Dual-action blower
•
AC motor
•
Safety shut-off
•
Single-ply safety glass (ESG)
•
Canopy width in in. (mm)
34 (861)
Canopy height in in. (mm)
2 3/4 (68)
Depth of hood canopy in in. (mm)
12 1/8 (307)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Net weight in lbs. (kg)
38 (17.0)
Length of electrical wire in ft. (m)
2 (0.8)
Standard plug fitted
•
Total connected load in kW
0.353
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
•
Vent connection at top and rear
•
Installation template
•
Non-return flap
•
GTIN
04002516496335
EAN
4002516496335
Perfect combination with Con@ctivity-enabled cooktops
Light design - transparent glass panel, 36 in (90 cm) wide
LED strip for uniform lighting
Efficient filtration- 10-ply stainless steel grease filters
Recirculation mode - Active AirClean or Longlife AirClean filter
Safety turn off
Delayed shutdown
Miele CleanCover
Stainless-steel grease filters (10-layer)
filter saturation indicator
Con@ctivity 3.0
