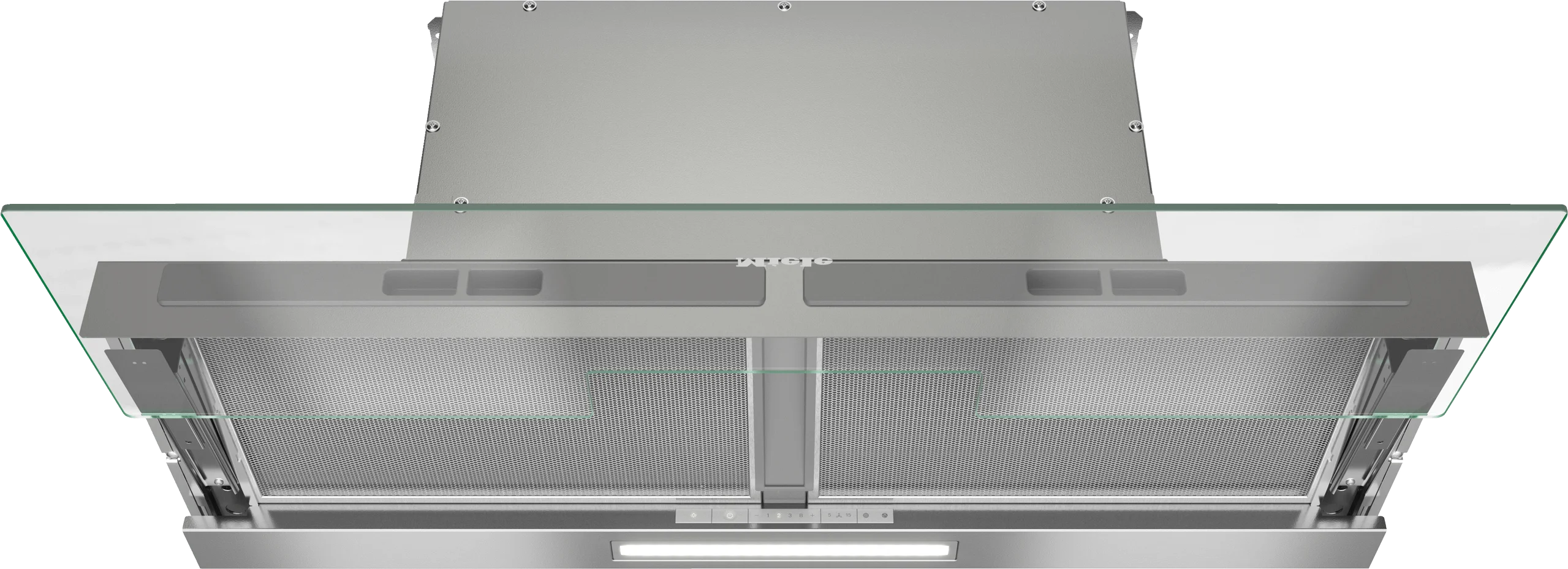

Miele DAS 4940 - Built-in ventilation hood for installation in narrow upper cabinets with EasySwitch controls in Transp. Glass

SKU: 11878570
MODEL: DAS4940TG
2x Points
Free 2Y Warranty
Low-cost Install
    Miele |Authorized Dealer
    In Stock|Only 8 left

    color: Transp. Glass

    Miele DAS4940TG

    PRODUCT DESCRIPTION

    USER CONVENIENCE
    Delayed shutdown

    Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."


    filter saturation indicator

    Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.


    SAFETY
    Safety turn off

    Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.


    SETUP/FUNCTION
    Con@ctivity 3.0

    Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.


    FEATURES
    Stainless-steel grease filters (10-layer)

    Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.


    Miele CleanCover

    Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

    Specifications

    design

    Built-in ventilation hood
     •
    Color
    Transp. glass

    operating modes

    Recirculated mode
    Can be retrofitted
    Recirculation conversion kit (order separately)
    DUU 151
    OdorFree charcoal filter (order separately)
    DKF 31-P DKF 31-R

    user convenience

    Miele@home
     •
    Automatic function
    Con@ctivity 3.0
    Electronic controls
     •
    EasySwitch
     •
    Operation
    EasySwitch
    Booster levels
    1
    Programmable Intensive switch-off
     •
    Delayed shutdown for 5 or 15 minutes
    Grease filter saturation indicator
     •
    Active charcoal filter saturation indicator
     •
    CleanCover

    cleaning convenience

    Easy-to-clean CleanCover hood liner
     •

    filter system

    Number of dishwasher-safe stainless-steel grease filters
    2

    lighting

    LED ClearView lighting
     •
    Number x W
    1 x 3 W
    Light intensity in Lx
    285 lx
    Color temperature in K
    3500 Kelvin
    Light dimmer function
     •

    blower

    Dual-action blower
     •
    AC motor
     •

    safety

    Safety shut-off
     •
    Single-ply safety glass (ESG)
     •

    technical data

    Canopy width in in. (mm)
    34 (861)
    Canopy height in in. (mm)
    2 3/4 (68)
    Depth of hood canopy in in. (mm)
    12 1/8 (307)
    Minimum distance above electric cooktops in in. (mm)
    24 1/8 (610)
    Net weight in lbs. (kg)
    38 (17.0)
    Length of electrical wire in ft. (m)
    2 (0.8)
    Standard plug fitted
     •
    Total connected load in kW
    0.353
    Voltage in V
    120
    Fuse rating in A
    15
    Frequency in Hz
    60
    Number of phases
    1

    installation note

    Vent connection at top
     •
    Vent connection at top and rear
     •
    Installation template
     •

    standard accessories

    Non-return flap
     •

    GS1

    GTIN
    04002516496335
    EAN
    4002516496335
