Miele 36" Built-In Ducted Hood in Obsidian Black

SKU: 11878550

MODEL: DAS4930OB

0 Questions & 0 Answers

Width: 35.28"
Height: 17.17"
Weight: 77.77 lbs
Type: Built-In

Miele |Authorized Dealer

In Stock | Only 6 left

$1,799.00

⚡️ 2X reward points available

Sign in / Sign up to earn 3,598 points (

$89.95

)

color: Obsidian Black

Miele DAS4930OB

Estimates for:

Protect Your Item

2 Year FREE

3 Year $131.99

4 Year $155.99

5 Year $195.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

What's included
Non-return flap

general information

4 items

Model number

DAS 4930

Manufacturer material number

11878550

EAN number

4002516496199

Marketing class

Gold

design

2 items

Built-in ventilation hood

Yes

Color

Obsidian Black

operating modes

3 items

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUU 151,DUU 150

OdorFree charcoal filter (order separately)

[ "DKFS 31-R", "DKFS 31-900 P" ]

user convenience

12 items

Miele@home

Yes

Automatic function

Con@ctivity 3.0

Con@ctivity

Yes

Electronic controls

Yes

SmartControl

Yes

Operation

SmartControl

Power levels (number excl. Intensive)

3

Booster levels

2

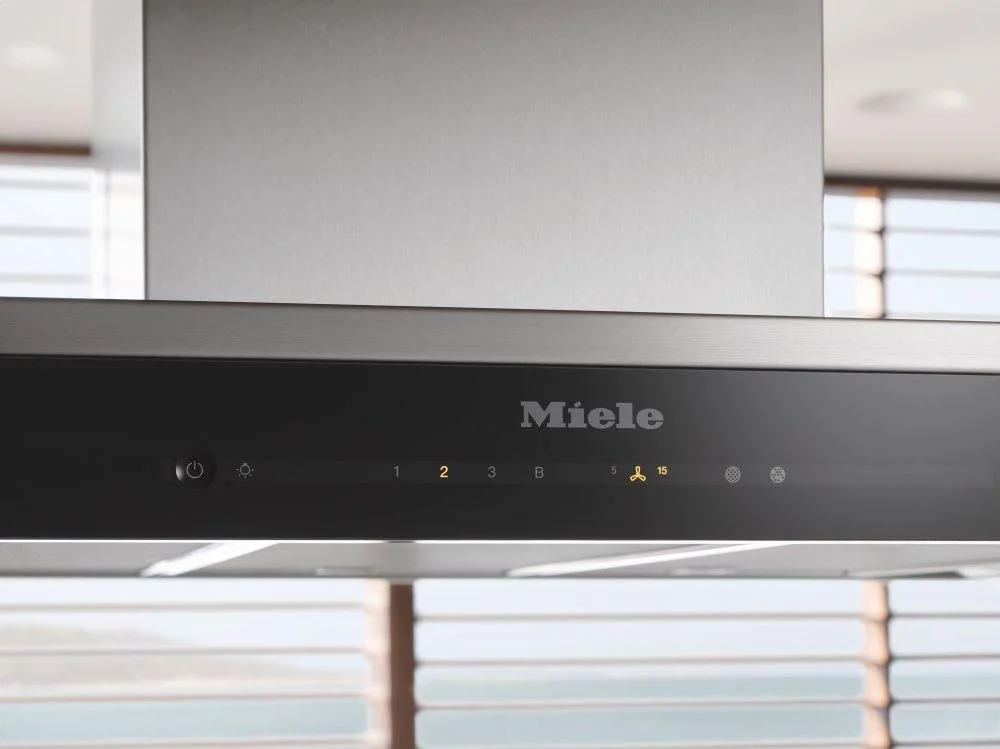

Delayed shutdown for 5 or 15 minutes

Yes

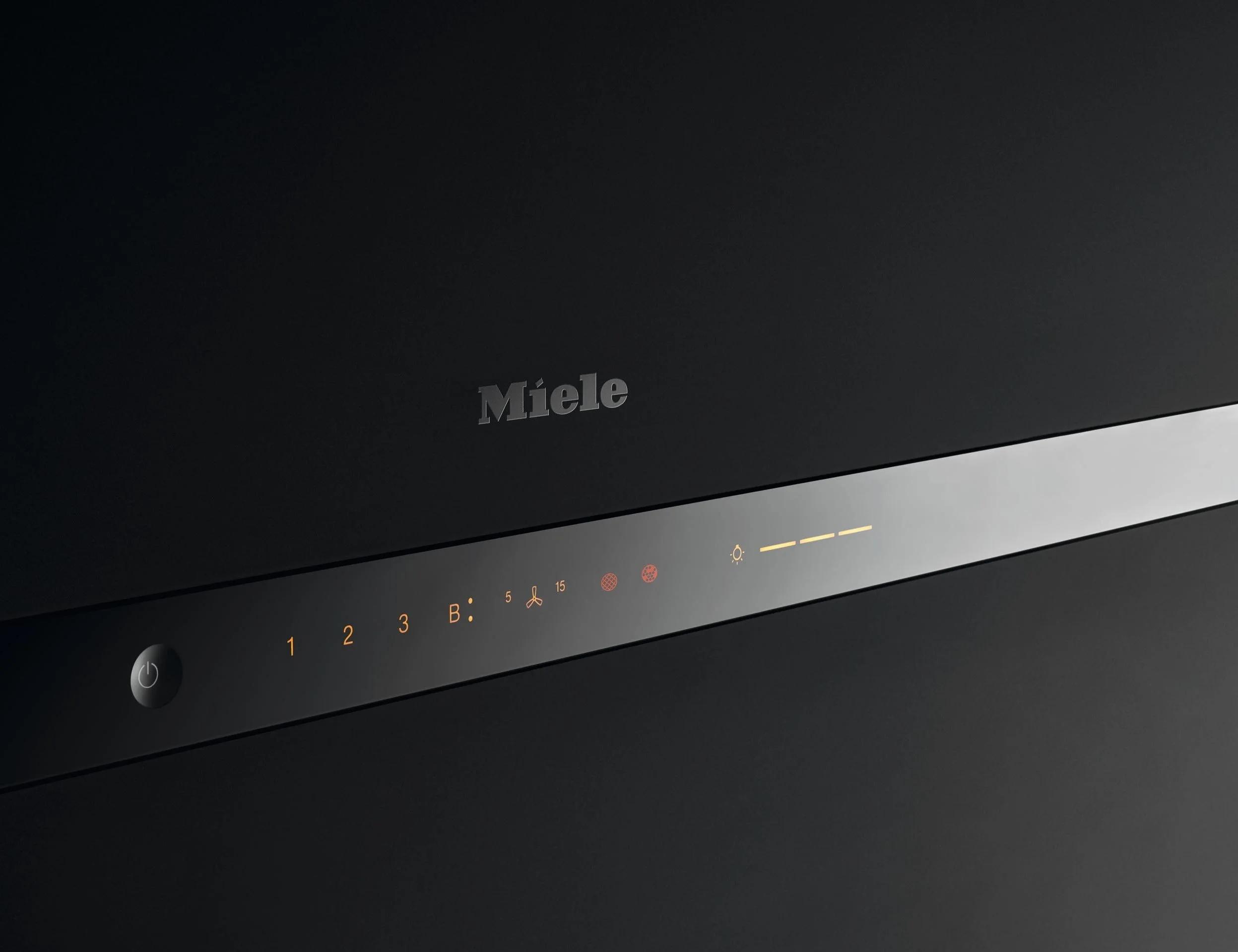

Grease filter saturation indicator

Yes

Active charcoal filter saturation indicator

Yes

CleanCover

Yes

cleaning convenience

1 item

Easy-to-clean canopy interior - CleanCover

Yes

filter system

1 item

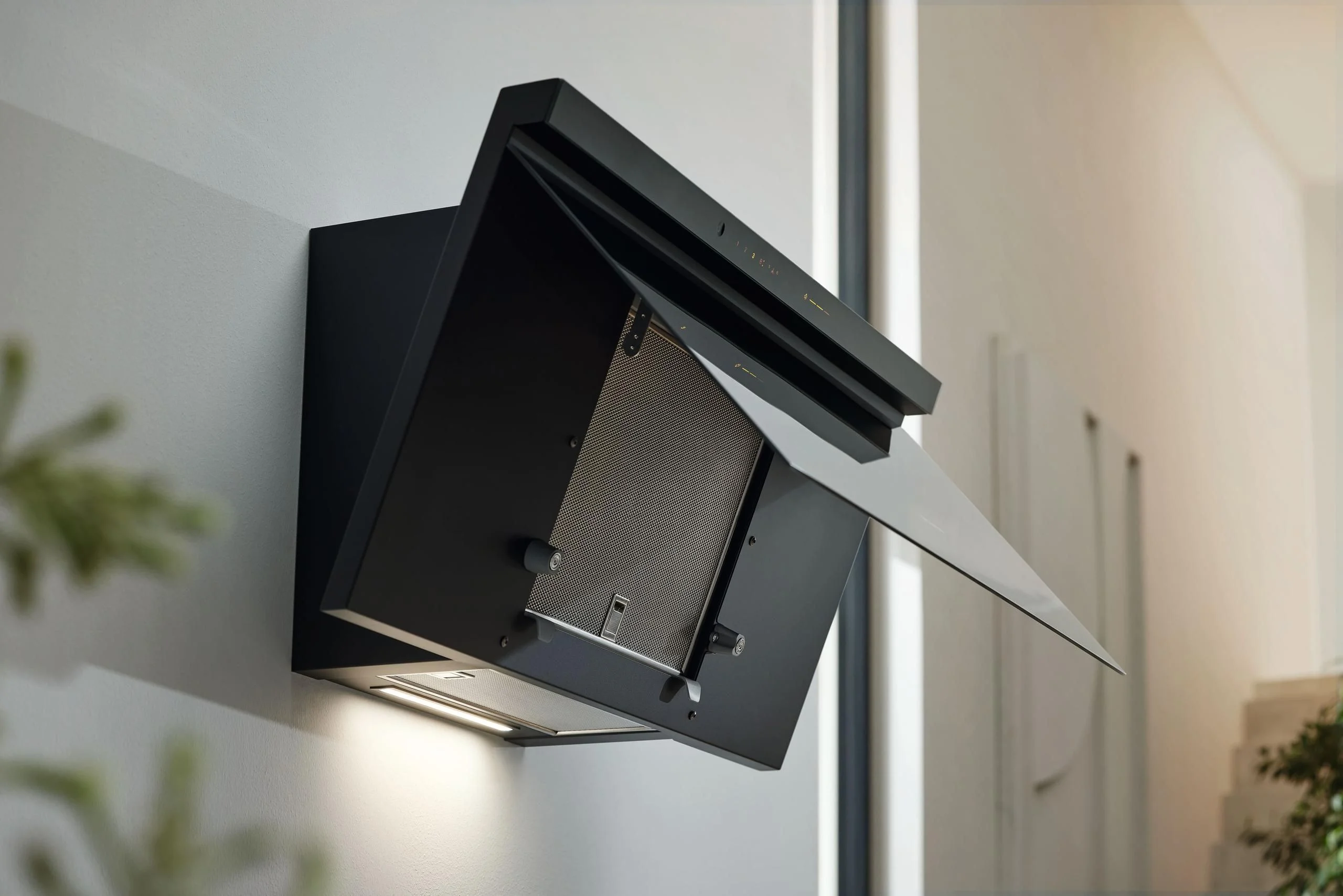

Number of dishwasher-safe stainless steel grease filters (10-ply)

1

lighting

4 items

Number x W

1 x 3 W

Light intensity in Lx

300 lx

Color temperature in K

3500 Kelvin

Light dimmer function

Yes

blower

1 item

Dual-action blower

Yes

exhaust air

2 items

Air throughput in CFM in Booster

498

Air throughput with Booster level 1 (m /h) according to EN 61591

497.35 (845)

safety

2 items

Safety shut-off

Yes

Single-ply safety glass (ESG)

Yes

technical data

15 items

Canopy dimensions (W x H x D) in mm

35 1/4 (896) x 1 3/8 (36) x 10 3/4 (273)

Canopy width in in. (mm)

35 1/4 (896)

Canopy height in in. (mm)

1 3/8 (36)

Depth of hood canopy in in. (mm)

10 3/4 (273)

Minimum height above electric cooktops in mm

24 (610)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

36 (16.0)

Length of electrical wire in ft. (m)

2 (0.8)

Standard plug fitted

Yes

Plug type

NEMA plug: 5-15

Total connected load in kW

0.353

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

installation note

1 item

Vent connection at top

Yes

standard accessories

1 item

Non-return flap

Yes

ean

1 item

EAN

4002516496199

GS1

3 items

GTIN

04002516496199

EAN

4002516496199

UPC

4002516496199

Documents

Mounting plan PDF

PDF

Product sheet PDF

PDF

Warranty conditions PDF

PDF

Operating and Installation instructions PDF

PDF
