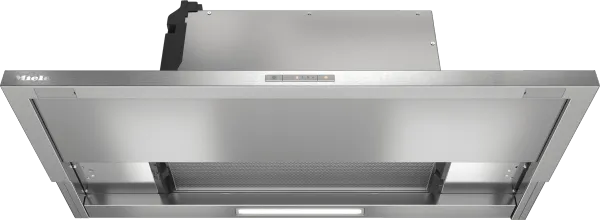

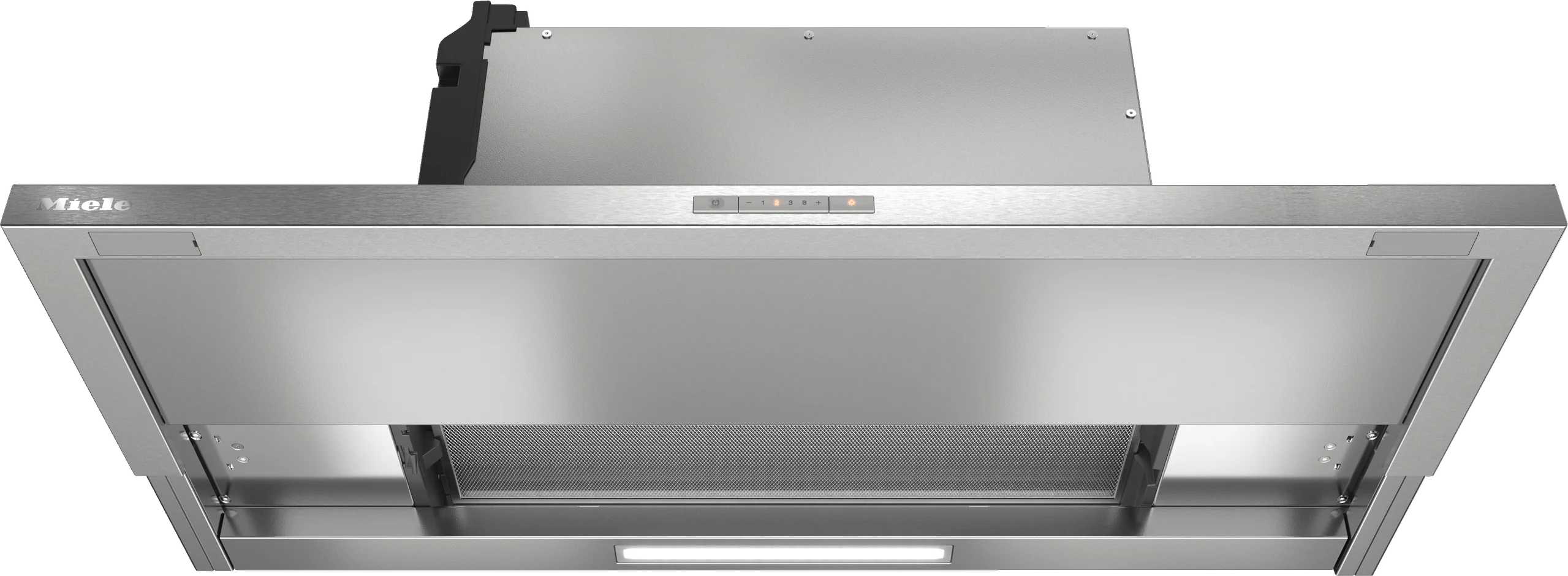

Miele DAS 2920 Stainless steel - Built-in ventilation hood with EasySwitch controls for convenient operation in Stainless Steel

Built-in ventilation hood

Yes

Color

Stainless steel

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUU 151,DUU 150

OdorFree charcoal filter (order separately)

[ "DKFS 31-R", "DKFS 31-900 P" ]

Electronic controls

Yes

EasySwitch

Yes

Operation

EasySwitch

Booster levels

1

CleanCover

Yes

Easy-to-clean canopy interior - CleanCover

Yes

Number of dishwasher-safe stainless steel grease filters (10-ply)

1

Number x W

1 x 3,0 W

Light intensity in Lx

300 lx

Color temperature in K

3500 Kelvin

LED ClearView lighting

Yes

Dual-action blower

Yes

AC motor

Yes

Air throughput in CFM in Booster

498

Air throughput with Booster level 1 (m /h) according to EN 61591

497.35 (845)

Safety shut-off

Yes

Canopy width in in. (mm)

35 1/4 (896)

Canopy height in in. (mm)

1 3/8 (36)

Depth of hood canopy in in. (mm)

10 3/4 (273)

Minimum height above electric cooktops in mm

24 (610)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

36 (16.0)

Length of electrical wire in ft. (m)

2 (0.8)

Standard plug fitted

Yes

Total connected load in kW

0.353

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

Plug type

NEMA plug: 5-15

Vent connection at top

Yes

Non-return flap

Yes

EAN

4002516495857

GTIN

04002516495857

EAN

4002516495857

Classic design - stainless-steel panel, 90 cm wide

LED strip for uniform lighting

Efficient filtration- 10-ply stainless steel grease filters

Safe and easy to clean - Miele CleanCover

Recirculation mode - Active AirClean or Longlife AirClean filter

Manufactured with great care by Miele & Cie. KG

Safety information

Safety turn off

Miele CleanCover

Stainless-steel grease filters (10-layer)

Model number

DAS 2920

Manufacturer material number

11878500

EAN number

4002516495857

Marketing class

Silver
