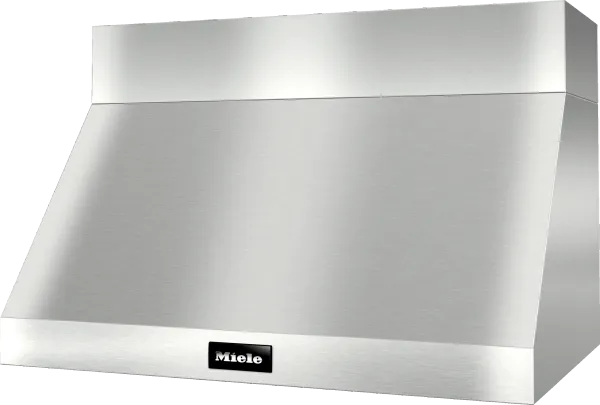

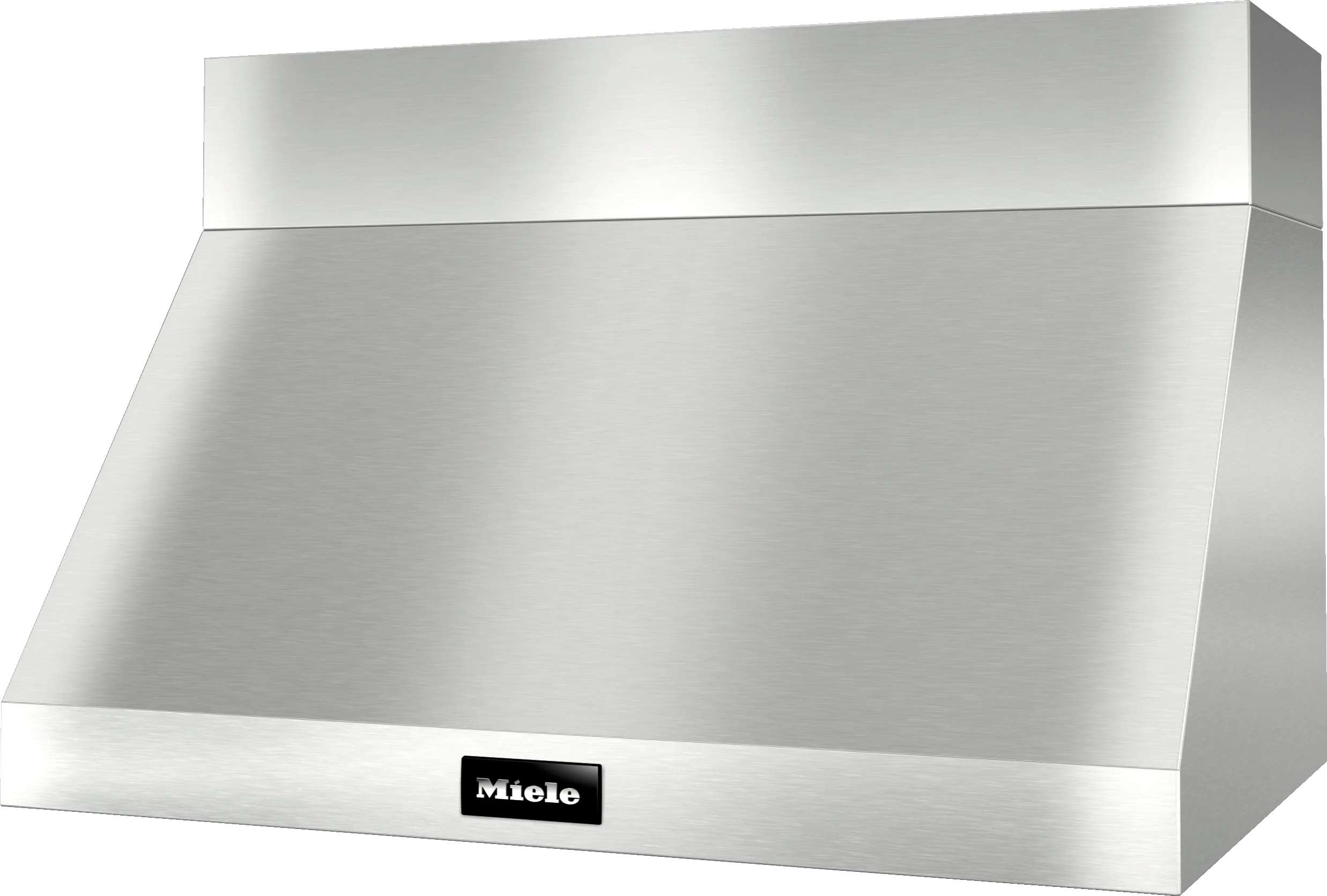

Miele DAR 1230-3 Stainless steel - 36-inch wall-mounted ventilation hood for perfect combination with Ranges and Rangetops. in Stainless Steel

Wall ventilation hood

Yes

Blower

Yes

Duct cover

Yes

Recirculated mode

Can be retrofitted

External operation possible

Yes

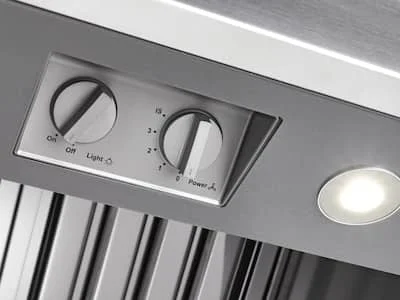

Rotary knob

Yes

Power levels (number excl. Intensive)

3

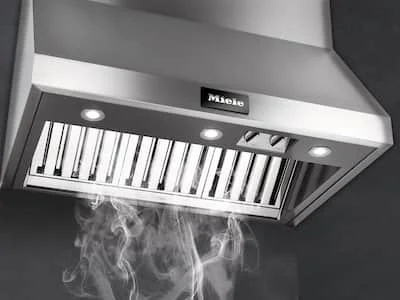

Temperature sensor

Yes

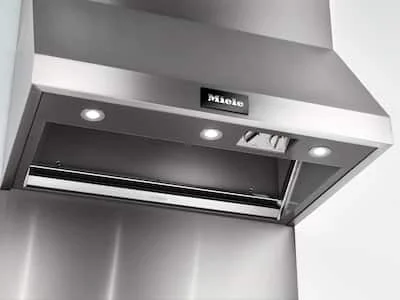

Easy to clean canopy interior CleanCover

Yes

Dishwasher-safe grease collection channel

Yes

Number of dishwasher-safe stainless steel baffle filters

3

Number x W

3 x 3 W

DRIB XL internal blower in CFM (m (h)

1189

DRIB XXL internal blower in CFM (m /h)

1869

DREB XL external blower in CFM (m /h)

1189

DREB XXL external blower in CFM (m /h)

1869

Canopy width in in.(mm)

36 (913)

Canopy width in inches

35 15/16

Canopy height in in.(mm)

18 (457)

Canopy depth in in.(mm)

24 1/8 (611)

Net weight in lbs. (kg)

73 (33.0)

Length of electrical wire in ft (m)

2 (0.8)

Standard plug fitted

Yes

Total connected load in kW

0.809

Voltage in V

120

Fuse rating in A

15

Number of phases

1

Vent connection at top

Yes

Diameter of vent connection in in.(mm)

9 7/8 (250)

Non-return flap

Yes

EAN

4002516546948

GTIN

04002516546948

EAN

4002516546948
