PRODUCT DESCRIPTION
Features
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Specifications
Wall ventilation hood
Yes
Color
Stainless steel
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUW 20
OdorFree charcoal filter (order separately)
DKF12-900P
Electronic controls
Yes
EasySwitch
Yes
Operation
EasySwitch
Power levels (number excl. Intensive)
3
Booster levels
1
Programmable Intensive switch-off
Yes
CleanCover
Yes
Easy-to-clean canopy interior - CleanCover
Yes
Number of dishwasher-safe stainless steel grease filters (10-ply)
3
Number x W
3 x 3 W
Light intensity in Lx
450 lx
Color temperature in K
3000 Kelvin
Dual-action blower
Yes
Maximum air throughput in cfm according to HVI
418
Air throughput
Values upon request
Air throughput in CFM in Booster
418
Safety shut-off
Yes
Overall min. height for vented and external in in. (mm)
27 (685)
Overall max. height for vented and external in in. (mm)
39 5/8 (1005)
Overall min. height for recirculation in in. (mm)
32 1/8 (815)
Overall max. height for recirculation in in. (mm)
44 3/4 (1135)
Canopy width in in. (mm)
35 3/8 (898)
Canopy height in in. (mm)
2 1/2 (62)
Depth of hood canopy in in. (mm)
19 3/4 (500)
Minimum height above electric cooktops in mm
24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
56 (25.0)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
Yes
Total connected load in kW
0.359
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
Yes
Vent connection at top and rear
Yes
Diameter of vent connection in in. (mm)
6 (150)
Telescopic chimney
Yes
Non-return flap
Yes
EAN
4002516878889

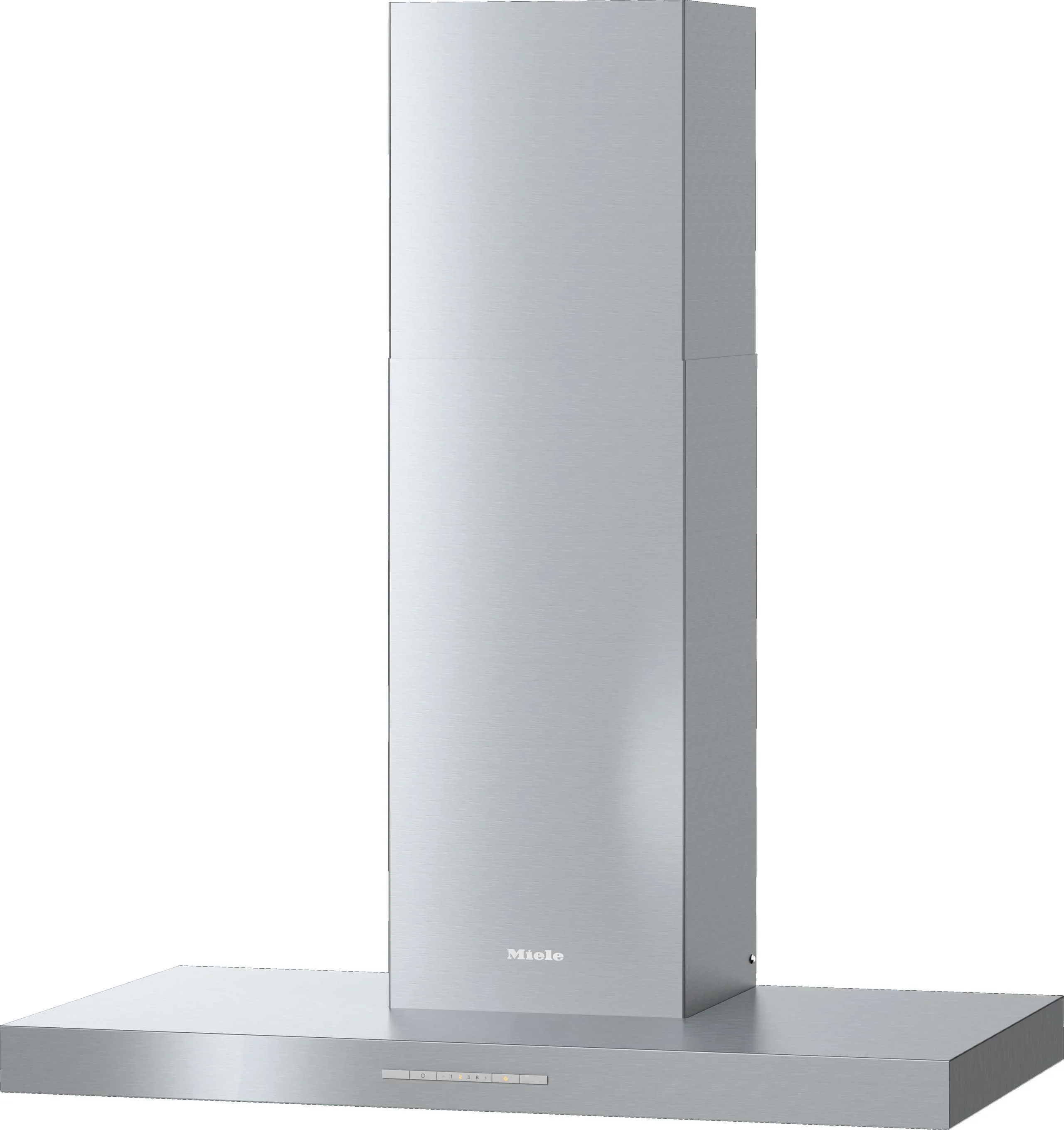

Timeless design - stainless steel canopy 35 3/8 (898) in (mm) wide
Powerful - in Booster level
Efficient filtration- 10-ply stainless steel grease filters
Safe and easy to clean - Miele CleanCover
Suitable for every home - vented or recirculating
Safety information
Miele CleanCover
Stainless-steel grease filters (10-layer)
Safety turn off
GTIN
04002516878889
EAN
4002516878889
