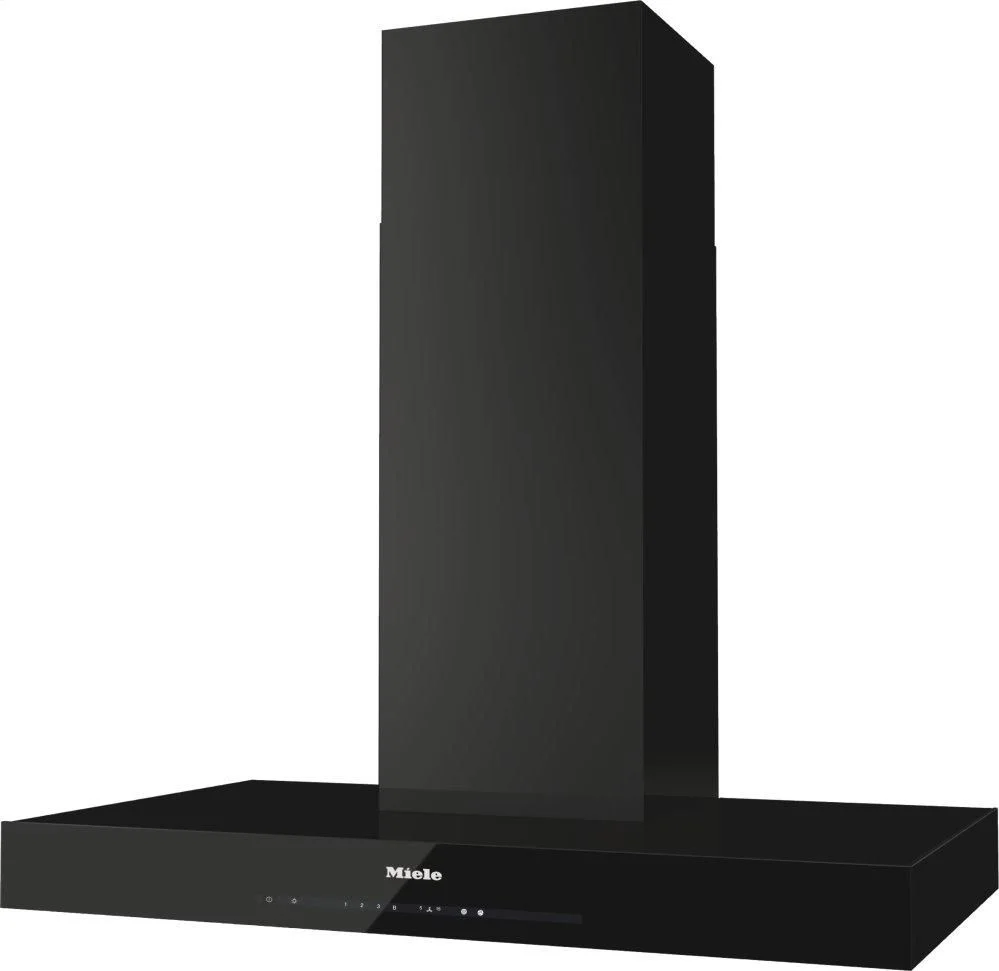

Miele 36" Convertible Ducted Wall Mount Range Hood in Obsidian Black

SKU: 10877060
MODEL: DA6698WPURISTICEDITION6000OBSIDIANBLACK
2x Points
Free 2Y Warranty
Low-cost Install
  • Type: Convertible/Ducted
  • Width: 35.38"
  • Height: 3.38"
  • Depth: 19.75"
Miele |Authorized Dealer
Pre-Order

color: Obsidian Black

Miele DA6698WPURISTICEDITION6000BRILLIANTWHITE
Miele DA6698WPURISTICEDITION6000OBSIDIANBLACK
Miele DA6698WPURISTICEDITION6000STAINLESSSTEEL

PRODUCT DESCRIPTION

USER CONVENIENCE
Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."


filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.


SAFETY
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.


FEATURES
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.


Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.


Silence

Efficient and quiet: The fan is effectively insulated with special soundproofing mats.

Specifications

design

Wall ventilation hood
 •
Color
Obsidian black

operating modes

Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUW 20
OdorFree charcoal filter (order separately)
DKF 12-P

user convenience

Miele@home
 •
Electronic controls
 •
Touch controls
 •
Operation
Touch-on-glass controls
Power levels (number excl. Intensive)
3
Booster levels
1
Programmable Intensive switch-off
 •
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
 •
Active charcoal filter saturation indicator
 •
Acoustic package
CleanCover

cleaning convenience

Easy-to-clean CleanCover hood liner
 •

filter system

Number of dishwasher-safe stainless-steel grease filters
3

lighting

LED ClearView lighting
 •
Number x W
3 x 3 W
Light intensity in Lx
670 lx
Color temperature in K
3500 Kelvin
Light dimmer function
 •

blower

Dual-action blower
 •
AC motor
 •

exhaust air

Maximum air throughput in cfm according to HVI
418
Air throughput
Values upon request

safety

Safety shut-off
 •
Single-ply safety glass (ESG)
 •

technical data

Overall min. height for vented and external in in. (mm)
28 (710)
Overall max. height for vented and external in in. (mm)
40 5/8 (1030)
Overall min. height for recirculation in in. (mm)
33 1/8 (840)
Overall max. height for recirculation in in. (mm)
45 3/4 (1160)
Canopy width in in. (mm)
35 3/8 (898)
Canopy height in in. (mm)
3 3/8 (85)
Depth of hood canopy in in. (mm)
19 3/4 (500)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
58 (26.0)
Length of electrical wire in ft. (m)
2 (0.8)
Standard plug fitted
 •
Total connected load in kW
0.36
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1

installation note

Vent connection at top
 •
Vent connection at top and rear
 •
Diameter of vent connection in in. (mm)
6 (150)
Telescopic chimney
 •

standard accessories

Non-return flap
 •
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z

GS1

GTIN
04002516024644
EAN
4002516024644
