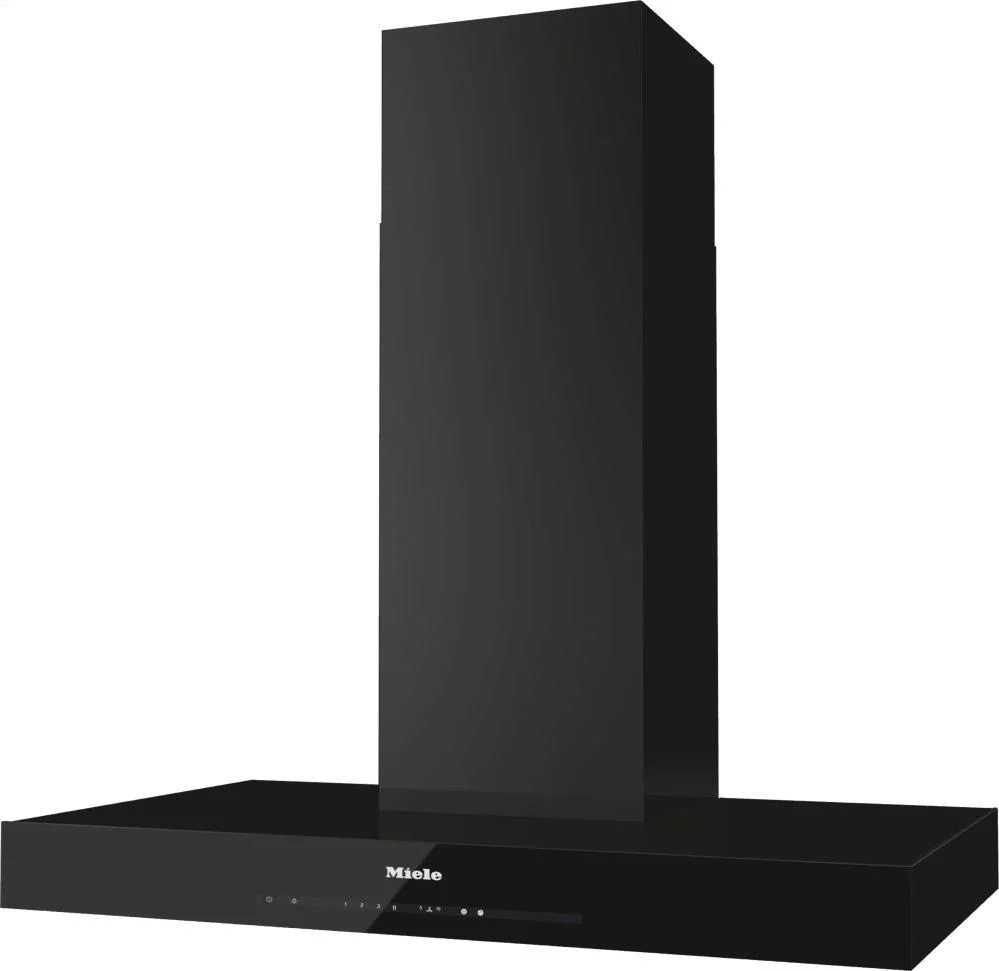

Miele DA 6698 W Puristic Edition 6000 Obsidian black - Wall ventilation hood with energy-efficient LED lighting and touch controls for simple operation. in Obsidian Black

Wall ventilation hood

Yes

Color

Obsidian black

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUW 20

OdorFree charcoal filter (order separately)

DKF 12-P

Miele@home

Yes

Automatic function Con@ctivity

Yes

Electronic controls

Yes

Light-touch controls

Yes

Operation

Touch-on-glass controls

Power levels (number excl. Intensive)

3

Booster levels

1

Delayed shutdown for 5 or 15 minutes

Yes

Grease filter saturation indicator

Yes

Active charcoal filter saturation indicator

Yes

Acoustic package

Yes

CleanCover

Yes

Con@ctivity

Yes

Easy-to-clean canopy interior - CleanCover

Yes

Number of dishwasher-safe stainless steel grease filters (10-ply)

3

Number x W

3 x 3 W

Light intensity in Lx

670 lx

Color temperature in K

3500 Kelvin

Light dimmer function

Yes

Dual-action blower

Yes

Air throughput in CFM in Booster

489

Air throughput

Values upon request

Air throughput with Booster level 1 (m /h) according to EN 61591

488.52 (830)

Safety shut-off

Yes

Single-ply safety glass (ESG)

Yes

Overall min. height for vented and external in in. (mm)

28 (710)

Overall max. height for vented and external in in. (mm)

40 1/2 (1030)

Overall min. height for recirculation in in. (mm)

33 1/8 (840)

Overall max. height for recirculation in in. (mm)

45 5/8 (1160)

Canopy width in in. (mm)

35 3/8 (898)

Canopy height in in. (mm)

3 3/8 (85)

Depth of hood canopy in in. (mm)

19 5/8 (500)

Minimum height above electric cooktops in mm

24 (610)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

58 (26.0)

Length of electrical wire in ft. (m)

2 (0.8)

Standard plug fitted

Yes

Total connected load in kW

0.359

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

Plug type

NEMA plug: 5-15

Vent connection at top

Yes

Diameter of vent connection in in. (mm)

6 (150)

Telescopic chimney

Yes

Non-return flap

Yes

Communication module for Con@ctivity XKM 2000 DA

XKS 3000 Z

EAN

4002516024644

GTIN

04002516024644

EAN

4002516024644

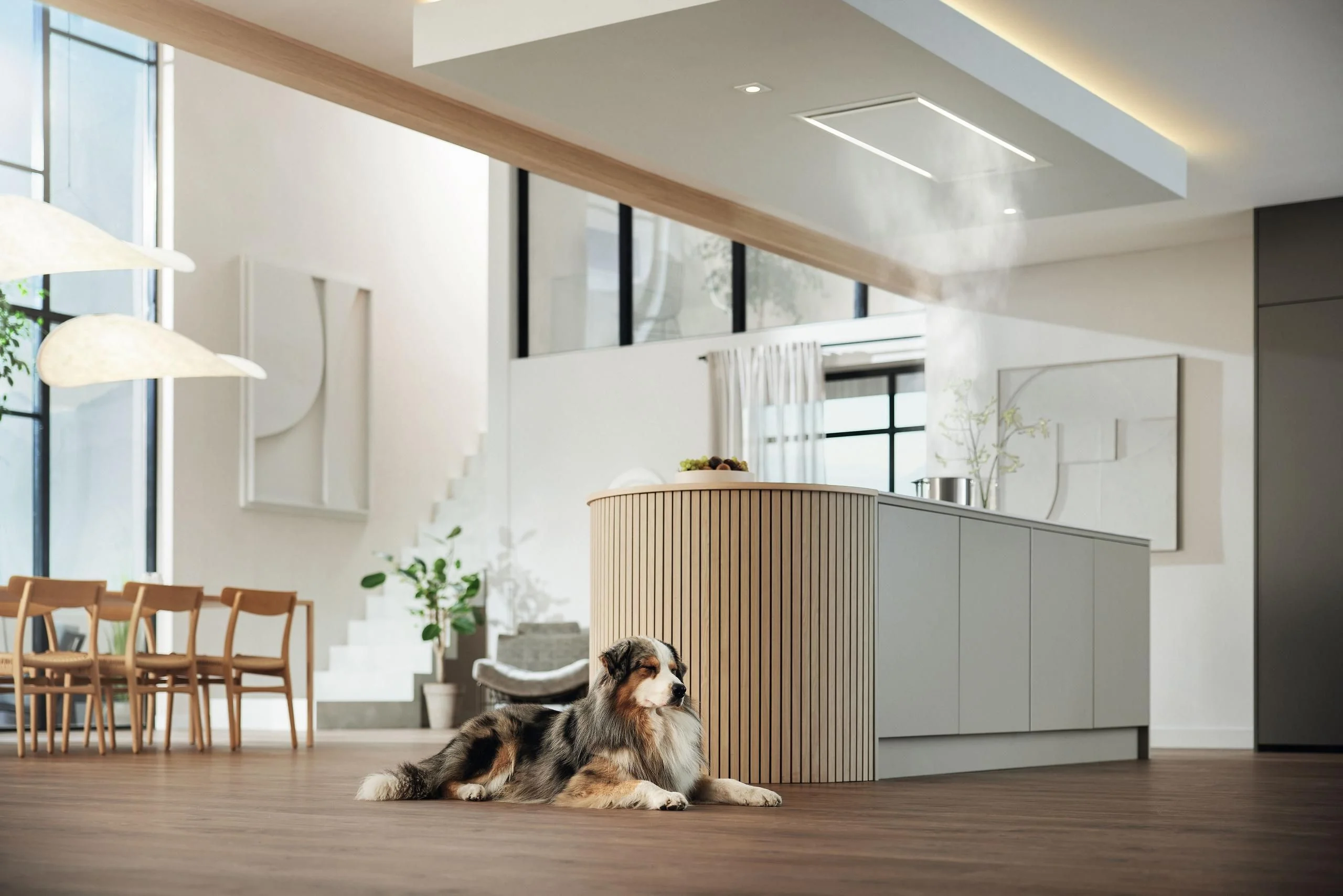

Silence

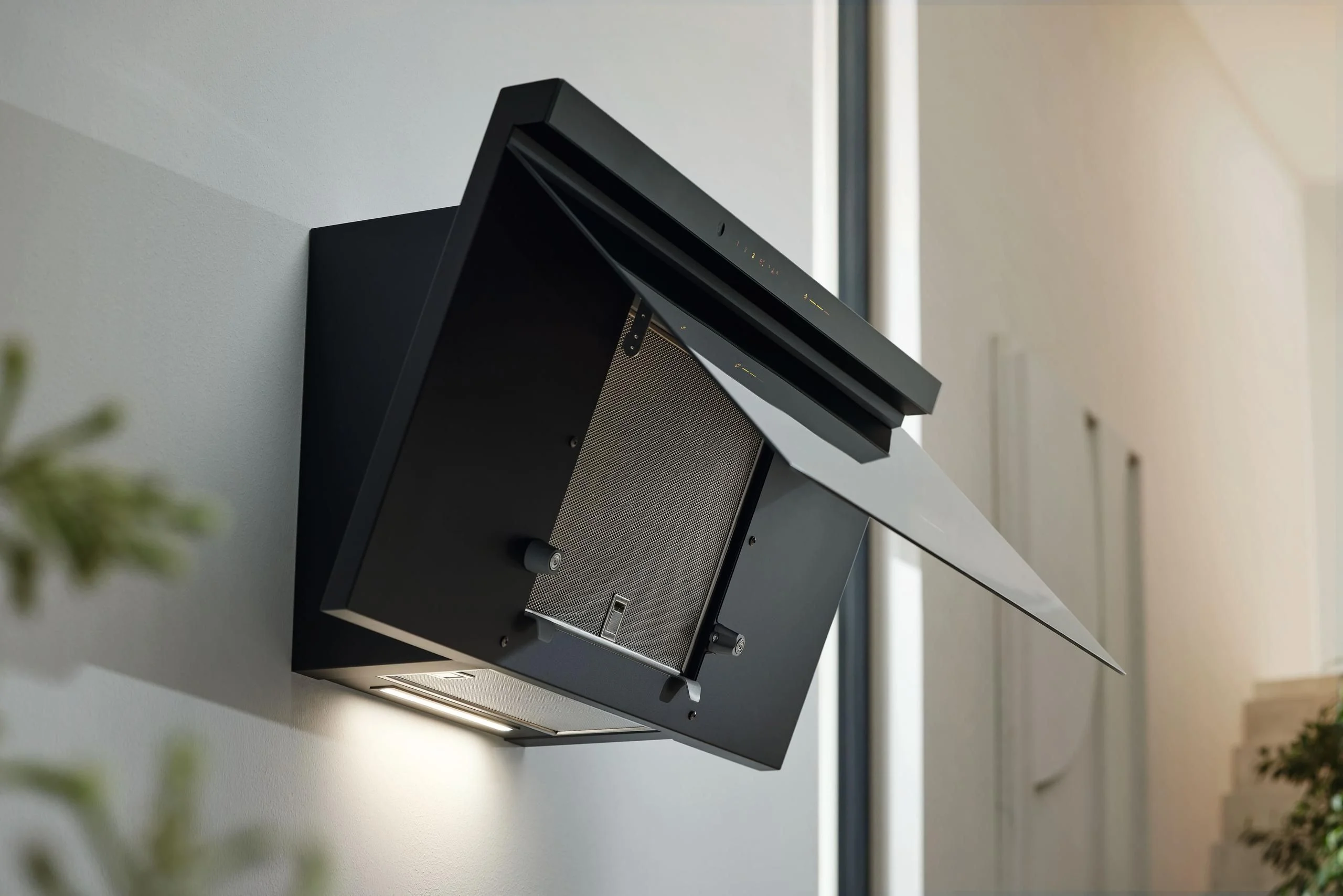

Stainless-steel grease filters (10-layer)

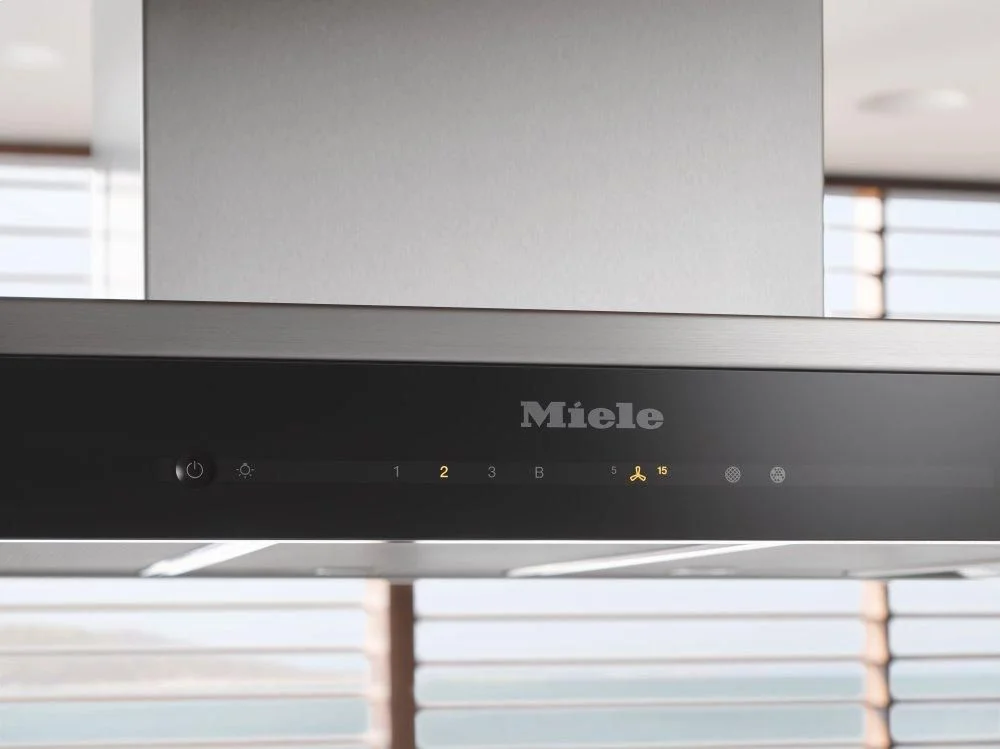

Delayed shutdown

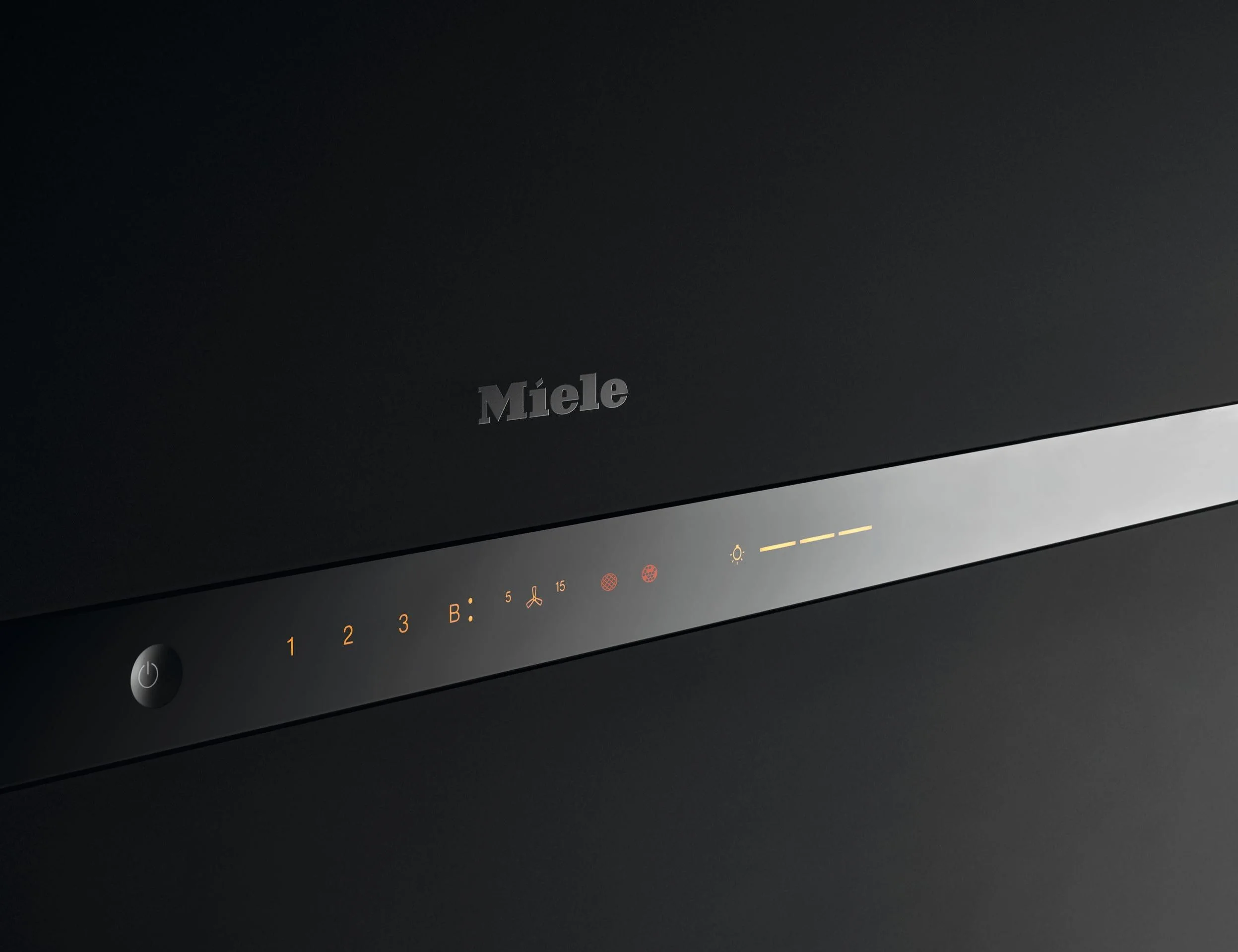

filter saturation indicator

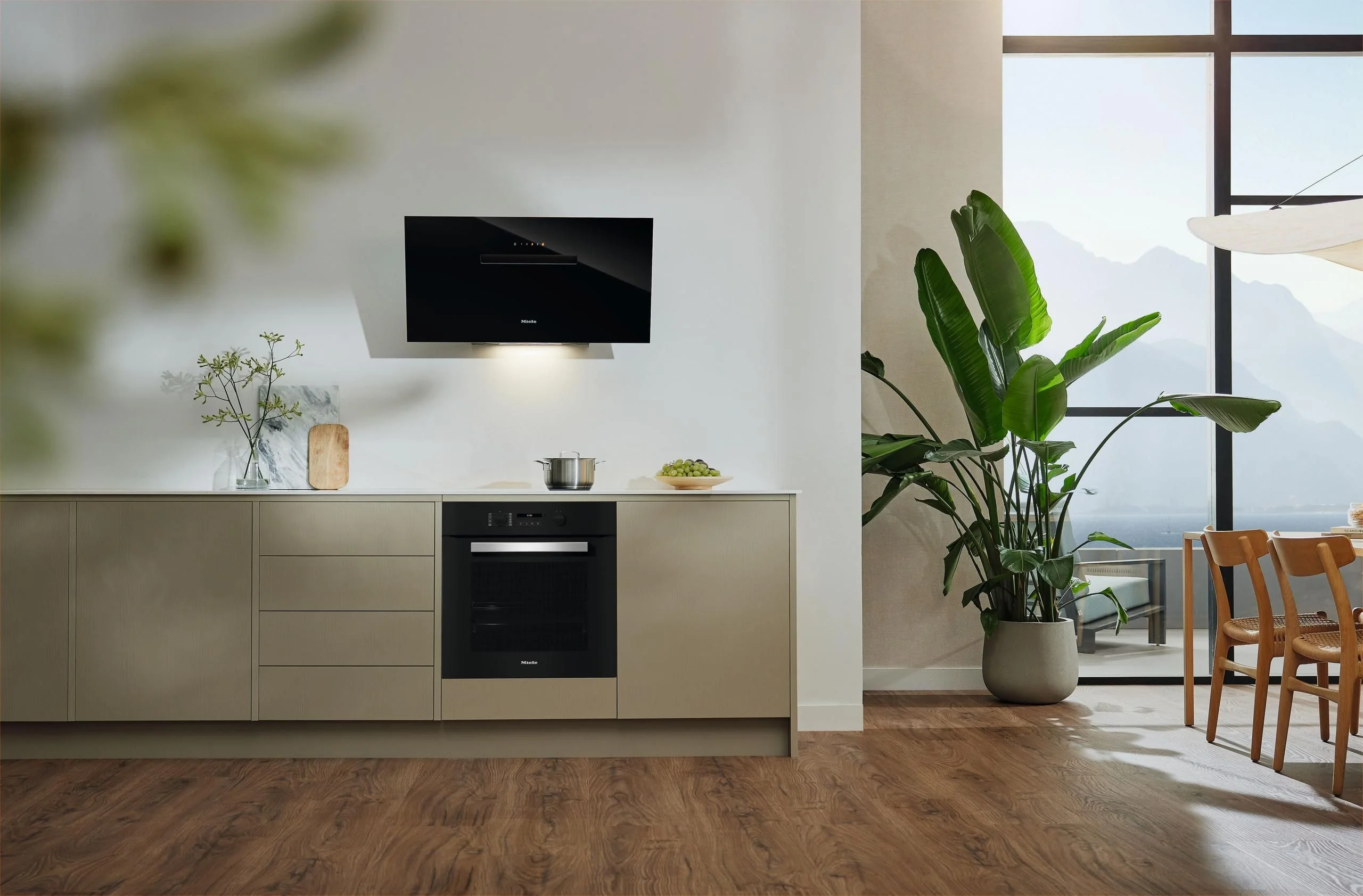

Safety turn off

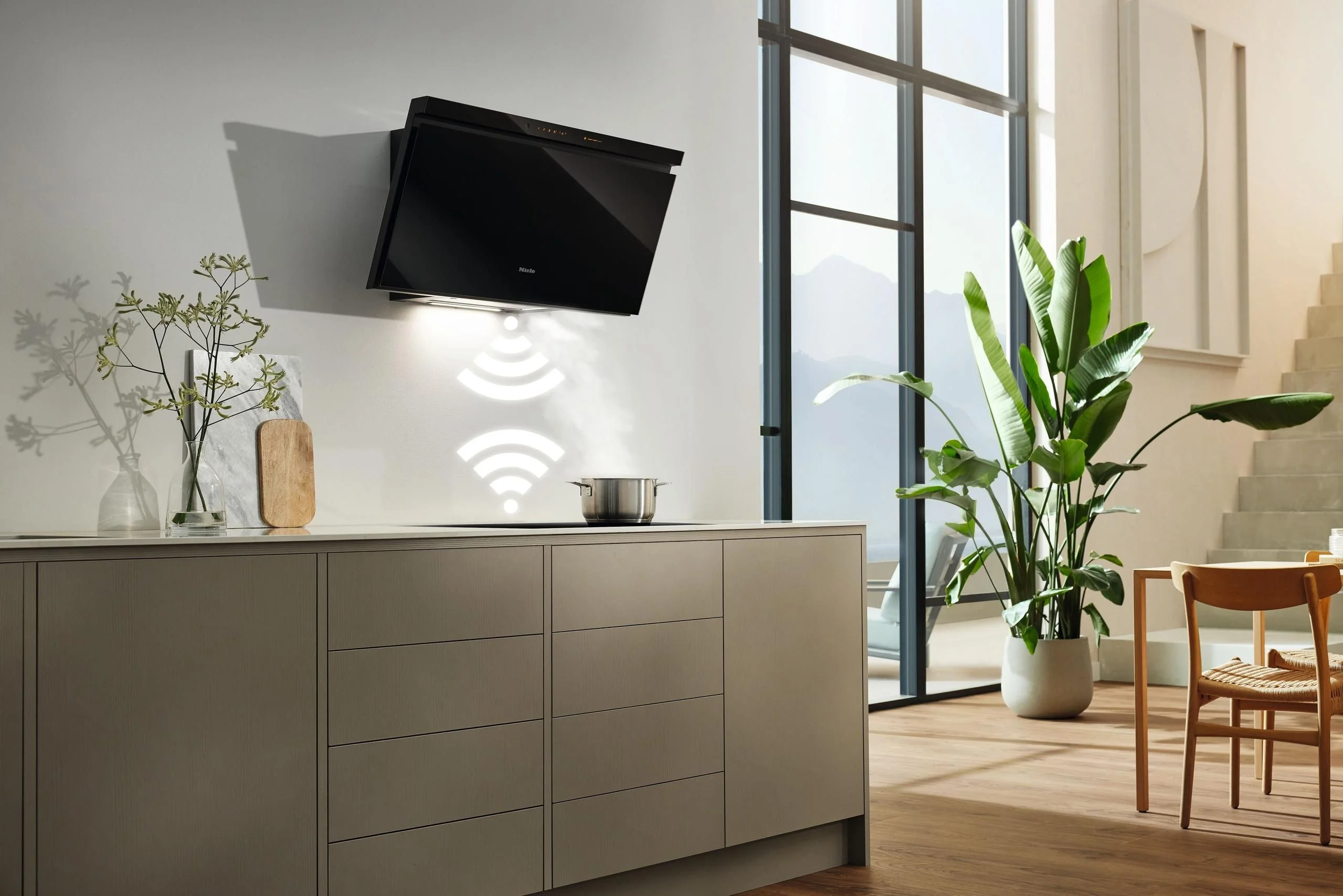

Con@ctivity

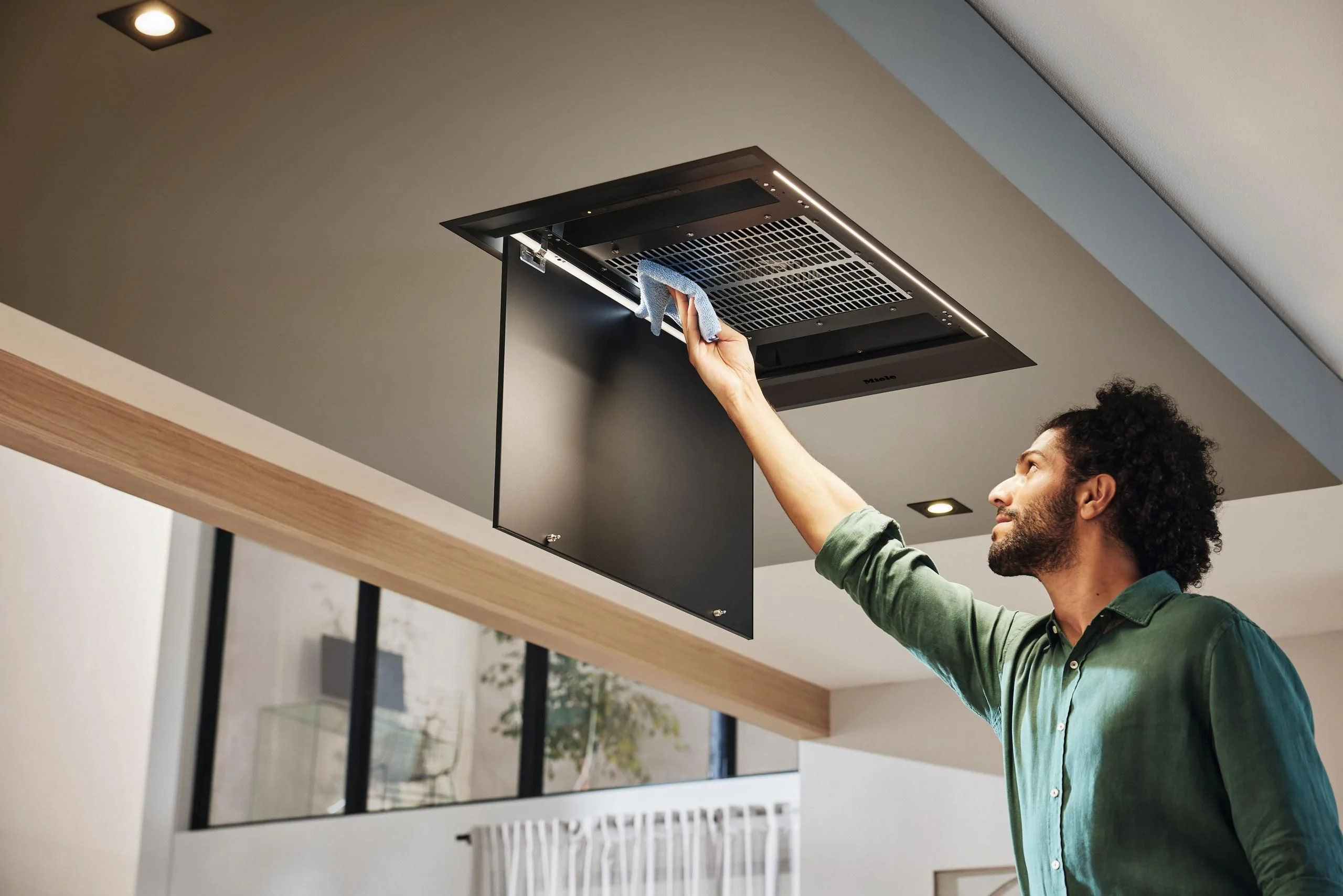

Miele CleanCover
