PRODUCT DESCRIPTION
Features

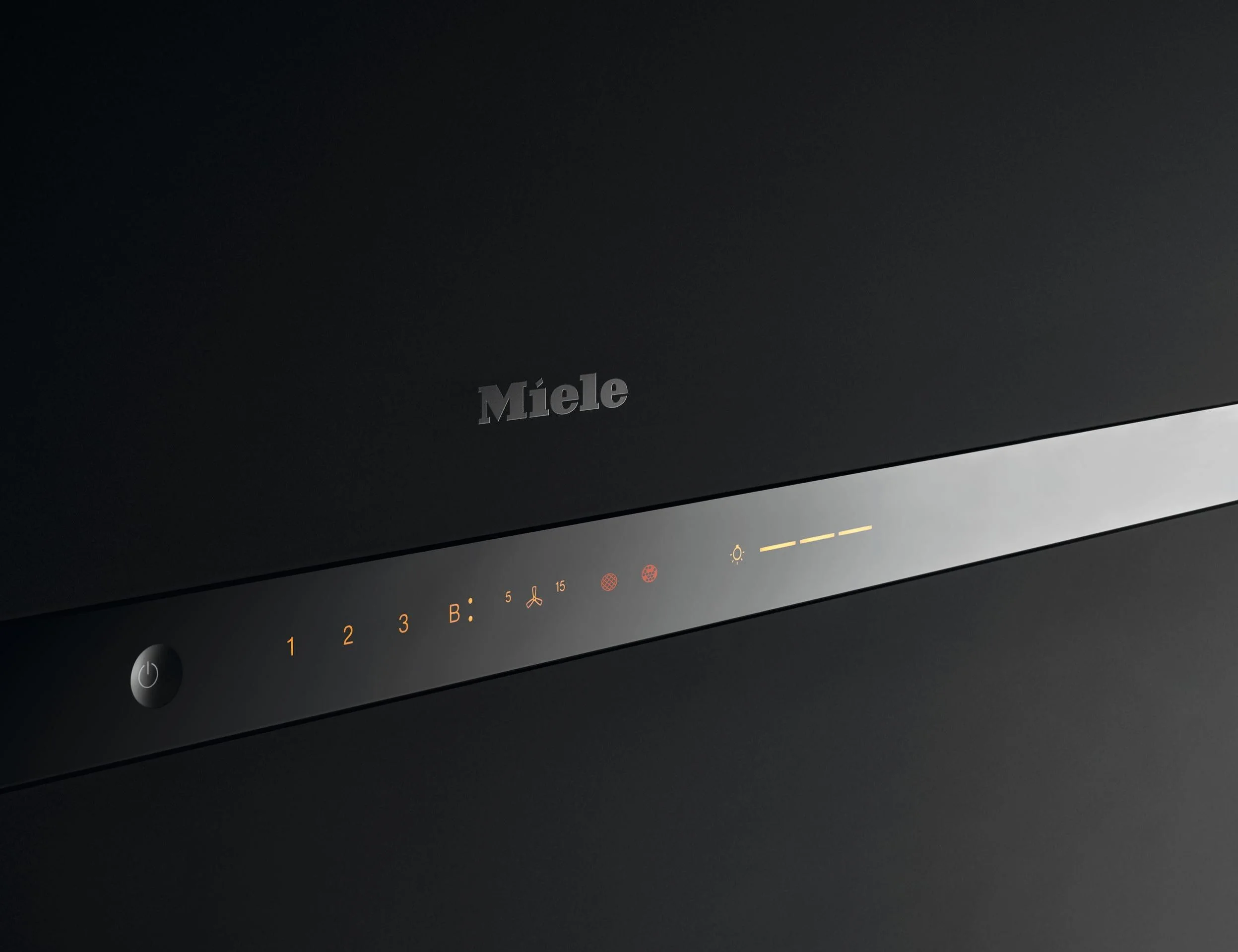

filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Silence
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.

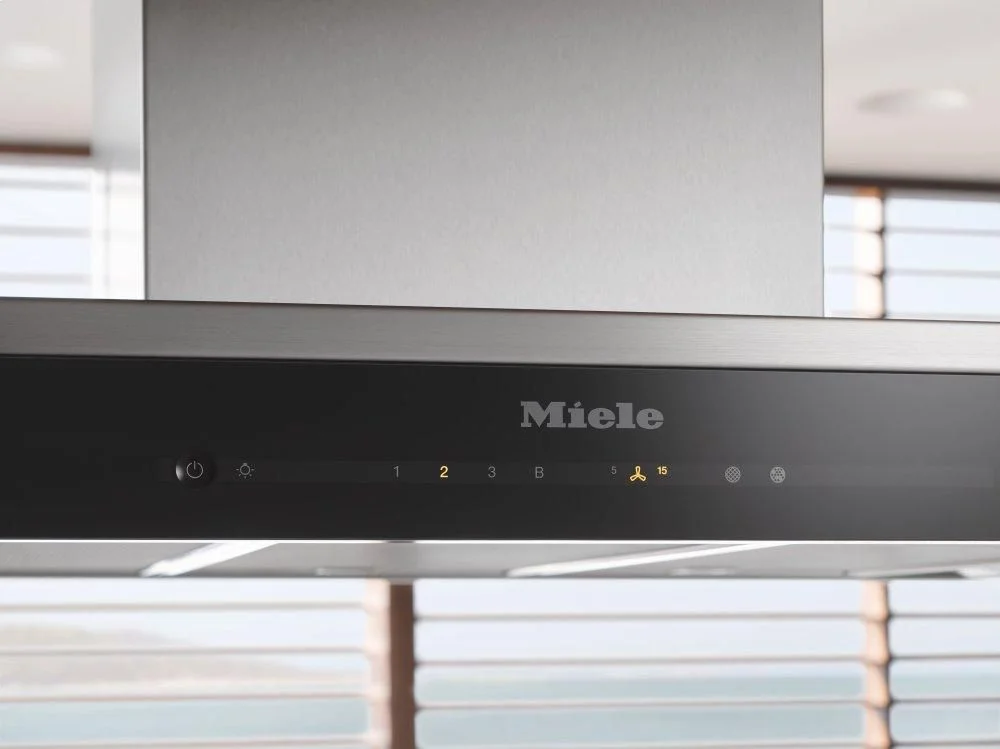

Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."

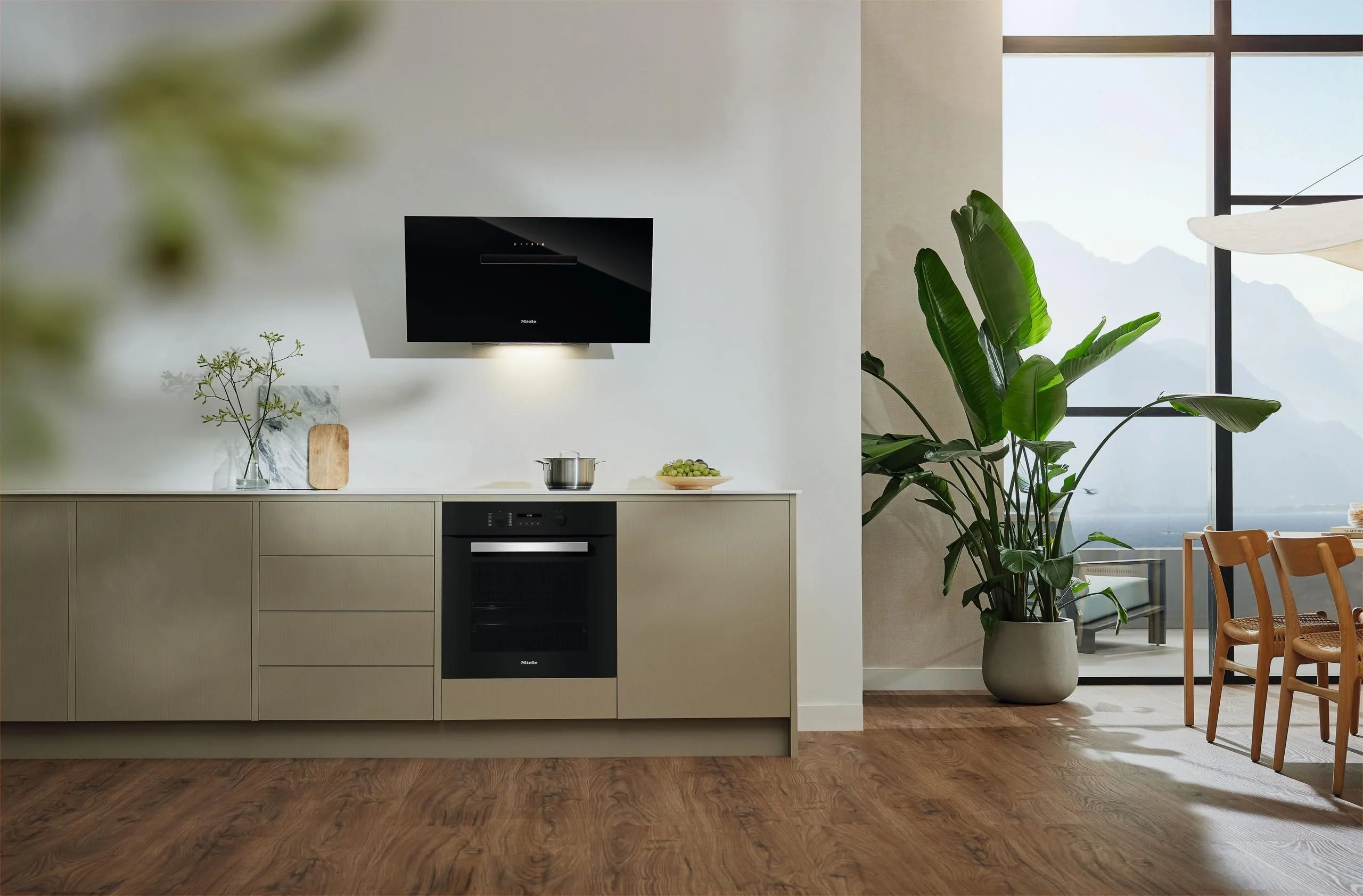

Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

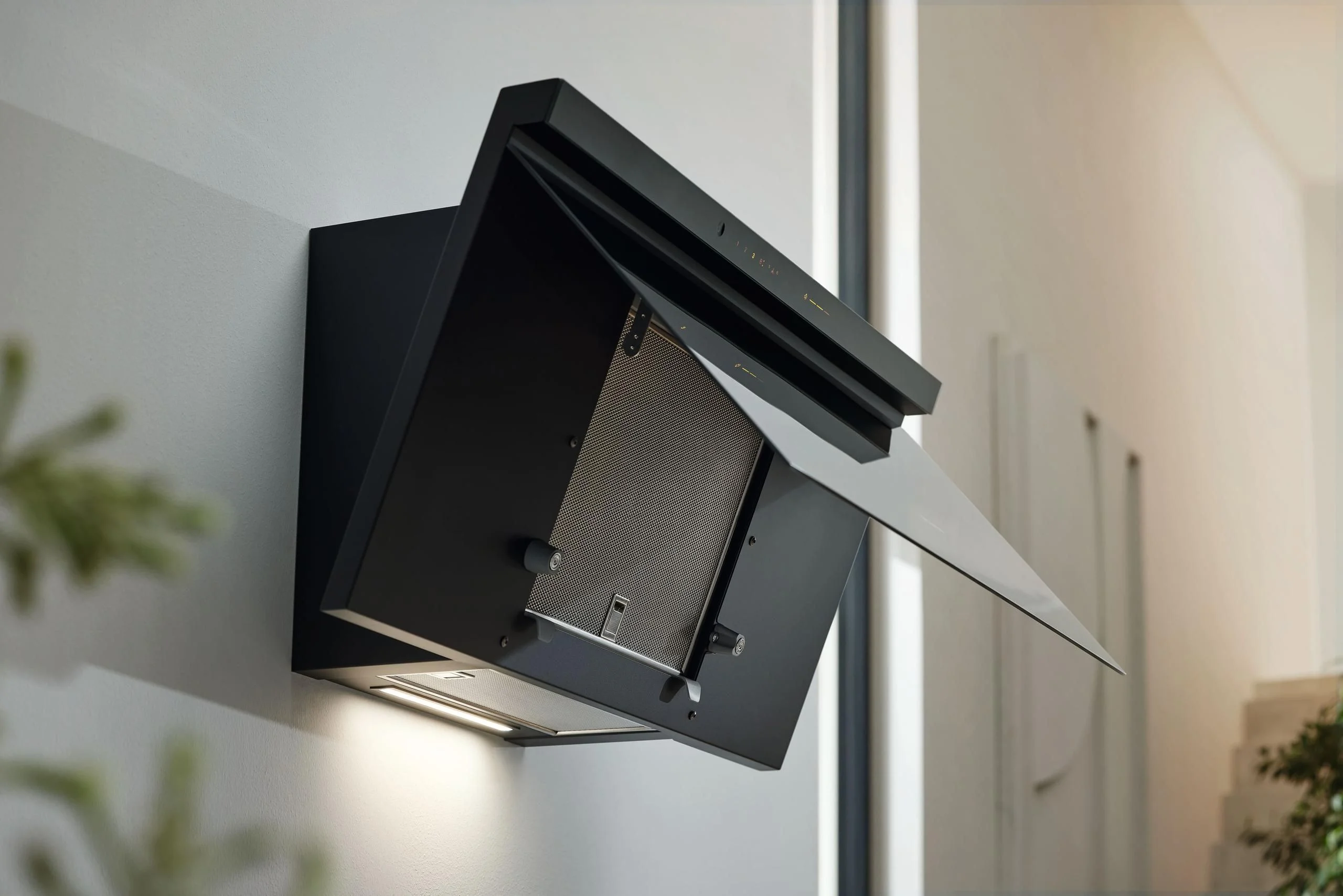

Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

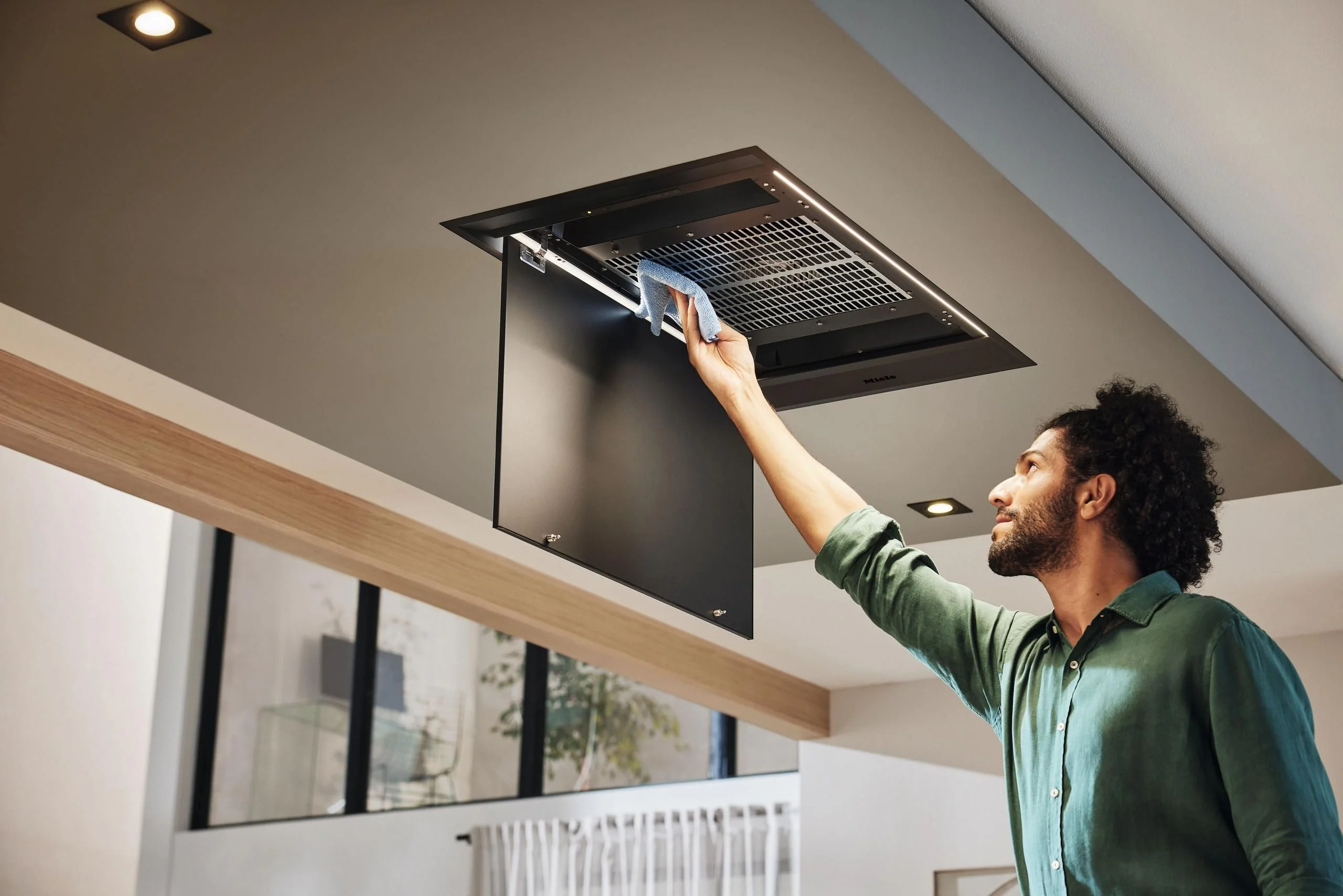

Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Specifications

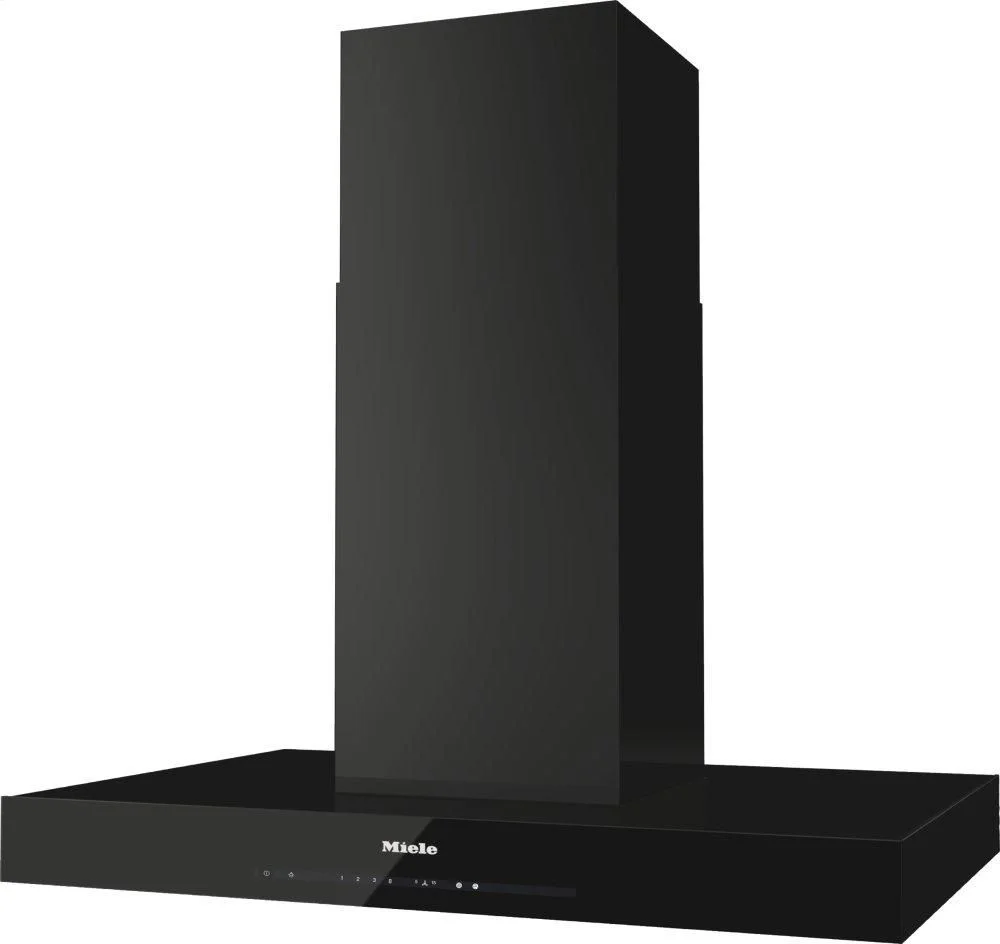

Island ventilation hood
Yes
Color
Obsidian black
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUI 32
OdorFree charcoal filter (order separately)
DKF 12-P
Miele@home
Yes
Electronic controls
Yes
Light-touch controls
Yes
Operation
Touch-on-glass controls
Power levels (number excl. Intensive)
3
Booster levels
1
Delayed shutdown for 5 or 15 minutes
Yes
Grease filter saturation indicator
Yes
Active charcoal filter saturation indicator
Yes
Acoustic package
Yes
CleanCover
Yes
Easy-to-clean canopy interior - CleanCover
Yes
Number of dishwasher-safe stainless steel grease filters (10-ply)
3
Number x W
4 x 3 W
Light intensity in Lx
820 lx
Color temperature in K
3500 Kelvin
Light dimmer function
Yes
Dual-action blower
Yes
Air throughput in CFM in Booster
430
Air throughput
Values upon request
Safety shut-off
Yes
Single-ply safety glass (ESG)
Yes
Overall hood height for vented mode and external in inches (mm)
27 7/8 (705)-39 5/8 (1005)
Overall height for recirculation mode ventilation hoods in mm
30 1/8 (765)-42 3/8 (1075)
Overall min. height for vented and external in in. (mm)
27 7/8 (705)
Overall max. height for vented and external in in. (mm)
39 5/8 (1005)
Overall min. height for recirculation in in. (mm)
30 1/8 (765)
Overall max. height for recirculation in in. (mm)
42 3/8 (1075)
Canopy width in in. (mm)
35 3/8 (898)
Canopy height in in. (mm)
3 3/8 (85)
Depth of hood canopy in in. (mm)
23 5/8 (598)
Minimum height above electric cooktops in mm
24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
78 (35.0)
Hard-wired
Yes
Total connected load in kW
0.362
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
Yes
Diameter of vent connection in in. (mm)
6 (150)
Telescopic chimney
Yes
Non-return flap
Yes
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z
EAN
4002516024675
GTIN
04002516024675
EAN
4002516024675
Delayed shutdown
Miele CleanCover
filter saturation indicator
Stainless-steel grease filters (10-layer)
Safety turn off
Silence
