PRODUCT DESCRIPTION
Features

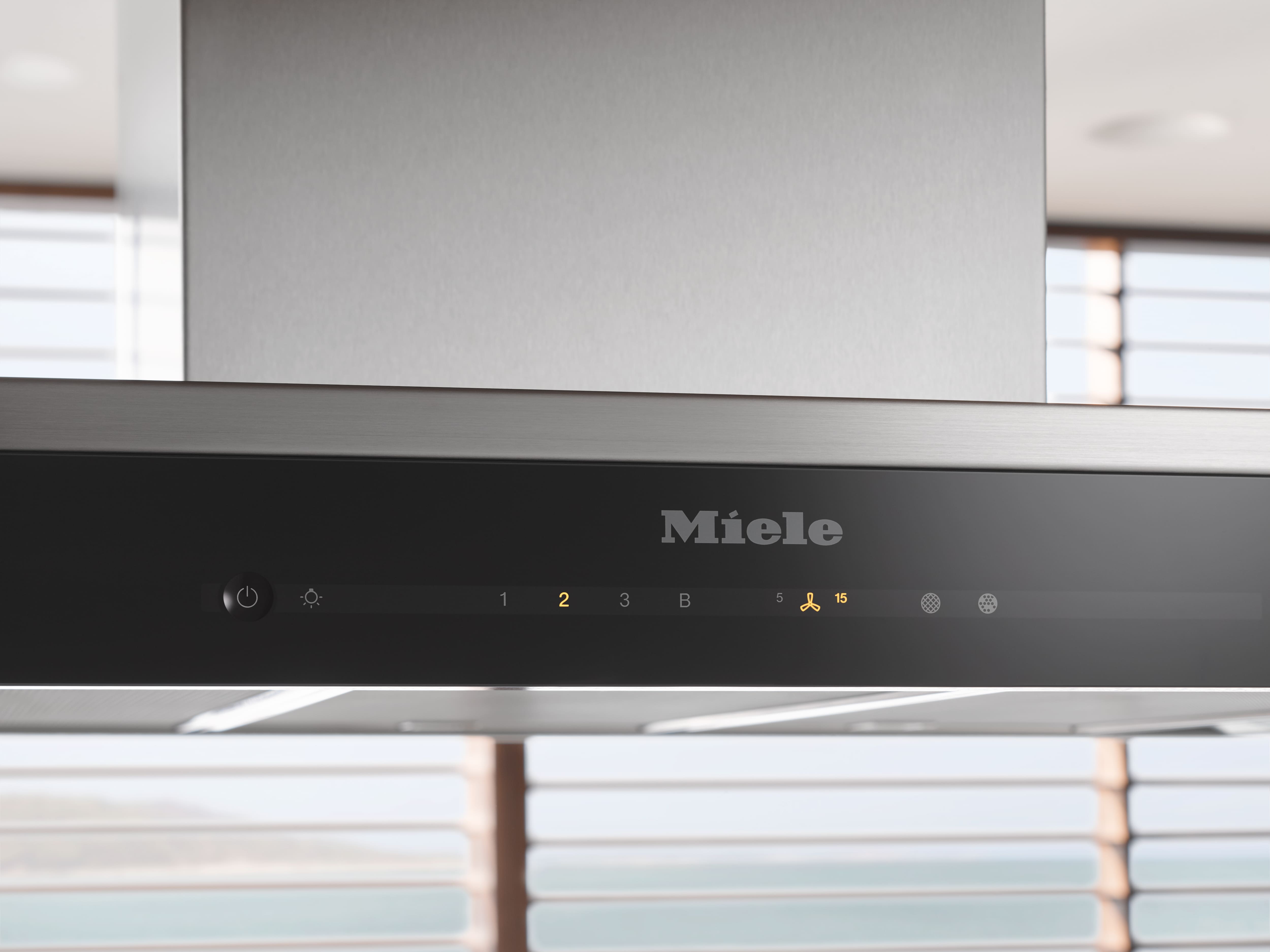

Automatic blower run-on
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."

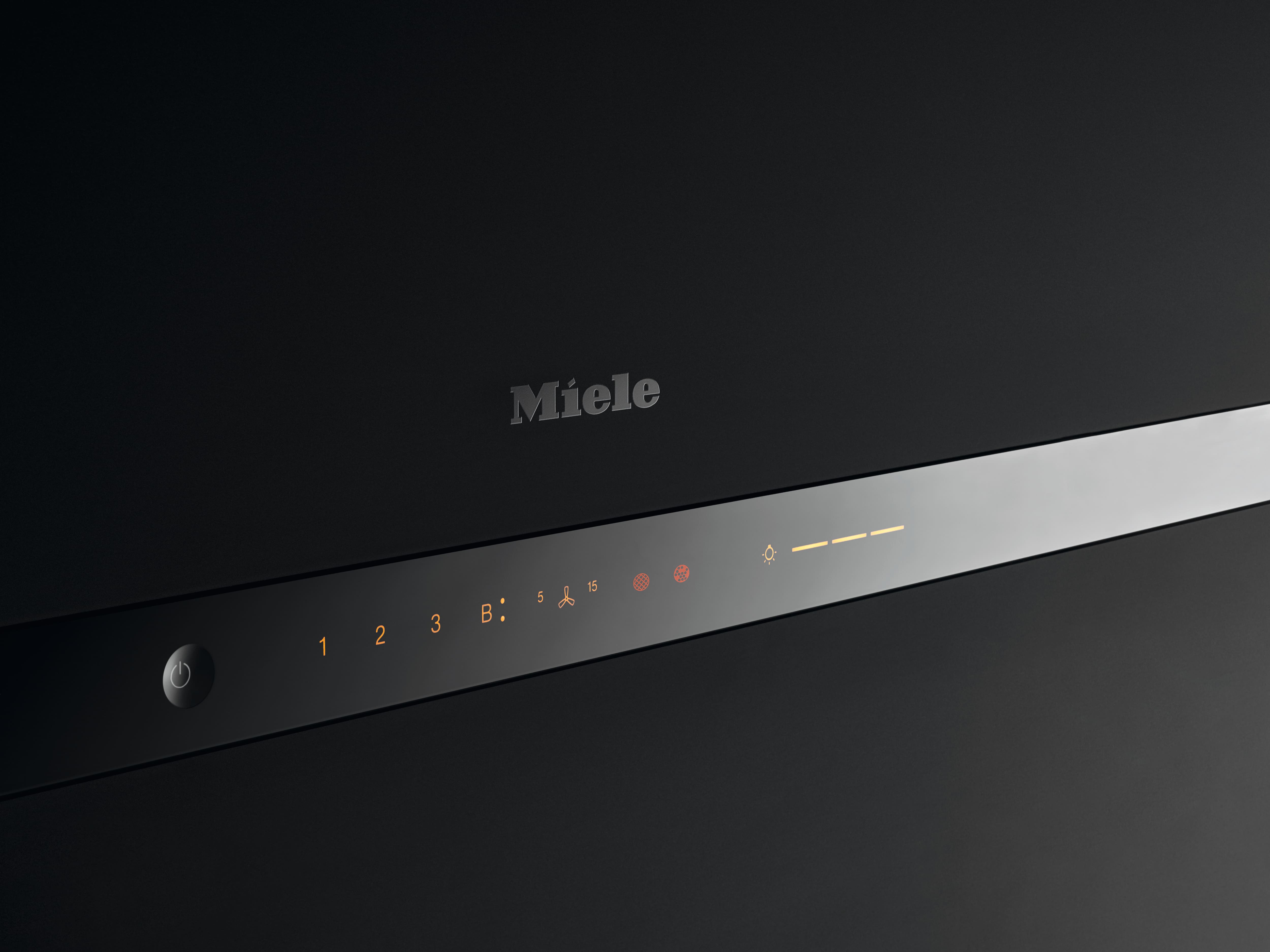

Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.

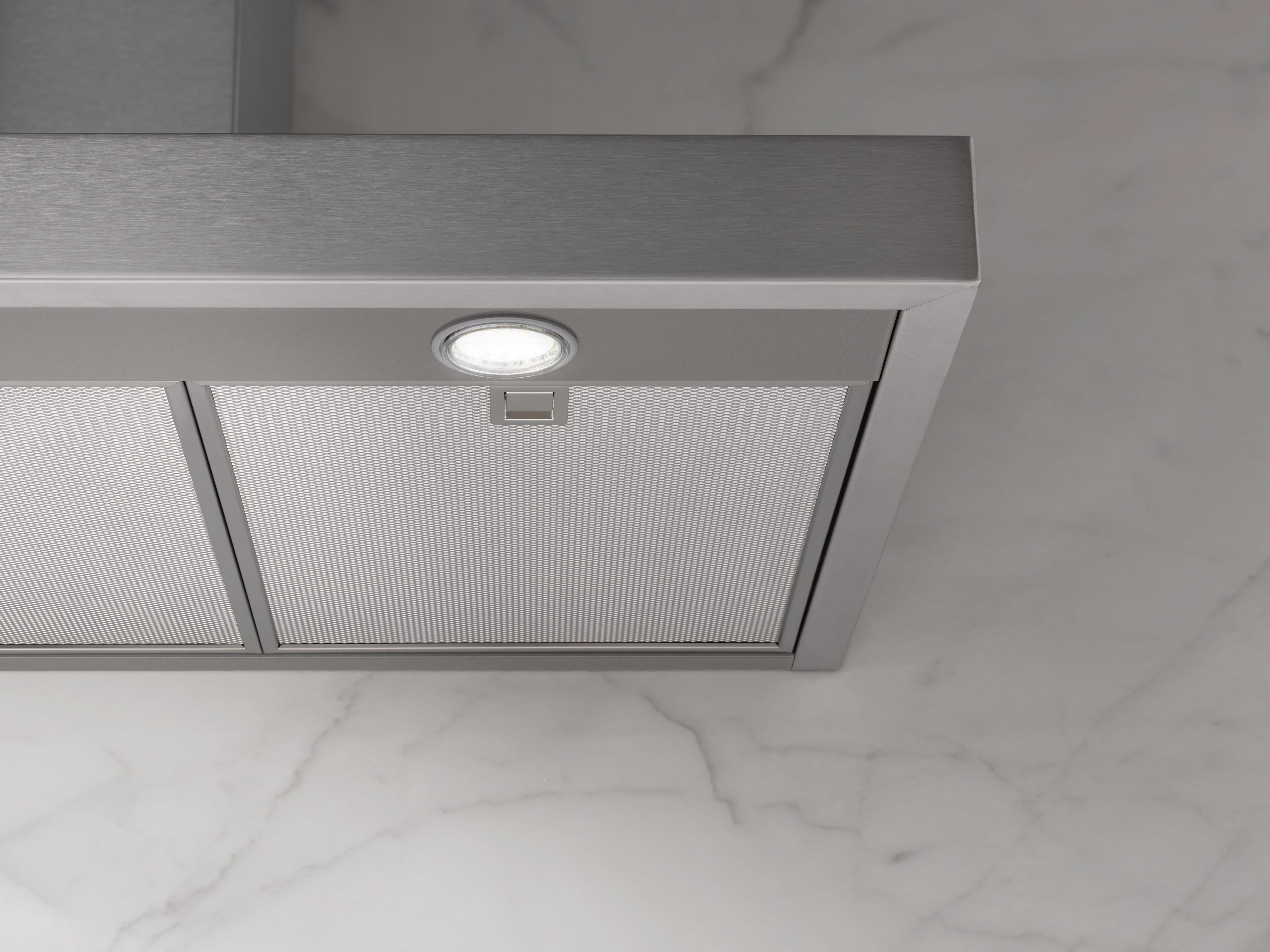

Easy to use and effective against grease
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

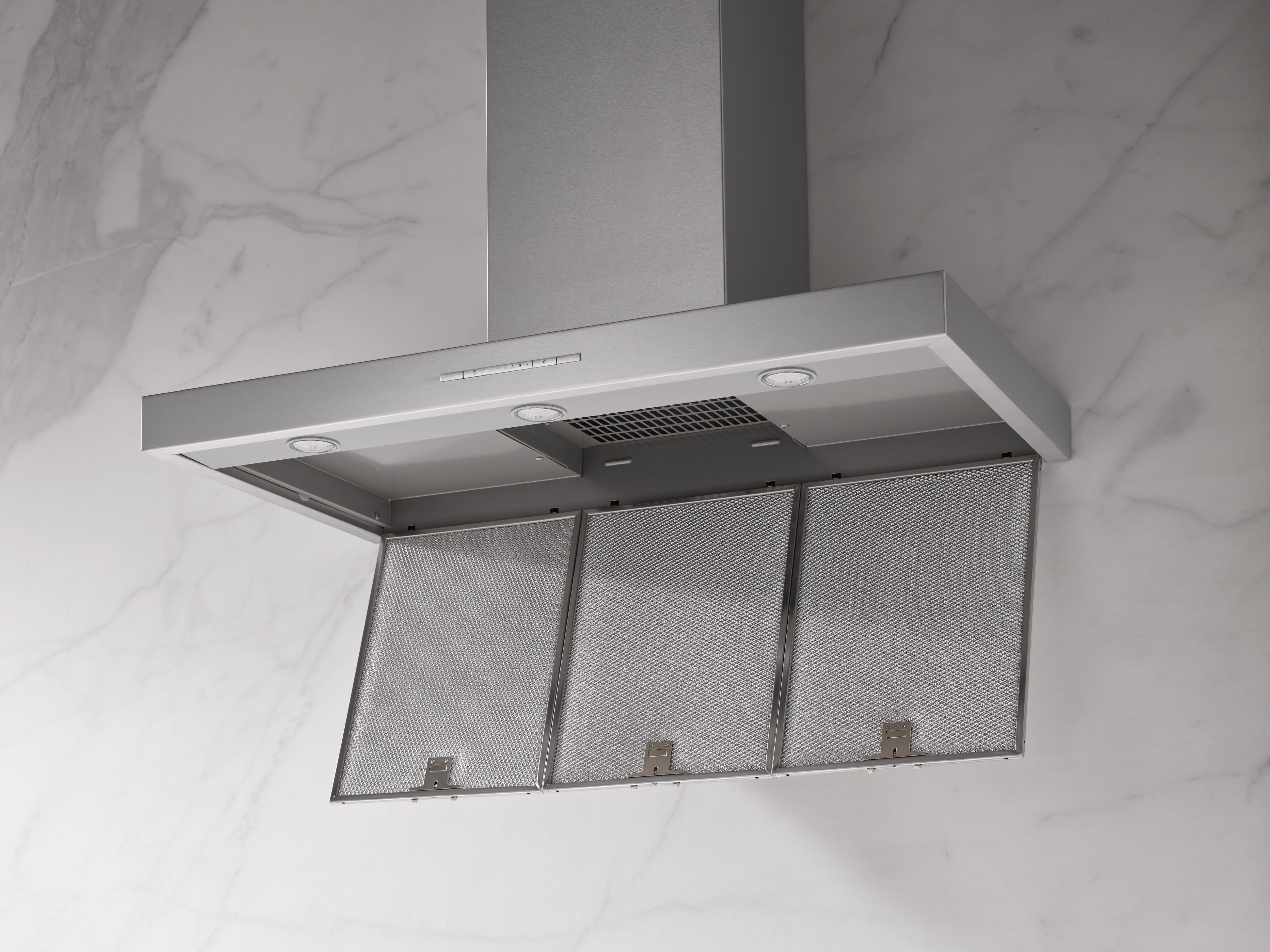

Convenience and safety in detail
Miele’s unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Always on the safe side
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

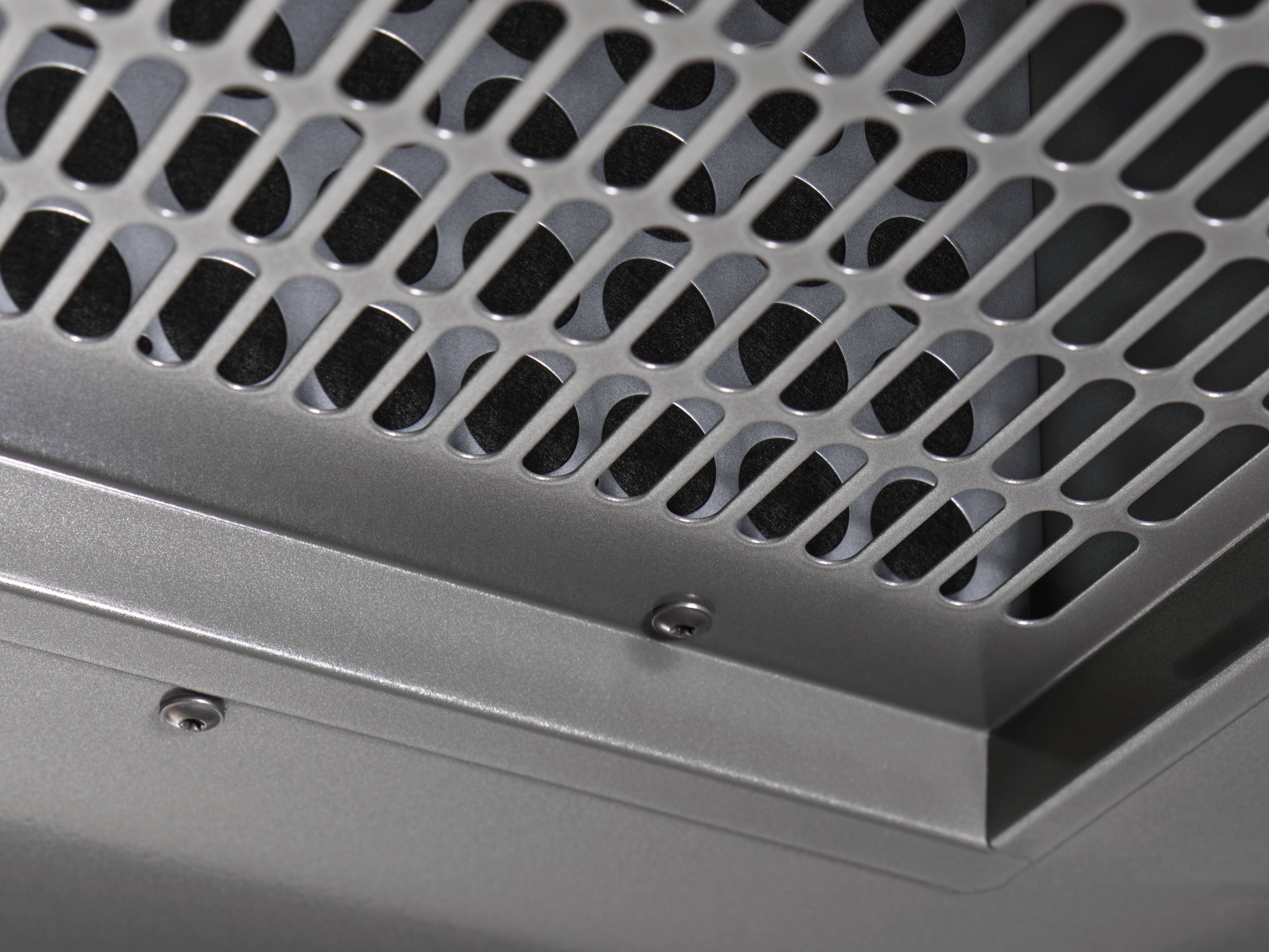

Performance and convenience as standard
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Specifications
Wall ventilation hood
Yes
Color
Stainless steel
RAL colours possible as special order
Yes
Customization possible on request
Yes
Variable height available as special order
Yes
Recirculated mode
Exhaust air
Miele@home
Yes
Electronic controls
Yes
Miele@mobile app
Yes
Power levels (number excl. Intensive)
3
Programmable Intensive switch-off
Yes
Delayed shutdown for 5 or 15 minutes
Yes
Grease filter saturation indicator
Yes
Programmable grease filter saturation indicator
Yes
Acoustic package
Yes
Easy-to-clean CleanCover hood liner
Yes
Number of dishwasher-safe stainless-steel grease filters
4
LED ClearView lighting
Yes
Number x W
4 x 3 W
Light intensity in Lx
400 lx
Color temperature in K
3000 Kelvin
Dual-action blower
Yes
AC motor
Yes
Air throughput
Values upon request
Safety shut-off
Yes
Vent connection at top
Yes
Vent connection at top and rear
Yes
Diameter of vent connection in in. (mm)
6 (150)
Telescopic chimney
Yes
Non-return flap
Yes
Reducer from 150 to 125 mm Ø
Yes
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Standard plug fitted
Yes
Total connected load in kW
0.36
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Width
-
Height
1.84 in.
Length
-
Weight
182.6 lbs.
Number of Boxes
1
Shipping Width
-
Shipping Height
6.84 in.
Shipping Length
-
Shipping Weight
222.6 lbs.
Total of Shipping Weight
222.6 lbs.
Source
Calculation
Cubic Feet Measurement
-
Dimensional Weight
-
Total of Cubes
-
Total of Dimensional Weight
-
Automatic blower run-on
Countdown time conveniently in view
Easy to use and effective against grease
Convenience and safety in detail
Always on the safe side
Performance and convenience as standard
