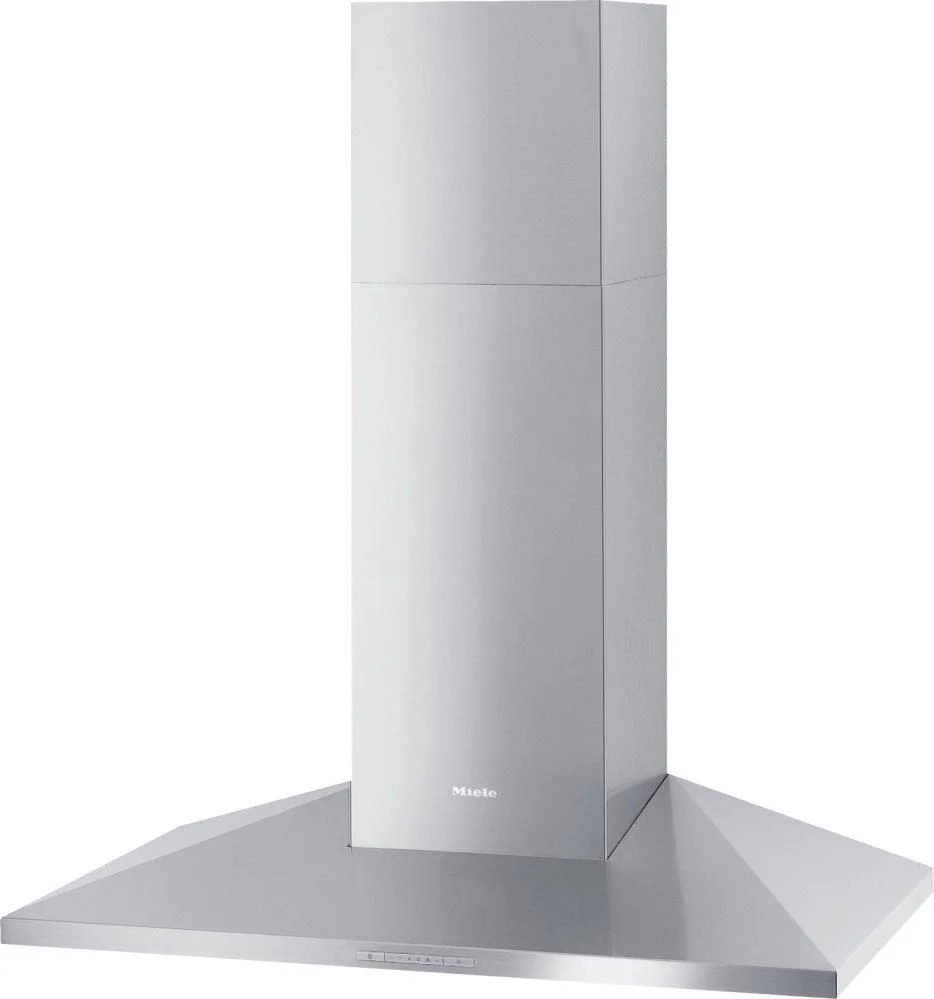

Miele DA 399-7 Classic Stainless steel - Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel

Wall ventilation hood

Yes

Color

Stainless steel

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUW 20

OdorFree charcoal filter (order separately)

DKF 12-P

Electronic controls

Yes

Operation

Light-touch switches with LEDs

Power levels (number excl. Intensive)

3

Booster levels

1

CleanCover

Yes

Easy-to-clean canopy interior - CleanCover

Yes

Number of dishwasher-safe stainless steel grease filters (10-ply)

3

Number x W

2 x 3 W

Light intensity in Lx

300 lx

Color temperature in K

3000 Kelvin

Dual-action blower

Yes

Air throughput in CFM in Booster

489

Air throughput

Values upon request

Air throughput with Booster level 1 (m /h) according to EN 61591

488.52 (830)

Safety shut-off

Yes

Overall min. height for vented and external in in. (mm)

27 3/8 (695)

Overall max. height for vented and external in in. (mm)

40 (1015)

Overall min. height for recirculation in in. (mm)

32 1/2 (825)

Overall max. height for recirculation in in. (mm)

45 1/8 (1145)

Canopy width in in. (mm)

35 3/8 (898)

Canopy height in in. (mm)

4 3/4 (120)

Depth of hood canopy in in. (mm)

20 1/2 (520)

Minimum height above electric cooktops in mm

24 (610)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

58 (26.0)

Length of electrical wire in ft. (m)

4 (1.5)

Standard plug fitted

Yes

Total connected load in kW

0.356

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

Plug type

NEMA plug: 5-15

Vent connection at top

Yes

Diameter of vent connection in in. (mm)

6 (150)

Telescopic chimney

Yes

Non-return flap

Yes

EAN

4002515802199

GTIN

04002515802199

EAN

4002515802199

Stainless-steel grease filters (10-layer)

Safety turn off

Miele CleanCover

Model number

DA 399-7 Classic

Manufacturer material number

10558800

EAN number

4002515802199

Marketing class

Silver
