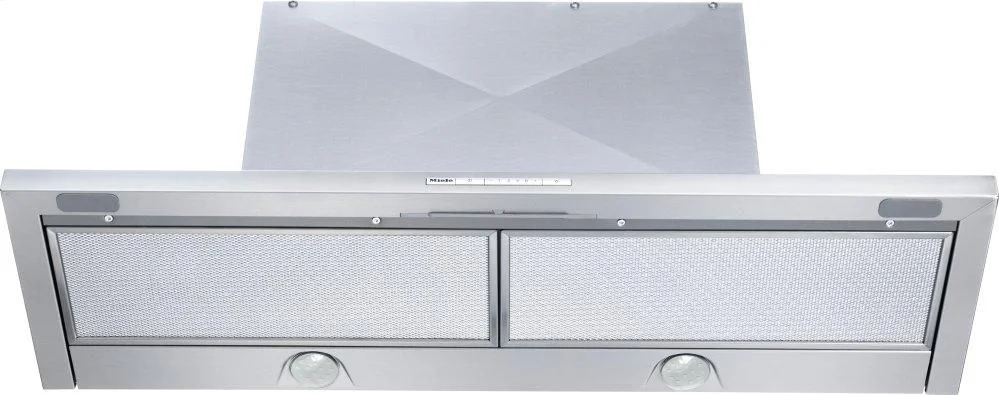

Miele 24" Ducted Hood in Stainless Steel

SKU: 10355940

MODEL: DA3496STAINLESSSTEEL

0 Questions & 0 Answers

Width: 23.50"
Height: 1.38"
Depth: 10.88"

Miele |Authorized Dealer

In Stock | Only 1 left

color: Stainless Steel

Miele DA3496STAINLESSSTEEL

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

SAFETY
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

FEATURES
Active AirClean filter

Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Miele CleanCover

Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

construction type

1 item

Built-in ventilation hood

•

operating modes

3 items

Recirculated mode

Convertible

Recirculation conversion kit (order separately)

DUU 151

OdorFree charcoal filter (order separately)

DKF13-900

design

1 item

Color

Stainless steel

control panel

5 items

Electronic controls

•

Light-touch controls

•

Power levels (number excl. Intensive)

3

Programmable Intensive switch-off

•

CleanCover

•

filter system

1 item

Number of dishwasher-safe stainless-steel grease filters

2

lighting

4 items

LED ClearView lighting

•

Number x W

2 x 3 W

Light intensity in Lx

320 lx

Color temperature in K

3000 Kelvin

blower

2 items

Dual-action blower

•

AC motor

•

extraction

1 item

Air throughput

Values upon request

safety

1 item

Safety shut-off

•

technical data

13 items

Canopy width in in. (mm)

35 1/4 (895)

Canopy height in in. (mm)

1 3/8 (34)

Depth of hood canopy in in. (mm)

10 7/8 (275)

Minimum distance above electric cooktops in in. (mm)

24 1/8 (610)

Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

32 (14.5)

Length of electrical wire in ft. (m)

4 (1.5)

Standard plug fitted

•

Total connected load in kW

0.36

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

installation notes

2 items

Vent connection at top

•

Diameter of vent connection in in. (mm)

6 (150)

optional accessories

1 item

OdorFree charcoal filter

DKF 13-900
