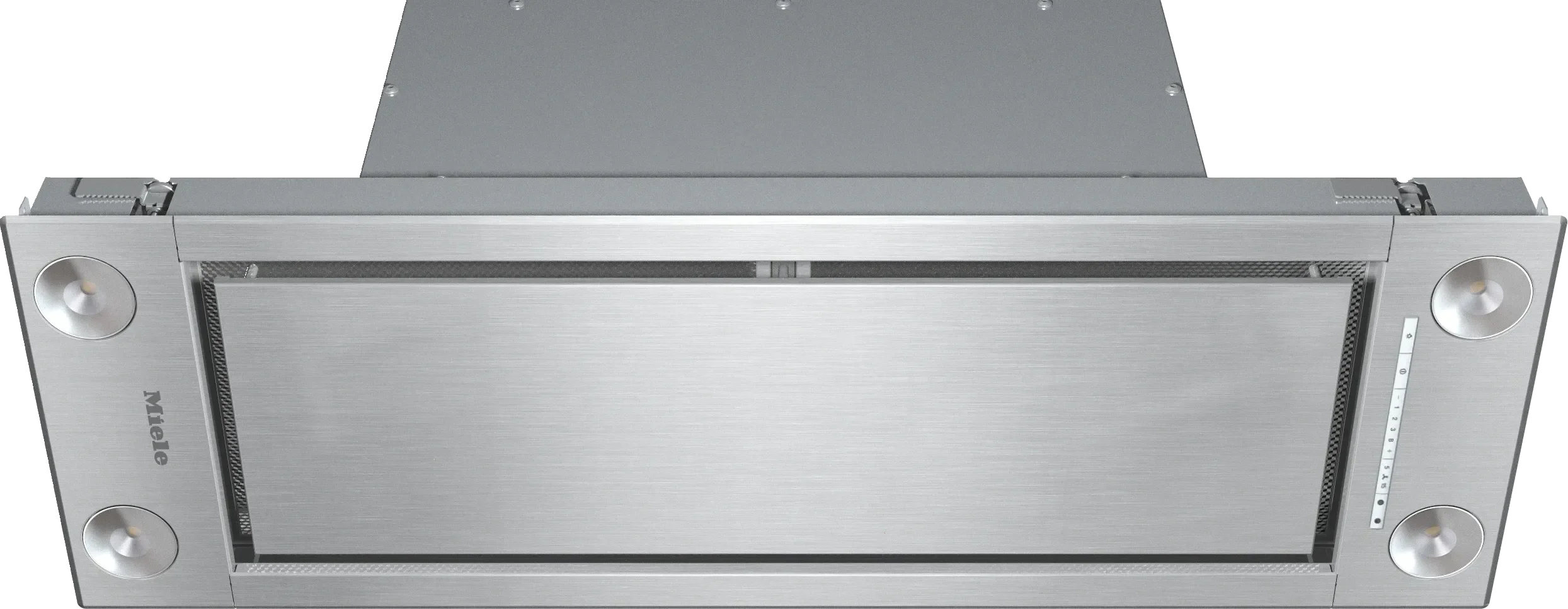

Miele DA 2698 Stainless steel - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel

Insert ventilation extractor

Yes

Color

Stainless steel

Edge extraction

Yes

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUU 151

OdorFree charcoal filter (order separately)

DKF 19-P

Miele@home

Yes

Con@ctivity

Yes

Electronic controls

Yes

Operation

Light-touch switches with LEDs

Power levels (number excl. Intensive)

3

Booster levels

1

Delayed shutdown for 5 or 15 minutes

Yes

Grease filter saturation indicator

Yes

Active charcoal filter saturation indicator

Yes

CleanCover

Yes

ECO motor (DC motor)

Yes

PowerManagement system

Yes

Easy-to-clean canopy interior - CleanCover

Yes

Number of dishwasher-safe stainless steel grease filters (10-ply)

2

Number x W

4 x 3 W

Light intensity in Lx

650 lx

Color temperature in K

3500 Kelvin

Light dimmer function

Yes

Dual-action blower

Yes

DC motor

Yes

Air throughput in CFM in Booster

483

Air throughput with Booster level 1 (m /h) according to EN 61591

482.64 (820)

Safety shut-off

Yes

Canopy width in in. (mm)

34 5/8 (880)

Canopy height in in. (mm)

2 1/2 (63)

Depth of hood canopy in in. (mm)

11 1/2 (293)

Minimum height above electric cooktops in mm

24 (610)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

31 (14.0)

Length of electrical wire in ft. (m)

4 (1.5)

Standard plug fitted

Yes

Plug type

NEMA plug: 5-15

Total connected load in kW

0.362

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

Vent connection at top

Yes

Diameter of vent connection in in. (mm)

6 (150)

Non-return flap

Yes

EAN

4002516023906

GTIN

04002516023906

EAN

4002516023906
