PRODUCT DESCRIPTION
Features
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."

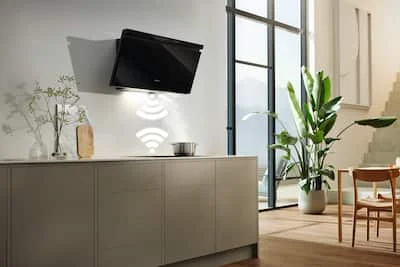

Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Specifications

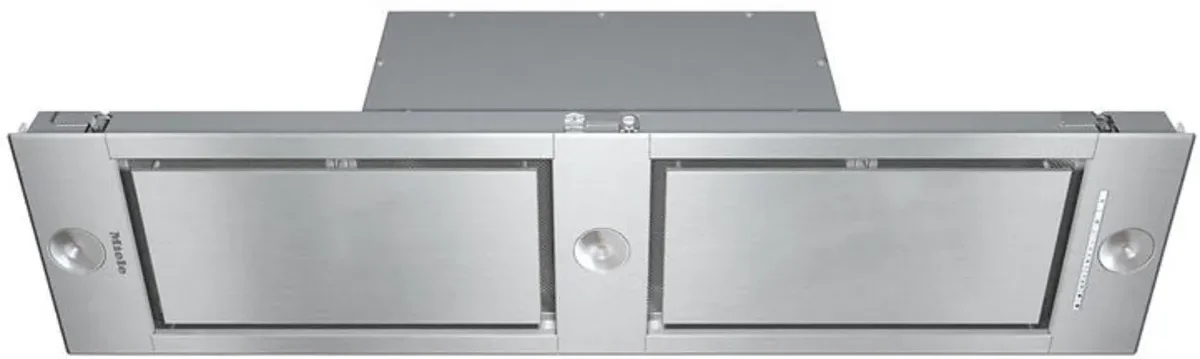

Insert ventilation extractor
Yes
Color
Stainless steel
Edge extraction
Yes
Recirculated mode
Exhaust air
Miele@home
Yes
Automatic function Con@ctivity
Yes
Electronic controls
Yes

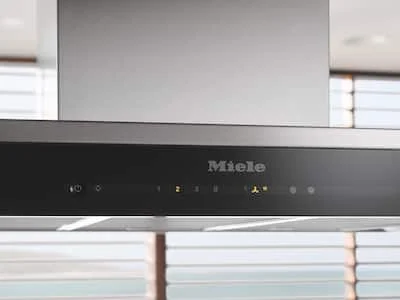

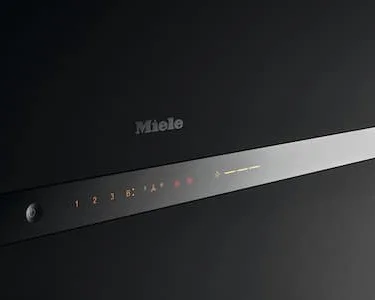

Operation
Light-touch switches with LEDs
Power levels (number excl. Intensive)
3
Booster levels
1
Delayed shutdown for 5 or 15 minutes
Yes
Grease filter saturation indicator
Yes
CleanCover
Yes
Easy-to-clean canopy interior - CleanCover
Yes
Number of dishwasher-safe stainless steel grease filters (10-ply)
4
Number x W
3 x 4,5 W
Light intensity in Lx
700 lx
Color temperature in K
3500 Kelvin
Light dimmer function
Yes
Dual-action blower
Yes
Air throughput in CFM in Booster
483
Air throughput
Values upon request
Safety shut-off
Yes
Canopy width in in. (mm)
46 1/2 (1180)
Canopy height in in. (mm)
2 1/2 (63)
Depth of hood canopy in in. (mm)
11 5/8 (293)
Minimum height above electric cooktops in mm
24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
34 (15.0)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
Yes
Total connected load in kW
0.363
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
Yes
Diameter of vent connection in in. (mm)
6 (150)
Non-return flap
Yes
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z
EAN
4002516024439
GTIN
04002516024439
EAN
4002516024439
Customized kitchen design - fully integrated in 46 1/2 (1180) in (mm) width
Unique user convenience - Con@ctivity
Energy-efficient and quiet
Elegant and efficient - edge vented panel
Manufactured with great care by Miele & Cie. KG
Safety information
Miele CleanCover
Safety turn off
Edge vented
Con@ctivity
Stainless-steel grease filters (10-layer)
filter saturation indicator
Delayed shutdown
