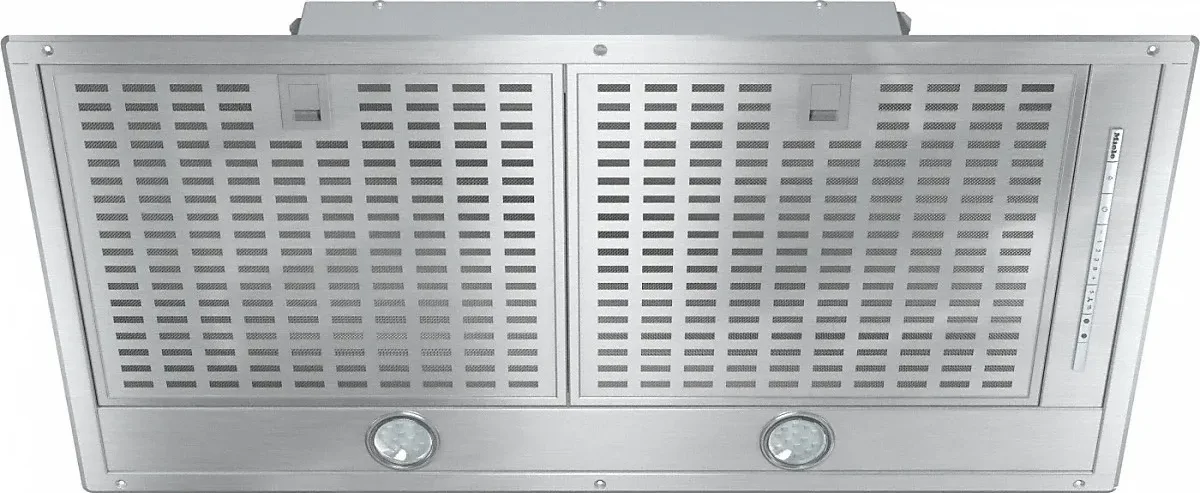

Miele DA 2588 Stainless steel - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel

Insert ventilation extractor

Yes

Color

Stainless steel

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUU 151

OdorFree charcoal filter (order separately)

DKF15-900

Miele@home

Yes

Automatic function Con@ctivity

Yes

Electronic controls

Yes

Operation

Light-touch switches with LEDs

Power levels (number excl. Intensive)

3

Booster levels

1

Delayed shutdown for 5 or 15 minutes

Yes

Grease filter saturation indicator

Yes

Active charcoal filter saturation indicator

Yes

CleanCover

Yes

Con@ctivity

Yes

Programmable Intensive switch-off

Yes

Easy-to-clean canopy interior - CleanCover

Yes

Number of dishwasher-safe stainless steel grease filters (10-ply)

2

Number x W

2 x 3 W

Light intensity in Lx

300 lx

Color temperature in K

3000 Kelvin

LED ClearView lighting

Yes

Dual-action blower

Yes

AC motor

Yes

Air throughput in CFM in Booster

500

Air throughput

Values upon request

Air throughput with Booster level 1 (m /h) according to EN 61591

500.29 (850)

Safety shut-off

Yes

Canopy width in in. (mm)

31 5/8 (802)

Canopy height in in. (mm)

2 (50)

Depth of hood canopy in in. (mm)

15 7/8 (402)

Minimum height above electric cooktops in mm

24 (610)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

27 (12.1)

Length of electrical wire in ft. (m)

2 (0.8)

Standard plug fitted

Yes

Total connected load in kW

0.356

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

Plug type

NEMA plug: 5-15

Canopy dimensions (W x H x D) in mm

31 5/8 (802) x 2 (50) x 15 7/8 (402)

Vent connection at top

Yes

Diameter of vent connection in in. (mm)

6 (150)

Non-return flap

Yes

Communication module for Con@ctivity XKM 2000 DA

XKS 3000 Z

EAN

4002516024705

GTIN

04002516024705

EAN

4002516024705

UPC

4002516024705

Customized kitchen design - fully integrated in 31 5/8 (802) in (mm) width

Unique user convenience - Con@ctivity

Powerful - 500.29 (850) ft /min (m3/h) in Booster level

Efficient filtration- 10-ply stainless steel grease filters

Safe and easy to clean - Miele CleanCover

Manufactured with great care by Miele & Cie. KG

Safety information

Miele CleanCover

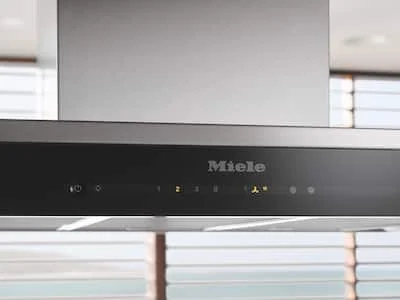

Delayed shutdown

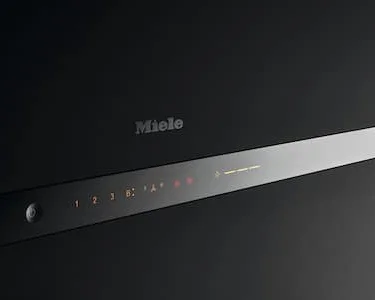

filter saturation indicator

Safety turn off

Con@ctivity

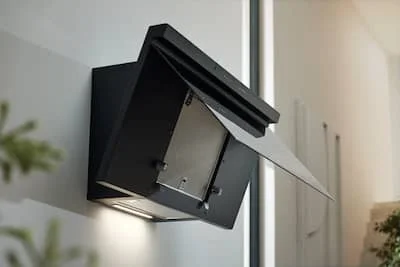

Stainless-steel grease filters (10-layer)

Model number

DA 2588

Manufacturer material number

10876770

EAN number

4002516024705

Marketing class

Gold

Alexa voice control

Yes

Google voice control

Yes

Push notifications

Yes

RemoteUpdate

Yes

Smart Home Integration

Yes
