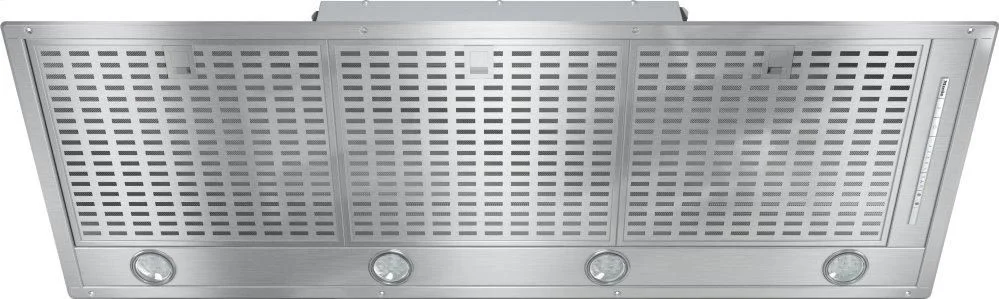

Miele 42" Hood Inserts in Stainless Steel

SKU: 10876740
MODEL: DA2518STAINLESSSTEEL
2x Points
Free 2Y Warranty
Low-cost Install
  • Width: 43.50"
  • Height: 2.00"
  • Depth: 15.88"
Miele |Authorized Dealer
In Stock|Only 6 left

color: Stainless Steel

Miele DA2518STAINLESSSTEEL

PRODUCT DESCRIPTION

USER CONVENIENCE
Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."


filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.


Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.


SAFETY
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.


FEATURES
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.


Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Specifications

design

Insert ventilation extractor
 •
Color
Stainless steel

operating modes

Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUU 151
OdorFree charcoal filter (order separately)
DKF 15-P

user convenience

Miele@home
 •
Automatic function Con@ctivity
 •
Electronic controls
 •
Operation
Light-touch switches with LEDs
Power levels (number excl. Intensive)
3
Booster levels
1
Programmable Intensive switch-off
 •
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
 •
Active charcoal filter saturation indicator
 •
CleanCover

cleaning convenience

Easy-to-clean CleanCover hood liner
 •

filter system

Number of dishwasher-safe stainless-steel grease filters
3

lighting

LED ClearView lighting
 •
Number x W
4 x 3 W
Light intensity in Lx
520 lx
Color temperature in K
3000 Kelvin

blower

Dual-action blower
 •
AC motor
 •

exhaust air

Maximum air throughput in cfm according to HVI
415
Air throughput
Values upon request
Air throughput in booster level 1 (cfm) (m /h)
500.29 (850)
Air throughput in Booster level 1 (m /min)
850

safety

Safety shut-off
 •

technical data

Canopy width in in. (mm)
43 1/2 (1102)
Canopy height in in. (mm)
2 (50)
Depth of hood canopy in in. (mm)
15 7/8 (402)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
32 (14.3)
Length of electrical wire in ft. (m)
2 (0.8)
Standard plug fitted
 •
Total connected load in kW
0.362
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1

installation note

Vent connection at top
 •
Vent connection at top and rear
 •
Diameter of vent connection in in. (mm)
6 (150)

standard accessories

Non-return flap
 •
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z

GS1

GTIN
04002516024699
EAN
4002516024699
