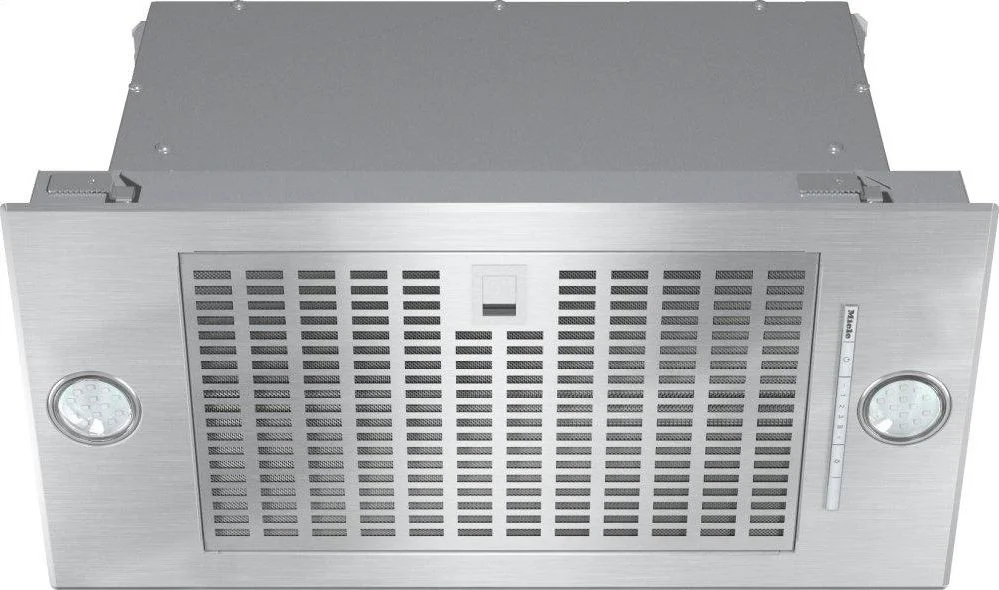

Miele DA 2360 - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use. in Stainless Steel

Name: Miele DA2360STAINLESSSTEEL DA 2360 - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Brand: Miele
SKU: DA2360STAINLESSSTEEL
Availability: InStock

SKU: 10765130

MODEL: DA2360STAINLESSSTEEL

0 Questions & 0 Answers

Miele |Authorized Dealer

In Stock | Only 19 left

color: Stainless Steel

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

SAFETY
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

FEATURES
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

design

2 items

Insert ventilation extractor

•

Color

Stainless steel

operating modes

3 items

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUU 151

OdorFree charcoal filter (order separately)

DKF 19-P

user convenience

5 items

Electronic controls

•

Operation

Light-touch switches with LEDs

Power levels (number excl. Intensive)

Booster levels

CleanCover

cleaning convenience

1 item

Easy-to-clean CleanCover hood liner

•

filter system

1 item

Number of dishwasher-safe stainless-steel grease filters

lighting

4 items

LED ClearView lighting

•

Number x W

2 x 3 W

Light intensity in Lx

350 lx

Color temperature in K

3000 Kelvin

blower

2 items

Dual-action blower

•

AC motor

•

exhaust air

3 items

Maximum air throughput in cfm according to HVI

395

Air throughput

Values upon request

Air throughput in booster level 1 (cfm) (m /h)

482.64 (820)

safety

1 item

Safety shut-off

•

technical data

13 items

Canopy width in in. (mm)

23 (584)

Canopy height in in. (mm)

2 1/2 (63)

Depth of hood canopy in in. (mm)

11 3/4 (297)

Minimum distance above electric cooktops in in. (mm)

24 1/8 (610)

Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

25 (11.0)

Length of electrical wire in ft. (m)

4 (1.5)

Standard plug fitted

•

Total connected load in kW

0.356

Voltage in V

120

Fuse rating in A

Frequency in Hz

Number of phases

installation note

3 items

Vent connection at top

•

Vent connection at top and rear

•

Diameter of vent connection in in. (mm)

6 (150)

standard accessories

1 item

Non-return flap

•

GS1

2 items

GTIN

04002515949887

EAN

4002515949887

Documents

Mounting plan PDF

PDF

Product sheet PDF

PDF

Warranty conditions PDF

PDF

Operating and Installation instructions PDF

PDF
