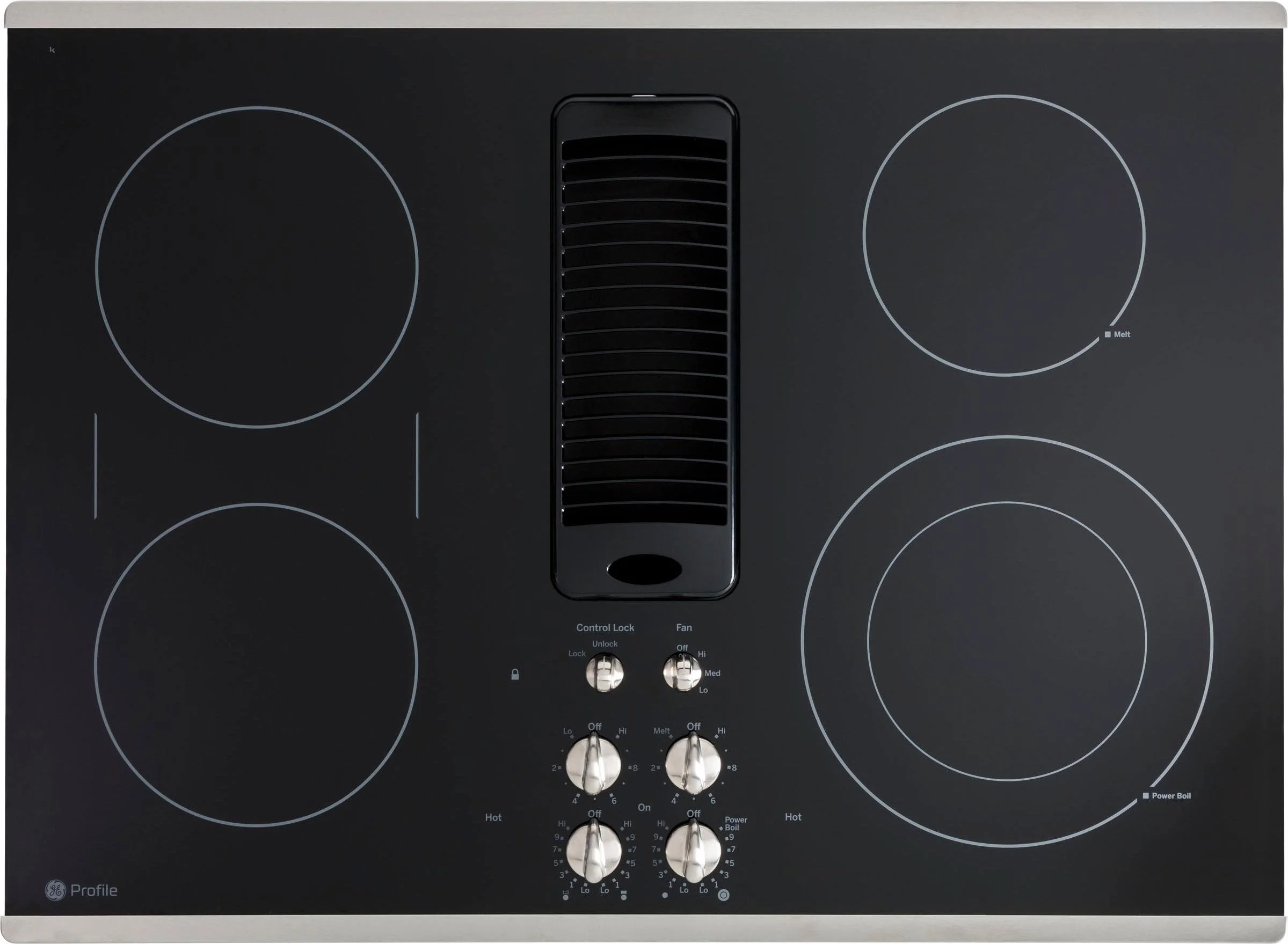

GE Profile 30" Downdraft Electric Cooktop, 4 Elements in Stainless Steel

Frame Color / Material

Stainless Steel

Color Appearance

Stainless Steel

Frameless

Yes

Parts Warranty

Limited 1-year entire appliance

Warranty Notes

See written warranty for full details

Labor Warranty

Limited 1-year entire appliance

KW Rating at 208V

6.9

Amp Rating at 240V

40

KW Rating at 240V

9.1

Electrical Requirements

208/240V ; 60Hz ; 40A

Amp Rating at 208V

40

Hertz

60

Optional Accessories

Alternate Installation Kit (WB01X24570)

Cooktop Cleaning

WX10X10020

Cooktop Size

30 in

Overall Height

21.9375 in

Cutout Depth (in)

20 5/8 in

Cabinet Width

30 in

Approximate Shipping Weight

60 lb

Overall Width

29.875 in

Net Weight

45 lb

Cutout Width (in)

28.875

Overall Depth

2.5625 in

Cutout Height (in)

2.5625

Bridge Element

800W (4400W Total)

Cooktop Burner Type

Ribbon

Fuel Type

Electric

Power Boil Burner

Yes

Element - Left Front

7" 1800W

Indicator Lights

4 Hot Surface Surface Element "ON"

Dual Ring Burners

Yes

Element - Right Front

9"/6" 3000W Power Boil

Control Location

Front Center

Cooktop Type

Radiant Smoothtop

Cooktop Surface

Black Patterned Glass Ceramic with Stainless Steel Trim

Cooktop Control Features

Control Lock Capability

Element - Left Rear

7" 1800W

Control Type

Infinite Heat Rotary

Downdraft Vent Fan Speeds

3

CFM/ Sones Rating

400/ 7.0 (High Speed)

Element - Right Rear

6" 1500W

Product Type

Cooktop

Fit Guarantee

Four radiant cooking elements

Downdraft exhaust

Control lock capability

Knob controls with black glass surface

Hot surface indicator lights

Stainless steel trim

9"/6" Power Boil element

Cooktop "On" indicator light

GTIN

00084691896951

EAN

0084691896951

UPC

084691896951

Cooktop Size

30 in

Overall Height

21.9375 in

Cutout Depth (in)

20 5/8 in

Cabinet Width

30 in

Approximate Shipping Weight

60 lb

Overall Width

29.875 in

Net Weight

45 lb

Cutout Width (in)

28.875

Overall Depth

2.5625 in
