PRODUCT DESCRIPTION
Specifications
Total Capacity (cubic feet)
6.7 cu ft
Capacity (Cu. Ft.)
2.4 Upper / 4.3 Lower
Cooktop Burner Grate Color
Matte Black
Handle
Designer Style
Installation
Flush Appearance Free-standing cut-out
Oven Door Features
Big View Oven Window
Handle Color
Stainless Steel
Control Knobs
Stainless Steel
Color Appearance
Stainless Steel
Top Burner BTU Rating - Nat. Gas (000's BTU's)
(1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0
Volts/Hertz/Amps
120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)
(1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)
7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower)
Bake/Broiler BTU Rating - LP (000's BTU's)
7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower)
Parts Warranty
Limited 1-year entire appliance
Labor Warranty
Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Air Fry Basket
Optional- JXAFTRAY1VSS
Optional Accessories
WB48X21543 Roller Rack
Center Grate
Optional - JXGRATE1
Griddle Accessory
WB31X28254 (Included) Cast Iron
LP Conversion Kit
Included
Trim Kit
JXFILLR1DD Optional
Net Weight
271 lb
Depth Without Handle
26.75 in
Height to Cooking Surface (in.)
36 1/4 +/- 1/4
Cabinet Width
30 in
Approximate Shipping Weight
291 lb
Overall Width
30 in
Overall Height
36.25 in
Height to Top of Rear Vent Trim
37.375 in
Overall Depth
29.25 in
Depth with Door Open
43.875 in
Oven Interior Dimensions (W x H x D) (in.)
24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
Ignition System
Electronic
Burner - Right Rear
9,500 BTU
Oven Interior
1 Auto Incandescent Light Gray
Oven Control Features
Audible Preheat Signal Control Lock Capability Electronic Clock & Kitchen Timer Sabbath Mode Steam Clean
Oven Rack Features
3 Oven Racks
Power Boil Burner
Yes
Burner - Left Rear
5,000 BTU Precise Simmer
Oven Cleaning Type
Steam Clean
Griddle
Cast Iron Griddle

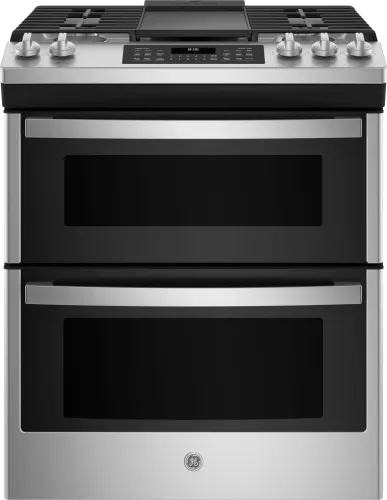

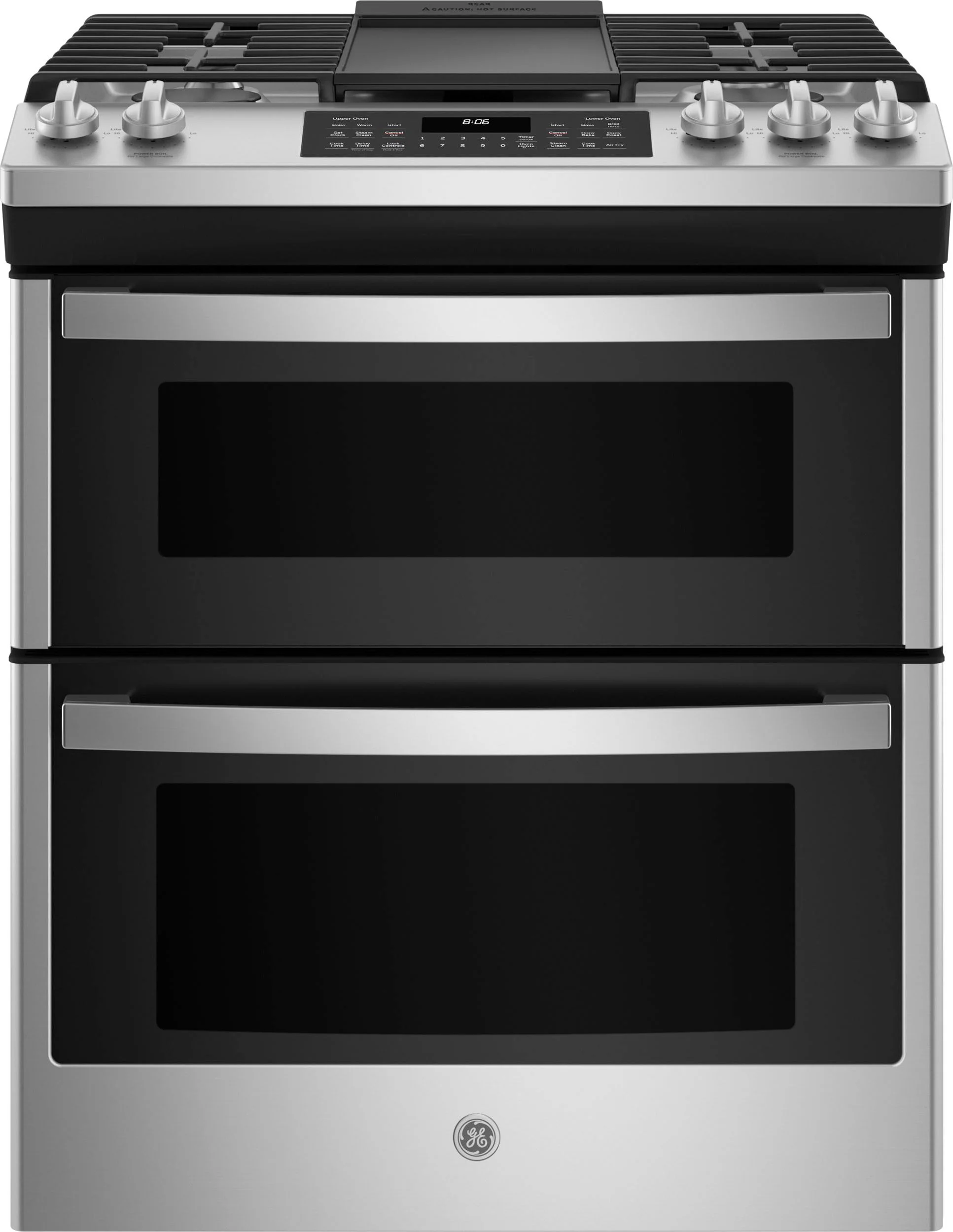

Product Type
Slide-In Double Oven
Cooktop Type
Continuous Grates
Cooktop Burner Grate Material
Heavy Cast Iron
Fuel Type
Natural Gas
Burner - Center
10,000 BTU Oval
Control Location
Front
Cooktop Burner Grate Features
Continuous Grates Dishwasher Safe
Control Type
Electronic Touch
Burner - Left Front
18,000 BTU Power Boil
Sabbath Mode
Yes
Cooking Technology
Traditional Upper; Convection Lower
Configuration
Double Oven Range
OU Certified
No
Oven Cooking Modes
No Preheat Air Fry
Cooktop Burner Type
Sealed
Grill
JXCGRILL1 Optional
Burner - Right Front
15,000 BTU
Cooktop Surface
Deep Recessed Edge-to-Edge Stainless Steel
Fit Guarantee
No-Preheat Air Fry
Edge-to-edge cooktop
Powerful burner options
Integrated griddle
Center oval burner
Steam clean
In-oven broil
Large capacity double oven
True Convection
GTIN
00084691853541
EAN
0084691853541
UPC
084691853541
Net Weight
271 lb
Depth Without Handle
26.75 in
Height to Cooking Surface (in.)
36 1/4 +/- 1/4
Cabinet Width
30 in
Approximate Shipping Weight
291 lb
Overall Width
30 in
Overall Height
36.25 in
Height to Top of Rear Vent Trim
37.375 in
Overall Depth
29.25 in
Depth with Door Open
43.875 in
Oven Interior Dimensions (W x H x D) (in.)
24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
