PRODUCT DESCRIPTION
Features
Household Size
Provide hot water for the whole family of 1 to 3 persons

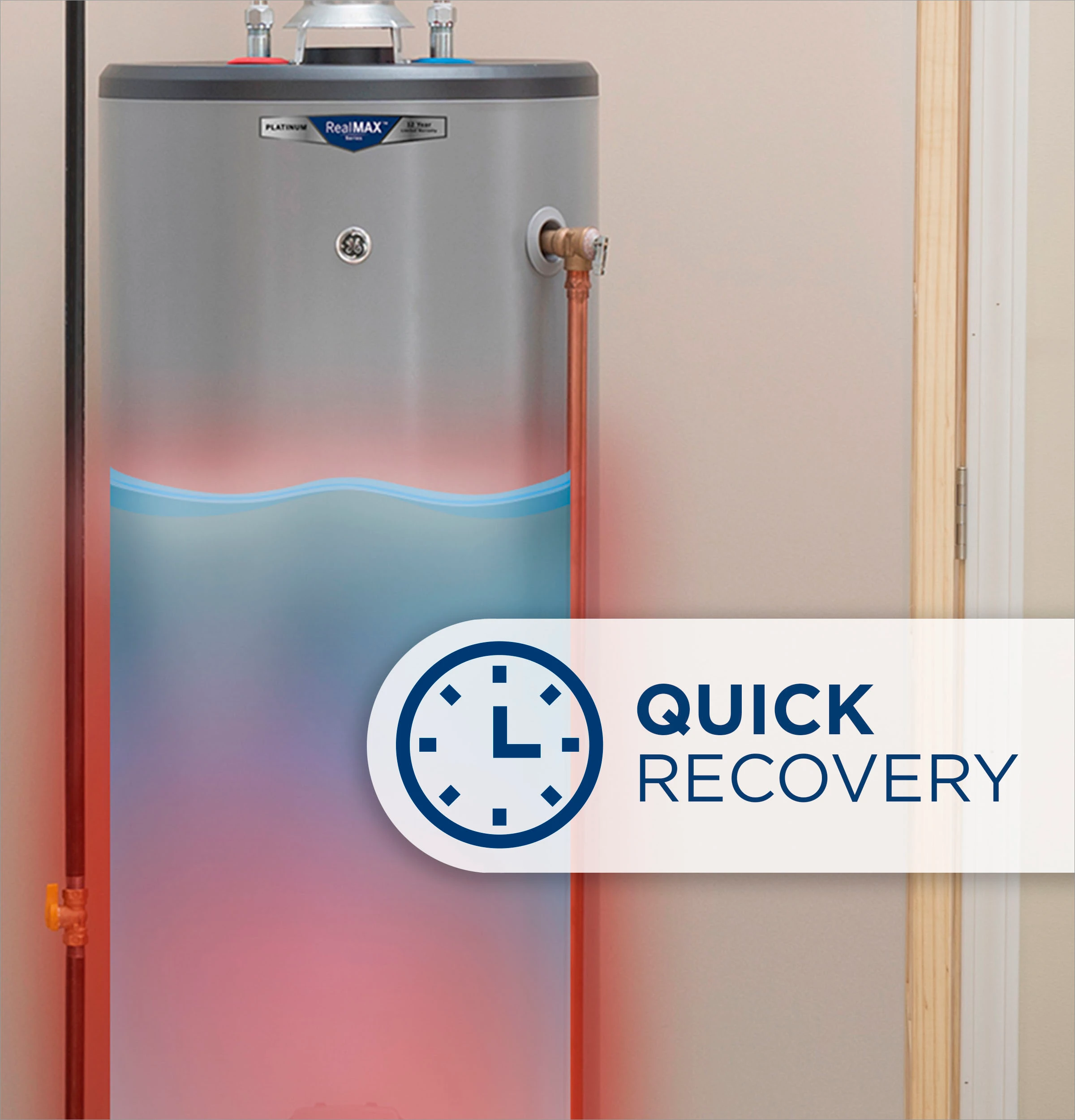

Quick Recovery
Quickly replenish hot water with a max-performance 34K burner

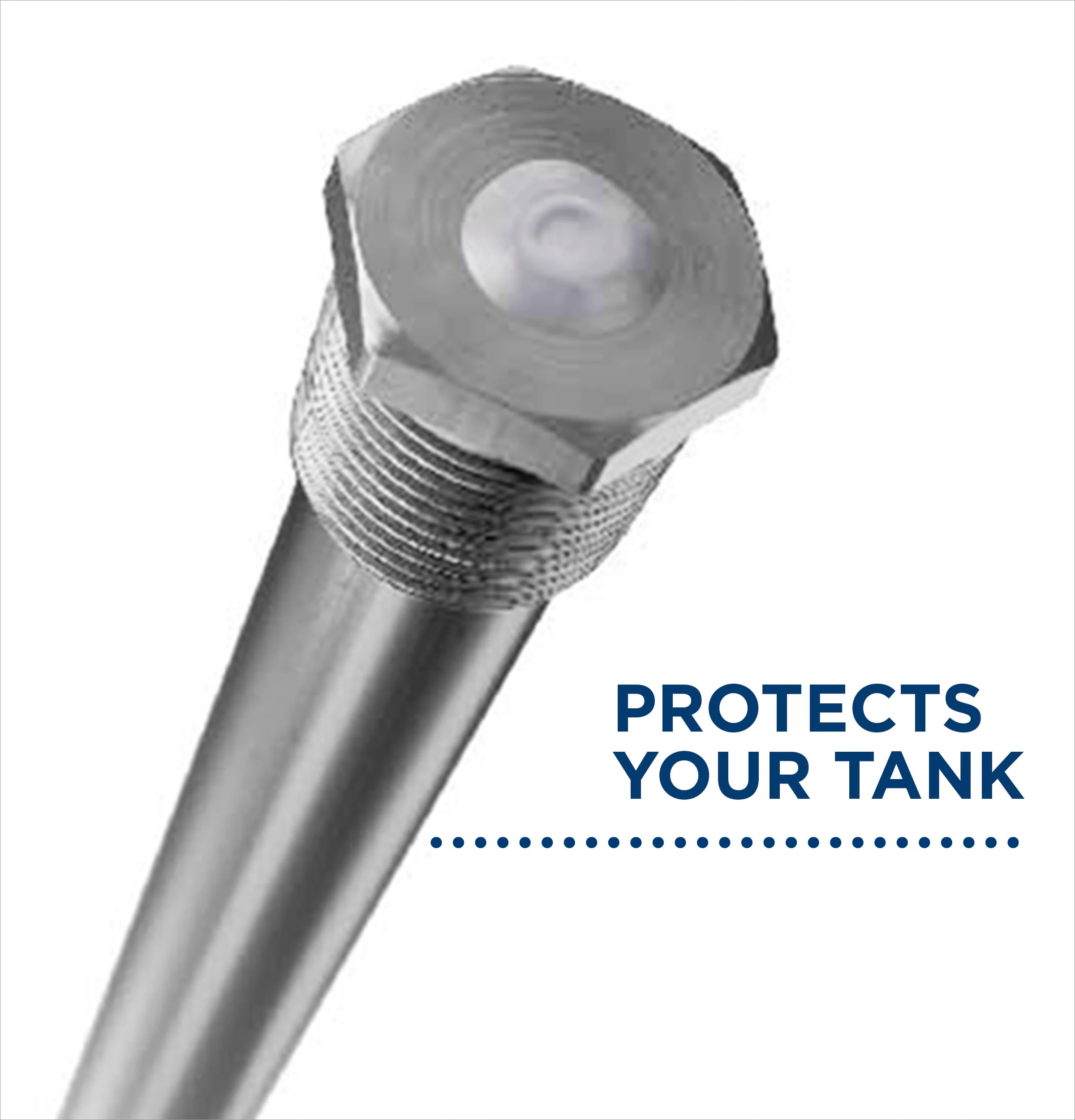

Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

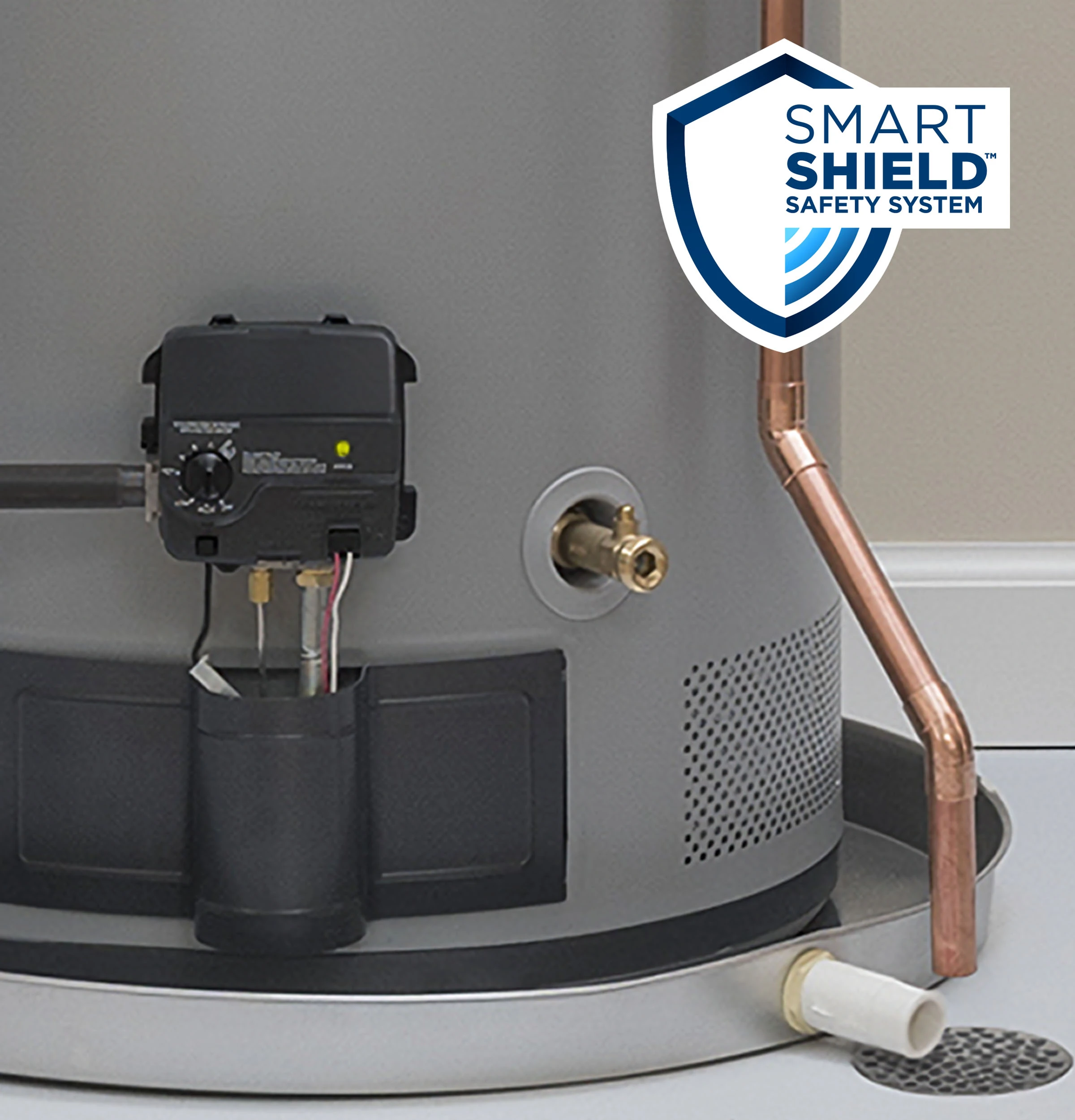

SmartShield ™ Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected

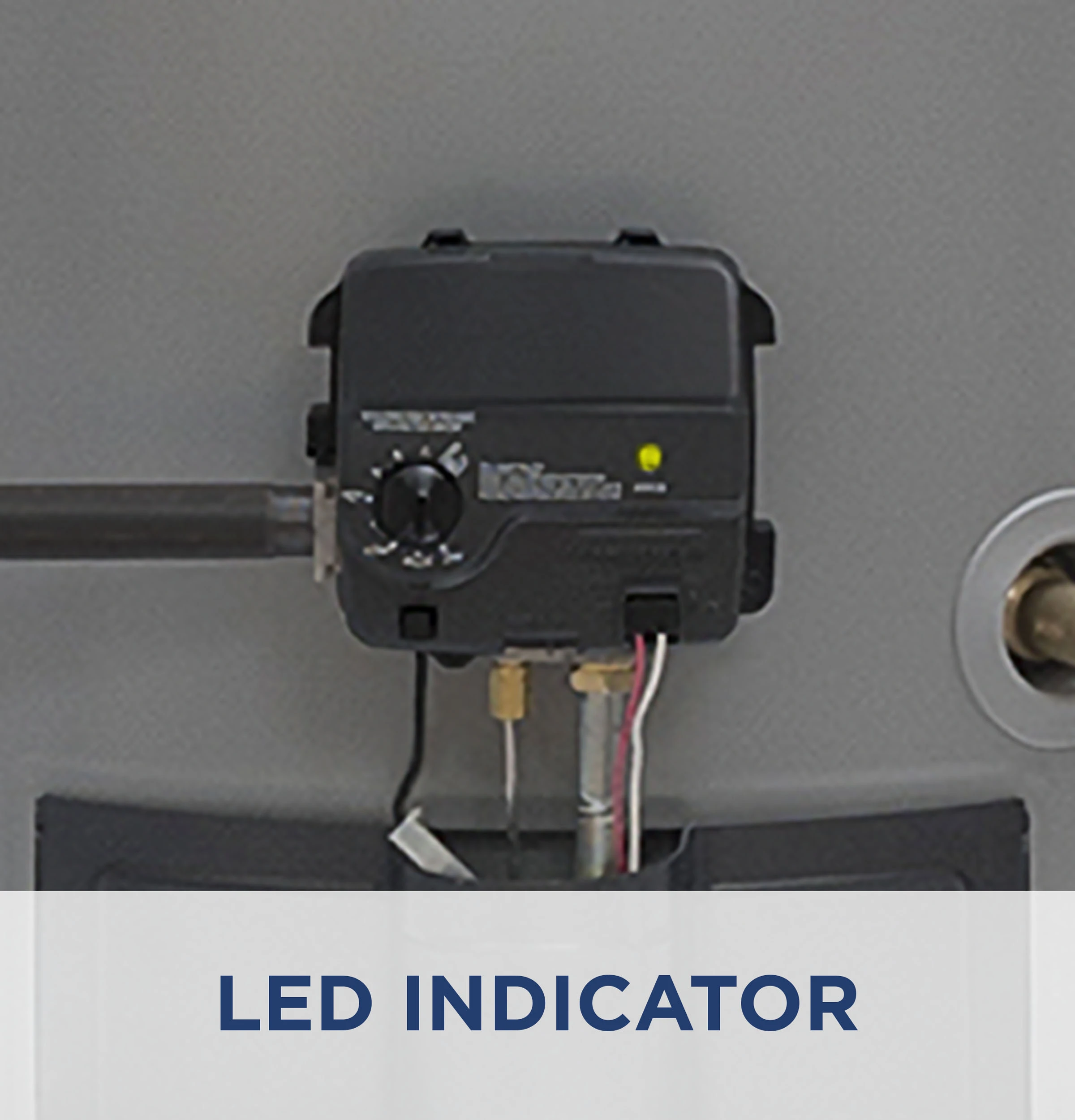

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator

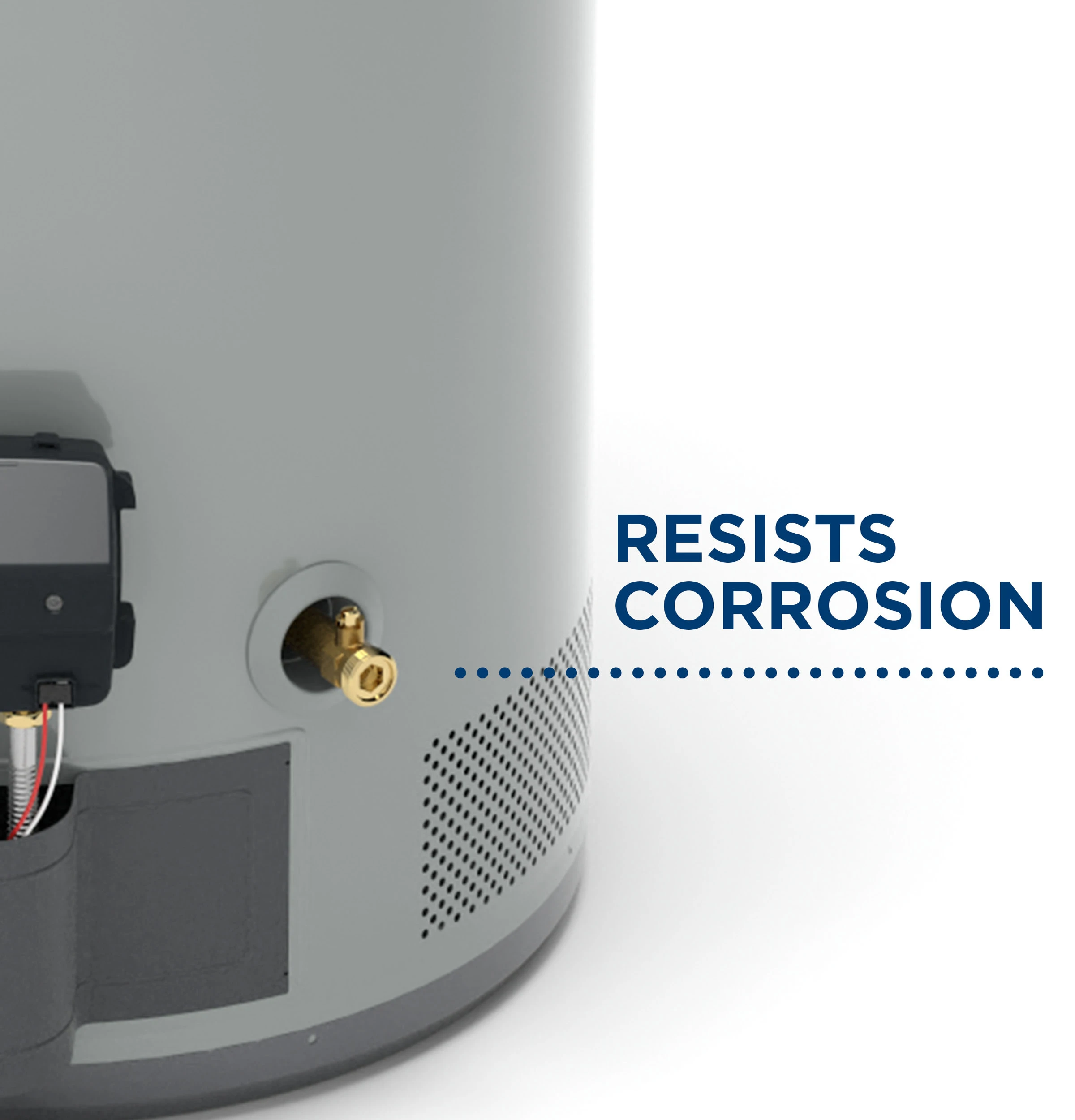

Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

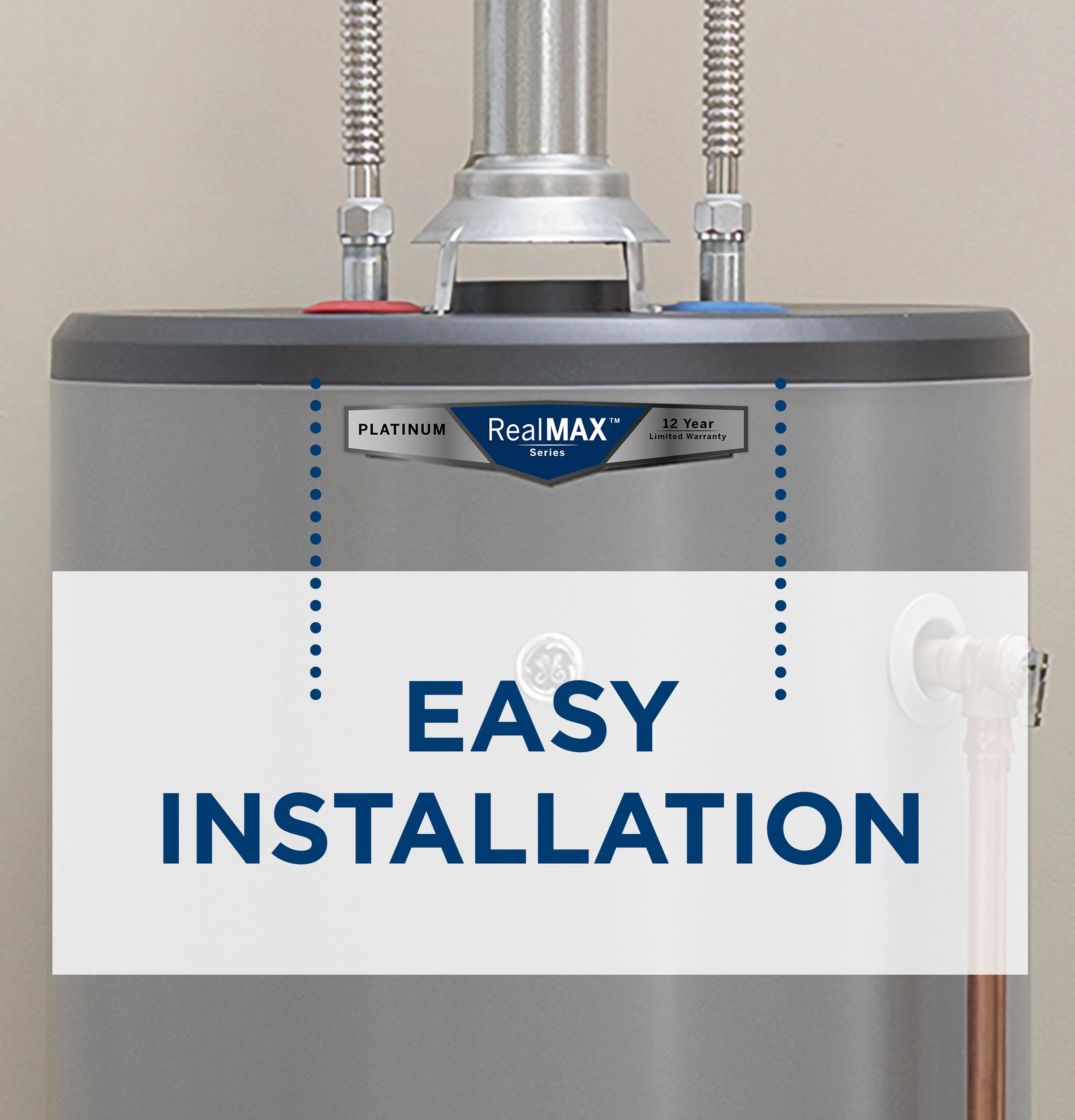

Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections

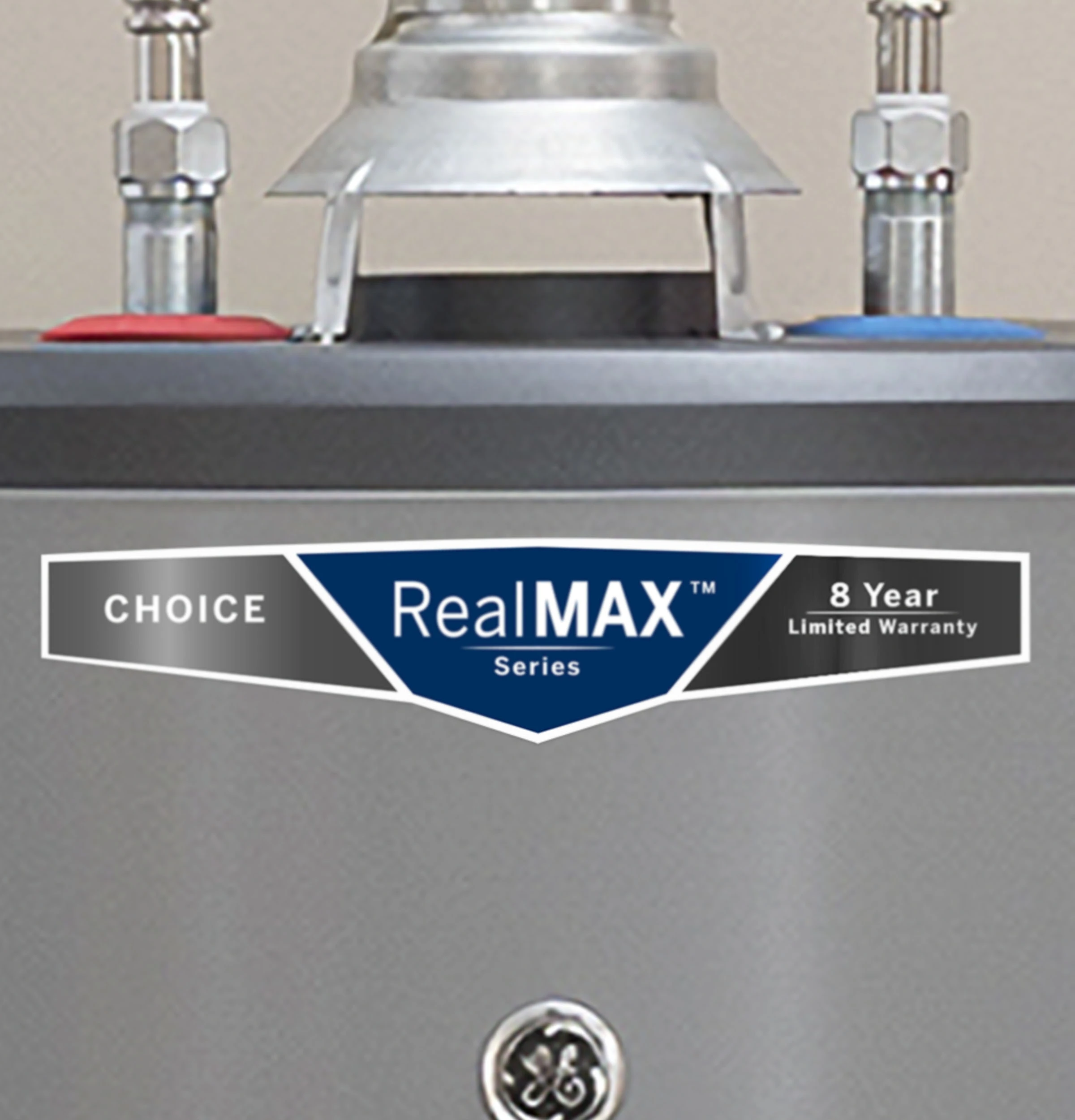

Built-To-Last Warranty
RealMAX Choice water heaters carry an 8-year tank and parts limited warranty
Specifications
Overall Width
20 in
Overall Height
50.25 in
Product Height (to top of unit)
46.875 in
Overall Depth
20 in
Product Height (to top of water inlet/outlet connections)
48.375 in
Height to Gas Control
11.25 in
Approximate Shipping Weight
118 lb
Net Weight
112 lb
Product Diameter
20 in
Vent Size
3" Type B Vent
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
FVIR Safety System
Prevents accidental ignition of flammable vapors
Vent
Atmospheric
Controls
LED Indicator
UEF
.6
Temp & Pressure Relief Valve
Yes
Height Description
Short
Fuel Type
Natural Gas
Pilot Light Window / Button
Yes
Configuration
Short
Drain Valve Type
Plastic
Product Type
Atmospheric Gas
Family Size
1-3 People
Bin Testing
Medium
Water Connection Location
Top
Overheat Protection
Dry Burning Protection
Gas Valve
Self Powered
Anode Rod
Magnesium
Temperature Setting
45-160° F Range
Altitude Rating
10,100 ft
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 8-year tank and parts
Labor Warranty
Limited 1-year entire appliance
Burner BTU Size (k)
34
Hertz
60
First Hour Delivery GPH
64 gal/h
Unit Capacity
30 Gallons
Color Appearance
Gray
Parts
8 Year
Labor
1 Year
Product Diameter
20 in
Vent Size
3" Type B Vent
Connection Sizes - Water Inlet (MNPT)
3/4"
Width
20 in.
Height
50.25 in.
Length
20 in.
Weight
112 lbs.
Number of Boxes
1
Shipping Width
25 in.
Shipping Height
55.25 in.
Shipping Length
25 in.
Shipping Weight
152 lbs.
Total of Shipping Weight
152 lbs.
Source
Calculation
Cubic Feet Measurement
11.63 ft³
Dimensional Weight
144.6 lbs.
Total of Cubes
11.63 ft³
Total of Dimensional Weight
144.6 lbs.
Household Size
Quick Recovery
Anode Rod
SmartShield ™ Safety System
Self-Diagnostic
Drain Valve
Easy Installation
Built-To-Last Warranty
UPC
084691862949
