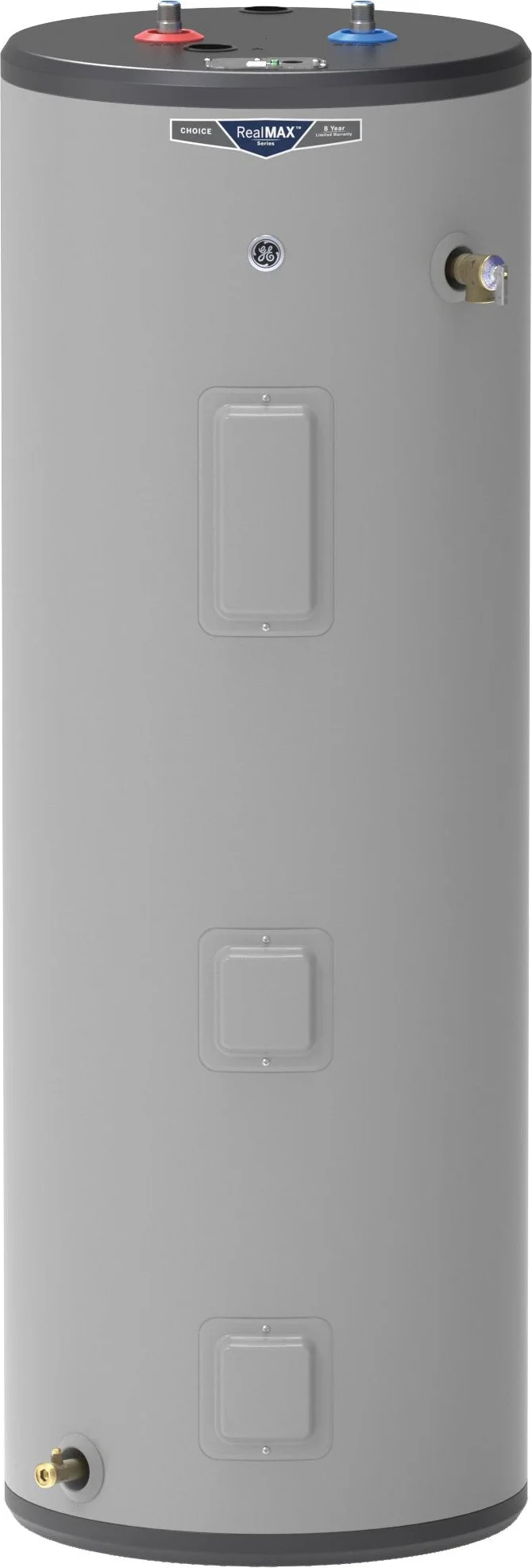

PRODUCT DESCRIPTION
Specifications
Unit Capacity
50 Gallons
Color Appearance
Gray
Integrated Energy Factor
0.93
Heating - Electric - Heater Watts
5500/5500
Electrical Connection
Direct-Wire
Operating Water Pressure
20-125 PSI
Volts/Hertz
240V; 60Hz
First Hour Rate (FHR)
76 Gallons
Voltage (MAX)
240 V
Electrical Circuit Required
208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kWh/year)
5334
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 8-year tank and parts
Labor Warranty
Limited 1-year entire appliance
Product Height (to top of water inlet/outlet connections)
63.75 in
Approximate Shipping Weight
154 lb
Overall Width
22 in
Overall Height
63.75 in
Product Height (to top of unit)
62.25 in
Net Weight
142 lb
Product Diameter
22 in
Overall Depth
22 in
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Control Type
Thermostat
Temp & Pressure Relief Valve
Yes
Height Description
Tall
Heating Element
Copper
Fuel Type
Electric
Configuration
Tall
Installation Location
Indoor
Operating Modes
Standard Electric
Rated Storage Capacity
50
Drain Valve Type
Plastic
GPH Recovery @ 90 Degrees F
25.1
Mobile Home Compatible
No
Temperature Setting Factory Default
120(degree) F
Product Type
Electric Thermostat
Family Size
3-5 People
Water Connection Location
Top
Foam Insulation
Yes
Point of Use
No
Temperature Setting
90-150(degree) F Range
Insulation Thickness
2.75 in
Real Capacity
Leading Performance
Household Size
Quick Recovery
Inlet Tube
Easy Set Up
Anode Rod
Drain Valve
Adjustable Thermostat
GTIN
00084691846062
EAN
0084691846062
UPC
084691846062
